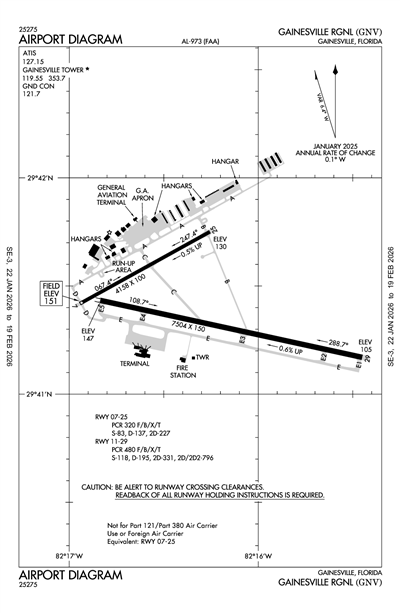

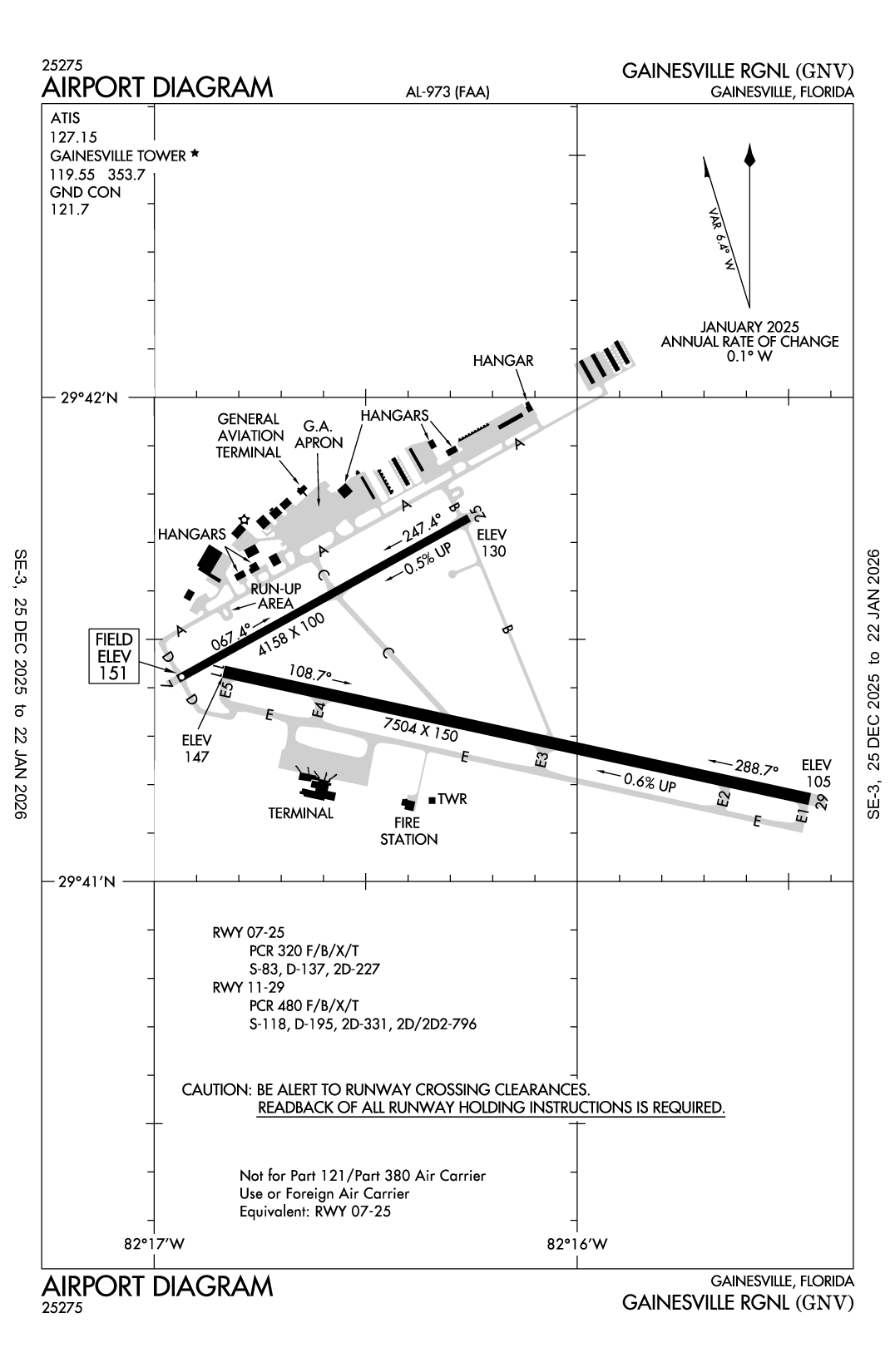

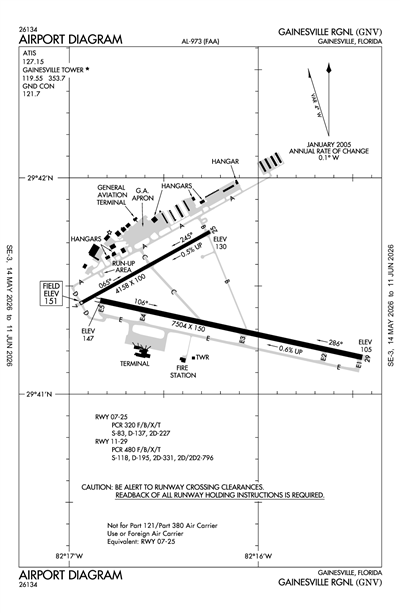

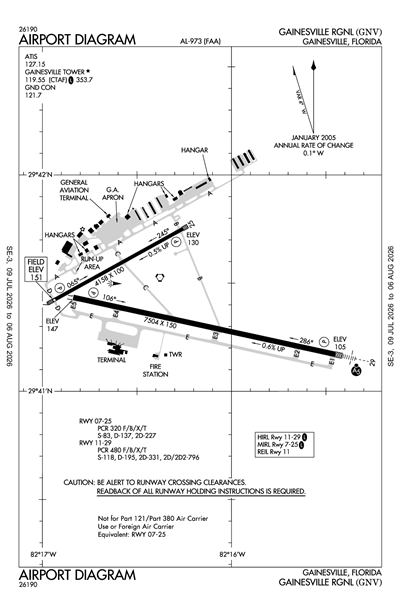

GAINESVILLE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGNV
ICAO KGNVIATA GNVLocal GNV
GAINESVILLE RGNL
PublicPUB

3 miles NE of GAINESVILLE, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 41' 24"N 82° 16' 18"W
Elevation
151' MSL
Pattern Alt
1151' MSL
Mag Variation
6°W
Declination
4°W
Fuel
JET A, 100
FSS
GAINESVILLE (GNV)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
8/6/26-9/3/26
KGNV VFR
8:53 AM EDT
Clear
10sm
78°F
73°F
30.04"Hg
210° 5kts
AO2 SLP168 T02560228
METAR KGNV 231253Z 21005KT 10SM CLR 26/23 A3004 RMK AO2 SLP168 T02560228
+ Add Your Business

KGNV FBOs

Promote Listing
University Air Center
UNICOM: 122.95
Phone: (352) 416-0795
Fax: (352) 416-0796
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 8/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.56
Full Serve 7.21 7.13 7.23
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.15
ASOS 127.15
(352) 335-8672

Common

CTAF 119.55
WHEN ATCT CLSD ACTVT MALSR RWY 29; MIRL RWY 07/25; HIRL RWY 11/29 - CTAF.
UNICOM 122.95

Ground

GAINESVILLE GROUND 121.7
0645-2230

Tower

GAINESVILLE TOWER 119.55
0645-2230

Approach

JACKSONVILLE APPROACH 118.175
10000 FT & BLW

Departure

JACKSONVILLE DEPARTURE 118.175
10000 FT & BLW

Flight Service

Flight Service 122.2

Terminal Area Forecast

KGNV
Sun, 8/23 7:32 AM EDT
Sun, 8/23 8:00 AM EDT - Mon, 8/24 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Showers in vicinity
Overcast 10,000'
Broken 5,000'
Scattered 2,500'
6sm
240° 6kts
VFR
11:00 AM EDT - 9:00 PM EDT
Thunderstorm in vicinity
Broken 10,000'
Broken 4,000'
Scattered 2,500'
6sm
240° 8kts
MVFR
12:00 PM EDT - 4:00 PM EDT
Thunderstorm and Rain
Broken 2,500'
3sm
VRB° 15kts
Gusts 25kts
VFR
9:00 PM EDT - 8:00 AM EDT
Broken 25,000'
Scattered 15,000'
Few 5,000'
6sm
220° 4kts
TAF KGNV 231132Z 2312/2412 24006KT P6SM VCSH SCT025 BKN050 OVC100
   FM231500 24008KT P6SM VCTS SCT025 BKN040CB BKN100
   PROB30 2316/2320 VRB15G25KT 3SM TSRA BKN025CB
   FM240100 22004KT P6SM FEW050 SCT150 BKN250
KGNV
EffectiveExpiresCategoryNOTAM
Domestic
8/26/26
1200Z
8/26/26
2000Z
!GNV 08/399 GNV SVC TAR/SSR U/S 2608261200-2608262000
8/25/26
1200Z
8/25/26
1600Z
!GNV 08/405 GNV COM REMOTE TRANS/REC 121.3 U/S 2608251200-2608251600
8/23/26
1100Z
8/24/26
0200Z
!GNV 08/404 GNV AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF 292943N0822437W (8.5NM NNE X60) SFC-200FT AGL 2608231100-2608240200
8/22/26
1954Z
11/20/26
2054Z
!GNV 08/423 GNV OBST TOWER LGT (ASR 1063678) 292931.60N0821730.00W (11.9NM S GNV) 374.0FT (256.9FT AGL) U/S 2608221954-2611202054
8/22/26
1501Z
8/23/26
1501Z
!GNV 08/414 GNV TWY ALL FICON WET OBS AT 2608221501. 2608221501-2608231501
8/22/26
1459Z
8/23/26
1459Z
Runway!GNV 08/413 GNV RWY 29 FICON 5/5/5 100 PCT WET OBS AT 2608221459. 2608221459-2608231459
8/22/26
1458Z
8/23/26
1458Z
Runway!GNV 08/412 GNV RWY 25 FICON 5/5/5 100 PCT WET OBS AT 2608221457. 2608221458-2608231458
8/19/26
1321Z
12/17/26
1321Z
!GNV 08/342 GNV OBST TOWER LGT (ASR 1243826) 293058.80N0820457.10W (14.1NM SE GNV) 400.9FT (319.9FT AGL) U/S 2608191321-2612171321
8/13/26
1121Z
8/28/26
1021Z
!GNV 08/223 GNV OBST TOWER LGT (ASR 1275748) 294613.70N0821205.60W (6.1NM NE GNV) 598.1FT (440.0FT AGL) U/S 2608131121-2608281021
8/8/26
1651Z
12/6/26
1651Z
!GNV 08/128 GNV OBST TOWER LGT (ASR 1222794) 293600.70N0820623.10W (10.1NM ESE GNV) 431.8FT (285.8FT AGL) U/S 2608081651-2612061651
8/7/26
1449Z
10/7/26
2359Z
!GNV 08/117 GNV OBST TOWER LGT (ASR 1033129) 293804.00N0821849.00W (4.0NM SSW GNV) 422.9FT (297.9FT AGL) U/S 2608071449-2610072359
8/4/26
1200Z
8/28/26
2000Z
Runway!GNV 07/464 GNV RWY 29 ALS U/S 2608041200-2608282000
8/2/26
0016Z
9/16/26
0016Z
!GNV 08/018 GNV OBST TOWER LGT (ASR 1307233) 293222.13N0820136.87W (15.4NM SE GNV) 366FT (260FT AGL) U/S 2608020016-2609160016
7/27/26
1720Z
9/10/26
1719Z
!GNV 07/447 GNV OBST TOWER LGT (ASR 1030853) 293524.30N0820421.60W (11.9NM ESE GNV) 500.7FT (359.9FT AGL) U/S 2607271720-2609101719
7/22/26
1706Z
10/20/26
1706Z
!GNV 07/365 GNV OBST TOWER LGT (ASR 1036390) 293902.10N0821944.10W (3.9NM SW GNV) 400.9FT (231.0FT AGL) U/S 2607221706-2610201706
7/15/26
1805Z
10/13/26
1805Z
!GNV 07/233 GNV OBST TOWER LGT (ASR 1018201) 294537.60N0820927.20W (7.4NM NE GNV) 388.8FT (253.9FT AGL) U/S 2607151805-2610131805
6/12/26
1217Z
9/10/26
1217Z
!GNV 06/207 GNV OBST TOWER LGT (ASR 1026380) 294318.50N0822146.20W (5.1NM WNW GNV) 599.7FT (404.9FT AGL) U/S 2606121217-2609101217
6/3/26
1424Z
10/1/26
1424Z
!GNV 06/053 GNV OBST TOWER LGT (ASR 1029135) 293209.90N0821916.90W (9.6NM SSW GNV) 595.1FT (500.0FT AGL) U/S 2606031424-2610011424
6/1/26
1430Z
9/1/26
2359Z
!GNV 06/011 GNV OBST TOWER LGT (ASR 1230391) 293635.40N0820157.10W (13.3NM ESE GNV) 488.2FT (310.0FT AGL) U/S 2606011430-2609012359
5/14/26
2143Z
Runway!GNV 05/250 GNV RWY 29 RAI LGT U/S 2605142143-2705282000EST
FDC
3/19/26
1730Z
!FDC 6/1149 GNV IAP GAINESVILLE RGNL, GAINESVILLE, FL.
RNAV (GPS) RWY 11, AMDT 1C...
LNAV CAT C VISIBILITY 1 3/8. DELETE NOTE DME/DME RNP-0.3 NA. PBN
REQUIREMENTS NOTE: RNP APCH - GPS. DELETE *LNAV ONLY. CHANGE CHART
VDP TO READ: CHART VDP AT 1.25 NM TO RW11. CHANGE ALTIMETER NOTE TO
READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE OCF ALTIMETER
SETTING: INCREASE LPV DA TO 541 FEET AND ALL VISIBILITIES 1/8 SM;
INCREASE LNAV/VNAV DA TO 681 FEET; INCREASE ALL MDAS 100 FEET AND
LNAV VISIBILITY CAT C 1/4 SM, LNAV VISIBILITY CAT D 1/8 SM, AND
CIRCLING VISIBILITY CATS C/D 1/2 SM. CHANGE BARO-VNAV AND VDP NA
NOTES TO READ: BARO-VNAV AND VDP NA WHEN USING OCF ALTIMETER
SETTING. CHANGE FOR UNCOMPENSATED BARO-VNAV NOTE TO READ: FOR
UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -15C OR ABOVE
54C. CHANGE VISIBILITY REDUCTION BY HELICOPTERS NOTE TO READ: RWY
11 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
THIS IS RNAV (GPS) RWY 11, AMDT 1D. 2603191730-PERM
3/19/26
1730Z
!FDC 6/1148 GNV IAP GAINESVILLE RGNL, GAINESVILLE, FL.
RNAV (GPS) RWY 7, AMDT 1B...
LNAV CAT C VISIBILITY 1 3/8. DELETE NOTE DME/DME RNP-0.3 NA. PBN
REQUIREMENTS NOTE: RNP APCH - GPS. CHANGE ALTIMETER NOTE TO READ:
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE OCF ALTIMETER
SETTING AND INCREASE ALL MDAS 100 FEET AND LNAV VISIBILITY CAT C
1/4 SM, LNAV VISIBILITY CAT D 1/8 SM, AND CIRCLING VISIBILITY CATS
C/D 1/2 SM. CHANGE VDP NA NOTE TO READ: VDP NA WHEN USING OCF
ALTIMETER SETTING. CHANGE VISIBILITY REDUCTION BY HELICOPTER NOTE
TO READ: RWY 7 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT
AUTHORIZED.
THIS IS RNAV (GPS) RWY 7, AMDT 1C. 2603191730-PERM
Yes
ALL
GAINESVILLE-ALACHUA CO AUTH
3880 NE 39TH AVE
GAINESVILLE, FL 32609
Phone: 352-373-0249
ALLAN PENKSA
3880 NE 39 AVE STE A
GAINESVILLE, FL 32609
Phone: 352-373-0249
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
GNV
--
WHEN ATCT CLSD ACTVT MALSR RWY 29; MIRL RWY 07/25; HIRL RWY 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Cargo Handling
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

4158 ft. x 100 ft.
ASPH
Fair
GRVD
MED

83,000lbs
137,000lbs
227,000lbs
--
  Runway 07 Runway 25
True Heading 61°241°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 41' 25"N 29° 41' 45"N
Longitude 82° 16' 57"W 82° 16' 15"W
Elevation 151' 130'
Threshold Crossing Height 44 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No

Runway 11/29

7504 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

118,000lbs
195,000lbs
331,000lbs
796,000lbs
  Runway 11 Runway 29
True Heading 102°282°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29° 41' 26"N 29° 41' 10"N
Longitude 82° 16' 50"W 82° 15' 27"W
Elevation 147' 105'
Threshold Crossing Height 54 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A11GAINESVILLE-ALACHUA CO REGIONAL ARPT AUTHORITY
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1WHEN ATCT CLSD ACFT MORE THAN 12500 LBS CTC FBO FOR PRKG INSTR PRIOR TO EXITING TWY A DUE TO IREG PAVEMENT STRENGTHS - 352-335-4681.
A110-10GA RAMP LMTD TO ACFT 110,000 LB OR BLW; OTHERS PPR.
A110-11BANNER TOWING NA EXC 72 HR PPR - AMGR.
A110-12ARPT SFC COND NOT MNTD BTW 2330 - 0400 DLY.
A110-13FOR CD IF UNA TO CTC ON FSS FREQ, CTC JACKSONVILLE APCH AT 904-741-0284.
A110-15RWY 11-29 MRKGS ON W END ARE NOT STD DUE TO MRKGS NOT FULLY REMOVED/GHOSTING.
A110-16TWY B LMTD TO 75,000 LB OR BLW; OTHERS PPR
A110-17TWY C LMTD TO 120,000 LB OR BLW; OTHERS PPR
A110-18TWY D LMTD TO 120,000 LB OR BLW; OTHERS PPR
A110-1924 HR PPR FOR ACFT EQUIPPED WITH WEATHER MODIFICATION OR GEOENGINEERING EQPT 352-262-6691.
A110-6PORTIONS OF RWY 07/25 & NE 1000 FT OF TWY A NOT VSB FM ATCT; BLOCKED BY VORTAC BLDG.
A110-9WILDLIFE ON & INVOF ARPT.
A26RWY 7/25 NOT AVBL FOR SKED ACR OPS WITH MORE THAN 9 PAX SEATS OR UNSKED ACR AT LEAST 31 PAX SEATS.
A30-07/25RWY 07/25 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A34-11/29STD GROOVING FULL LENGTH AND 130 FT WIDE CENTER PORTION.
A39-07/25PCR VALUE: 320/F/B/X/T
A39-11/29PCR VALUE: 480/F/B/X/T
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 29; MIRL RWY 07/25; HIRL RWY 11/29 - CTAF.
GAINESVILLE RGNL (ICAO: KGNV, IATA: GNV) is a public airport located in GAINESVILLE, FL, US.
