MIDWEST NTL AIR CENTER - Airport Diagram

KGPH

ICAO KGPHLocal GPH

MIDWEST NTL AIR CENTER

PublicPUB

1 miles N of MOSBY, MO, US

View on Map

Status

Operational

Coordinates

39° 19' 57"N 94° 18' 35"W

Elevation

777' MSL

Pattern Alt

1777' MSL

Mag Variation

1°E

Declination

3°E

Fuel

JET A (FSII), 100LL

FSS

COLUMBIA (COU)

Sectional

KANSAS CITY

ARTCC

KANSAS CITY (ZKC)

Data Effective

4/16/26-5/14/26

KGPH VFR

8:35 PM CDT RAW

Clear

Viz

10sm

Temp

63°F

Dew

46°F

Pres

29.84"Hg

Wind

Calm

RMK

AO2

METAR KGPH 250135Z AUTO 00000KT 10SM CLR 17/08 A2984 RMK AO2

Add Your Business

KGPH FBOs

Promote Listing

Apex Executive Jet Center

UNICOM: 122.7

Phone: (816) 407-3390

Other: (816) 718-0968

0 Reviews (Read | Sign In To Write)

Avfuel

As of 4/21	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.62
Full Serve	7.12		6.79

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3P	120.275
(816) 407-3399

Common

CTAF	122.7
ACTVT HIRL RY 18/36; PAPI RYS 18 & 36; REIL RYS 18 & 36 - CTAF.
UNICOM	122.7
PRVDD CLEAR APCH TO EACH RY FOR A 20:1 GLIDE SLOPE; CLEAR TRANSITIONAL SFC FOR A 7:1 SLOPE; USE STD L TFC RY 18; R TFC RY 36 & USE SAME UNICOM FREQ AS OTR ARPTS IN AREA.

Clearance

Clearance Delivery

118.2

Arrival

BRAYMER STAR	120.95
JHAWK STAR	120.95
TYGER STAR	120.95

Approach

KANSAS CITY APPROACH

118.4

Departure

KANSAS CITY DEPARTURE

118.4

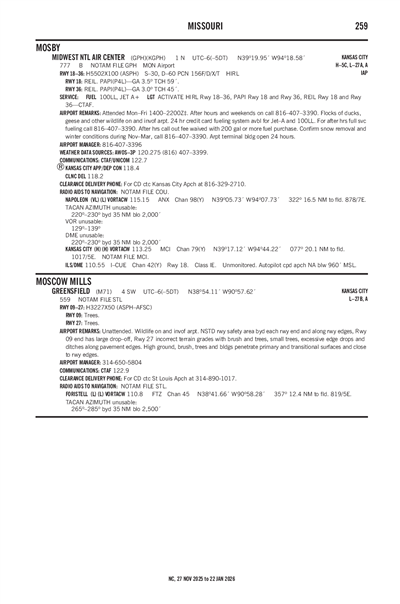

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KMKC (18nm)

RAW

Reported

Fri, 4/24 6:21 PM CDT

Valid

Fri, 4/24 7:00 PM CDT - Sat, 4/25 7:00 PM CDT

VFR

7:00 PM CDT - 1:00 AM CDT

Sky Clear

Viz

6sm

Wind

040° 8kts

VFR

1:00 AM CDT - 8:00 AM CDT

Sky Clear

Viz

6sm

Wind

VRB° 4kts

VFR

8:00 AM CDT - 7:00 PM CDT

Scattered 25,000'

Viz

6sm

Wind

110° 9kts

TAF KMKC 242321Z 2500/2524 04008KT P6SM SKC
FM250600 VRB04KT P6SM SKC
FM251300 11009KT P6SM SCT250

KGPH

Effective	Expires	NOTAM
Domestic
3/20/26 0015Z	5/4/26 0014Z	!GPH 03/008 GPH OBST TOWER LGT (ASN 2025-ACE-1931-OE) 392052N0942006W (1.5NM NW GPH) 958FT (135FT AGL) U/S 2603200015-2605040014
FDC
4/2/26 0730Z	4/30/26 0730Z	!FDC 6/7289 GPH SID MIDWEST NTL AIR CENTER, MOSBY, MO. CHIEF NINE DEPARTURE... ST JOSEPH TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CATTS TRANSITION: DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, STJ VOR OUT OF SERVICE. 2604020730-2604300730EST
4/2/26 0730Z	4/30/26 0730Z	!FDC 6/7284 GPH SID MIDWEST NTL AIR CENTER, MOSBY, MO. WILDCAT SIX DEPARTURE... DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, STJ VOR OUT OF SERVICE. 2604020730-2604300730EST

ATC Tower

Attendance

MON-FRI 0800-1600
AFTER HOURS AND WEEKENDS ON CALL 816-407-3390

Owner

CLAY COUNTY COMMISSION
1 COURTHOUSE SQUARE
LIBERTY, MO 64068
Phone: 816-407-3390

Manager

DONNA KOONTZ
13106 RHODUS RD
EXCELSIOR SPRINGS, MO 64024
Phone: 816-407-3396

FSS

COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF

NOTAM

GPH

Light Schedule

Lights

ACTVT HIRL RY 18/36; PAPI RYS 18 & 36; REIL RYS 18 & 36 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 18/36

Dimensions

5502 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

156/F/D/X/T

Single Wheel

30,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	187°	7°
Traffic Pattern		Left
Markings	PIR	NPI
Markings Condition	GOOD	GOOD
Latitude	39° 20' 24"N	39° 19' 30"N
Longitude	94° 18' 30"W	94° 18' 39"W
Elevation	777'	775'
Threshold Crossing Height	59 ft. AGL	45 ft. AGL
Visual Glide Path Angle	3.5°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	ARPT TERMINAL BLDG OPEN 24 HRS.
A110-2	CONFIRM SNOW REMOVAL AND WINTER CONDITIONS DURING NOV-MAR, CALL 816-407-3390.
A110-3	FLOCKS OF DUCKS; GEESE & OTHER WILDLIFE ON AND INVOF ARPT.
A110-4	FOR CD CTC KANSAS CITY APCH AT 816-329-2710.
A17-H1	AFTER HOURS AND WEEKENDS ON CALL 816-407-3390
A39-18/36	156 IS PCR.
A70-A+	24 HR CREDIT CARD FUELING SYSTEM AVBL FOR JET-A & 100LL. FOR AFTER HRS FULL SVC FUELING CALL 816-407-3390. AFTER HRS CALL OUT FEE WAIVED WITH 200 GAL OR MORE FUEL PURCHASE.
A81-APT	ACTVT HIRL RY 18/36; PAPI RYS 18 & 36; REIL RYS 18 & 36 - CTAF.
E111	PRVDD CLEAR APCH TO EACH RY FOR A 20:1 GLIDE SLOPE; CLEAR TRANSITIONAL SFC FOR A 7:1 SLOPE; USE STD L TFC RY 18; R TFC RY 36 & USE SAME UNICOM FREQ AS OTR ARPTS IN AREA.

MIDWEST NTL AIR CENTER (ICAO: KGPH, IATA: GPH) is a public airport located in MOSBY, MO, US.
