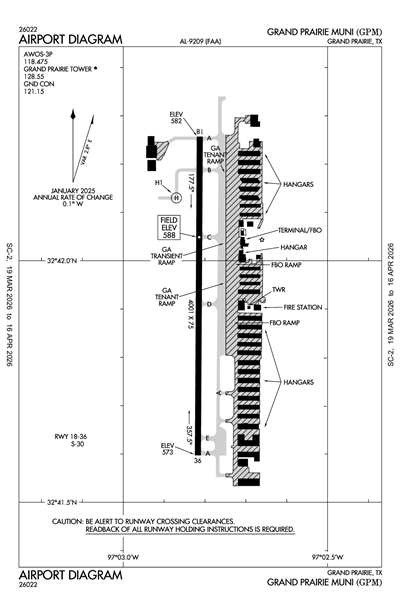

GRAND PRAIRIE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGPM
ICAO KGPMLocal GPM
GRAND PRAIRIE MUNI
PublicPUB

4 miles SW of GRAND PRAIRIE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 41' 56"N 97° 02' 49"W
Elevation
590' MSL
Pattern Alt
1202' MSL
Mag Variation
3°E
Declination
3°E
Fuel
JET A, 100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
7/9/26-8/6/26
KGPM VFR
8:35 PM CDT
Overcast 9,000'
Scattered 7,500'
Scattered 4,100'
10sm
83°F
70°F
30.08"Hg
150° 6kts
AO2 T02810211
METAR KGPM 140135Z AUTO 15006KT 10SM SCT041 SCT075 OVC090 28/21 A3008 RMK AO2 T02810211
+ Add Your Business

KGPM FBOs

Spartan Flight Academy
UNICOM: 122.8
Phone: (972) 988-8609
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 7/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.39 6.42 6.47
Fuel Notes
Prices include tax
Promote Listing
Grand Prairie Municipal Airport
UNICOM: 122.8
Phone: (972) 237-7591
Other: (972) 237-7592
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 7/7
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.99 5.83
Full Serve
Fuel Notes
Prices include tax
JET A is not premixed with Prist (FSII).
Fuel Hours
Self serve fuel pumps available 24 hours

KGPM Aircraft Service & Maintenance

Promote Listing
Radio Technik LLC
Phone: (817) 690-4954
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.475
(972) 606-1433

Common

CTAF 128.55
MIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST & ACTVT REIL RWY 36 AFT ATCT CLSD - CTAF.
UNICOM 123.075

Ground

GRAND PRAIRIE GROUND 121.15
0700-2100 DALGT TIME; 0800-1800 STANDARD TIME

Tower

GRAND PRAIRIE TOWER 128.55
0700-2100 DALGT TIME; 0800-1800 STANDARD TIME

Arrival

DODJE STAR 125.2
DODJE STAR 125.9
LIKES STAR 125.8
SOUTH
LIKES STAR 135.975
NORTH
MOTZA STAR 118.1
SOUTH
MOTZA STAR 125.8
NORTH
REEKO STAR 125.2
SASIE STAR 124.3
SWVAY STAR 135.975
TRUUK RNAV STAR 124.3
WESAT STAR 118.1
SOUTH
WESAT STAR 125.8
NORTH

Approach

LONE STAR APPROACH 135.975

Departure

BOTCH DP 135.975
DALLAS AREA DP 135.975
GARLAND DP 135.975
JOE POOL DP 135.975
LONE STAR DEPARTURE 135.975
NANDR RNAV DP 135.975

Terminal Area Forecast

KGKY (3nm)
Mon, 7/13 7:40 PM CDT
Mon, 7/13 8:00 PM CDT - Tue, 7/14 7:00 PM CDT
VFR
8:00 PM CDT - 9:00 PM CDT
Thunderstorm in vicinity
Broken 7,000'
Scattered 4,500'
6sm
120° 10kts
VFR
9:00 PM CDT - 5:00 AM CDT
Scattered 12,000'
Few 6,000'
6sm
100° 6kts
MVFR
5:00 AM CDT - 10:00 AM CDT
Mist
Broken 1,000'
5sm
090° 4kts
VFR
10:00 AM CDT - 7:00 PM CDT
Scattered 4,000'
6sm
120° 8kts
VFR
3:00 PM CDT - 7:00 PM CDT
Light Showers and Rain
No Clouds
N/A
Calm
TAF KGKY 140040Z 1401/1424 12010KT P6SM VCTS SCT045CB BKN070
   FM140200 10006KT P6SM FEW060 SCT120
   FM141000 09004KT 5SM BR BKN010
   FM141500 12008KT P6SM SCT040
   PROB30 1420/1424 -SHRA
KGPM
EffectiveExpiresCategoryNOTAM
Domestic
7/14/26
1600Z
7/15/26
0100Z
!GPM 07/004 GPM AIRSPACE SEE FDC 6/4580 ZFW 99.7 SECURITY 2607141600-2607150100
6/30/26
2130Z
Runway!GPM 06/016 GPM RWY 18/36 WIP GRASS CUTTING ADJ ORANGE ROBOTIC MOWERS 2606302130-PERM
6/25/26
0602Z
8/9/26
0601Z
!GPM 06/015 GPM OBST TOWER LGT (ASR 1044867) 324422.70N0970643.50W (4.1NM NW GPM) 1049.9FT (423.2FT AGL) U/S 2606250602-2608090601
6/22/26
1259Z
9/20/26
1259Z
!GPM 06/013 GPM OBST TOWER LGT (ASR 1048920) 324147.80N0970341.00W (0.7NM W GPM) 735.2FT (137.1FT AGL) U/S 2606221259-2609201259
6/10/26
0900Z
7/16/26
0459Z
!GPM 06/008 GPM AIRSPACE UAS WI AN AREA DEFINED AS 0.2NM RADIUS OF 324507N0970511W (3.8NM NW GPM) SFC-400FT AGL DLY 0900-0459 2606100900-2607160459
6/8/26
1217Z
7/19/26
2359Z
!GPM 06/005 GPM SVC TFC MANAGEMENT PROGRAM ALERT SEE DOMESTIC NOTICES FIFA WORLD CUP 2026 RESERVATION REQUIRED 2606081217-2607192359
3/15/26
0000Z
3/14/27
2359Z
!GPM 03/010 GPM AIRSPACE SEE TTT 03/399 UAS DLY 0000-2359
2603150000-2703142359
11/3/25
2300Z
11/3/26
1100Z
!GPM 11/001 GPM AIRSPACE HIGH INTST FOUR BEAM SEARCH LGT WI AN AREA DEFINED AS .25NM RADIUS OF 324516N0970505W (3.5NM NW GPM) SFC-1500FT AGL DLY 2300-1100 2511032300-2611031100
FDC
7/14/26
1400Z
7/21/26
2105Z
!FDC 6/5350 GPM SID GRAND PRAIRIE MUNI, GRAND PRAIRIE, TX.
WORTH ONE DEPARTURE...
CORONA TRANSITION,LUBBOCK TRANSITION,TEXICO TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LBB VORTAC OUT OF SERVICE. 2607141400-2607212105EST
7/14/26
1400Z
7/21/26
2105Z
!FDC 6/5338 GPM SID GRAND PRAIRIE MUNI, GRAND PRAIRIE, TX.
KINGDOM FIVE DEPARTURE...
LUBBOCK TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LBB VORTAC OUT OF SERVICE. 2607141400-2607212105EST
7/10/26
1643Z
!FDC 6/4791 GPM SID GRAND PRAIRIE MUNI, GRAND PRAIRIE, TX.
KINGDOM FIVE DEPARTURE...
LUBBOCK TRANSITION, MILLSAP TRANSITION, WICHITA FALLS TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2607101643-2702191643EST
7/10/26
1643Z
!FDC 6/4778 GPM SID GRAND PRAIRIE MUNI, GRAND PRAIRIE, TX.
WORTH ONE DEPARTURE...
ABILENE TRANSITION, CORONA TRANSITION, LUBBOCK TRANSITION, TEXICO TRANSITION: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2607101643-2702191643EST
7/10/26
1643Z
!FDC 6/4766 GPM SID GRAND PRAIRIE MUNI, GRAND PRAIRIE, TX.
WORTH ONE DEPARTURE...
ABILENE TRANSITION, CORONA TRANSITION, LUBBOCK TRANSITION, TEXICO TRANSITION: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2607101643-2702191643EST
7/10/26
1621Z
9/30/26
1621Z
!FDC 6/4706 GPM SID GRAND PRAIRIE MUNI, GRAND PRAIRIE, TX.
TEXOMA FIVE DEPARTURE ...
OKMULGEE TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, OKM VOR OUT OF SERVICE. 2607101621-2609301621EST
6/22/26
1633Z
!FDC 6/9776 GPM IAP GRAND PRAIRIE MUNI, GRAND PRAIRIE, TX. RNAV (GPS) RWY 36, AMDT 1... VOR RWY 36, AMDT 2... CIRCLING CAT A MDA 1260/HAA 670. TEMPORARY CRANE, 902 MSL, 2108FT NW OF KGPM AIRPORT (2025-ASW-8720-OE). 2606221633-2702011633EST
6/1/26
1609Z
1/11/27
1609Z
!FDC 6/4598 GPM SID GRAND PRAIRIE MUNI, GRAND PRAIRIE, TX.
WORTH ONE DEPARTURE...
CORONA TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CNX VORTAC OUT OF SERVICE. 2606011609-2701111609EST
Yes
MARCH-OCTOBER MON-SAT 0800-2000
NOVEMBER-FEBRUARY MON-SAT 0800-2000
SUN 0800-1900
CITY OF GRAND PRAIRIE
300 W MAIN STREET P.O. BOX 534045
GRAND PRAIRIE, TX 75053
Phone: 972-237-8015
MARK DIVITA
3116 S GT SOUTHWEST PKWY
GRAND PRAIRIE, TX 75052
Phone: 972-237-7591
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
GPM
--
MIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST & ACTVT REIL RWY 36 AFT ATCT CLSD - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 18/36

4001 ft. x 75 ft.
CONC
Good
NONE
MED

30,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 42' 15"N 32° 41' 36"N
Longitude 97° 02' 49"W 97° 02' 49"W
Elevation 582' 573'
Threshold Crossing Height 26 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway H1

50 ft. x 50 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 32° 42' 08"N N/A
Longitude 97° 02' 52"W N/A
Elevation 590' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1EXTSV HEL TFC WEST SIDE OF ARPT.
A110-2FOR CD WHEN ATCT IS CLSD CTC LONE STAR APCH AT 972-615-2799.
A110-3WEST GRASS FOR ROTARY WING USE ONLY.
A110-4NO ADS-B BILLING OR LDG FEES. GA TSNT RAMP FREE FOR SHORT TERM ONLY.
A110-5165 FT. WATER TWR, 1/4 MILE WEST OF RWY
A81-APTMIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST & ACTVT REIL RWY 36 AFT ATCT CLSD - CTAF.
E147TPA: 812 FT AGL FIXED WING, 612 FT AGL ROTARY WING.
GRAND PRAIRIE MUNI (ICAO: KGPM, IATA: GPM) is a public airport located in GRAND PRAIRIE, TX, US.
