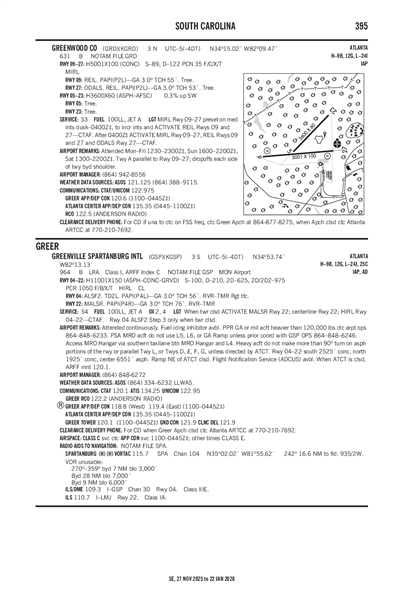

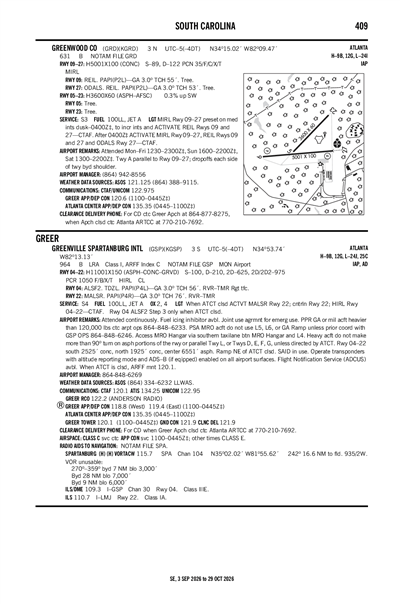

GREENWOOD COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGRD
GREENWOOD COUNTY
PublicPUB

3 miles N of GREENWOOD, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 15' 01"N 82° 09' 28"W
631' MSL
1631' MSL
07W
Jet A, 100LL
ANDERSON (AND)
ATLANTA
ATLANTA (ZTL)
11/30/23-12/28/23
KGRD VFR
11:56 AM EST
Broken 6,000'
Scattered 1,700'
10sm
67°F
63°F
29.89"Hg
240° 11kts
AO2 SLP116 T01940172
KGRD 031656Z AUTO 24011KT 10SM SCT017 BKN060 19/17 A2989 RMK AO2 SLP116 T01940172
List Your Business

KGRD FBOs, Flight Schools and Ground Support

Promote Listing
Aeronautical Services of Greenwood
Freq: 122.975
Phone: (864) 942-9634
Other: (864) 910-2944
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 11/28
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.39 5.99

KGRD Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGRD Hotels

No hotels are listed for this airport.

KGRD Restaurants

No restaurants are listed for this airport.

KGRD Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.975 122.975

ASOS

ASOS
864-388-9115
 121.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAND (31nm)
Sun, 12/3 11:42 AM EST
Sun, 12/3 12:00 PM EST - Mon, 12/4 7:00 AM EST
VFR
12:00 PM EST - 1:00 PM EST
Broken 22,000'
Few 7,000'
6sm
250° 11kts
Gusts 19kts
VFR
1:00 PM EST - 5:00 PM EST
Overcast 22,000'
6sm
270° 12kts
Gusts 20kts
VFR
5:00 PM EST - 10:00 PM EST
Broken 25,000'
6sm
250° 11kts
VFR
10:00 PM EST - 7:00 AM EST
Scattered 24,000'
6sm
270° 8kts
KAND 031642Z 0317/0412 25011G19KT P6SM FEW070 BKN220
   FM031800 27012G20KT P6SM OVC220
   FM032200 25011KT P6SM BKN250
   FM040300 27008KT P6SM SCT240
KGRD
Domestic
11/27/231439Z !GRD 11/024 GRD OBST TOWER LGT (ASR 1045340) 342246.00N0821646.00W (9.7NM NW GRD) 1046.3FT (367.1FT AGL) U/S 2311271439-2312282359
11/27/230400Z !GRD 11/023 GRD OBST TOWER LGT (ASR 1307121) 341954.79N0822057.51W (10.6NM WNW GRD) 950FT (249FT AGL) U/S 2311270400-2312272300
11/23/232139Z !GRD 11/020 GRD OBST TOWER LGT (ASN 2012-ASO-9317-OE) 340947N0820715W (5.5NM SSE GRD) 858FT (255FT AGL) U/S 2311232139-2312230001
11/22/230653Z !GRD 11/017 GRD OBST TOWER LGT (ASR 1057834) 342251.70N0821322.30W (8.4NM NNW GRD) 836.6FT (259.8FT AGL) U/S 2311220653-2312070553
10/24/231655Z !GRD 10/022 GRD OBST TOWER LGT (ASR 1047408) 341728.50N0820242.30W (6.2NM ENE GRD) 921.9FT (372.0FT AGL) U/S 2310241655-2401220400
10/13/230623Z !GRD 10/012 GRD OBST TOWER LGT (ASR 1242915) 341850.20N0822228.70W (11.3NM WNW GRD) 980.0FT (308.1FT AGL) U/S 2310130623-2401110400
10/2/231940Z !GRD 10/004 GRD OBST TOWER LGT (ASR 1000369) 341120.00N0821836.00W (8.5NM WSW GRD) 799.9FT (274.9FT AGL) U/S 2310021940-2312310400
8/6/231258Z !GRD 08/005 GRD OBST TOWER LGT (ASR 1244221) 341124.80N0821616.20W (6.8NM WSW GRD) 870.7FT (294.9FT AGL) U/S 2308061258-2312052359
No
MON-FRI 0730-1800
SUN 1100-1700
SAT 0800-1700
GREENWOOD COUNTY
600 MONUMENT STREET
GREENWOOD, SC 29646
Phone: 864-942-8502
RETT TEMPLETON
528 MONUMENT STREET, ROOM B-03
GREENWOOD, SC 29649
Phone: (864) 942-8556
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
GRD
--
MIRL RY 09/27 PRESET ON MED INTST DUSK-2300; TO INCR INTST & ACTVT REIL RYS 09 & 27 - CTAF. AFTER 2300, ACTVT MIRL RY 09/27, REIL RYS 09 & 27 AND ODALS RY 27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
48
5
0
0
0
0
Major
Minor
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

3600 ft. x 60 ft.
ASPH
Fair
AFSC


--
--
--
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 14' 57"N 34° 15' 23"N
Longitude 82° 09' 37"W 82° 09' 07"W
Elevation 628' 618'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

5001 ft. x 100 ft.
CONC
Excellent
NONE
MED
35 /F/C/X/T
89,000lbs
122,000lbs
--
--
  Runway 09 Runway 27
True Heading 85°265°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 14' 53"N 34° 14' 58"N
Longitude 82° 10' 02"W 82° 09' 03"W
Elevation 629' 620'
Threshold Crossing Height 55 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights ODALS
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-2TWY A PARALLEL TO RY 09/27; DROPOFFS EACH SIDE OF TWY BEYOND SHOULDER.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC GREER APCH AT 864-877-8275, WHEN APCH CLSD CTC ATLANTA ARTCC AT 770-210-7692.
GREENWOOD COUNTY (ICAO: KGRD, IATA: GRD) is a public airport located in GREENWOOD, SC.
