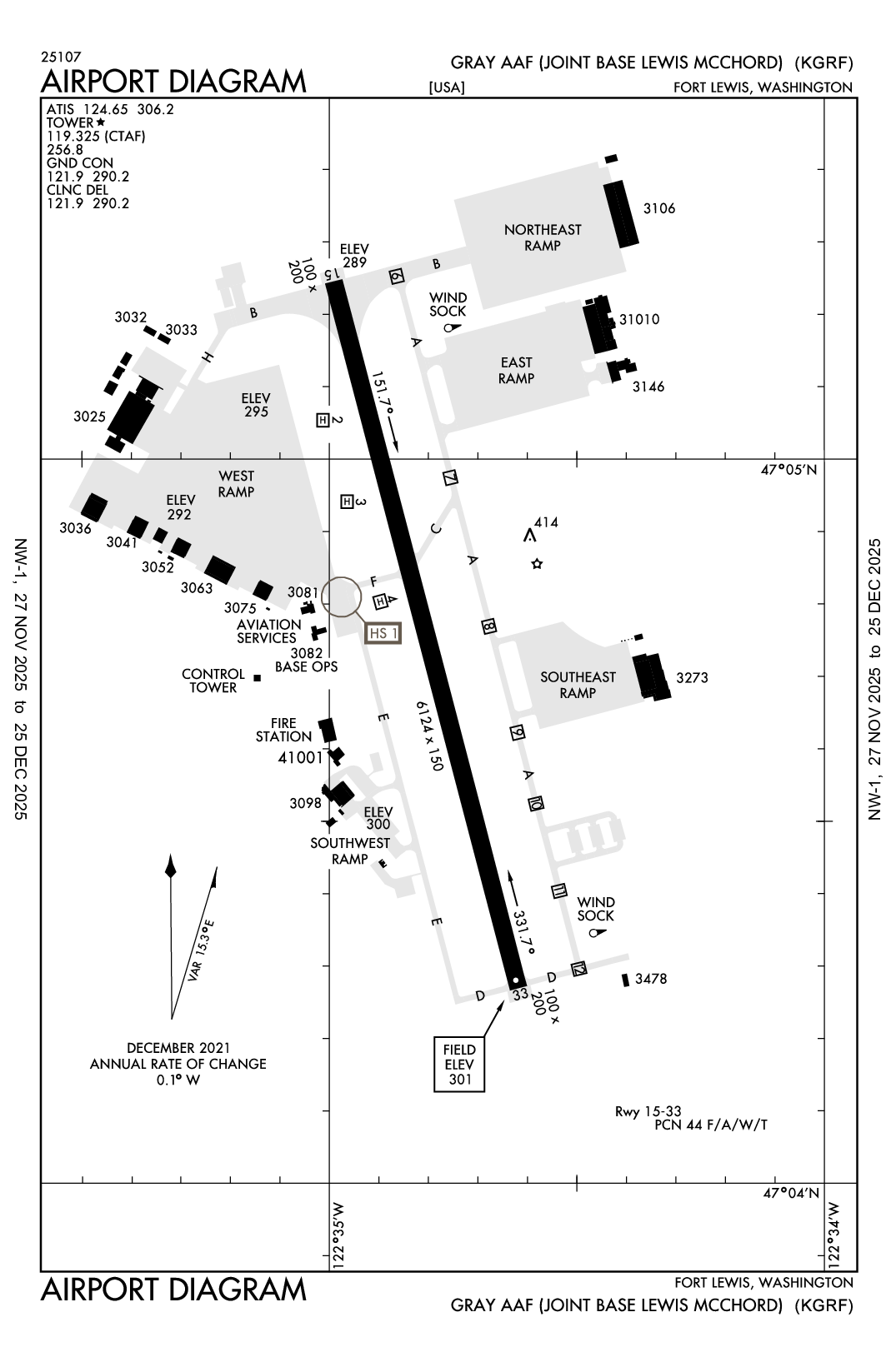

GRAY AAF (JOINT BASE LEWIS-MCCHORD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGRF
ICAO KGRFIATA GRFLocal GRF
GRAY AAF (JOINT BASE LEWIS-MCCHORD)
PrivatePVT

1 miles E of FORT LEWIS/TACOMA, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 04' 45"N 122° 34' 51"W
Elevation
301' MSL
Pattern Alt
1301' MSL
Mag Variation
15°E
Declination
16°E
Fuel
JET A+, CILI
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
5/14/26-6/11/26
KGRF VFR
7:08 PM PDT
Overcast 3,200'
Scattered 2,300'
10sm
55°F
46°F
30.10"Hg
130° 9kts
AO2 DZE0155RAB0155E0157DZB0157E0158RAB0158E0159DZB0159E01RAB01E08 SLP197 $
SPECI KGRF 150208Z AUTO 13009KT 10SM SCT023 OVC032 13/08 A3010 RMK AO2 DZE0155RAB0155E0157DZB0157E0158RAB0158E0159DZB0159E01RAB01E08 SLP197 $
+ Add Your Business

KGRF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.65

Common

CTAF 119.325
MISC: SVFR DAY F/W 700-1, R/W 300- 1/2. NGT F/W NA, R/W 500-1. TACTICAL OPS ON JBLM MIL RSVN - CTC OPS PRIOR. CTC GRAY TFC ON CTAF WHEN TWR CLSD. CLASS D ASP WHEN ATCT OPEN; OTR TIMES CLASS E. TSNT HNGR NA. BASE OPS, TWR & WX MON-FRI H24; CLSD WKEND; CLSD HOL.

Clearance

Clearance Delivery 121.9

Ground

GRAY GROUND 121.9
OPR H24 MON-FRI, CLSD WKENDS & HOLS.

Tower

GRAY TOWER 41.5
OPR H24 MON-FRI, CLSD WKENDS & HOLS.
GRAY TOWER 119.325
OPR H24 MON-FRI, CLSD WKENDS & HOLS.

Approach

SEATTLE APPROACH 120.1

Departure

SEATTLE DEPARTURE 120.1

Operations

Operations 30.5
Operations 41.5
Operations 138.6

Emergency

Emergency 121.5

Military

ARNG OPS 32.6
NG OPS 123.075
PMSV METRO 38.45
PMSV METRO 134.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KGRF
Thu, 5/14 2:00 PM PDT
Thu, 5/14 2:00 PM PDT - Fri, 5/15 8:00 PM PDT
MVFR
2:00 PM PDT - 4:00 PM PDT
Light Rain
Overcast 4,500'
Broken 3,000'
5.59sm
30.09"Hg
200° 12kts
Gusts 22kts
Light Turbulence: up to 3,000'
MVFR
Becoming 4:00 PM PDT - 11:00 PM PDT
Light Showers and Rain
Overcast 3,000'
Broken 2,000'
5.59sm
30.09"Hg
200° 10kts
Gusts 15kts
Light Turbulence: up to 9,000'
MVFR
Temporary 5:00 PM PDT - 7:00 PM PDT
Showers and Rain
Overcast 1,200'
3.73sm
Calm
VFR
Becoming 11:00 PM PDT - 9:00 AM PDT
Showers in vicinity
Scattered 2,000'
6sm
30.09"Hg
170° 6kts
MVFR
Becoming 9:00 AM PDT - 1:00 PM PDT
Light Rain
Overcast 2,300'
Broken 1,500'
5.59sm
30.09"Hg
180° 12kts
IFR
Becoming 1:00 PM PDT - 4:00 PM PDT
Showers and Rain
Overcast 1,500'
Broken 900'
3.73sm
30.06"Hg
190° 12kts
Gusts 18kts
Light Turbulence: up to 9,000'
MVFR
Becoming 4:00 PM PDT - 8:00 PM PDT
Light Showers and Rain
Overcast 2,300'
Broken 1,500'
5.59sm
30.03"Hg
190° 12kts
Gusts 18kts
Light Turbulence: up to 9,000'
TAF KGRF 142100Z 1421/1603 20012G22KT 9000 -RA BKN030 OVC045 650509 510003 QNH3010INS
   BECMG 1423/1424 20010G15KT 9000 -SHRA BKN020 OVC030 640507 510009 QNH3009INS
   TEMPO 1500/1502 6000 SHRA OVC012
   BECMG 1506/1507 17006KT 9999 VCSH SCT020 QNH3010INS
   BECMG 1516/1517 18012KT 9000 -RA BKN015 OVC023 650409 QNH3010INS
   BECMG 1520/1521 19012G18KT 6000 SHRA BKN009 OVC015 640509 510009 QNH3006INS
   BECMG 1523/1524 19012G18KT 9000 -SHRA BKN015 OVC023 640509 510009 QNH3004INS TX14/1423Z TN07/1513Z
KGRF
EffectiveExpiresCategoryNOTAM
Military
5/21/26
1300Z
5/21/26
2300Z
AIRSPACE PARACHUTE JUMPING EXCERCISE WI AN AREA DEFINED AS ROGERS DZ (OLM/064/19NM) ACTIVATED SFC-2,500FT MSL. CTC BULLSEYE RDO FOR REAL TIME STATUS.
5/21/26
0130Z
5/21/26
0659Z
AIRSPACE PARACHUTE JUMPING EXERCISE WI AN AREA DEFINED AS 1NM RADIUS OF MERRILL DZ (OLM/092/9NM) ACTIVATED SFC-9,538FT MSL. CTC BULLSEYE RDO FOR REAL TIME DZ STATUS
5/20/26
2200Z
5/21/26
0200Z
AIRSPACE SUAS ROZ NEROSOP9 WI AN AREA DEFINED BY BDRY OF ET29970854, ET28320852, ET28210685, ET29910681, BACK TO POINT OF ORIGIN WI R6703 B/C/H ACTIVATED SFC-1,200FT MSL. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
5/20/26
1330Z
5/21/26
0100Z
AIRSPACE PARACHUTE JUMPING EXERCISE WI AN AREA DEFINED AS 2NM RADIUS OF ROGERS DZ (OLM/064/19NM) ACTIVATED SFC-12,999FT MSL. DURING DZ ACTIVATION, GREEN ROUTE CLSD E OF ACP BURLINGTON AND YANKEE SOUTH AVIATION TRG AREA. CLSD TO NON-PARTICIPATING ACFT. CTC BULLSEYE RDO FOR REAL TIME DZ STATUS.
5/20/26
0130Z
5/20/26
0659Z
AIRSPACE PARACHUTE JUMPING EXERCISE WI AN AREA DEFINED AS 1NM RADIUS OF MERRILL DZ (OLM/092/9NM) ACTIVATED SFC-9,538 FT MSL. CTC BULLSEYE RDO FOR REAL TIME DZ STATUS
5/19/26
1530Z
5/19/26
1830Z
Navigation!KGRF M0310/26 GRF NAV ILS RWY 15 DME/LOC U/S 2605191530-2605191830
5/18/26
1330Z
5/19/26
1500Z
AIRSPACE SUAS ROZ TRADET WI AN AREA DEFINED AS BDRY OF R6703 A/B SFC-5,000FT MSL, R6703 F 3,000-5,000FT MSL, AND R6703 G SFC-5,000FT MSL. UAS MUST MNTN 300M LATERAL SEPARATION FROM BLUE RTE. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
5/18/26
1300Z
5/19/26
0100Z
AIRSPACE SUAS ROZ 7IDLONESTAR WI AN AREA DEFINED BY BDRY OF ET27431390, ET30971194, ET30621126, ET29301097, ET28420899, ET27160911, ET26730936, ET26290951, ET25800951, ET25090955, ET23901367 ACTIVATED SFC-3000FT MSL. IN R-6703A. UAS MUST MAINTAIN 300 METER LATERAL SEPARATION FROM BLUE RTE. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
5/15/26
0700Z
5/16/26
0659Z
AIRSPACE SUAS ROZ TRADET WI AN AREA DEFINED AS BDRY OF R6703 A SFC-14,000FT MSL, R6703 B/C 700-14,000FT MSL, R6703 D/E 1,500-14,000FT MSL, R6703 H/I 4,000-5,000FT MSL AND R6703 F/G SFC-5,000FT MSL. UAS MUST TRANSITION OVER BLUE RTE AT 3,000FT MSL OR HIGHER AND MUST MNTN 300M LATERAL SEPARATION FROM BLUE RTE. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
5/14/26
2101Z
5/17/26
2101Z
L0257/26 NOTAMC L0253/26
5/14/26
2043Z
5/17/26
2043Z
L0256/26 NOTAMC L0254/26
5/14/26
1830Z
5/15/26
0200Z
AIRSPACE PARACHUTE JUMPING EXERCISE WI AN AREA DEFINED AS 1NM RADIUS OF MERRILL DZ (OLM/092/9NM) ACTIVATED SFC-12,000FT MSL. CTC BULLSEYE RDO FOR REAL TIME DZ STATUS
5/14/26
0700Z
5/15/26
0659Z
AIRSPACE SUAS ROZ TRADET WI AN AREA DEFINED AS BDRY OF R6703 A SFC-14,000FT MSL, R6703 B/C 700-14,000FT MSL, R6703 H/I 4,000-5,000FT MSL AND R6703 F/G SFC-5,000FT MSL. UAS MUST TRANSITION OVER BLUE RTE AT 3,000FT MSL OR HIGHER AND MUST MNTN 300M LATERAL SEPARATION FROM BLUE RTE. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
5/13/26
2235Z
5/16/26
2235Z
L0251/26 NOTAMC L0250/26
5/13/26
2030Z
8/7/26
2359Z
MIL ACFT CAUTION: BASH RESTRICTIONS IN EFFECT. CHECK RESTRICTIONS WITH UNIT FLT OPS.
5/13/26
1500Z
5/15/26
0230Z
AIRSPACE SUAS ROZ 2-1 WI AN AREA DEFINED AS 700M RADIUS OF ET3165 0343 ACTIVATED SFC-700FT MSL. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
5/13/26
0700Z
5/14/26
0659Z
AIRSPACE SUAS ROZ TRADET WI AN AREA DEFINED AS BDRY OF R6703 A SFC-14,000FT MSL, R6703 B/C 700-14,000FT MSL, R6703 D/E 1,500-14,000FT MSL, R6703 H/I 4,000-5,000FT MSL AND R6703 F/G SFC-5,000FT MSL. UAS MUST TRANSITION OVER BLUE RTE AT 3,000FT MSL OR HIGHER AND MUST MNTN 300M LATERAL SEPARATION FROM BLUE RTE. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
5/12/26
1717Z
5/15/26
1717Z
L0245/26 NOTAMC L0243/26
5/12/26
1711Z
5/15/26
1711Z
L0244/26 NOTAMC L0241/26
5/12/26
1104Z
8/6/26
2359Z
Aerodrome!KGRF V0241/26 GRF AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT ILS OR LOC RWY 15 CHANGE MINIMUM S-LOC RWY 15 CAT AB 660/24 360 (400-1/2) CAT CD 660/30 360 (400-5/8) KTCM ALTIMETER S-LOC RWY 15 CAT AB 680/24 380 (400-1/2) CAT CD 680/35 380 (400-5/8). WHEN ALS INOP INCREASE ALL RVR TO 55, VIS TO 1 MILE. 2605121104-2608062359
5/12/26
1103Z
5/15/26
1103Z
V0240/26 NOTAMC V0235/26
5/11/26
1945Z
5/14/26
1945Z
V0239/26 NOTAMC V0161/26
5/11/26
1945Z
5/14/26
1945Z
V0238/26 NOTAMC V0232/26
5/11/26
1945Z
5/14/26
1945Z
V0237/26 NOTAMC V0233/26
5/11/26
1945Z
5/14/26
1945Z
V0236/26 NOTAMC V0234/26
5/11/26
1707Z
5/14/26
1707Z
L0242/26 NOTAMC L0240/26
5/11/26
1532Z
5/14/26
1532Z
L0239/26 NOTAMC L0212/26
5/11/26
1532Z
5/16/26
0659Z
AIRSPACE SUAS ROZ WESTERN STRIKE WI AN AREA DEFINED BY BDRY OF ET27431390, ET30791194, ET30621126, ET29301097, ET28420899, ET27160911, ET26730936, ET26290951, ET25800951, ET25090955, ET23901367 WI THE BDRY OF R-6703A AND R6703 B/F/G/I ACTIVATED SFC-600FT MSL. UAS MUST MAINTAIN 300M LATERAL SEPARATION OF BLUE ROUTE. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
5/11/26
1509Z
5/14/26
1509Z
L0237/26 NOTAMC L0235/26
5/8/26
1914Z
5/22/26
2359Z
CRANE IVO HANGER 3273 150FT FLAGGED AND UNLIT. DAYLIGHT ONLY
4/28/26
1955Z
5/31/26
2359Z
OB LGT INOP ON HANGER 3273
3/8/26
1919Z
6/6/26
0659Z
PACIFIC STANDARD TIME CHANGE-GAAF BASE OPS, WX, TWR, BULLSEYE RDO, AFLD SVCS, NEW HOURS OF OPN IN EFFECT AS OF 8 MAR 26. NEW HOURS OF OPN ARE 24/5 MONDAY 0000L (0700Z) TO FRIDAY 2359L (0659Z++). GAAF BASE OPS, TWR, BULLSEYE RDO, AFLD SVC WILL BE CLSD WEEKENDS/HOLIDAYS. NO GAAF BASE OPS SVC, TWR, BULLSEYE RDO, AFLD SVC DURING CLOSURE. WX SVC STILL AVLB DURING CLOSURE HOURS VIA STANDBY CTC AT 253-732-3029. TRANSIENT ACFT MUST BE SCHEDULED 72 HOURS IN ADVANCE. TRANSIENT ACFT MUST BE SCHEDULED BETWEEN 0700L (1400Z) AND 1500L (2200Z). NO TRANSIENT ACFT ARR MONDAY-FRIDAY BETWEEN 1501L (2201Z) TO 0659L (1359Z). NO TRANSIENT ACFT DURING CLOSURE. TENANT ACFT SHOULD USE SELF-ANNOUNCE PROCS ON CTAF (119.325) DURING OPS CLOSURE. FUEL SVC NOT AFFECTED AND WILL REMAIN AVBL AT GAAF DURING CLOSURE HOURS. FUEL CSLD HOLIDAYS. ACFT REQG FUEL DURING WEEKEND MUST COORDINATE 72HRS IN ADVANCE AT 253-966-0058. FOR CLEARANCE DELIVERY WHEN ATC IS CLSD CTC SEATTLE APCH AT 206-214-4723. NEW HOURS WILL BE IN EFFECT UNTIL FURTHER NOTICE.
Yes
ALL
US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060
Phone: 703 806 4864
NATHAN QUICK


Phone: 253 967 6628
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
GRF
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 15/33

6124 ft. x 150 ft.

ASPH
NONE
HIGH
44/F/A/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 167°347°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 05' 15"N 47° 04' 16"N
Longitude 122° 35' 01"W 122° 34' 41"W
Elevation 289' 300'
Threshold Crossing Height 58 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights SSALR SSALR
Centerline Lights
Runway End Identifier Lights No No

Runway H2

100 ft. x 100 ft.
ASPH
CONC
NONE


--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 47° 05' 04"N N/A
Longitude 122° 35' 02"W N/A
Elevation 292' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

100 ft. x 100 ft.
ASPH
CONC
NONE


--
--
--
--
  Runway H3 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 47° 04' 57"N N/A
Longitude 122° 35' 00"W N/A
Elevation 294' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H4

100 ft. x 100 ft.
ASPH
CONC
NONE


--
--
--
--
  Runway H4 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 47° 04' 47"N N/A
Longitude 122° 34' 56"W N/A
Elevation 296' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-11RSTD: 72 HR PPR TRAN ACFT. NO TRAN ACFT WKEND & HOL.
A110-12PJE INVOF ARPT.
A110-13MISC: SVFR DAY F/W 700-1, R/W 300- 1/2. NGT F/W NA, R/W 500-1. TACTICAL OPS ON JBLM MIL RSVN - CTC OPS PRIOR. CTC GRAY TFC ON CTAF WHEN TWR CLSD. CLASS D ASP WHEN ATCT OPEN; OTR TIMES CLASS E. TSNT HNGR NA. BASE OPS, TWR & WX MON-FRI H24; CLSD WKEND; CLSD HOL.
A110-14AR - CTC USAR OPS - D357-6628/C253-967-6628.
A110-15ARNG: OPR 1430-0100Z++ TUE-FRI EXC HOL. TRAN ALERT SVC NA.
A110-18CTN: NON RDO PAEW ON GND CTL XNG TWY G & H.
A110-19BULLSEYE RDO OPR MON-FRI H24; CLSD WKND CLSD HOL. R/W CTC BULLSEYE RDO PRIOR TO ENTRY R6703A-J - 34.6 141.5 379.1. RANGE STATUS - 384.525 & 142.7.
A110-22MISC: ADD RCR RPTD MON-FR 0700-1500 VIA NOTAM & ATIS DURG INCLEMENT WINTER WX.
A110-23NGT VISION TRNG ON ARPT; LGT MAY BE DIM OR OFF; R/W CTC GRAY ATCT ON INITIAL CTC IF UNAIDED.
A110-24MISC: BASE OPS, ATCT, & WX MON-FRI H24. CLSD WKEND; CLSD HOL. NO SPACE A PAX PPR WITHOUT PRIOR COORDINATION WITH AF MANAGER.
A110-25NO DE-ICE
A110-26FOR CD WHEN ATCT IS CLSD CTC SEATTLE APCH AT 206-214-4723. 120.1/290.9.
A110-4SMALL ARMS RANGE 0.8 NM E.
A16OTR CTC: 253-967-6676.
A43-15PAPI RWY 15 UNUSBL BYD 8 DEGS RIGHT OF CNTRLN.
A70-A++MIL; LTD SUPPLY; NATO F24 AVBL; TRANS ALERT 1400-2200++.
E147E/W TFC, F/W 1800 FT, R/W 800 FT.
GRAY AAF (JOINT BASE LEWIS-MCCHORD) (ICAO: KGRF, IATA: GRF) is a private airport located in FORT LEWIS/TACOMA, WA, US.
