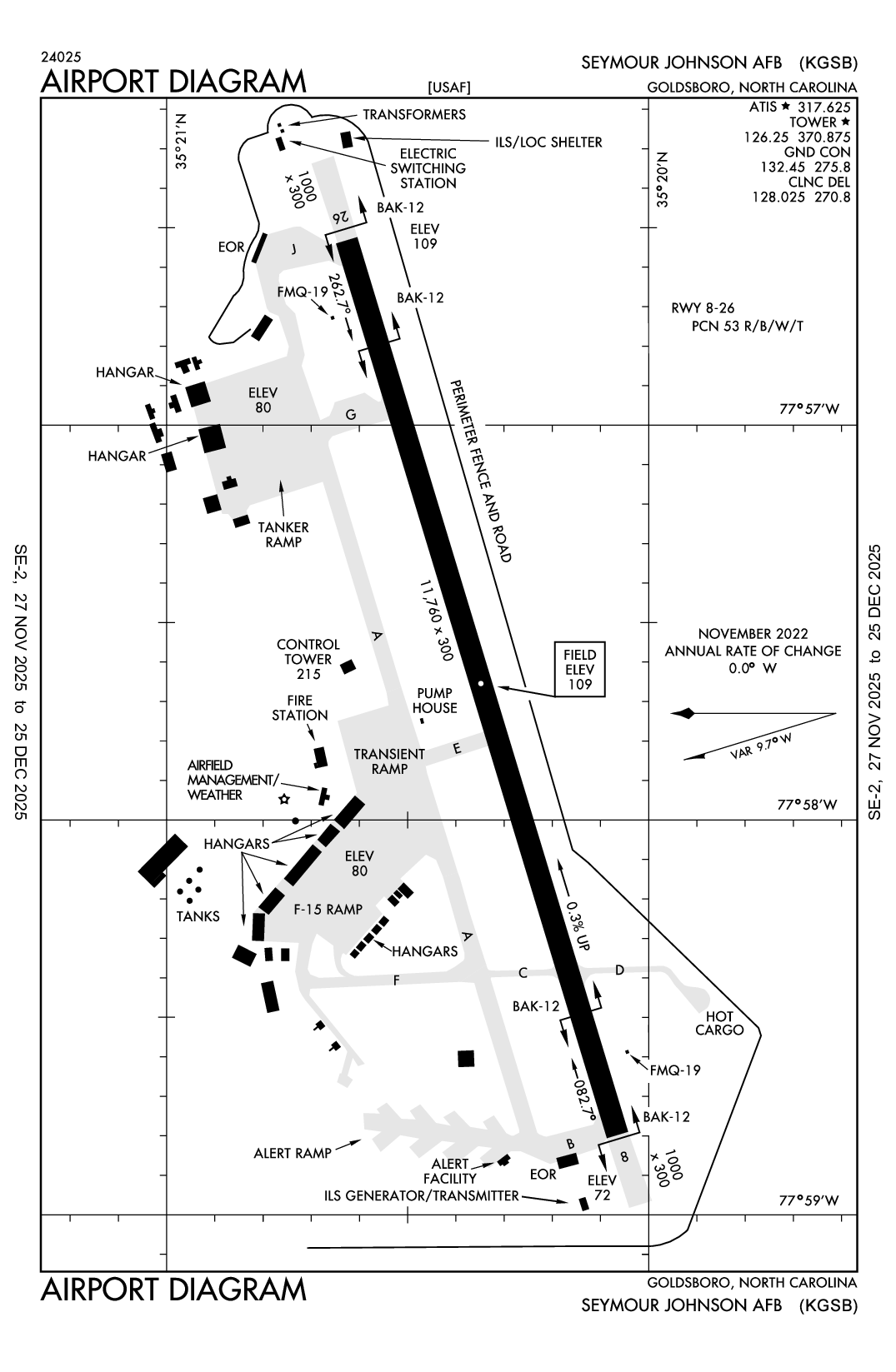

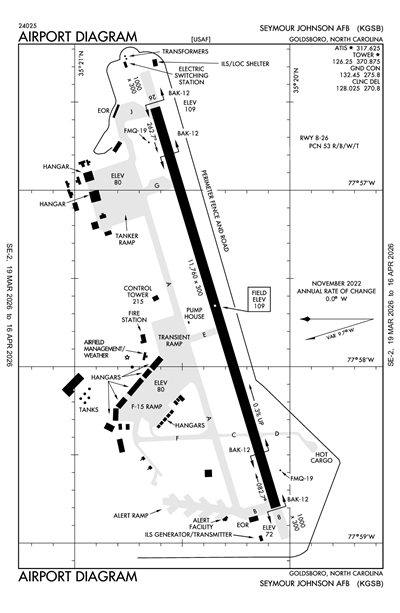

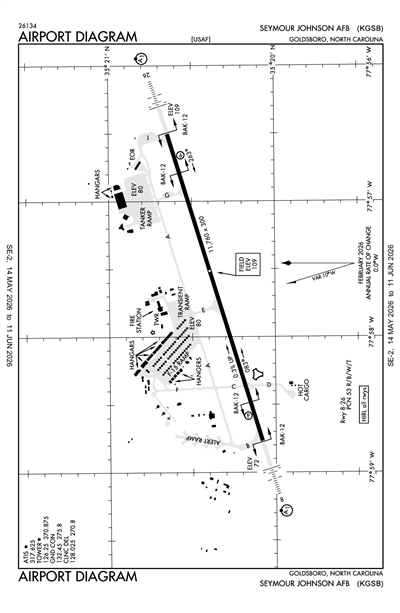

SEYMOUR JOHNSON AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGSB
ICAO KGSBIATA GSBLocal GSB
SEYMOUR JOHNSON AFB
PrivatePVT

3 miles SE of GOLDSBORO, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 20' 22"N 77° 57' 38"W
Elevation
109' MSL
Pattern Alt
1300' MSL
Mag Variation
10°W
Declination
8°W
Fuel
JET A (FSII)
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
6/11/26-7/9/26
KGSB VFR
7:55 PM EDT
Overcast 8,500'
10sm
87°F
60°F
30.04"Hg
Calm
AO2 SLP175 T03050157 10324 20303 53004 $
METAR KGSB 252355Z AUTO 00000KT 10SM OVC085 31/16 A3004 RMK AO2 SLP175 T03050157 10324 20303 53004 $
+ Add Your Business

KGSB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Clearance

Clearance Delivery 128.025

Ground

SEYMOUR JOHNSON GROUND 132.45
1200-0400Z++

Tower

SEYMOUR JOHNSON TOWER 126.25
1200-0400Z++

Approach

SEYMOUR JOHNSON APPROACH 119.7
Initial Contact - 111-257
SEYMOUR JOHNSON APPROACH 123.7
258-110
SEYMOUR JOHNSON APPROACH 127.3
Secondary

Departure

SEYMOUR JOHNSON DEPARTURE 119.7
S
SEYMOUR JOHNSON DEPARTURE 123.7
N

Center

SEYMOUR JOHNSON CENTER 123.85
LOW, APCH/DEP SVC PRVDD BY WASHINGTON ARTCC (ZDC) ON 123.85/279.65 (NEW BERN RCAG) WHEN APCH CTL CLSD.

Emergency

Emergency 121.5

Terminal Area Forecast

KGSB
Thu, 6/25 7:00 PM EDT
Thu, 6/25 7:00 PM EDT - Sat, 6/27 1:00 AM EDT
VFR
7:00 PM EDT - 4:00 PM EDT
Sky Clear
6sm
30.03"Hg
Calm
VFR
Becoming 4:00 PM EDT - 6:00 PM EDT
Light Showers and Rain
Overcast 9,000'
Broken 6,500'
5.59sm
30.03"Hg
190° 10kts
Gusts 22kts
MVFR
Becoming 6:00 PM EDT - 7:00 PM EDT
Thunderstorm and Rain
Overcast 5,500'
Scattered 4,200'
4.97sm
30.03"Hg
200° 9kts
VFR
Becoming 7:00 PM EDT - 1:00 AM EDT
Light Showers and Rain
Overcast 5,000'
Broken 3,400'
6sm
30.03"Hg
200° 9kts
TAF KGSB 252300Z 2523/2705 00000KT 9999 SKC QNH3002INS
   BECMG 2620/2621 19010G22KT 9000 -SHRA BKN065 OVC090 QNH3002INS
   BECMG 2622/2623 20009KT 8000 TSRA SCT042 OVC055CB QNH3002INS
   BECMG 2623/2624 20009KT 9999 -SHRA BKN034 OVC050 QNH3003INS TX33/2620Z TN22/2609Z
KGSB
EffectiveExpiresCategoryNOTAM
Military
7/1/26
1700Z
7/1/26
1745Z
AerodromeAERODROME QUIET HOURS: F-15E TAKEOFFS WILL NOT BE PERMITTED BUT AIRCRAFT TAXIS ARE ALLOWED OUTSIDE OF F-15E AND TA RAMPS. RETURNING AIRCRAFT WILL MAKE A STRAIGHT-IN APPROACH TO A FULL-STOP LANDING. TACTICAL ARRIVALS AND INITIAL ARE PROHIBITED. ENGINE STARTS AND ENGINE RUNS ON THE F-15E AND TA RAMP ARE PROHIBITED. AGE OPERATIONS ON THE F-15E AND TA RAMPS WILL BE PERMITTED WITH THE EXCEPTION OF J-4 JAMMERS WITHIN 300 FEET OF THE CEREMONY. REFUELING AND AIRCRAFT TOWS WILL NOT BE PERMITTED WITHIN 300 FEET OF THE CEREMONY. 916TH AIRCRAFT THAT ARE PARKED ON THE 916TH RAMP CAN EXECUTE NORMAL DAY TO DAY OPERATIONS INCLUDING START, TAXI, AND TAKEOFF.
7/1/26
1400Z
7/1/26
1445Z
AerodromeAERODROME QUIET HOURS: F-15E TAKEOFFS WILL NOT BE PERMITTED BUT AIRCRAFT TAXIS ARE ALLOWED OUTSIDE OF F-15E AND TA RAMPS. RETURNING AIRCRAFT WILL MAKE A STRAIGHT-IN APPROACH TO A FULL-STOP LANDING. TACTICAL ARRIVALS AND INITIAL ARE PROHIBITED. ENGINE STARTS AND ENGINE RUNS ON THE F-15E AND TA RAMP ARE PROHIBITED. AGE OPERATIONS ON THE F-15E AND TA RAMPS WILL BE PERMITTED WITH THE EXCEPTION OF J-4 JAMMERS WITHIN 300 FEET OF THE CEREMONY. REFUELING AND AIRCRAFT TOWS WILL NOT BE PERMITTED WITHIN 300 FEET OF THE CEREMONY. 916TH AIRCRAFT THAT ARE PARKED ON THE 916TH RAMP CAN EXECUTE NORMAL DAY TO DAY OPERATIONS INCLUDING START, TAXI, AND TAKEOFF.
7/1/26
1230Z
7/1/26
1315Z
AerodromeAERODROME QUIET HOURS: F-15E TAKEOFFS WILL NOT BE PERMITTED BUT AIRCRAFT TAXIS ARE ALLOWED OUTSIDE OF F-15E AND TA RAMPS. RETURNING AIRCRAFT WILL MAKE A STRAIGHT-IN APPROACH TO A FULL-STOP LANDING. TACTICAL ARRIVALS AND INITIAL ARE PROHIBITED. ENGINE STARTS AND ENGINE RUNS ON THE F-15E AND TA RAMP ARE PROHIBITED. AGE OPERATIONS ON THE F-15E AND TA RAMPS WILL BE PERMITTED WITH THE EXCEPTION OF J-4 JAMMERS WITHIN 300 FEET OF THE CEREMONY. REFUELING AND AIRCRAFT TOWS WILL NOT BE PERMITTED WITHIN 300 FEET OF THE CEREMONY. 916TH AIRCRAFT THAT ARE PARKED ON THE 916TH RAMP CAN EXECUTE NORMAL DAY TO DAY OPERATIONS INCLUDING START, TAXI, AND TAKEOFF.
6/30/26
1300Z
6/30/26
1345Z
L0008/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3520N07757W005 A) KGSB B) 2606301300 C) 2606301345 E) AERODROME QUIET HOURS: F-15E TAKEOFFS WILL NOT BE PERMITTED BUT AIRCRAFT TAXIS ARE ALLOWED OUTSIDE OF F-15E AND TA RAMPS. RETURNING AIRCRAFT WILL MAKE A STRAIGHT-IN APPROACH TO A FULL-STOP LANDING. TACTICAL ARRIVALS AND INITIAL ARE PROHIBITED. ENGINE STARTS AND ENGINE RUNS ON THE F-15E AND TA RAMP ARE PROHIBITED. AGE OPERATIONS ON THE F-15E AND TA RAMPS WILL BE PERMITTED WITH THE EXCEPTION OF J-4 JAMMERS WITHIN 300 FEET OF THE CEREMONY. REFUELING AND AIRCRAFT TOWS WILL NOT BE PERMITTED WITHIN 300 FEET OF THE CEREMONY. 916TH AIRCRAFT THAT ARE PARKED ON THE 916TH RAMP CAN EXECUTE NORMAL DAY TO DAY OPERATIONS INCLUDING START, TAXI, AND TAKEOFF.
6/22/26
1841Z
7/22/26
2359Z
RunwayRWY 26 LOCALIZER OTS UNTIL FURTHER NOTICE
6/22/26
1100Z
8/10/26
1100Z
M0419/26 NOTAMN Q) ZDC/QXXXX/IV/NBO/A/000/999/3520N07757W005 A) KGSB B) 2606221100 C) 2608101100 E) RUNWAY 08/26 CLOSED DUE TO PERSONNEL AND EQUIPMENT WORKING ON THE RUNWAY. AIRFIELD AND ATC TOWER IS OPEN AND AVAILABLE FOR ROTARY WING AIRCRAFT INBOUNDS/OUTBOUNDS DURING PUBLISHED OPERATING HOURS WITH PPR COORDINATION/APPROVAL FROM AIRFIELD MANAGEMENT AT DSN (312) 722-4097 OR COMMERCIAL (919) 722-4097.
6/19/26
0030Z
8/7/26
2300Z
FIRE FIGHTING AND RESCUE DOWNGRADED TO 4,900 GALLONS OF SUFFICIENT AGENT. NFPA CAT 7-10 EXPECT CRITICAL LEVEL OF SERVICE.
6/18/26
1347Z
8/30/26
2359Z
REMOTE RESOURCE PROTECTION WX WATCH, WARNINGS & ADVISORIES (WWA) AND TAF WILL BE ISSUED AND AMENDED BY 26 OP WX SQ. CONTACT THE 26 OP WX SQ AT DSN 331-2690 OR COMM 318-529-2690 WITH ANY QUESTIONS.
6/13/26
1521Z
8/13/26
2359Z
RunwayRWY 08 GLIDESLOPE OTS UNTIL FURTHER NOTICE.
5/21/26
1253Z
7/20/26
2359Z
F-15 RAMP PARKING SPOT I2 CLOSED
5/1/26
1604Z
6/30/26
1800Z
M0326/26 NOTAMN Q) ZDC/QFAHW/IV/NBO/A/000/999/3520N07757W005 A) KGSB B) 2605011604 C) 2606301800 E) PERSONNEL AND EQUIPMENT WORKING APPROXIMATELY 478FT SOUTH OF THE RUNWAY CENTERLINE, EAST OF TWY D MON - FRI, 1200Z - 2200Z DAILY
4/8/26
1932Z
7/7/26
1930Z
RunwayRWY 26 FMQ-19 OTS.
Yes
1200-0400Z++
OPR 1200-1400Z++ OR AS PUBLD BY NOTAM. WKEND AND HOL HR MAY CHG BASED ON FLYING OPS. CTC AFLD MGMT 919-722-4097 OR DSN 722-4097 PRIOR MSN PLANNING TO CFM AD HRS. SEE FLIP AP/1 SUPPLRY ARPT RMK.
USAF AIRFIELD OPS
1105 RAPCON PL BLDG 4750
SEYMOUR JOHNSON AFB, NC 27531
Phone: 919-722-2102
AIRFIELD MANAGER
4OSS/OSAA 1980 JABARA AVE
SEYMOUR JOHNSON AFB, NC 27531
Phone: 919-722-4097
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
GSB
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
High & Low Pressure
None

Runway 08/26

11760 ft. x 300 ft.

CONC
GRVD
HIGH
53/R/B/W/T
--
--
--
--
  Runway 08 Runway 26
True Heading 73°253°
Traffic Pattern Right Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 20' 05"N 35° 20' 39"N
Longitude 77° 58' 46"W 77° 56' 30"W
Elevation 72' 109'
Threshold Crossing Height 55 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-10CAUTION: EXP HVY BLACKBIRD ACT DUR SUMMER AND FALL.
A110-12CSTMS/AG/IMG: LTD CSTMS AVBL, PRIOR COORD RQR. FAC FOR HANDLING CONTAMINATED AG WASTE LTD.
A110-15MISC: ALL INBD ACFT WITH VIP CTC CONSOLIDATED COMD POST WHEN 60 NM OUT.
A110-16MISC: HVY ACFT LAND LONG OVER BAK-12S, IFUN CTC AMOPS 30 MIN PRIOR.
A110-18CAUTION: TREES 3000 FT E OF AER 26.
A110-19RSTD: PPR REQUIRED FOR ALL ACFT TO INCLUDE DV, HAZ CARGO AND AIR EVAC REGARDLESS OF AFFILIATION FOR NOTIFICATION AND COORDINATION PURPOSES.
A110-2LGT: RWY 08-26 70 FT GATED THR LGT.
A110-20MISC: NON-STD MARKINGS EXIST ON THE HOT CARGO PAD FOR MOTORCYCLE SAFETY COURSE. DIMENSION OF MARKINGS ARE CONTAINED IN A 120 FT X 220 FT BOX LOCATED SOUTH OF THE TAXI LINE USING A YELLOW AND WHITE PAINT MARKING SCHEME.
A110-21MISC: RCR/RSC NOT REPORTED BY SEYMOUR-JOHNSON BASE WX.
A110-26PMSV METRO: WX DSN 722-4089/4089 C919-722-4087 FORECASTER AVBL 0300-0400Z++MON-FRI W/DEVIATIONS DETERMINED BY 916 ARW & 4 FW OPR HRS. OPR HRS MAY VARY WITH LCL FLYING SKED. REMOTE BRIEFING SVC AVBL FR 26 OWS, BARKSDALE AFB, DSN 331-2635/2636/2651, C318-529-2635/2636/2651, FAX EXT 2609, WEBSITE: HTTPS://26OWS.US.AF.MIL. WX OBSN AVBL 24 HRS VIA AN/FMQ-19 AUTOMATED OBSN SYS AUGMENTED BY HUMAN OBSN DUR HR.
A110-3A-GEAR: BAK-12B(B) ALWAYS IN PLACE. THE POTENTIAL FOR TAIL HOOK SLIP EXIST, DUE CONC INLAY MEETING ASPHALT PAVEMENT AT THE RWY 26 UNDERRUN/RWY 08 OVRN BAK 12 BARRIER.
A110-32CAUTION: C5 ACFT SHOULD EXP REDUCED LEVEL OF SVC.
A110-33RSTD: ISSUED PPR VALID 30 MINS PRIOR OR AFTER ETA, EARLY/LATE ARR/DEP MUST BE RECOORDINATED.
A110-34NOISE ABATEMENT - QUIET HRS 0330-1100Z++ FOR FURTHER INFO CALL BASE OPS AT C919-722-4097.
A110-35TWY F NO ACFT LARGER THAN C-130.
A110-36MISC: UHF EQUIPPED ACFT WILL USE UHF AS PRIM ATC FREQ WHEN ARR/DEP SEYMOUR JOHNSON.
A110-37MISC: COMSEC STORAGE AT COMD POST.
A110-38CAUTION: POTENTIAL FOR SMALL UAS ACT OUTSIDE OF AFLD OPR HR.
A110-39MISC: APRON FLOOD LIGHTS LOCATED 1402 FT FM RWY CNTRLN AT THE SOUTHERN CORNERS OF THE TANKER RAMP. ONE IS LOCATED AT THE SW CORNER AT THE HEIGHT OF 102 FT AMSL AND THE OTHER ONE IS LOCATED AT THE SE CORNER AT THE HEIGHT OF 101 FT AMSL.
A110-4JASU: 8(M32A-60A/B) 5(M32A-86) 1(MC-11) 1(MC-1A).
A110-6FLUID: SP PRESAIR LPOX LOX - 24 HR PPR.
A110-7OIL: O-148 SOAP.
A110-8TRAN ALERT: AVBL 1200-0400Z++ MON-FRI, 1530-2300Z++ SAT-SUN STANDBY ALL OTHER TIMES. EXP 1-2 HR SVC/REFUEL DELAYS WKEND, HOL, PEAK PERIODS AND LTD MAINT. LTD FLEET SVC AVBL FOR MIL ACFT ONLY. 50 GAL LAVATORY CART WILL BE SUPPLIED TO AIRCREW TO SVC ACFT.
A110-9RSTD: TRAN ACFT EXP FULL STOP LDG DUR LCL FLYING PERIOD. CTC AMOPS 7 DAYS PRIOR FOR PPR, PN DSN 722-4097, C919-722-4097. TWY A CLOSED TO C5 ACFT EAST OF TWY G. TWY F AVBL FOR ACFT WITH WINGSPANS OF 44 FT OR LESS. COORD WITH AIRFIELD MGR FOR LARGER ACFT.
A17-M1OPR 1200-1400Z++ OR AS PUBLD BY NOTAM. WKEND AND HOL HR MAY CHG BASED ON FLYING OPS. CTC AFLD MGMT 919-722-4097 OR DSN 722-4097 PRIOR MSN PLANNING TO CFM AD HRS. SEE FLIP AP/1 SUPPLRY ARPT RMK.
A23-26LARGE AIRCRAFT.
A33-08/26_SURFMISC RWY 08/26, FROM AER 26 FIRST 1000X300 FT CONC. 1000 FT TO 3100 FT IS 150 FT WIDE CONC WITH 75 FT ASPH EACH SIDE; 3100 FT TO 10760 FT IS 75 FT WIDE CONC AND 112.5 FT ASPH EACH SIDE; FR 10760 FT TO 11760 FT ARE 300 FT WIDE CONC. NO SHOULDERS ON RWY. RWY LGTS ALONG USBL PAV.
A86FSS-RALEIGH RDU-NOTAM RDU.
E147TPA: RECTANGULAR 1191 FT AGL/1300 FT MSL. OVHD PAT 1691 FT AGL/1800 FT MSL. LT ACFT 891 FT AGL/1000 FT MSL.
E60-08_BAK-12HOOK BAK-12A(B) (36 FT OVRN) HOOK BAK-12B(B) (1490 FT).
E60-26_BAK-12HOOK BAK-12B(B) (1490 FT) HOOK BAK-12A(B) (52 FT OVRN).
SEYMOUR JOHNSON AFB (ICAO: KGSB, IATA: GSB) is a private airport located in GOLDSBORO, NC, US.
