iFlightPlanner



...

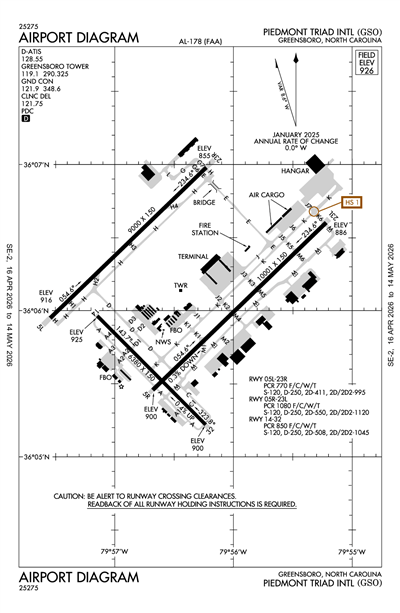

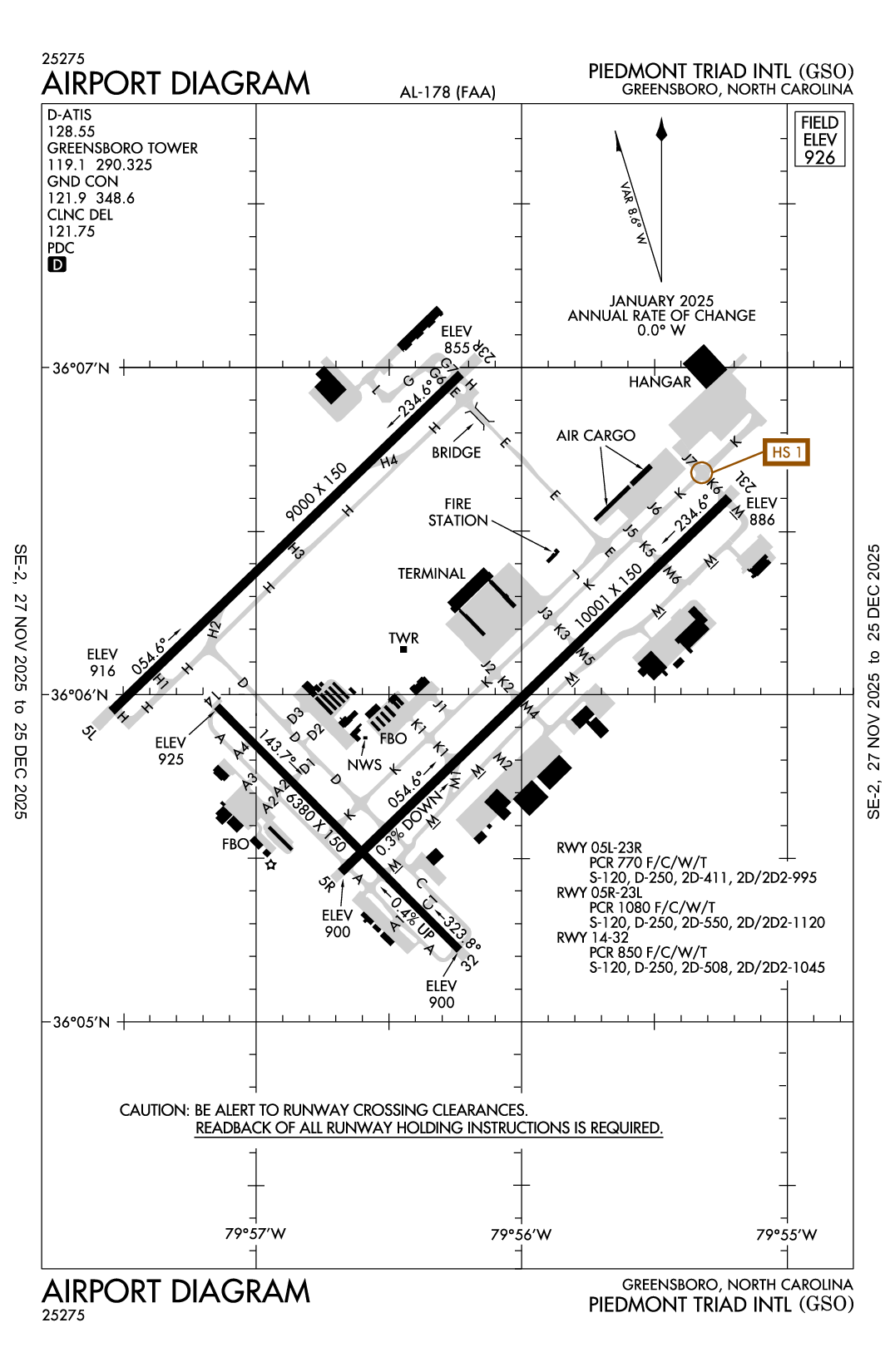

PIEDMONT TRIAD INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGSO
PIEDMONT TRIAD INTL
PublicPUB

7 miles W of GREENSBORO, NC
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 06' 05"N 79° 56' 28"W
926' MSL
1926' MSL
08W
JET A, 100LL
RALEIGH (RDU)
CINCINNATI
ATLANTA (ZTL)
9/5/24-10/3/24
KGSO VFR
7:54 PM EDT
Few 6,000'
10sm
69°F
49°F
30.09"Hg
Calm
AO2 SLP185 T02060094 10239 20206 53004
KGSO 082354Z 00000KT 10SM FEW060 21/09 A3009 RMK AO2 SLP185 T02060094 10239 20206 53004

KGSO FBOs

Signature Aviation
UNICOM: 130.57
Phone: (336) 235-6073
Fax: (336) 235-3373
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 9/5
100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.70
Full Serve 6.70 6.83
Fuel Notes
Prices include tax
Koury Aviation
UNICOM: 128.9
Phone: (336) 279-7997
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 9/3
100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.02 6.78 6.88
Fuel Notes
Prices include tax

KGSO Flight Schools & Aircraft Rental

Guilford Technical Community College
Phone: (336) 334-4822 x59051
Fax: (336) 665-9401
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
128.55

ASOS

ASOS
336-393-0168
128.55

Approach/Departure

APCH/P DEP/P IC
250-049
124.35
APCH/P DEP/P IC
050-249
126.6

Clearance Delivery

CD/P
121.75

Emergency

EMERG
121.5

Ground

GND/P
121.9

Tower

LCL/P
119.1

Other

BLOCC STAR
250-049
124.35
BLOCC STAR
050-249
126.6
BROOK STAR
250-049
124.35
BROOK STAR
050-249
126.6
CLASS C
250-049
124.35
CLASS C
050-249
126.6
HENBY STAR
250-049
124.35
HENBY STAR
050-249
126.6
TRAKS STAR
250-049
124.35
TRAKS STAR
050-249
126.6
TRIAD DP
250-049
124.35
TRIAD DP
050-249
126.6
TRSHA DP
250-049
124.35
TRSHA DP
050-249
126.6

Terminal Area Forecast

KGSO
Sun, 9/8 7:32 PM EDT
Sun, 9/8 8:00 PM EDT - Mon, 9/9 8:00 PM EDT
VFR
8:00 PM EDT - 2:00 PM EDT
Sky Clear
6sm
040° 3kts
VFR
2:00 PM EDT - 8:00 PM EDT
Sky Clear
6sm
080° 4kts
KGSO 082332Z 0900/0924 04003KT P6SM SKC
   FM091800 08004KT P6SM SKC
KGSO
Domestic
9/10/241200Z !GSO 09/021 GSO NAV ILS RWY 23L CAT II NA 2409101200-2409101900
9/10/241200Z !GSO 09/020 GSO RWY 23L ALS U/S 2409101200-2409101900
9/8/241306Z !GSO 09/027 GSO OBST CRANE (ASN 2024-ASO-12750-OE) 360521N0795548W (0.9NM SE GSO) 983FT (120FT AGL) FLAGGED 2409081306-2601250459
9/7/240312Z !GSO 09/025 GSO OBST TOWER LGT (ASR 1006457) 360347.50N0794920.10W (6.1NM ESE GSO) 1257.9FT (418.0FT AGL) U/S 2409070312-2410060001
9/6/241840Z !GSO 09/024 GSO OBST CRANE (ASN 2024-ASO-3389-NRA) 360620N0795610W (0.4NM NE GSO) 1039FT (150FT AGL) FLAGGED 2409061840-2411012300
9/6/241839Z !GSO 09/023 GSO OBST CRANE (ASN 2024-ASO-3388-NRA) 360620N0795608W (0.4NM NE GSO) 1039FT (150FT AGL) FLAGGED 2409061839-2411012300
9/6/241838Z !GSO 09/022 GSO OBST CRANE (ASN 2024-ASO-3387-NRA) 360616N0795613W (0.3NM NE GSO) 1039FT (150FT AGL) FLAGGED 2409061838-2411012300
9/5/241429Z !GSO 09/012 GSO OBST TOWER LGT (ASR 1245967) 355640.30N0795445.00W (9.5NM S GSO) 1239.5FT (469.8FT AGL) U/S 2409051429-2410312359
8/31/240918Z !GSO 08/072 GSO OBST TOWER LGT (ASR 1004691) 360042.60N0795404.70W (5.7NM SSE GSO) 1090.2FT (235.2FT AGL) U/S 2408310918-2412290918
8/24/240236Z !GSO 08/059 GSO TWY H APCH AREA HLDG PSN SIGN FOR RWY 14 LGT U/S 2408240236-2409272100
8/23/240040Z !GSO 08/058 GSO TWY H CL LGT U/S 2408230040-2409272200
8/20/241850Z !GSO 08/049 GSO TWY C BTN APCH END RWY 32 AND TWY C1 CLSD 2408201850-2409302100
8/20/241741Z !GSO 08/045 GSO TWY K BTN RWY 14/32 AND TWY K1 CLSD 2408201741-2410112200
8/1/241500Z !GSO 08/004 GSO TWY H1, H2, H3, H4, TWY H BTN APCH END RWY 05L AND TWY D, TWY H BTN APCH END RWY 23R AND TWY E CLSD 2408011500-2409272200
7/31/240431Z !GSO 07/089 GSO OBST TOWER LGT (ASR 1306865) 355846.81N0795958.23W (7.9NM SSW GSO) 1015FT (154FT AGL) U/S 2407310431-2409140431
7/29/241200Z !GSO 07/078 GSO NAV ILS RWY 23R U/S 2407291200-2410302100
7/29/241200Z !GSO 07/077 GSO NAV ILS RWY 05L U/S 2407291200-2410302100
7/29/241200Z !GSO 07/064 GSO RWY 23R RVR U/S 2407291200-2410302100
7/29/241200Z !GSO 07/063 GSO RWY 05L RVR U/S 2407291200-2410302100
7/29/241200Z !GSO 07/062 GSO NAV ILS RWY 05L CAT II/III NA 2407291200-2410302100
7/29/241200Z !GSO 07/053 GSO RWY 05L/23R CLSD 2407291200-2409272200
7/29/241200Z !GSO 07/052 GSO RWY 05R/23L CLSD TO TGL 2407291200-2409272200
7/25/241215Z !GSO 07/067 GSO NAV ILS RWY 23R GP U/S 2407251215-2410302100
6/24/242045Z !GSO 06/044 GSO RWY 14/32 CLSD EXC XNG 2406242045-2412042200
6/20/241002Z !GSO 06/029 GSO AIRSPACE UAS WI AN AREA DEFINED AS .45NM RADIUS OF GSO089011.5 SFC-400FT AGL 2406201002-2501312215
5/10/241000Z !GSO 05/028 GSO AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF 360441N0801420W (4NM SW INT) SFC-400FT AGL 2405101000-2412310300
5/6/241804Z !GSO 05/016 GSO RWY 05R PAPI U/S 2405061804-2505062000EST
5/6/241642Z !GSO 05/013 GSO NAV ILS RWY 32 LOC NOT MNT 2405061642-2412272000EST
4/24/242242Z !GSO 04/063 GSO NAV ILS RWY 32 U/S 2404242242-2412162100
4/22/241341Z !GSO 04/046 GSO RWY 32 RWY END ID LGT U/S 2404221341-2412162000
4/22/241230Z !GSO 04/026 GSO RWY 32 PAPI U/S 2404221230-2412162000
4/22/241200Z !GSO 04/033 GSO TWY D BTN RWY 05R/23L AND TWY D1 CLSD 2404221200-2412042200
FDC
8/2/242029Z !FDC 4/2354 GSO SID PIEDMONT TRIAD INTL, GREENSBORO, NC.
QUAKER EIGHT DEPARTURE...
RALEIGH-DURHAM TRANSITION: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RDU VORTAC OUT OF SERVICE. 2408022029-2410312029EST
4/16/241601Z !FDC 4/1485 GSO IAP PIEDMONT TRIAD INTL, GREENSBORO, NC.
RNAV (GPS) RWY 5R, AMDT 2G ...
ALL CATS MDA 1320/HAT 420. VISIBLITY CAT D 1 2404161601-2604161600EST
8/28/231130Z !FDC 3/2030 GSO STAR PIEDMONT TRIAD INTERNATIONAL, GREENSBORO, NC.
BROOK FOUR ARRIVAL... GLADE SPRING TRANSITION: ROUTE FROM GLADE
SPRING VOR TO BROOK INT NOT AUTHORIZED EXCEPT FOR ACFT WITH SUITABLE
RNAV SYSTEM WITH GPS.

2308281130-2508281130
Yes
ALL
PIEDMONT TRIAD ARPT AUTH.
1000A TED JOHNSON PKWY
GREENSBORO, NC 27409
Phone: 336-665-5600
KEVIN BAKER
1000A TED JOHNSON PKWY
GREENSBORO, NC 27409
Phone: 336-665-5600
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
GSO
--
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05L/23R

9000 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
137/F/C/X/T
120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 05L Runway 23R
True Heading 46°226°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 05' 57"N 36° 06' 59"N
Longitude 79° 57' 33"W 79° 56' 14"W
Elevation 916' 855'
Threshold Crossing Height 69 ft. AGL 72 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 05R/23L

10001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
91 /F/C/X/T
120,000lbs
250,000lbs
550,000lbs
1,051,000lbs
  Runway 05R Runway 23L
True Heading 46°226°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 05' 28"N 36° 06' 37"N
Longitude 79° 56' 41"W 79° 55' 13"W
Elevation 900' 886'
Threshold Crossing Height 70 ft. AGL 55 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4R P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 14/32

6380 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
62 /F/C/X/T
120,000lbs
218,000lbs
352,000lbs
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 05' 58"N 36° 05' 13"N
Longitude 79° 57' 09"W 79° 56' 14"W
Elevation 925' 900'
Threshold Crossing Height -- 53 ft. AGL
Visual Glide Path Angle --
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1ACFT WITH WINGSPAN GREATER THAN 171 FT ARE PROHIBITED FROM USING TWY E.
A110-2DUE TO NOISE SENSITIVE AREAS, ACFT PERFORMING PRACTICE APPROACHES SHALL USE RWY 05R-23L.
A110-4TWY E PORTIONS BETWEEN TWY J AND TWY H NOT VISIBLE FROM ATCT. TWY K NORTHEAST OF TWY K6 CLSD EXCEPT FOR CARGO ACFT.
A110-5FOR CD CTC GREENSBORO APCH AT 743-222-6129.
PIEDMONT TRIAD INTL (ICAO: KGSO, IATA: GSO) is a public airport located in GREENSBORO, NC.
