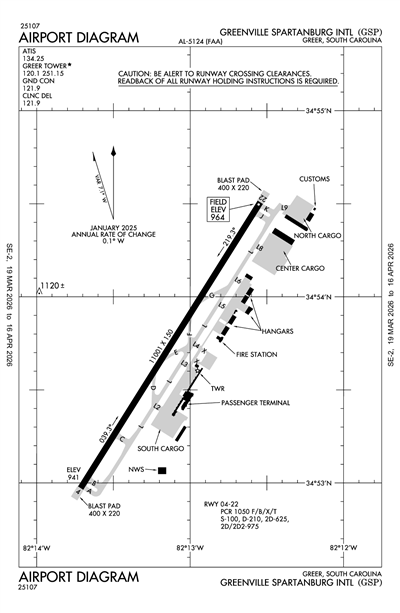

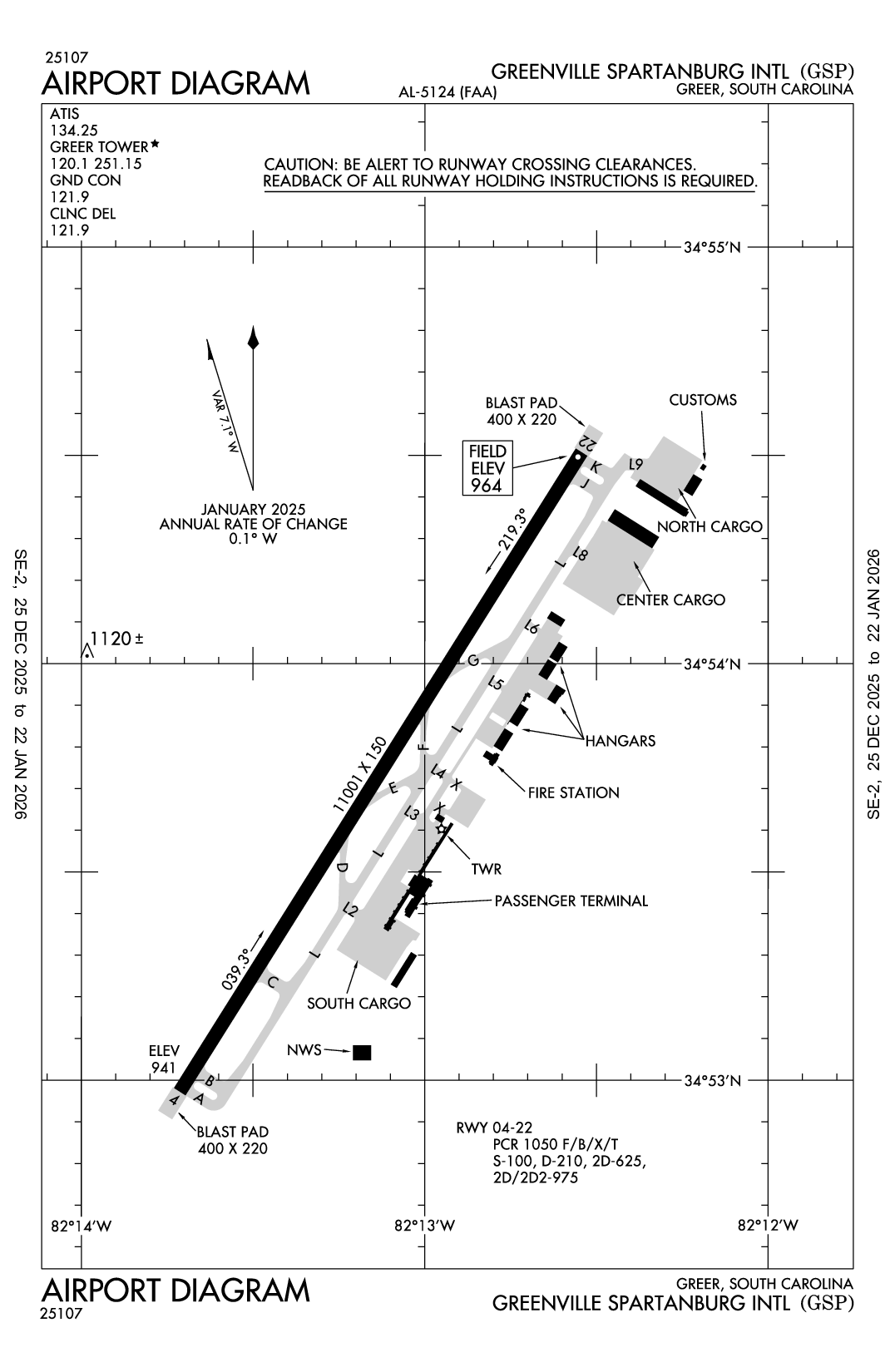

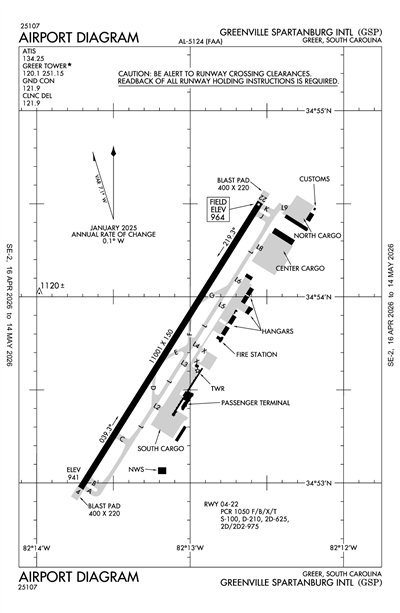

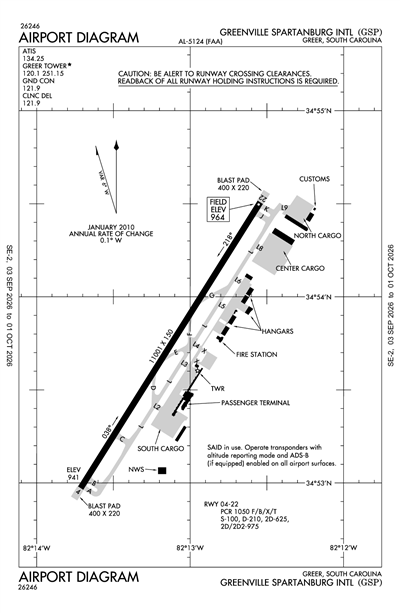

GREENVILLE SPARTANBURG INTL - Airport Diagram

KGSP

GREENVILLE SPARTANBURG INTL

PublicPUB

3 miles S of GREER, SC, US

View on Map

Status

Operational

Coordinates

34° 53' 44"N 82° 13' 08"W

Elevation

964' MSL

Pattern Alt

1964' MSL

Mag Variation

07W

Fuel

JET A, 100LL

FSS

ANDERSON (AND)

Sectional

ATLANTA

ARTCC

ATLANTA (ZTL)

Data Effective

1/22/26-2/19/26

KGSP VFR

3:53 AM EST RAW

Clear

Viz

10sm

Temp

15°F

Dew

1°F

Pres

30.03"Hg

Wind

310° 7kts

RMK

AO2 SLP180 T10941172 53005

METAR KGSP 010853Z AUTO 31007KT 10SM CLR M09/M17 A3003 RMK AO2 SLP180 T10941172 53005

Add Your Business

KGSP FBOs

Promote Listing

Cerulean Aviation

UNICOM: 122.95

Phone: (864) 655-5221

0 Reviews (Read | Sign In To Write)

World Fuel

As of 1/21	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.68	6.03	6.09

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ATIS	134.25
ASOS	(864) 334-6232

Common

CTAF	120.1
WHEN ATCT CLSD ACTVT MALSR RWY 22; CNTLN RWY 22; HIRL RWY 04/22 - CTAF.
UNICOM	122.95

Clearance

Clearance Delivery

121.9

Ground

GREER GROUND	121.9
0600-2345

Tower

GREER TOWER	120.1
0600-2345

Arrival

JUNNR STAR	118.8
WEST
JUNNR STAR	119.4
EAST
MCHLN STAR	119.4
RCTOR STAR	118.8
WORXS STAR	118.8

Approach

GREER APPROACH	118.8
Initial Contact - WEST
GREER APPROACH	119.4
EAST
GREER APPROACH	120.6
Secondary
GREER APPROACH	120.6
Secondary

Departure

BIMMR DP	119.4
BWALL DP	119.4
GREER DEPARTURE	118.8
Initial Contact - WEST
GREER DEPARTURE	119.4
EAST
GREER DEPARTURE	120.6
Secondary

Center

GREER CENTER	135.35
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC ON FREQS 135.35/263.125 (OWING RCAG) WHEN APCH CTL CLSD.

Flight Service

Flight Service	122.2
(AND)

Emergency

121.5

Other

CLASS C	118.8
WEST
CLASS C	119.4
EAST

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KGSP

RAW

Reported

Sun, 2/1 12:30 AM EST

Valid

Sun, 2/1 1:00 AM EST - Mon, 2/2 1:00 AM EST

VFR

1:00 AM EST - 4:00 AM EST

Broken 6,000'

Viz

6sm

Wind

330° 11kts

VFR

4:00 AM EST - 9:00 AM EST

Few 6,000'

Viz

6sm

Wind

320° 11kts

VFR

9:00 AM EST - 7:00 PM EST

Sky Clear

Viz

6sm

Wind

320° 10kts

Gusts 18kts

VFR

7:00 PM EST - 1:00 AM EST

Sky Clear

Viz

6sm

Wind

340° 5kts

TAF KGSP 010530Z 0106/0206 33011KT P6SM BKN060 WS020/34035KT
   FM010900 32011KT P6SM FEW060 WS020/33045KT
   FM011400 32010G18KT P6SM SKC
   FM020000 34005KT P6SM SKC

KGSP

Effective	Expires	Category	NOTAM
Domestic
2/1/26 0830Z	2/1/26 2300Z		!GSP 02/013 GSP TWY A FICON 1/4IN DRY SN OVER COMPACTED SN PLOWED AND SWEPT 74FT WID REMAINDER 4IN DRY SN OVER COMPACTED SN OBS AT 2602010830. 2602010830-2602012300
2/1/26 0752Z	2/1/26 2300Z		!GSP 02/012 GSP TWY L8 FICON 1/4IN DRY SN OVER COMPACTED SN PLOWED 120FT WID REMAINDER 4IN DRY SN OVER COMPACTED SN OBS AT 2602010752. 2602010752-2602012300
2/1/26 0747Z	2/1/26 2300Z		!GSP 02/011 GSP APRON TERMINAL RAMP TXL FICON 4IN DRY SN OVER COMPACTED SN 50FT WID REMAINDER 1/4IN DRY SN OVER COMPACTED SN OBS AT 2602010747. 2602010747-2602012300
2/1/26 0720Z	2/1/26 2300Z		!GSP 02/010 GSP APRON GA RAMP FICON 1/4IN DRY SN OVER COMPACTED SN OBS AT 2602010720. 2602010720-2602012300
2/1/26 0717Z	2/1/26 2300Z		!GSP 02/009 GSP APRON CENTER CARGO RAMP FICON 1/4IN DRY SN OVER COMPACTED SN OBS AT 2602010717. 2602010717-2602012300
2/1/26 0715Z	2/1/26 2300Z		!GSP 02/008 GSP APRON NORTH CARGO RAMP FICON 1/4IN DRY SN OVER COMPACTED SN OBS AT 2602010715. 2602010715-2602012300
2/1/26 0539Z	2/2/26 0539Z		!GSP 02/007 GSP TWY L FICON 1/8IN DRY SN AND DEICED LIQUID REMAINDER 1/2IN DRY SN OBS AT 2602010539. 2602010539-2602020539
2/1/26 0402Z	2/2/26 0402Z	Runway	!GSP 02/006 GSP RWY 04 FICON 5/5/5 100 PCT 1/8IN DRY SN DEICED LIQUID 100FT WID AND PLOWED AND SWEPT 120FT WID REMAINDER 6IN DRY SN OBS AT 2602010402. 2602010402-2602020402
2/1/26 0112Z	2/2/26 0112Z		!GSP 02/003 GSP TWY K FICON COMPACTED SN PLOWED 90FT WID 14IN WINDROWS REMAINDER COMPACTED SN OBS AT 2602010112. 2602010112-2602020112
1/31/26 2343Z	2/6/26 2359Z		!GSP 01/167 GSP TWY D CLSD 2601312343-2602062359
1/31/26 2342Z	2/6/26 2359Z		!GSP 01/166 GSP TWY G CLSD 2601312342-2602062359
1/31/26 2126Z	2/1/26 2200Z		!GSP 01/162 GSP TWY L6 CLSD 2601312126-2602012200
1/31/26 2126Z	2/1/26 2200Z		!GSP 01/161 GSP TWY B, C, J CLSD 2601312126-2602012200
1/31/26 2126Z	2/1/26 2200Z		!GSP 01/160 GSP TWY E, F CLSD 2601312126-2602012200
1/31/26 2125Z	2/1/26 2200Z		!GSP 01/159 GSP APRON SOUTH CARGO RAMP CLSD 2601312125-2602012200
1/31/26 2030Z	2/1/26 0445Z		!GSP 01/156 GSP SVC GREER APP CLSD CLASS C SER INVOLVING VFR ACFT NOT AVBL CTC ATLANTA ARTCC FOR CLASS C ARR COM ON 135.35, FOR CLR DELIVERY AT 770-210-7692 2601312030-2602010445
1/31/26 1456Z	2/1/26 2200Z		!GSP 01/134 GSP AD AP ALL SFC WIP SN REMOVAL 2601311456-2602012200
1/29/26 1817Z	2/28/26 2300Z		!GSP 01/114 GSP TWY L4 CLSD 2601291817-2602282300
1/29/26 1817Z	2/28/26 2200Z		!GSP 01/113 GSP APRON TERMINAL RAMP W EDGE BTN GATE A0 AND A4 WIP CONST ADJ LGTD AND BARRICADED 2601291817-2602282200
1/29/26 1816Z	2/28/26 2200Z		!GSP 01/112 GSP TWY L2 CLSD TO ACFT WINGSPAN MORE THAN 171FT 2601291816-2602282200
1/29/26 1816Z	2/28/26 2200Z		!GSP 01/111 GSP APRON SOUTH CARGO RAMP WIP CONST ADJ SW EDGE LGTD AND BARRICADED 2601291816-2602282200
1/29/26 1815Z	2/28/26 2200Z		!GSP 01/110 GSP APRON TERMINAL RAMP TXL CLSD TO ACFT WINGSPAN MORE THAN 118FT BTN GATE A0 AND A4 2601291815-2602282200
1/29/26 1815Z	2/28/26 2200Z		!GSP 01/109 GSP APRON SOUTH CARGO RAMP CLSD TO ACFT WINGSPAN MORE THAN 171FT 2601291815-2602282200
1/25/26 1425Z	4/25/26 0500Z		!GSP 01/069 GSP OBST TOWER LGT (ASR 1010112) 345204.00N0821442.90W (2.1NM SW GSP) 1062.7FT (190.9FT AGL) U/S 2601251425-2604250500
1/21/26 1200Z	6/1/26 2300Z		!GSP 01/028 GSP OBST CRANE (ASN UNKNOWN) 345430N0821420W (1NM NW GSP) UNKNOWN (180FT AGL) LGTD WED THU FRI SAT MON TUE 1200-2300 2601211200-2606012300
1/14/26 1200Z	3/9/26 2300Z		!GSP 01/014 GSP OBST CRANE (ASN UNKNOWN) 345430N0821420W (1NM NW GSP) UNKNOWN (200FT AGL) LGTD WED THU FRI SAT MON TUE 1200-2300 2601141200-2603092300
1/10/26 0400Z	4/9/26 0500Z		!GSP 01/019 GSP OBST TOWER LGT (ASR 1056591) 345246.00N0821152.00W (1.4NM SE GSP) 1108.9FT (185.0FT AGL) U/S 2601100400-2604090500
12/31/25 2305Z	4/30/26 2305Z		!GSP 12/070 GSP OBST TOWER LGT (ASR 1229616) 345810.50N0821626.60W (5.2NM NNW GSP) 1222.1FT (255.9FT AGL) U/S 2512312305-2604302305
12/2/25 1323Z	3/3/26 0500Z		!GSP 12/006 GSP OBST TOWER LGT (ASR 1014479) 344808.00N0820760.00W (6.9NM SE GSP) 1013.8FT (210.0FT AGL) U/S 2512021323-2603030500
FDC
10/27/25 1408Z	6/8/26 1408Z		!FDC 5/7043 GSP IAP GREENVILLE SPARTANBURG INTL, GREER, SC. ILS OR LOC RWY 22, AMDT 6... ILS OR LOC RWY 4, AMDT 25... ILS RWY 4 (SA CAT I), AMDT 25... ILS RWY 4 (CAT II AND III), AMDT 25... PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, SPA VORTAC OUT OF SERVICE. 2510271408-2606081408EST
9/2/25 2004Z			!FDC 5/6747 GSP ODP GREENVILLE SPARTANBURG INTL, GREER, SC. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1A... TAKEOFF OBSTACLE NOTE: RWY 22, TREE 1850 FT FROM DER, 970 FT LEFT OF CENTERLINE, 992 FT MSL. TREE 2052 FT FROM DER, 1006 FT LEFT OF CENTERLINE, 993 FT MSL.. ALL OTHER DATA REMAINS AS PUBLISHED. 2509022004-2709022004EST

ATC Tower

Yes

Attendance

ALL

Owner

GREENVILLE-SPARTANBURG ACMSN
2000 GSP DRIVE, SUITE 1
GREER, SC 29651
Phone: 864-877-7426

Manager

DAVID EDWARDS, JR.
2000 GSP DRIVE, SUITE 1
GREER, SC 29651
Phone: (864) 848-6272

FSS

ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF

NOTAM

GSP

Light Schedule

Lights

WHEN ATCT CLSD ACTVT MALSR RWY 22; CNTLN RWY 22; HIRL RWY 04/22 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

Low Pressure

Bulk Oxygen

Low Pressure

Other Services

Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

Dimensions

11001 ft. x 150 ft.

Surface Type

ASPH CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

100,000lbs

Double Wheel

210,000lbs

Double Tandem

625,000lbs

Dual Dbl Tand

975,000lbs

	Runway 04	Runway 22
True Heading	32°	212°
Traffic Pattern	Right	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	34° 52' 58"N	34° 54' 30"N
Longitude	82° 13' 43"W	82° 12' 33"W
Elevation	941'	964'
Threshold Crossing Height	56 ft. AGL	76 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4R
Approach Lights	ALSF2	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights

A110-1	PPR GA OR MIL ACFT HEAVIER THAN 120,000 LBS CTC APT OPS 864-848-6233
A110-2	HEAVY ACFT DO NOT MAKE MORE THAN 90 DEG TURN ON ASPH PORTIONS OF THE RWY OR PARL TWY LIMA; OR TWYS D, E, F, G, UNLESS DIRECTED BY ATCT.
A110-3	PSA MRO ACFT DO NOT USE L5, L6, OR GA RAMP UNLESS PRIOR COORD WITH GSP OPS 864-848-6246. ACES MRO HNGR VIA SOUTHERN TAXILANE BTN MRO HNGR AND L4.
A110-4	FOR CD WHEN GREER APCH CLSD CTC ATLANTA ARTCC AT 770-210-7692.
A110-6	RAMP NE OF ATCT CLSD.
A110-7	WHEN ATCT IS CLSD, ARFF MNT 120.1.
A33-04/22_SURF	RWY 04/22 SOUTH 2525 FT CONC, NORTH 1925 FT CONC, CENTER 6551 ASPH.
A39-04/22	PCR VALUE: 1050/F/B/X/T
A49-04	RWY 04 ALSF2 STEP 3 ONLY WHEN ATCT CLSD.
A5-S	AND SPARTANBURG CO.
A70-100LL	FUEL ICING INHIBITOR AVBL.
A81-APT	WHEN ATCT CLSD ACTVT MALSR RWY 22; CNTLN RWY 22; HIRL RWY 04/22 - CTAF.
E115	JOINT USE AGREEMENT FOR EMERGENCY USE.

GREENVILLE SPARTANBURG INTL (ICAO: KGSP, IATA: GSP) is a public airport located in GREER, SC, US.
