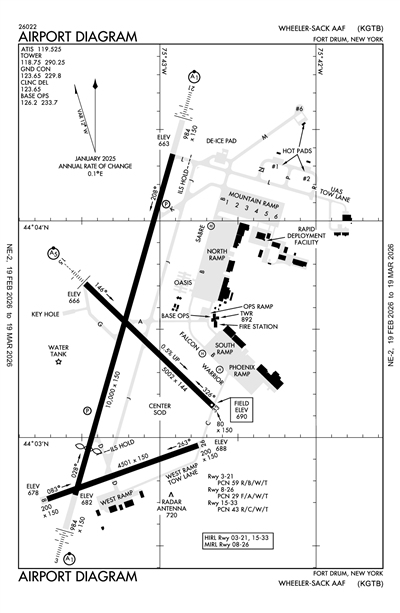

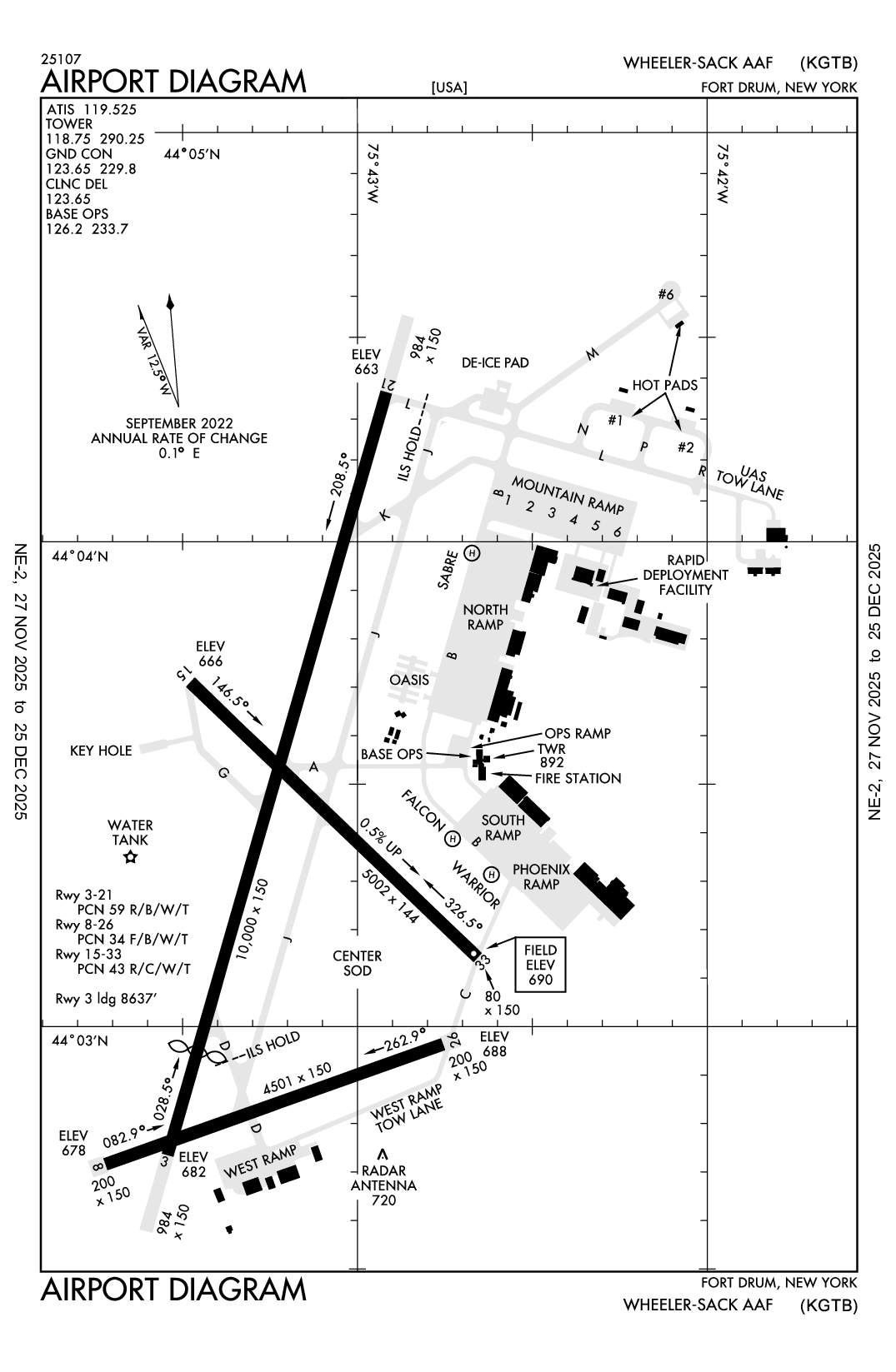

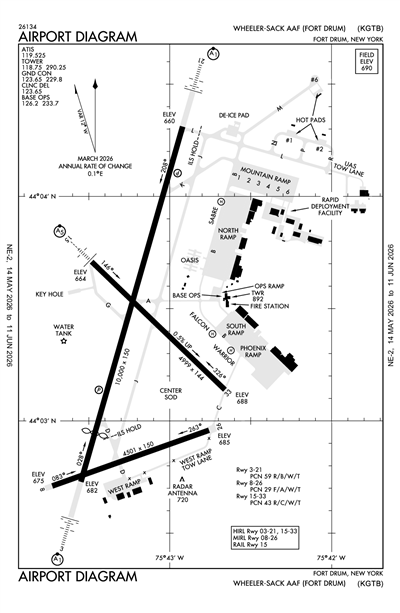

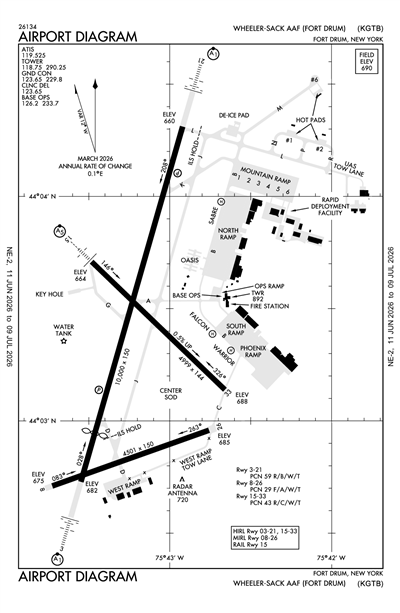

WHEELER-SACK AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGTB
WHEELER-SACK AAF
PrivatePVT

1 miles NE of FORT DRUM, NY
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 03' 20"N 75° 43' 12"W
690' MSL
1690' MSL
13W
None Listed
BURLINGTON (BTV)
MONTREAL
BOSTON (ZBW)
6/16/22-7/14/22
KGTB VFR
6:56 AM EDT
Overcast 13,000'
Broken 9,500'
10sm
64°F
54°F
30.01"Hg
140° 10kts
A02A SLP160
KGTB 051056Z 14010KT 10SM BKN095 OVC130 18/12 A3001 RMK A02A SLP160

KGTB FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KGTB Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGTB Hotels

No hotels are listed for this airport.

KGTB Restaurants

No restaurants are listed for this airport.

KGTB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
119.525

Approach/Departure

APCH/P DEP/P
124.875

Clearance Delivery

CD/P
121.9

Ground

GND/P
121.9

Tower

LCL/P
FM
49.8
LCL/P
118.75

Other

BASE OPS
126.2
FLT FLW
141.025
RADAR/P
134.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Terminal Area Forecast

KGTB
Tue, 7/5 5:00 AM EDT
Tue, 7/5 5:00 AM EDT - Wed, 7/6 11:00 AM EDT
VFR
5:00 AM EDT - 1:00 PM EDT
Broken 4,500'
Scattered 3,500'
> 6sm
29.85"Hg
160° 6kts
MVFR
Becoming 1:00 PM EDT - 7:00 PM EDT
Light Rain
Broken 2,500'
4.97sm
29.68"Hg
160° 9kts
IFR
Becoming 7:00 PM EDT - 7:00 AM EDT
Mist
Overcast 1,500'
Broken 500'
5.59sm
29.65"Hg
VRB° 6kts
MVFR
Becoming 7:00 AM EDT - 11:00 AM EDT
Overcast 3,000'
> 6sm
29.91"Hg
010° 10kts
Gusts 15kts
TAF KGTB 050900Z 0509/0615 16006KT 9999 SCT035 BKN045 QNH2985INS
   BECMG 0517/0518 16009KT 8000 -RA BKN025 QNH2967INS
   BECMG 0523/0524 VRB06KT 9000 BR BKN005 OVC015 QNH2966INS
   BECMG 0611/0612 01010G15KT 9999 NSW OVC030 QNH2992INS TX23/0517Z TN17/0509Z
KGTB
Military
6/30/221843Z OBST TOWER R-5201 VP 51741 92571, VP 58064 99431, VP 50374 78533, VP 55125 80553, VP 65428 91532 115FT AGL FLAGGED LGTD
6/22/221436Z OBST TOWER 440635.73N0754202.37W (2NM N GTB) 699FT (115FT AGL) FLAGGED LGTD
6/22/221433Z OBST TOWER 440338.69N0754408.34W (.5NM W GTB) 719FT (115FT AGL) FLAGGED LGTD
6/2/222121Z !KGTB V0214/22 GTB AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI-ILS OR LOC RWY 3 AMDT 1B... DME MINIMUMS: CIRCLING CAT C 1280-1 1/2 590 (600-1 1/2), CAT D 1460-2 1/2 770 (800-2 1/2), CAT E 1640-3 950 (1000-3). 2206022121-2210062359
6/2/222118Z !KGTB V0213/22 GTB AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC RWY 3 AMDT 2B... DME MINIMUMS: CIRCLING CAT A 1200-1 510 (600-1), CAT B 1240-1 550 (600-1), CAT C 1280-1 1/2 510 (600-1 1/2), CAT D 1460-2 1/2 770 (800-2 1/2), CAT E 1640-3 950 (1000-3). 2206022118-2210062359
6/2/222115Z !KGTB V0212/22 GTB AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC RWY 21 AMDT 2B... CIRCLING CAT A 1200-1 510 (600-1), CAT B 1240-1 550 (600-1), CAT C 1280-1 1/2 590 (600-1 1/2), CAT D 1460-2 1/2 700 (800-2 1/2), CAT E 1640-3 950 (1000-3). 2206022115-2210062359
6/2/222114Z !KGTB V0211/22 GTB AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RADAR MINIMUMS RADDAR 2 ORIG B... ASR S-15 CAT A/B 1140-1/2 453 (500-1/2), CAT C/D 1140-7/8 453 (500-7/8), CAT E 1140-1 453 (500-1). WHEN ALS INOP INCREASE CAT AB VISIBILITY TO 1 MILE; CAT CD VISIBIITY TO 1 3/8 MILE, CAT E VISIBILITY TO 1 1/2 MILES. CIRCLING CAT C 1280-1 1/2 510 (600-1 1/2), CAT D 1460-2 1/2 770 (800-2 1/2), CAT E 1640-3 950 (1000-3). 2206022114-2210062359
6/2/222048Z !KGTB V0210/22 GTB AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 3 AMDT 1B... CIRCLING CAT A 1200-1 510 (600-1), CAT B 1240-1 550 (600-1), CAT C 1280-1 1/2 (600-1 1/2), CAT D 1460-2 1/2 770 (800-2 1/2), CAT E 1640-3 950 (1000-3). 2206022048-2210062359
6/2/222041Z !KGTB V0209/22 GTB AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 21 AMDT 2B... CIRCLING CAT A 1200-1 510 (600-1), CAT B 1240-1 550 (600-1), CAT C 1280-1 1/2 590 (600-1 1/2), CAT D 1460-2 1/2 700 (800-2 1/2), CAT E 1640-3 950 (1000-3). 2206022041-2210062359
6/2/222039Z !KGTB V0208/22 GTB AERODROME IFR TAKE-OFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES CHANGED AMDT 5A... RWY 21 MINIMUMS: MINIMUM CLIMB OF 260 FEET PER NM TO 3100. (WX MINS DELETED) 2206022039-2210062359
6/2/222036Z !KGTB V0207/22 GTB AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC RWY 21 AMDT 2B... CIRCLING CAT A 1200-1 510 (600-1), CAT B 1240-1 550 (600-1), CAT C 1280-1 1/2 590 (600-1 1/2), CAT D 1460-2 1/2 700 (800-2 1/2), CAT E 1640-3 950 (1000-3). 2206022036-2210062359
5/6/220724Z R-5201 OP6, 6A, 7, 8, 9 PERM CLSD AND REPLACED BY RANGE 29, 30. NEW RANGES ARE LOCATED IN TA15C, 15D, 15E, 16A AND ATA BOWLING ALLEY II, WEAVER I. AVIATORS MUST BE FAMILIAR WITH RANGE LOCATIONS PRIOR TO CONDUCTING OPS IN ATA BOWLING ALLEY II, WEAVER I. MAP POSTED IN BASOPS FLT PLANNING ROOM
5/6/220721Z R-5201 DRUM RADIO NORTH VHF 139.6 AND UHF 318.8 INOP
5/4/221512Z WEST RMP PRKG SPOT 1,2,3 EAST OF TWY D EXTENDED CTR LINE CLSD
5/4/221452Z W RMP WIP ADJ HANGAR 2050
4/29/221632Z ACFT WILL NOT LAND ON BELVEDERE APRON ADJACENT TO FLS
4/29/221142Z R-5201 ROTARY WING ADMIN RTE AMENDED FOR NESTING BALD EAGLES. COMPLY WITH RGE 48 TRANSITION RQMNTS WHEN CLEAR ZONE IS ACTIVE. OTHER TIMES PROCEED DIRECT FROM CP LAKES OR PONDS TO CP RICES AT ADMIN ALT LOW LEVEL FLT NOT AUTHORIZED. HELICOPTERS APPROVED TO OPR IN TA19 MUST AVOID FLT WI AN AREA DEFINED AS 1/4NM RADIUS OF GRID VP 6650 9015 SFC TO 1500FT AGL VIC MUD LAKE
4/15/221823Z DUE TO POTENTIAL 5G INTERFERENCE, RADIO ALTIMETER MAY BE UNUSABLE. REFER TO 5G – RADIO ALTIMETER TAB ON DAIP FOR MORE INFORMATION AND REPORTING INSTRUCTIONS.
Yes
MON-FRI 0700-2200
OTR TIMES PPR. ARPT CLSD HOLS.
US ARMY AERONAUTICAL SVCS AGENCY

FORT BELVOIR, VA 22060
N/A
BURLINGTON FSS (BTV)
Toll Free: 1-800-WX-BRIEF
GTB
Sunset to Sunrise
--
Split-Clear-Green
LCTD ON 847'MSL TOWER WEST OF RWY 8.
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 03/21

10000 ft. x 150 ft.
CONC
Good

HIGH
59 /R/B/W/T
--
--
--
--
  Runway 03 Runway 21
True Heading Not ListedNot Listed
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 02' 44"N 44° 04' 19"N
Longitude 75° 43' 33"W 75° 42' 55"W
Elevation 679' 660'
Threshold Crossing Height 64 ft. AGL 72 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights
Runway End Identifier Lights

Runway 08/26

4501 ft. x 150 ft.
ASPH
CONC

LOW
34 /F/A/W/T
--
--
--
--
  Runway 08 Runway 26
True Heading Not ListedNot Listed
Traffic Pattern Right
Markings BSC BSC
Markings Condition POOR POOR
Latitude 44° 02' 43"N 44° 02' 57"N
Longitude 75° 43' 44"W 75° 42' 45"W
Elevation 675' 685'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

5002 ft. x 144 ft.

CONC

HIGH
43 /R/C/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading Not ListedNot Listed
Traffic Pattern Right
Markings PIR PIR
Markings Condition POOR POOR
Latitude 44° 03' 43"N 44° 03' 08"N
Longitude 75° 43' 29"W 75° 42' 39"W
Elevation 666' 690'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1SERVICE-L-AOE JASU-3(ASU600-270-DDP). FUEL-A++ OT.
A110-10MISC: WX SVC AVBL 24/7. DSN 772-6065, C315-772-6065. BACK-UP WX BRIEF AVBL FR 15 OWS SCOTT AFB DSN 576-9755/9702, C618-256-9755/9702. PRI WX SENSORS AUTOMATED H24. DRG AUGMENTATION/BACK-UP WX OBSERVATION PT IS OBST 033 DEGS-162 DEGS.
A110-11NS ABTMT - QUIET HRS 0300-1100Z++.
A110-12CUST/AG/IMG: NO ONSITE CSTMS, CONSULT FCG. AERIAL PORT MSN ACFT PLAN ARR BTN 1300-0300Z++ MON-FRI EXC HOL, OT RQR ADVANCED COORD AND APVL.
A110-15RWY 03/21 ACLT STOP AND TKOF RUN DIST AVBL 10000 FT.
A110-17TFC PAT - R/W 1400 FT, F/W 2000 FT. TURBO JET 2500 FT. OVHD 3000 FT.
A110-18TWY G RSTD TO C130 OR SMALLER, MAX ACN 25.
A110-19SECTION OF RWY 08/26 BTN RWY 03/21 AND TWY D RATED CONC PCN 54 R/B/W/T.
A110-2TRAN ALERT: NO CATERING, CLEANING, LAV, TRASH REMOVAL, WATER, OR CREW TRNSP SVC AVBL.
A110-20BASE OPS OPR 1200-0400Z++ MON-FRI; CLSD SAT, SUN AND FEDERAL HOL. INBD TRAN ACFT CTC BASE OPS 20 MIN PRIOR TO LDG. TWY G, N, P, R AND TWY L EAST OF TWY B DESIGNATED NONMOVEMENT AREA. COMPASS ROSE NOT CALIBRATED. ACFT INBD FOR AVN FLD MAINT ACT (AFMA) MUST ARR NO LATER THAN 1900Z++ CTC DSN 772-7536 C315-772-7536. EMERG CTC MT OPS CNTR DSN 772-8620 C315-772-8620.
A110-21FLUID - SP DE-ICE TYPE I AND IV AVBL WITH 3 HR PN.
A110-3RSTD: PPR CTC BASE OPS DSN 772-5681 C315-772-5681/5682. TENANT ACFT HAVE PRIORITY FOR LCL PAT OPS, TRAN MAY BE LTD. RWY 15-33.TWY G RSTD TO C130 OR SMALLER. SOD LDG/OPS RSTD TO CNTR, SOD. OASIS RST TO TENANT R/W HOT REFUL OPS, LDG/DEP PROHIBITED WHEN CLSD. OASIS 4R/22L CLSD N OF POINT 4, DEP 4R LDG, 22L PROHIBITED. TWY B BTN TWY A AND N RAMP CLSD. CAMP COMANCHE COPTER TRNG AREA CLSD.
A110-4CTN: EXTSY MIL ACFT ACTIVITY VCNTY ARPT MIL ACFT REFER TO FLIP AP/1 PRIOR TO OPS ON FORT DRUM OR WI R-5201. NARROW TWY A,B INT ARC 40 FT WIDE. N RAMP EDGE LGT US. TWY B EDGE LGT US BTN TWY A AND SABRE HELIPAD. W RAMP UNLGTD. OASIS 22/04 THLD/END LGT US. RSC NOT MNTN WHEN BASE OPS IS CLSD. WILDLIFE HAZ, REFER TO AP/1.
WHEELER-SACK AAF (ICAO: KGTB, IATA: GTB) is a private airport located in FORT DRUM, NY.
