iFlightPlanner



...

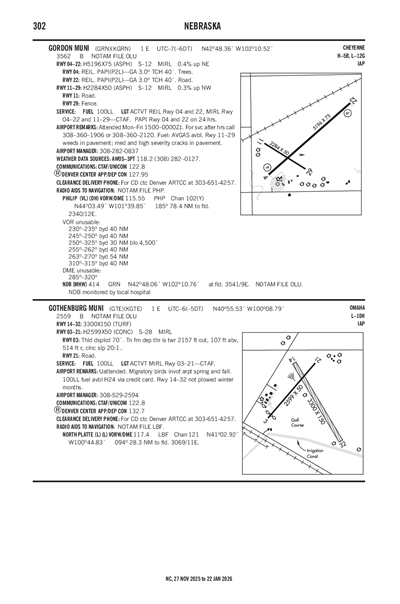

GOTHENBURG MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGTE
GOTHENBURG MUNI
PublicPUB

1 miles E of GOTHENBURG, NE
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 55' 32"N 100° 08' 48"W
2559' MSL
3559' MSL
08E
100LL
COLUMBUS (OLU)
OMAHA
DENVER (ZDV)
6/16/22-7/14/22
KLXN (19nm) VFR
12:55 AM CDT
Clear
10sm
80°F
65°F
29.89"Hg
150° 5kts
AO2 T02680183 10335 20251 403590221
KLXN 050555Z AUTO 15005KT 10SM CLR 27/18 A2989 RMK AO2 T02680183 10335 20251 403590221

KGTE FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KGTE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGTE Hotels

No hotels are listed for this airport.

KGTE Restaurants

No restaurants are listed for this airport.

KGTE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLBF (27nm)
Tue, 7/5 12:32 AM CDT
Tue, 7/5 1:00 AM CDT - Wed, 7/6 1:00 AM CDT
VFR
1:00 AM CDT - 8:00 AM CDT
Scattered 15,000'
> 6sm
100° 5kts
VFR
8:00 AM CDT - 12:00 PM CDT
Scattered 20,000'
> 6sm
120° 7kts
VFR
12:00 PM CDT - 7:00 PM CDT
Overcast 25,000'
> 6sm
130° 12kts
Gusts 18kts
VFR
7:00 PM CDT - 10:00 PM CDT
Overcast 25,000'
> 6sm
040° 15kts
Gusts 22kts
VFR
10:00 PM CDT - 1:00 AM CDT
Overcast 10,000'
> 6sm
060° 7kts
KLBF 050532Z 0506/0606 10005KT P6SM SCT150
   FM051300 12007KT P6SM SCT200
   FM051700 13012G18KT P6SM OVC250
   FM060000 04015G22KT P6SM OVC250
   FM060300 06007KT P6SM OVC100
KGTE
Domestic
4/26/221146Z !OLU 04/087 GTE AIRSPACE UAS WI AN AREA DEFINED AS 0.2NM RADIUS OF
405544.60N1000658.20W (1.4NM ENE GTE) SFC-50FT AGL DLY SR-SS
2204261146-2212312322
FDC
7/27/201229Z !FDC 0/5024 GTE IAP GOTHENBURG MUNI, GOTHENBURG, NE.
RNAV (GPS) RWY 21, ORIG-D...
DISREGARD NOTE: DESCENT ANGLE 3.04/TCH 40.
PROFILE NOTE: VISUAL SEGMENT - OBSTACLES.
2007271229-2207271229EST
7/27/201229Z !FDC 0/5023 GTE IAP GOTHENBURG MUNI, GOTHENBURG, NE.
RNAV (GPS) RWY 3, ORIG-D...
DISREGARD NOTE: DESCENT ANGLE 3.05/TCH 40.
PROFILE NOTE: VISUAL SEGMENT - OBSTACLES.
2007271229-2207271229EST
No
MON-FRI 0800-1700
GOTHENBURG AIRPORT AUTHORITY
P.O. BOX 267
GOTHENBURG, NE 69138-0267
Phone: (308) 529-2594
GREGORY M. MATTHIES
P.O. BOX 267
GOTHENBURG, NE 69138-0267
Phone: 308-537-2384
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
OLU
--
ACTVT MIRL RY 03/21 - CTAF.
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
16
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 03/21

2599 ft. x 50 ft.
CONC
Good

MED

28,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 38°218°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 55' 25"N 40° 55' 45"N
Longitude 100° 09' 04"W 100° 08' 43"W
Elevation 2,556' 2,559'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

3300 ft. x 150 ft.
TURF
Good



--
--
--
--
  Runway 14 Runway 32
True Heading 149°329°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 55' 43"N 40° 55' 16"N
Longitude 100° 08' 54"W 100° 08' 32"W
Elevation 2,555' 2,555'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 14/32 NOT PLOWED WINTER MONTHS.
A110-2MIGRATORY BIRDS IN AREA IN SPRING AND FALL
A110-3FOR CD CTC DENVER ARTCC AT 303-651-4257.
GOTHENBURG MUNI (ICAO: KGTE, IATA: GTE) is a public airport located in GOTHENBURG, NE.
