GILA BEND AF AUX - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGXF
GILA BEND AF AUX
PrivatePVT

3 miles S of GILA BEND, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 53' 16"N 112° 43' 11"W
883' MSL
1883' MSL
13E
None Listed
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
6/16/22-7/14/22
KGXF VFR
4:58 AM MST
Broken 9,500'
10sm
85°F
35°F
29.83"Hg
260° 4kts
AO2 SLP087 T02920017 10331 20291
KGXF 051158Z AUTO 26004KT 10SM BKN095 29/02 A2983 RMK AO2 SLP087 T02920017 10331 20291
List Your Business

KGXF FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KGXF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGXF Hotels

No hotels are listed for this airport.

KGXF Restaurants

No restaurants are listed for this airport.

KGXF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Emergency

EMERG
 121.5

Tower

LCL/P
 127.75

Other

RANGE CTL
CALL: SNAKE EYE
 122.775

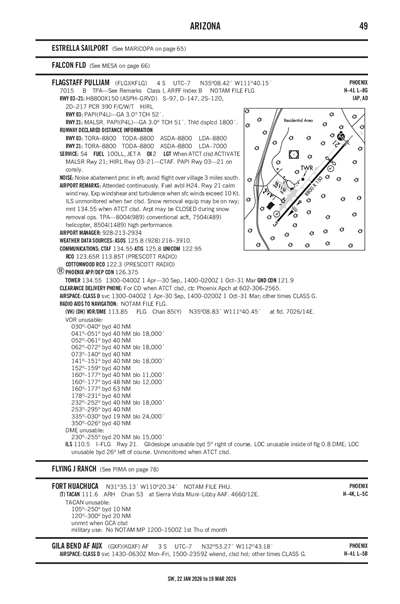

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KLUF (42nm)
Tue, 7/5 5:00 AM MST
Tue, 7/5 5:00 AM MST - Wed, 7/6 11:00 AM MST
VFR
5:00 AM MST - 9:00 AM MST
Broken 12,000'
Scattered 9,000'
> 6sm
29.85"Hg
VRB° 6kts
VFR
Becoming 9:00 AM MST - 11:00 AM MST
Scattered 15,000'
Few 9,000'
> 6sm
29.82"Hg
230° 9kts
TAF KLUF 051200Z 0512/0618 VRB06KT 9999 SCT090 BKN120 QNH2986INS
   BECMG 0516/0517 23009KT 9999 FEW090 SCT150 QNH2983INS TX39/0523Z TN25/0608Z
KGXF
Military
7/6/220427Z AERODROME CLASS D SVC UNAVBL
7/5/221400Z AERODROME AND ATCT HRS OF SVC ARE
7/5/221400Z AERODROME CLASS D SVC AVBL
5/2/222208Z NON STANDARD DIRECTION/LOCATION SIGN LOCATED AT INTERSECTION OF TAXIWAY ALPHA AND PARKING RAMP
4/15/221829Z DUE TO POTENTIAL 5G INTERFERENCE, RADIO ALTIMETER MAY BE UNUSABLE. REFER TO 5G – RADIO ALTIMETER TAB ON DAIP FOR MORE INFORMATION AND REPORTING INSTRUCTIONS.
Yes
DURG SKED RNG PERIODS ONLY
CLSD HOL.
USAF
LUKE AFB
GLENDALE, AZ 85301
BASE OPERATIONS
LUKE AFB
GLENDALE, AZ 85301
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
GXF
--
--
Clear-Green
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 17/35

8502 ft. x 150 ft.

ASPH

MED
43 /F/B/W/T
--
--
--
--
  Runway 17 Runway 35
True Heading Not ListedNot Listed
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 32° 53' 58"N 32° 52' 34"N
Longitude 112° 43' 10"W 112° 43' 11"W
Elevation 826' 883'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator P2R P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-10RSTD: PPR APVL FR 56 RMO/QAE (DSN 896-5261) MUST BE OBTAINED 24 HR PRIOR TO INTENDED LDG. PPR NOT RQR OF EMERG, DIVERTS OR OPNS IN SUPPORT OF SKED RANGE MSN.
A110-12CAUTION: TWY A ONLY 50 FT WIDE WITH 25 FT SHOULDERS. C-130 ARE RQR TO IDLE OUTBOARD ENGINES ON TWY A.
A110-14CAUTION: PERIPHERAL (OUTSIDE) TAXILINES ON PRK RAMP AND NORTH & SOUTH TURN AROUNDS TOO CLOSE TO EDGE OF RAMP AT 20 FT (25 FT RQR) USE CAUTION.
A110-15SERVICE-LGT: NONSTANDARD TWO LGT PAPI IN USE. USE CAUTION FOR NONSTANDARD, NON-COINCIDENTAL FRANGIBLE INFRA-RED LGT LCTD BTN 1000 FT & 7000 FT FM LDG THR. THESE LGTS VISIBLE ONLY THRU NIGHT VISION DEVICES (NVD) IN SUPPORT OF PPR NIGHT VISION GOGGLE (NVG) MSN.
A110-16MISC: RWY 17/35 ASPH WITH FIRST 1444 FT (RWY 17) AND 1401 FT (RWY 35) CONC AND GROOVED.
A110-17MISC: NONSTANDARD LGT LCTD IN BOTH OVRN: PRE THR BAR (FIVE RED LGTS EACH SIDE OF OVRN JUST OFF EDGES) LCTD 100 FT FR THR AND ANOTHER SERIES OF 11 LGTS (THREE RED LGTS, FIVE WHITE LGTS AND THREE RED LGTS ON N AND S END) ON CNTRLN LCTD 200 FT FR THR.
A110-18CAUTION: NUMEROUS OBST ON AFLD UNLGTD.
A110-19CAUTION: RWY 17/35 MRK FIRST 1000 FT - BOTH ENDS OF RWY NOT EASILY IDENTIFIABLE.
A110-20CAUTION: UNEVEN SFC BOTH SIDES OF APCH AND DEP END BAK-12 COULD RESULT IN TAIL HOOK SKIPPING OVER BAK-12 CABLE.
A110-21CAUTION: POTENTIAL EXIST FOR POOR BA ON WET RWY.
A110-22CAUTION: RWY ELEV SIGN LCTD AT TWY A; END OF RWY 35 883 FT, END OF RWY 17 826 FT.
A110-23RMK: PERIPHERAL (OUTSIDE) TAXILANES ON AND 'N' & 'S' TURN AROUNDS TOO CLOSE TO EDGE AT 20 FT (25 FT RQRD); USE CAUTION.
A110-24SERVICE: FUEL - A++
A110-25MISC: NO HAZ CARGO PAD AVBL.
A110-26RSTD: BACK TAXI RQRD WHEN LDG RWY 35.
A110-27CLASS D SVC OPR 1430-0630Z MON-FRI, 1500-2359Z WKEND, CLSD HOL, OT CLASS G.
A110-28AFTER HR COPTER OPS MAY OCCUR.
A110-29CAUTION: THREE RAMP LGT POLES LCTD 100 FT FR EDGE OF PRK RAMP.
A110-30FOR CD CTC LUKE APCH AT 623-856-7361. IF UNA, CTC PHOENIX APCH AT 602-306-2565.
A110-31NOTAM GXF.
A110-6SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-8RSTD: HELIPADS LIMITED TO UH-60 OR SMALLER HELICOPTERS.
A110-9RSTD: HELIPADS UNLGTD, RSTD TO DAY VFR USE ONLY UNLESS APPROVED BY AFLD MGR.
GILA BEND AF AUX (ICAO: KGXF, IATA: GXF) is a private airport located in GILA BEND, AZ.
