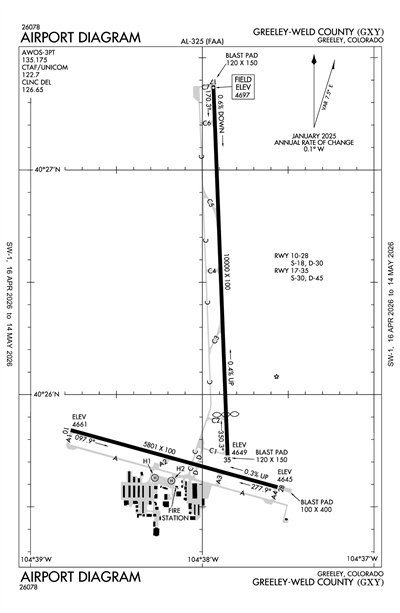

GREELEY-WELD COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGXY
GREELEY-WELD COUNTY
PublicPUB

3 miles E of GREELEY, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 26' 15"N 104° 37' 60"W
4697' MSL
5497' MSL
08E
JET A, 100LL
DENVER (DEN)
CHEYENNE
DENVER (ZDV)
11/27/25-12/25/25
KGXY VFR
12:56 AM MST
No Clouds
10sm
23°F
20°F
29.90"Hg
Calm
AO2 SLP173 T10501067 FZRANO $
METAR KGXY 050756Z AUTO 00000KT 10SM M05/M07 A2990 RMK AO2 SLP173 T10501067 FZRANO $
+ Add Your Business

KGXY FBOs

Promote Listing
Peak Flight Support
UNICOM: 122.7
Phone: (970) 336-3010
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 12/1
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.85
Full Serve 6.76 6.85
Fuel Notes
Prices include tax

KGXY Aircraft Service & Maintenance

Promote Listing
Western Plains Aviation
Phone: (970) 373-4550
Fax: (866) 505-5160
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Advanced Aerotechnologies Group
Phone: (970) 373-3295
Fax: (970) 373-3001
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

KDEN (36nm)
Thu, 12/4 10:38 PM MST
Thu, 12/4 11:00 PM MST - Sat, 12/6 5:00 AM MST
VFR
11:00 PM MST - 9:00 AM MST
Broken 22,000'
Few 14,000'
6sm
200° 11kts
VFR
9:00 AM MST - 1:00 PM MST
Broken 20,000'
Scattered 12,000'
6sm
VRB° 6kts
VFR
1:00 PM MST - 7:00 PM MST
Broken 14,000'
Scattered 9,000'
6sm
070° 6kts
VFR
7:00 PM MST - 5:00 AM MST
Scattered 20,000'
Scattered 12,000'
6sm
200° 10kts
TAF KDEN 050538Z 0506/0612 20011KT P6SM FEW140 BKN220
   FM051600 VRB06KT P6SM SCT120 BKN200
   FM052000 07006KT P6SM SCT090 BKN140
   FM060200 20010KT P6SM SCT120 SCT200
KGXY
EffectiveExpiresCategoryNOTAM
Domestic
12/4/25
2046Z
3/4/26
2359Z
!GXY 12/012 GXY OBST STACK (ASN 2025-ANM-6769-OE) 402714N1043945W (1.1NM NW GXY) 480FT (150FT AGL) NOT LGTD 2512042046-2603042359
FDC
11/25/25
2100Z
!FDC 5/1079 GXY IAP GREELEY-WELD COUNTY, GREELEY, CO.
RNAV (GPS) RWY 10, AMDT 1C...
RNAV (GPS) RWY 17, AMDT 1B...
RNAV (GPS) RWY 28, AMDT 1B...
VOR-A, AMDT 10A...
CIRCLING CAT A MDA 5200/HAA 503. TEMPORARY CRANE 4822 MSL 5451 FT SE OF GXY AIRPORT (2023-ANM-4890-OE), TEMPORARY CRANE 4835 MSL 1.23NM ENE OF GXY AIRPORT (2023-ANM-4891-OE).
2511252100-2607061531EST
11/25/25
2100Z
7/6/26
1526Z
!FDC 5/1071 GXY IAP GREELEY-WELD COUNTY, GREELEY, CO.
RNAV (GPS) RWY 35, AMDT 1B...
LPV DA 4926/HAT 261 ALL CATS, VISIBILITY ALL CATS 7/8. LNAV/VNAV DA 5033/HAT 368 ALL CATS, VISIBILIITY ALL CATS 1. LNAV MDA 5122/HAT 457 ALL CATS, VISIBILITY CATS C/D 1 3/8. CIRCLING CAT A MDA 5200/HAA 503. TEMPORARY CRANE 4822 MSL 5451 FT SE OF GXY AIRPORT (2023-ANM-4890-OE), TEMPORARY CRANE 4835 MSL 1.23NM ENE OF GXY AIRPORT (2023-ANM-4891-OE). TEMPORARY CRANE 4762 MSL 1293FT NW OF RWY 35 (2025-ANM-4506-OE).
2511252100-2607061526EST
11/25/25
2100Z
7/6/26
1526Z
!FDC 5/1070 GXY IAP GREELEY-WELD COUNTY, GREELEY, CO.
ILS OR LOC RWY 35, AMDT 3A...
S-ILS 35 DA 4926/HAT 261 ALL CATS, VISIBILITY ALL CATS 7/8. CIRCLING CAT A MDA 5200/HAA 503. TEMPORARY CRANE 4822 MSL 5451 FT SE OF GXY AIRPORT (2023-ANM-4890-OE), TEMPORARY CRANE 4835 MSL 1.23NM ENE OF GXY AIRPORT (2023-ANM-4891-OE). TEMPORARY CRANE 4762 MSL 1293FT NW OF RWY 35 (2025-ANM-4506-OE).
2511252100-2607061526EST
11/21/25
1455Z
!FDC 5/0333 GXY SID GREELEY-WELD COUNTY, GREELEY, CO.
PLAINS TWO DEPARTURE...
GARDEN CITY TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GCK VORTAC OUT OF SERVICE. 2511211455-2602111455EST
10/23/25
1615Z
1/7/26
1615Z
!FDC 5/5343 GXY SID GREELEY-WELD COUNTY, GREELEY, CO.
PIKES THREE DEPARTURE...
ALAMOSA TRANSITION, BINKE TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ALS VORTAC OUT OF SERVICE. 2510231615-2601071615EST
10/15/25
1200Z
!FDC 5/7981 GXY ODP GREELEY-WELD COUNTY, GREELEY, CO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
TAKE-OFF MINIMUMS: RWY 10, 200-1 OR DEPARTURE NA. RWY 10, TEMPORARY CRANE 1591FT FROM DER, 794FT LEFT OF CENTERLINE, 185FT AGL/4822FT MSL (2023-ANM-4890-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2510151200-2602051429EST
10/15/25
1200Z
!FDC 5/7978 GXY IAP GREELEY-WELD COUNTY, GREELEY, CO.
VOR-A, AMDT 10A...
WESAR FIX MINIMUMS (DME REQUIRED) CIRCLING CAT A MDA 5180/HAA 483. TEMPORARY CRANE 4822 MSL 5451 FT SE OF GXY AIRPORT (2023-ANM-4890-OE).
2510151200-2602051429EST
10/14/25
1943Z
10/14/26
1943Z
!FDC 5/0848 GXY IAP GREELEY-WELD COUNTY, GREELEY, CO.
RNAV (GPS) RWY 28, AMDT 1B...
LPV DA 5072/HAT 422 ALL CATS, VISIBILITY ALL CATS 1 1/4. LNAV/VNAV DA 5033/HAT 383 ALL CATS, VISIBILITY ALL CATS 1 1/8. LNAV MDA 5140/HAT 490 ALL CATS, VISIBILITY CATS C/D 1 3/8. CIRCLING CAT A MDA 5200/HAA 503. TEMPORARY CRANE 4822 MSL 5451 FT SE OF GXY AIRPORT (2023-ANM-4890-OE), TEMPORARY CRANE 4835 MSL 1.23NM ENE OF GXY AIRPORT (2023-ANM-4891-OE).
2510141943-2610141943EST
9/26/25
1700Z
9/26/27
2359Z
!FDC 5/0969 GXY STAR GREELEY-WELD COUNTY AIRPORT, GREELEY, CO.
DANDD ONE ARRIVAL: INCREASE ALL MOCA VALUES TO 8300. ALL OTHER DATA
REMAINS AS PUBLISHED 2509261700-2709262359
8/22/25
1532Z
!FDC 5/1816 GXY SID GREELEY-WELD COUNTY, GREELEY, CO.
ROCKIES SEVEN DEPARTURE...
DOVE CREEK TRANSITION AND MONTROSE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MTJ VOR/DME OUT OF SERVICE.
2508221532-2604031532EST
5/20/24
2028Z
!FDC 4/6959 GXY IAP GREELEY-WELD COUNTY, GREELEY, CO.
VOR-A, AMDT 10A...
TERMINAL ROUTE FROM SHOOP TO NOVAA RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
WESAR FIX MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
DISREGARD YURUK GLL 4.6 DME. USE TIME/DISTANCE TABLE.
DISREGARD NOTE: DME REQUIRED.
GLL DME RESTRICTED.
2405202028-2605202028EST
No
0600-1900
COORD AFT HR ARPT ACES WITH FBO'S. CALL 970-336-4866 OR 970-351-8957.
FOR ATNDNC AFT HRS CALL 970-336-3010.
GREELEY-WELD CO ARPT AUTH
PO BOX 727
GREELEY, CO 80632
Phone: 970-336-3000
COOPER ANDERSON
PO BOX 727
GREELEY, CO 80632
Phone: (970) 336-3001
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
GXY
--
ACTVT MIRL RWYS 10/28 & 17/35, & REIL RWYS 10, 28, 17, & 35 - CTAF. PAPI RWYS 10, 17, 35, & VASI RWY 28 OPR 24 HRS.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Crop Dusting
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 10/28

5801 ft. x 100 ft.
ASPH
Excellent
NONE
MED

18,000lbs
30,000lbs
--
--
  Runway 10 Runway 28
True Heading 105°285°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 25' 50"N 40° 25' 35"N
Longitude 104° 38' 46"W 104° 37' 34"W
Elevation 4,661' 4,645'
Threshold Crossing Height 43 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

10000 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
45,000lbs
--
--
  Runway 17 Runway 35
True Heading 177°357°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 27' 22"N 40° 25' 44"N
Longitude 104° 37' 56"W 104° 37' 51"W
Elevation 4,697' 4,648'
Threshold Crossing Height 46 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

20 ft. x 20 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 80°260°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 40° 25' 38"N N/A
Longitude 104° 38' 17"W N/A
Elevation 4,643' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

20 ft. x 20 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H2 Runway
True Heading 80°260°
Traffic Pattern
Markings NONE
Markings Condition POOR
Latitude 40° 25' 37"N N/A
Longitude 104° 38' 12"W N/A
Elevation 4,642' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RWY 17/35 PREFERRED USE WHEN X WIND CMPT EXCEEDS 12 KT ON RWY 10/28.
A110-2RWY 35 PREFERRED USE WHEN WIND LESS THAN 5 KTS. RWY 35 PREFERRED FOR TGL.
A110-3WILDLIFE & BIRDS ON & INVOF APRT.
A110-4OIL DRILLING RIGS UP TO 120 FT ON AND INVOF ARPT.
A110-5BE ALERT; INTENSIVE USAF STUDENT TRNG INVOF COLORADO SPRINGS & PUEBLO COLORADO.
A110-6ACFT DEPG RWY 28 AVOID SB TURN PRIOR TO XG RWY 10 THLD.
GREELEY-WELD COUNTY (ICAO: KGXY, IATA: GXY) is a public airport located in GREELEY, CO.
