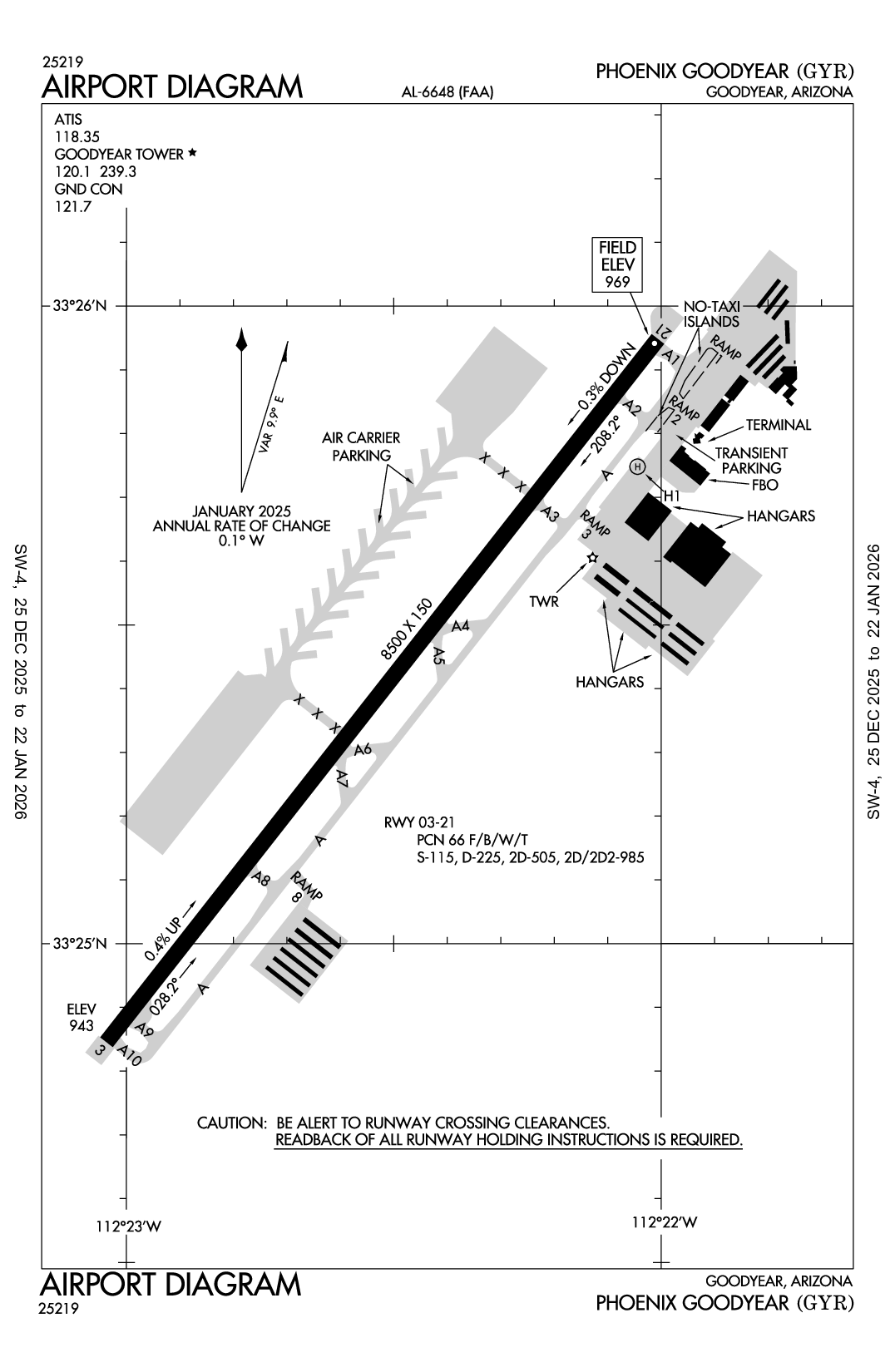

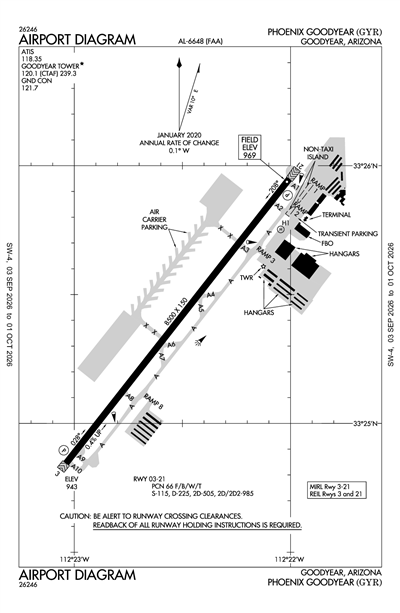

PHOENIX GOODYEAR - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGYR
ICAO KGYRIATA GYRLocal GYR
PHOENIX GOODYEAR
PublicPUB

1 miles SW of GOODYEAR, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 25' 24"N 112° 22' 31"W
Elevation
969' MSL
Pattern Alt
1969' MSL
Mag Variation
10°E
Declination
10°E
Fuel
JET A, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
8/6/26-9/3/26
KGYR VFR
7:47 AM MST
Scattered 18,000'
10sm
97°F
57°F
29.89"Hg
VRB° 5kts
METAR KGYR 231447Z VRB05KT 10SM SCT180 36/14 A2989
+ Add Your Business

KGYR FBOs

Promote Listing
Lux Air Jet Centers
UNICOM: 122.95
Phone: (623) 932-1200
Other: (623) 932-4550
No Rating Available
0 Reviews (Read | Sign In To Write)
AEG, Avfuel, World Fuel
As of 8/13
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.99 7.49 7.59
Fuel Notes
Prices include tax

KGYR Aircraft Service & Maintenance

Promote Listing
Jet MX
Phone: (623) 806-9208
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 118.35

Common

CTAF 120.1
UNICOM 122.95

Ground

GOODYEAR GROUND 121.7
0600-2100

Tower

GOODYEAR TOWER 120.1
0600-2100

Arrival

DSERT STAR 120.7
SUNSS STAR 124.1

Approach

LUKE APPROACH 125.45
SOUTH
LUKE APPROACH 120.7
Secondary

Departure

LUKE DEPARTURE 125.45
SOUTH
LUKE DEPARTURE 120.7
Secondary

Flight Service

Flight Service 122.2
(PRC), COMMUNICATIONS PRVDD BY PRESCOTT RADIO ON FREQ 122.2 (PHOENIX RCO).

Terminal Area Forecast

KPHX (19nm)
Sun, 8/23 8:11 AM MST
Sun, 8/23 8:00 AM MST - Mon, 8/24 11:00 AM MST
VFR
8:00 AM MST - 1:00 PM MST
Scattered 25,000'
Scattered 15,000'
6sm
110° 7kts
VFR
1:00 PM MST - 6:00 PM MST
Scattered 25,000'
Few 15,000'
Few 12,000'
6sm
270° 8kts
VFR
6:00 PM MST - 9:00 PM MST
Broken 25,000'
Scattered 15,000'
Few 12,000'
6sm
010° 11kts
VFR
9:00 PM MST - 12:00 AM MST
Haze and Showers in vicinity
Broken 25,000'
Broken 15,000'
Scattered 10,000'
6sm
220° 15kts
Gusts 25kts
MVFR
9:00 PM MST - 12:00 AM MST
Light Thunderstorm and Rain
Scattered 10,000'
Few 8,000'
4sm
Calm
VFR
12:00 AM MST - 2:00 AM MST
Broken 25,000'
Scattered 15,000'
Few 10,000'
6sm
240° 7kts
VFR
2:00 AM MST - 11:00 AM MST
Broken 20,000'
Scattered 15,000'
Few 12,000'
6sm
VRB° 5kts
TAF KPHX 231511Z 2315/2418 11007KT P6SM SCT150 SCT250
   FM232000 27008KT P6SM FEW120 FEW150 SCT250
   FM240100 01011KT P6SM FEW120 SCT150 BKN250
   FM240400 22015G25KT 6SM HZ VCSH SCT100 BKN150 BKN250
   PROB30 2404/2407 4SM -TSRA FEW080 SCT100CB
   FM240700 24007KT P6SM FEW100 SCT150 BKN250
   FM240900 VRB05KT P6SM FEW120 SCT150 BKN200
KGYR
EffectiveExpiresCategoryNOTAM
Domestic
8/25/26
0400Z
8/26/26
1300Z
Runway!GYR 08/021 GYR RWY 03/21 CLSD DLY 0400-1300 2608250400-2608261300
8/25/26
0400Z
8/26/26
1300Z
!GYR 08/020 GYR TWY A CLSD DLY 0400-1300 2608250400-2608261300
8/24/26
1300Z
8/26/26
1300Z
!GYR 08/026 GYR TWY A4 CLSD 2608241300-2608261300
8/24/26
1300Z
8/26/26
1300Z
!GYR 08/025 GYR TWY A5 CLSD 2608241300-2608261300
8/24/26
1300Z
8/26/26
1300Z
!GYR 08/024 GYR TWY A6 CLSD 2608241300-2608261300
8/24/26
1300Z
8/26/26
1300Z
!GYR 08/023 GYR TWY A7 CLSD 2608241300-2608261300
8/24/26
1300Z
8/26/26
1300Z
!GYR 08/022 GYR TWY A8 CLSD 2608241300-2608261300
8/18/26
2231Z
11/16/26
2331Z
!GYR 08/015 GYR OBST TOWER LGT (ASR 1006795) 332610.40N1121812.40W (3.7NM ENE GYR) 1279.9FT (291.0FT AGL) U/S 2608182231-2611162331
8/17/26
1307Z
8/24/26
1300Z
!GYR 08/014 GYR TWY A8 CLSD 2608171307-2608241300
8/17/26
1306Z
8/24/26
1300Z
!GYR 08/013 GYR TWY A7 CLSD 2608171306-2608241300
8/17/26
1306Z
8/24/26
1300Z
!GYR 08/012 GYR TWY A6 CLSD 2608171306-2608241300
8/17/26
1305Z
8/24/26
1300Z
!GYR 08/011 GYR TWY A5 CLSD 2608171305-2608241300
8/17/26
1304Z
8/24/26
1300Z
!GYR 08/010 GYR TWY A4 CLSD 2608171304-2608241300
8/17/26
1300Z
10/5/26
2200Z
!GYR 08/009 GYR OBST RIG (ASN UNKNOWN) 332512N1122231W (.55NM NE APCH END RWY 03)
988FT (50FT AGL) FLAGGED AND LGTD DLY 1300-2200 2608171300-2610052200
8/17/26
0400Z
8/24/26
1300Z
!GYR 08/007 GYR TWY A CLSD DLY 0400-1300 2608170400-2608241300
8/17/26
0400Z
8/24/26
1300Z
Runway!GYR 08/006 GYR RWY 03/21 CLSD DLY 0400-1300 2608170400-2608241300
8/10/26
2149Z
8/31/26
2359Z
Runway!GYR 08/003 GYR RWY 21 PAPI U/S 2608102149-2608312359
6/19/26
1300Z
1/1/29
0100Z
!GYR 06/014 GYR OBST CRANE (ASN UNKNOWN) 332515N1122128W (0.85NM SSE APCH END RWY 21)
UNKNOWN (180FT AGL) FLAGGED AND LGTD DLY 1300-0100 2606191300-2901010100
5/26/26
1200Z
4/30/27
2359Z
!GYR 05/018 GYR OBST CRANE (ASN UNKNOWN) 332649N1122216W (0.96NM NNW APCH END RWY 21)
UNKNOWN (220FT AGL) FLAGGED AND LGTD 2605261200-2704302359
1/1/26
0400Z
12/31/26
1300Z
!GYR 12/014 GYR APRON RAMP 1 ACCESS CLSD TO ACFT WINGSPAN MORE THAN 105FT DLY 0400-1300 2601010400-2612311300
1/1/26
0400Z
12/31/26
1300Z
!GYR 12/012 GYR TWY A BTN RAMP 1 ACCESS AND RAMP 3 ACCESS CLSD TO ACFT WINGSPAN MORE THAN 175FT DLY 0400-1300 2601010400-2612311300
1/1/26
0400Z
12/31/26
1300Z
!GYR 12/011 GYR APRON RAMP 2 ACCESS CLSD TO ACFT WINGSPAN MORE THAN 105FT DLY 0400-1300 2601010400-2612311300
FDC
3/9/26
1435Z
!FDC 6/5471 GYR ODP PHOENIX GOODYEAR, GOODYEAR, AZ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
POTER THREE DEPARTURE (RNAV)...
ADD TAKEOFF OBSTACLE NOTE: RWY 3, TEMPORARY RIG 1117FT FROM DER, 189FT LEFT OF CENTERLINE, 40FT AGL/1013FT MSL (2024-AWP-7659-NRA). ALL OTHER DATA REMAINS AS PUBLISHED. 2603091435-2610191435EST
Yes
ALL
CITY OF PHOENIX
3400 SKY HARBOR BLVD
PHOENIX, AZ 85034
Phone: 602-273-3300
BRADLEY HAGEN
1658 SO LITCHFIELD RD EXECUTIVE TERMINAL
GOODYEAR, AZ 85338
Phone: 623-932-4550
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
GYR
--
SS-SR REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 OPR CONSLY, ALL OTHER TIMES CTC - 623-932-4550.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Pilot Instruction
Aircraft Rental

Runway 03/21

8500 ft. x 150 ft.
ASPH
Good
NONE
MED
66/F/B/W/T
115,000lbs
225,000lbs
505,000lbs
985,000lbs
  Runway 03 Runway 21
True Heading 38°218°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 24' 51"N 33° 25' 57"N
Longitude 112° 23' 02"W 112° 22' 00"W
Elevation 943' 969'
Threshold Crossing Height 53 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

64 ft. x 64 ft.

CONC
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 33° 25' 45"N N/A
Longitude 112° 22' 03"W N/A
Elevation 968' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10LRG ACFT PRKG 500 FT W OF RWY.
A110-13WHEN TWR CLSD TWY A BTW TWY A3 & A10 RSTD TO WINGSPAN 118 FT OR LESS.
A110-14FOR CD WHEN ATCT CLSD, CTC PHOENIX APCH AT 602-306-2565.
A110-15CTN: SIMILAR ALIGNED RWYS AT LUKE AFB & GLENDALE MUNI; BOTH APRX 8 MI N.
A110-2NOISE ABATEMENT PROC IN EFCT; TFC PAT RMN CLOSE TO ARPT & S OF I-10 HWY. TFC N OF I-10 HWY MNTN 1000 FT UNTIL S - INFO 602-773-1093.
A110-64500 MSL MTS 6 MI SE; MIL JET TFC 5 MI W; BIRDS INVOF ARPT; WILDLIFE ON ARPT.
A30A-03100 FT UNLGT UNMKD E-W PWR LINES 1/2 MI S OF RWY END. DEP ASSIGNED R CROSSWIND CLIMB STRAIGHT AHD TO LITCHFIELD RD OR PASSING 1032 FT BFR R TURN.
A40-H1MED INTSTY.
A76-INSTRPILOT T.
A81-APTSS-SR REIL RWY 03 & 21; PAPI RWY 03 & 21; MIRL RWY 03/21 OPR CONSLY, ALL OTHER TIMES CTC - 623-932-4550.
E111OPERATOR TO PRVDD ARPT TFC CTL-PATTERN TO SE AT SPECIFIED ALT. OPNS MUST BE COMPATIBLE WITH OPNS AT LUKE AFB.
E1471968(1000) LIGHT ACFT & NON-TURBO JETS; 2468(1500) HEAVY ACFT & TURBO JETS; HELICOPTERS 1468(500).
E80AFEE FOR CHARTER, TRAVEL CLUB & REVENUE ACFT.
PHOENIX GOODYEAR (ICAO: KGYR, IATA: GYR) is a public airport located in GOODYEAR, AZ, US.
