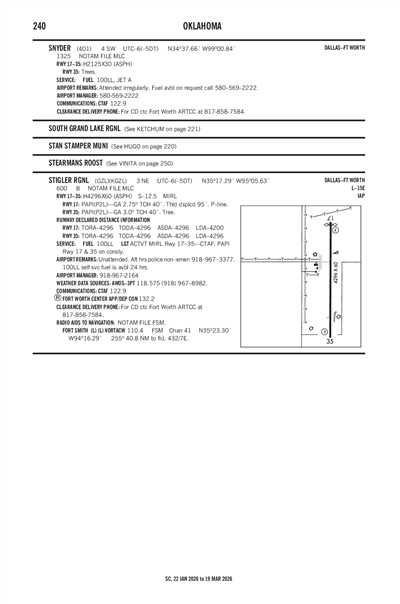

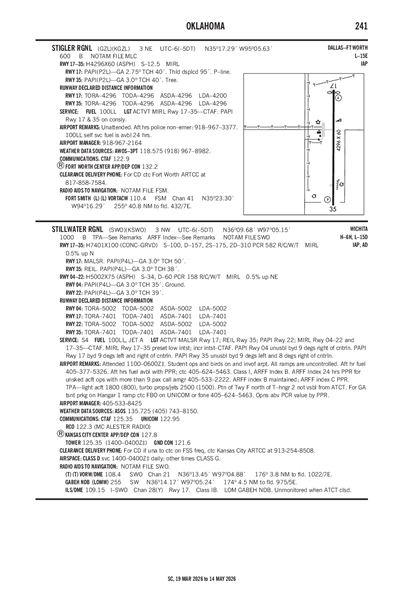

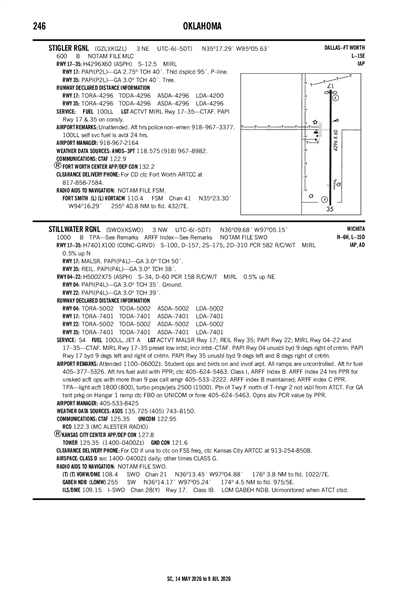

STIGLER RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGZL
STIGLER RGNL
PublicPUB

3 miles NE of STIGLER, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 17' 17"N 95° 05' 38"W
600' MSL
1600' MSL
03E
100LL
MC ALESTER (MLC)
DALLAS-FT WORTH
FORT WORTH (ZFW)
10/3/24-10/31/24
KGZL VFR
10:35 AM CDT
Clear
10sm
77°F
63°F
30.16"Hg
Calm
AO2
KGZL 131535Z AUTO 00000KT 10SM CLR 25/17 A3016 RMK AO2
Add Your Business

KGZL FBOs

Promote Listing
Stigler Regional Airport
Phone: (918) 967-2164
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 9/25
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.80
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
918-967-8982
 118.575

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFSM (36nm)
Sun, 10/13 6:20 AM CDT
Sun, 10/13 7:00 AM CDT - Mon, 10/14 7:00 AM CDT
VFR
7:00 AM CDT - 1:00 PM CDT
Scattered 20,000'
Scattered 15,000'
6sm
040° 5kts
VFR
1:00 PM CDT - 7:00 AM CDT
Few 20,000'
6sm
010° 8kts
KFSM 131120Z 1312/1412 04005KT P6SM SCT150 SCT200
   FM131800 01008KT P6SM FEW200
KGZL
Domestic
9/3/242018Z !MLC 09/025 GZL OBST TOWER LGT (ASR 1010196) 351106.00N0951433.00W (9.6NM SW GZL) 1099.7FT (280.8FT AGL) U/S 2409032018-2410182017
8/13/241609Z !MLC 08/182 GZL OBST TOWER LGT (ASR 1250046) 350704.90N0950524.60W (10.2NM S GZL) 1006.2FT (317.9FT AGL) U/S 2408131609-2411132359
8/7/241934Z !MLC 08/085 GZL OBST TOWER LGT (ASR 1278582) 351505.20N0945448.60W (9.1NM ESE GZL) 760.8FT (268.0FT AGL) U/S 2408071934-2411072359
8/7/240046Z !MLC 08/069 GZL OBST TOWER LGT (ASR 1241025) 351448.80N0950722.70W (2.9NM SSW GZL) 876.6FT (319.9FT AGL) U/S 2408070046-2411060400
7/9/241632Z !MLC 07/172 GZL OBST TOWER LGT (ASR 1235371) 351458.00N0950607.50W (2.4NM S GZL) 912.7FT (295.9FT AGL) U/S 2407091632-2501092359
No
UNATNDD
CITY OF STIGLER
115 S. BROADWAY, 115 S. BDWY
STIGLER, OK 74462
Phone: 918-967-2164
BOBBY MOUSER
CITY HALL, 115 S. BDWY
STIGLER, OK 74462
Phone: 918-967-2164
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
--
ACTVT LIRL RWY 17/35 - CTAF. PAPI RWY 17 & 35 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
0
0
0
0
0
0
None
None
None
None
None

Runway 17/35

4296 ft. x 60 ft.
ASPH
Good
NONE
LOW

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 17' 39"N 35° 16' 56"N
Longitude 95° 05' 38"W 95° 05' 38"W
Elevation 600' 600'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 2.75° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
STIGLER RGNL (ICAO: KGZL, IATA: GZL) is a public airport located in STIGLER, OK.
