MARION COUNTY-RANKIN FITE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHAB
MARION COUNTY-RANKIN FITE
PublicPUB

1 miles S of HAMILTON, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 07' 01"N 87° 59' 54"W
436' MSL
1436' MSL
01E
Jet A+, 100LL
ANNISTON (ANB)
ATLANTA
MEMPHIS (ZME)
6/16/22-7/14/22
K1M4 (22nm) VFR
3:56 AM CDT
Clear
9sm
73°F
72°F
30.03"Hg
Calm
AO2 SLP152 T02280222 51002
K1M4 070856Z AUTO 00000KT 9SM CLR 23/22 A3003 RMK AO2 SLP152 T02280222 51002
List Your Business

KHAB FBOs, Flight Schools and Ground Support

Promote Listing
Marion County
Freq: 122.8
Phone: (205) 921-9585
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 6/8
 100LL Jet A Jet A+ Mogas UL94
Self Serve 4.90
Full Serve 3.75

KHAB Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KHAB Hotels

No hotels are listed for this airport.

KHAB Restaurants

No restaurants are listed for this airport.

KHAB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

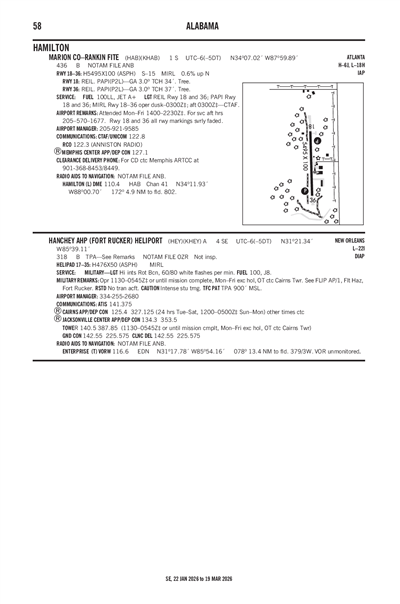

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCBM (36nm)
Thu, 7/7 4:00 AM CDT
Thu, 7/7 4:00 AM CDT - Fri, 7/8 10:00 AM CDT
VFR
4:00 AM CDT - 6:00 AM CDT
Sky Clear
> 6sm
29.91"Hg
260° 5kts
VFR
Becoming 6:00 AM CDT - 11:00 AM CDT
Few 3,500'
> 6sm
29.85"Hg
270° 5kts
VFR
Becoming 11:00 AM CDT - 2:00 PM CDT
Thunderstorm in vicinity
Broken 5,000'
> 6sm
29.85"Hg
VRB° 5kts
VFR
Becoming 2:00 PM CDT - 8:00 PM CDT
Broken 5,000'
> 6sm
29.91"Hg
VRB° 5kts
VFR
Becoming 8:00 PM CDT - 10:00 AM CDT
Few 4,000'
> 6sm
29.91"Hg
180° 5kts
TAF KCBM 070900Z 0709/0815 26005KT 9999 SKC QNH2990INS
   BECMG 0711/0712 27005KT 9999 FEW035 QNH2985INS
   BECMG 0716/0717 VRB05KT 9999 VCTS BKN050CB QNH2985INS
   BECMG 0719/0720 VRB05KT 9999 NSW BKN050 QNH2990INS
   BECMG 0801/0802 18005KT 9999 FEW040 QNH2990INS TX36/0720Z TN24/0711Z
KHAB
Domestic
7/6/220521Z !ANB 07/219 HAB OBST TOWER LGT (ASR 1241742) 340812.20N0875732.00W (2.3NM ENE HAB) 905.8FT (226.7FT AGL) U/S 2207060521-2207210421
7/3/220527Z !ANB 07/130 HAB OBST TOWER LGT (ASR 1212064) 340251.00N0875331.70W (6.7NM SE HAB) 1091.2FT (370.1FT AGL) U/S 2207030527-2207180427
7/3/220526Z !ANB 07/096 HAB OBST TOWER LGT (ASR 1213908) 340644.50N0880123.80W (1.3NM WSW HAB) 867.1FT (120.1FT AGL) U/S 2207030526-2207180426
7/1/221418Z !ANB 07/024 HAB RWY 36 RWY END ID LGT U/S 2207011418-2209302359
6/30/220526Z !ANB 06/050 HAB OBST LGT (ASR 1312928) 340646.00N0880125.00W (1.3NM W HAB) 850FT (114FT AGL) U/S 2206300526-2207302300
6/28/220521Z !ANB 06/968 HAB OBST TOWER LGT (ASR 1275209) 340338.40N0880755.40W (7.5NM WSW HAB) 754.9FT (303.8FT AGL) U/S 2206280521-2207130421
6/26/220521Z !ANB 06/900 HAB OBST TOWER LGT (ASR 1248923) 340806.30N0874707.70W (10.7NM E HAB) 940.0FT (310.0FT AGL) U/S 2206260521-2207110421
5/27/221321Z !ANB 05/814 HAB OBST TOWER LGT (ASR 1269565) 340801.30N0875222.90W (6.3NM E HAB) 840.9FT (310.0FT AGL) U/S 2205271321-2207111321
5/25/222359Z !ANB 05/758 HAB OBST TOWER LGT (ASR 1270028) 340202.20N0874543.00W (12.7NM ESE HAB) 898.0FT (303.8FT AGL) U/S 2205252359-2207092356
4/22/220135Z !ANB 04/702 HAB OBST TOWER LGT (ASR 1039304) 335917.10N0875642.50W (8.1NM SSE HAB) 886.2FT (265.1FT AGL) U/S 2204220135-2207200400
1/19/220501Z !ANB 01/360 HAB AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
4/29/221628Z !FDC 2/6716 HAB IAP MARION COUNTY-RANKIN FITE,
HAMILTON, AL.
RNAV (GPS) RWY 36, ORIG-A...
CIRCLING CAT B/C MDA 1260/HAA 824. CIRCLING CAT C VISIBILITY 2 1/2.
CHANGE NOTE TO READ: OBTAIN LOCAL ALTIMETER SETTING ON CTAF; WHEN
NOT RECEIVED, USE TUPELO ALTIMETER SETTING AND INCREASE DA 104 FEET
AND ALL MDAS 120 FEET, INCREASE VISIBILITY LPV ALL CATS AND LNAV
CATS C, D 1/4 SM AND CIRCLING VISIBILITIES CAT A, C, D 1/4 SM.
THIS IS RNAV (GPS) RWY 36, ORIG-B. 2204291628-PERM
4/29/221628Z !FDC 2/6715 HAB IAP MARION COUNTY-RANKIN FITE,
HAMILTON, AL.
RNAV (GPS) RWY 18, ORIG-C...
CIRCLING CAT B/C MDA 1260/HAA 824. CIRCLING CAT C VISIBILITY 2 1/2.
CHANGE NOTE TO READ: OBTAIN LOCAL ALTIMETER SETTING ON CTAF; WHEN
NOT RECEIVED, USE TUPELO ALTIMETER SETTING AND INCREASE ALL MDAS
120 FEET, INCREASE LNAV VISIBILITY CAT B 1/4 SM, CAT C, D 1/2 SM
AND CIRCLING VISIBILITIES CAT A, C, D 1/4 SM.
THIS IS RNAV (GPS) RWY 18, ORIG-D. 2204291628-PERM
No
MON-FRI 0800-1630
FOR SVC AFT HRS 205-570-1677
MARION COUNTY
BOX 460
HAMILTON, AL 35570
Phone: 205-921-3172
JEFF DAVIS
550 DR. PYLE DRIVE
HAMILTON, AL 35570
Phone: 205-921-9585
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
REIL RWY 18 & 36; PAPI RWY 18 & 36; MIRL RWY 18/36 OPER DUSK - 2100; AFT 2100-CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
8
0
1
0
0
0
None
None
None
None
None

Runway 18/36

5495 ft. x 100 ft.
ASPH
Good

MED

15,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 34° 07' 28"N 34° 06' 34"N
Longitude 87° 59' 52"W 87° 59' 55"W
Elevation 436' 403'
Threshold Crossing Height 33 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
MARION COUNTY-RANKIN FITE (ICAO: KHAB, IATA: HAB) is a public airport located in HAMILTON, AL.
