iFlightPlanner



...

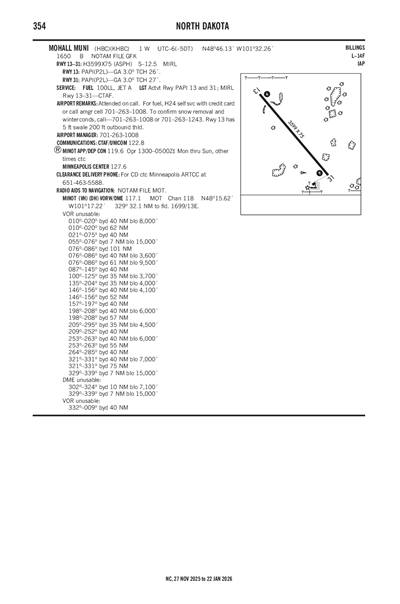

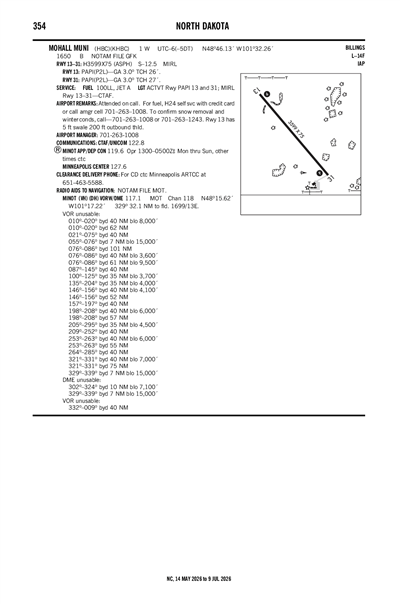

MOHALL MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHBC
ICAO KHBCLocal HBC
MOHALL MUNI
PublicPUB

1 miles W of MOHALL, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 46' 08"N 101° 32' 16"W
Elevation
1650' MSL
Pattern Alt
2650' MSL
Mag Variation
6°E
Declination
9°E
Fuel
JET A, 100LL
FSS
GRAND FORKS (GFK)
Sectional
BILLINGS
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/14/26-6/11/26
K1NN (2nm) VFR
3:55 AM CDT
Overcast 10,000'
N/A
57°F
54°F
29.89"Hg
240° 4kts
AO2 SLP126 T01410123 55002 RVRNO PWINO $
METAR K1NN 040855Z AUTO 24004KT M M OVC100 14/12 A2989 RMK AO2 SLP126 T01410123 55002 RVRNO PWINO $
+ Add Your Business

KHBC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
UNICOM 122.8

Approach

MINOT APPROACH 119.6

Departure

MINOT DEPARTURE 119.6

Center

MINOT CENTER 127.6
LOW/HIGH, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 127.6/279.6 (MINOT RCAG) WHEN MINOT APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMIB (23nm)
Thu, 6/4 4:00 AM CDT
Thu, 6/4 4:00 AM CDT - Fri, 6/5 10:00 AM CDT
VFR
4:00 AM CDT - 7:00 AM CDT
Scattered 6,000'
6sm
29.85"Hg
280° 9kts
VFR
Becoming 7:00 AM CDT - 8:00 PM CDT
Scattered 4,000'
6sm
29.79"Hg
300° 10kts
Gusts 15kts
VFR
Becoming 8:00 PM CDT - 12:00 AM CDT
Broken 5,500'
6sm
29.79"Hg
340° 9kts
VFR
Becoming 12:00 AM CDT - 3:00 AM CDT
Light Showers and Rain
Overcast 5,000'
5.59sm
29.79"Hg
VRB° 6kts
VFR
Becoming 3:00 AM CDT - 10:00 AM CDT
Broken 5,500'
6sm
29.79"Hg
240° 9kts
TAF KMIB 040900Z 0409/0515 28009KT 9999 SCT060 QNH2986INS
   BECMG 0412/0413 30010G15KT 9999 SCT040 QNH2978INS
   BECMG 0501/0502 34009KT 9999 BKN055 QNH2980INS
   BECMG 0505/0506 VRB06KT 9000 -SHRA OVC050 QNH2979INS
   BECMG 0508/0509 24009KT 9999 NSW BKN055 QNH2979INS TX24/0422Z TN11/0410Z
KHBC
No NOTAM Available
No
ON CALL
CITY OF MOHALL
P.O. BOX 476
MOHALL, ND 58761
Phone: 701-756-6464
MIKE NEHRING
PO BOX 241
MOHALL, ND 58761
Phone: 701-263-1008
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction

Runway 13/31

3599 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 140°320°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 48° 46' 22"N 48° 45' 54"N
Longitude 101° 32' 33"W 101° 31' 58"W
Elevation 1,648' 1,649'
Threshold Crossing Height 26 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1+185' TV TWR 5000' FM ARPT LCTD ON SOUTH EDGE OF TOWN.
A110-2TO CONFIRM SNOW REMOVAL & WINTER CONDS, CALL - 701-263-1008 OR 701-263-1243.
A110-3RWY 13 5 FT SWALE 200 FT OUTBOUND THLD.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A14ADDTL CTC GARY ALBRIGHT 701-240-5536.
A16AMGR ADDTL PHONE 701-756-6364 OR 701-756-7258.
A52-1350 FT PLINE 2550 FT FM THLD ON CNTRLN EXTDD; APCH RATIO 34:1.
A70-100LLH24 SELF SVC WITH CREDIT CARD OR CALL AMGR CELL 701-263-1008.
A70-AH24 SELF SVC WITH CREDIT CARD OR CALL AMGR CELL 701-263-1008.
A81-APTACTVT PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
MOHALL MUNI (ICAO: KHBC, IATA: HBC) is a public airport located in MOHALL, ND, US.
