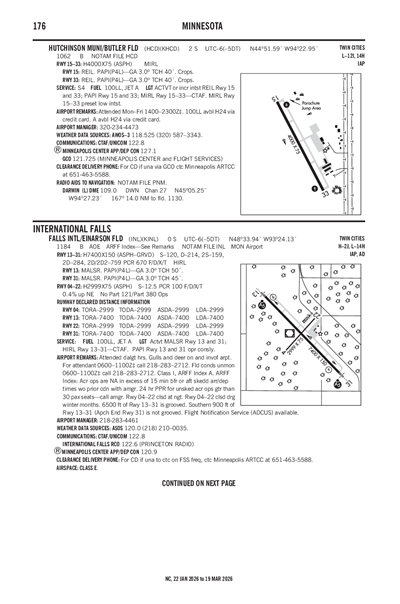

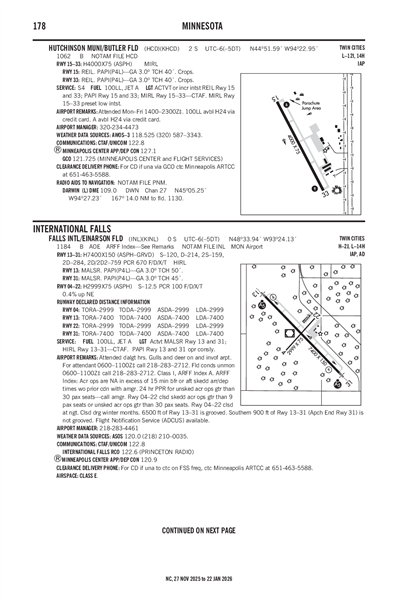

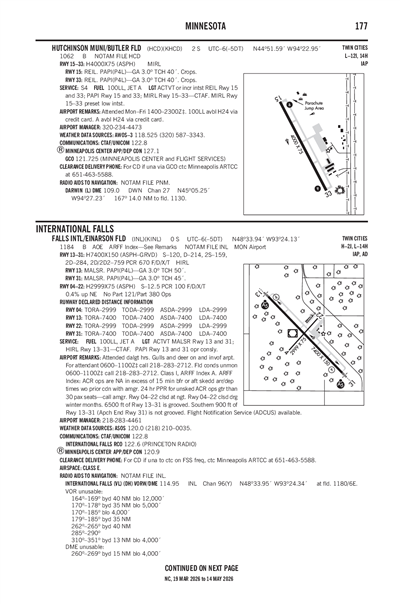

HUTCHINSON MUNI/BUTLER FLD - Airport Diagram

KHCD

HUTCHINSON MUNI/BUTLER FLD

PublicPUB

2 miles S of HUTCHINSON, MN

View on Map

Status

Operational

Coordinates

44° 51' 36"N 94° 22' 57"W

Elevation

1062' MSL

Pattern Alt

2062' MSL

Mag Variation

04E

Fuel

JET A, 100LL

FSS

PRINCETON (PNM)

Sectional

TWIN CITIES

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

10/3/24-10/31/24

KHCD VFR

1:15 PM CDT RAW

Clear

Viz

10sm

Temp

72°F

Dew

46°F

Pres

29.82"Hg

Wind

250° 6kts

RMK

AO2 T02230078 TSNO

KHCD 221815Z AUTO 25006KT 10SM CLR 22/08 A2982 RMK AO2 T02230078 TSNO

Add Your Business

KHCD FBOs

Promote Listing

Hutchinson Municipal Airport

UNICOM: 122.8

0 Reviews (Read | Sign In To Write)

As of 10/22	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.95		4.50
Full Serve

KHCD Aircraft Service & Maintenance

Promote Listing

ASI Jet

UNICOM: 122.8

Phone: (320) 587-7615

Other: (952) 941-6255

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3

320-587-3343

118.525

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KRWF (35nm)

RAW

Reported

Tue, 10/22 12:20 PM CDT

Valid

Tue, 10/22 1:00 PM CDT - Wed, 10/23 1:00 PM CDT

VFR

1:00 PM CDT - 3:00 PM CDT

Few 25,000'

Viz

6sm

Wind

250° 9kts

VFR

3:00 PM CDT - 5:00 PM CDT

Broken 12,000'

Viz

6sm

Wind

290° 12kts

Gusts 20kts

VFR

5:00 PM CDT - 11:00 PM CDT

Scattered 25,000'

Viz

6sm

Wind

320° 15kts

Gusts 24kts

VFR

11:00 PM CDT - 5:00 AM CDT

Few 25,000'

Viz

6sm

Wind

310° 12kts

Gusts 22kts

VFR

5:00 AM CDT - 1:00 PM CDT

Sky Clear

Viz

6sm

Wind

300° 7kts

KRWF 221720Z 2218/2318 25009KT P6SM FEW250
   FM222000 29012G20KT P6SM BKN120
   FM222200 32015G24KT P6SM SCT250
   FM230400 31012G22KT P6SM FEW250
   FM231000 30007KT P6SM SKC

KHCD

Domestic
10/22/241510Z	!HCD 10/005 HCD SVC AUTOMATED WX BCST SYSTEM TS NOT AVBL 2410221510-2411292300
10/2/240232Z	!HCD 10/001 HCD OBST TOWER LGT (ASR 1031963) 445348.00N0941640.00W (5.0NM ENE HCD) 1354.7FT (284.8FT AGL) U/S 2410020232-2412302359

ATC Tower

Attendance

MON-FRI 0800-1700

Owner

CITY OF HUTCHINSON
111 HASSAN ST SE
HUTCHINSON, MN 55350-2522
Phone: 320-587-5151

Manager

JOHN OLSON
1400 ADAMS ST SE
HUTCHINSON, MN 55350-7010
Phone: 320-234-4473

FSS

PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF

NOTAM

HCD

Light Schedule

Lights

ACTVT OR INCR INTST REIL RWY 15 & 33; PAPI RWY 15 & 33; MIRL RWY 15/33 - CTAF. MIRL RWY 15/33 PRESET LOW INTST.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Aircraft Sales

Runway 15/33

Dimensions

4000 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 15	Runway 33
True Heading	152°	332°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	44° 51' 53"N	44° 51' 18"N
Longitude	94° 23' 10"W	94° 22' 44"W
Elevation	1,055'	1,062'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

A110-1	GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.
A110-2	FOR CD IF UNA VIA GCO CTC MINNEAPOLIS ARTCC AT 651-463-5588.

HUTCHINSON MUNI/BUTLER FLD (ICAO: KHCD, IATA: HCD) is a public airport located in HUTCHINSON, MN.
