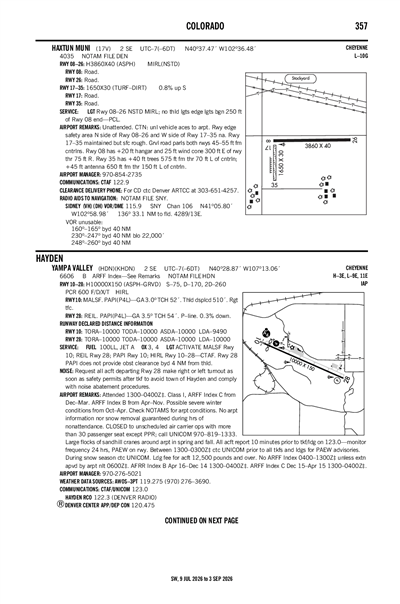

YAMPA VALLEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHDN
ICAO KHDNIATA HDNLocal HDN
YAMPA VALLEY
PublicPUB

2 miles SE of HAYDEN, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 28' 52"N 107° 13' 04"W
Elevation
6606' MSL
Pattern Alt
7606' MSL
Mag Variation
9°E
Declination
10°E
Fuel
JET A, 100LL
FSS
DENVER (DEN)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
3/19/26-4/16/26
KHDN VFR
5:56 PM MDT
Overcast 8,000'
Broken 5,500'
10sm
55°F
34°F
29.94"Hg
240° 7kts
AO2 SLP106 60002 T01280011 10183 20089 55021
METAR KHDN 112356Z AUTO 24007KT 10SM BKN055 OVC080 13/01 A2994 RMK AO2 SLP106 60002 T01280011 10183 20089 55021
+ Add Your Business

KHDN FBOs

Promote Listing
Atlantic Aviation
UNICOM: 130.625
Phone: (970) 276-3743
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 3/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.50 9.73
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.275
(970) 276-3690

Common

CTAF 123.0
ACTVT MALSF RWY 10; REIL RWY 28; PAPI RWY 10; HIRL RWY 10/28 - CTAF.
UNICOM 123.0
CLSD TO UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS EXCP PPR; CALL UNICOM 970-819-1333. ; BTN 0600 - 2000 CTC UNICOM PRIOR TO ALL TKFS AND LNDGS FOR PAEW ADVISORIES.

Center

DENVER CENTER 120.475
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 120.475/235.975 (HAYDEN RCAG).

Flight Service

Flight Service 122.3
(DEN), COMMUNICATIONS PRVDD BY DENVER RADIO ON FREQ 122.3 (HAYDEN RCO).

Terminal Area Forecast

KHDN
Sat, 4/11 5:20 PM MDT
Sat, 4/11 6:00 PM MDT - Sun, 4/12 6:00 PM MDT
VFR
6:00 PM MDT - 8:00 PM MDT
Broken 25,000'
Scattered 7,000'
6sm
VRB° 4kts
VFR
Temporary 6:00 PM MDT - 8:00 PM MDT
Light Thunderstorm and Rain
Broken 7,000'
N/A
VRB° 25kts
Gusts 35kts
VFR
8:00 PM MDT - 1:00 AM MDT
Showers in vicinity
Broken 25,000'
Scattered 5,000'
6sm
140° 10kts
VFR
1:00 AM MDT - 6:00 AM MDT
Few 25,000'
6sm
240° 4kts
VFR
6:00 AM MDT - 10:00 AM MDT
Few 25,000'
6sm
130° 8kts
VFR
10:00 AM MDT - 6:00 PM MDT
Few 25,000'
6sm
230° 19kts
Gusts 27kts
TAF KHDN 112320Z 1200/1224 VRB04KT P6SM SCT070 BKN250
   TEMPO 1200/1202 VRB25G35KT -TSRA BKN070CB
   FM120200 14010KT P6SM VCSH SCT050 BKN250 WS020/23030KT
   FM120700 24004KT P6SM FEW250
   FM121200 13008KT P6SM FEW250
   FM121600 23019G27KT P6SM FEW250
KHDN
EffectiveExpiresCategoryNOTAM
FDC
4/5/26
2350Z
5/5/26
2350Z
!FDC 6/8357 HDN IAP YAMPA VALLEY, HAYDEN, CO.
VOR-B, AMDT 2...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE CRAIG ALTIMETER SETTING AND INCREASE ALL MDAS 100 FEET. AWOS OUT OF SERVICE.
2604052350-2605052350EST
4/5/26
2350Z
5/5/26
2350Z
!FDC 6/8355 HDN IAP YAMPA VALLEY, HAYDEN, CO.
RNAV (GPS) Y RWY 10, AMDT 4...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE CRAIG ALTIMETER SETTING; INCREASE #LPV DA TO 6881 FEET, INCREASE LPV DA TO 7417 FEET AND ALL VISIBILITIES 1/4 SM, INCREASE LNAV/VNAV DA TO 8056 FEET AND ALL VISIBILITIES 1 SM, INCREASE ALL MDA 100 FEET.
FOR INOPERATIVE ALS WHEN USING CRAIG ALTIMETER SETTING; INCREASE #LPV VISIBILITY ALL CATS TO 7/8 SM; INCREASE LPV VISIBILITY ALL CATS TO 2 1/2 SM.
INOPERATIVE TABLE DOES NOT APPLY TO LNAV/VNAV ALL CATS AND LNAV CATS C/D WHEN USING CRAIG ALTIMETER SETTING.
VDP NA WHEN USING CRAIG ALTIMETER SETTING.
BARO-VNAV NA WHEN USING CRIAG ALTIMETER SETTING. AWOS OUT OF SERVICE.
2604052350-2605052350EST
4/5/26
2350Z
5/5/26
2350Z
!FDC 6/8353 HDN IAP YAMPA VALLEY, HAYDEN, CO.
ILS OR LOC RWY 10, AMDT 1A...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE CRAIG ALTIMETER SETTING; INCREASE # S-ILS DA TO 6881 FEET, S-ILS DA TO 7504 FEET AND INCREASE ALL CATS VISIBILITY 2 SM; INCREASE ALL MDA 100 FEET. VDP NA WHEN USING CRAIG ALTIMETER SETTING. FOR INOPERATIVE ALS WHEN USING CRAIG ALTIMETER SETTING; INCREASE #S-ILS VISIBILITY ALL CATS TO 7/8 SM. INOPERATIVE TABLE DOES NOT APPLY TO S-ILS 10 ALL CATS AND S-LOC CATS C/D WHEN USING CRAIG ALTIMETER SETTING. AWOS OUT OF SERVICE.
2604052350-2605052350EST
3/31/26
1731Z
!FDC 6/6436 HDN IAP YAMPA VALLEY, HAYDEN, CO.
ILS OR LOC RWY 10, AMDT 1A...
NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT.
2603311731-2803311731EST
2/18/26
0556Z
!FDC 6/5597 HDN IAP YAMPA VALLEY, HAYDEN, CO.
RNAV (GPS) RWY 28, AMDT 3A...
RNAV (GPS) Y RWY 10, AMDT 4...
CIRCLING CAT C MDA 7840/HAA 1234, VISIBILITY CAT C 3.
2602180556-2609300700EST
No
0600-2100
ROUTT COUNTY
PO BOX 773598
STEAMBOAT SPRNGS 80477
Phone: 970-879-0108
TINNEAL GERBER
11005 RCR 51A PO BOX 1060
HAYDEN, CO 81639
Phone: 970-276-5021
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
HDN
--
ACTVT MALSF RWY 10; REIL RWY 28; PAPI RWY 10; HIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
High & Low Pressure
None
Air Freight
Air Ambulance

Runway 10/28

10000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

75,000lbs
170,000lbs
260,000lbs
--
  Runway 10 Runway 28
True Heading 114°294°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 29' 12"N 40° 28' 32"N
Longitude 107° 14' 03"W 107° 12' 04"W
Elevation 6,580' 6,606'
Threshold Crossing Height 52 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes
A110-1REQ ALL ACFT DEPG RWY 28 MAKE RGT OR LEFT TURNOUT AS SOON AS SAFETY PERMITS AFTER TAKEOFF TO AVOID TOWN OF HAYDEN & COMPLY WITH NOISE ABATEMENT PROCS.
A110-10NO ARFF INDEX 2100-0600 UNLESS EXTN APVD BY ARPT NLT 2300.
A110-11ARFF INDEX B APR 16-DEC 14 0600-2100. ARFF INDEX C DEC 15-APR 15 0600-2100.
A110-5LARGE FLOCKS OF SANDHILL CRANES AROUND ARPT IN SPRING AND FALL.
A110-6ALL ACFT REPORT 10 MINUTES PRIOR TO TKOF/LNDG ON 123.0 - MONITOR FREQ 24 HRS, PAEW ON RWY.
A110-7POSSIBLE SEVERE WINTER CONDITIONS FROM OCT-APR. CHECK NOTAMS FOR ARPT CONDITIONS. NO ARPT INFORMATION NOR SNOW REMOVAL GUARANTEED DURING HOURS OF NONATTENDANCE.
A110-9RWY 28 PAPI DOES NOT PROVIDE OBST CLEARANCE BEYOND 4.0 NM FROM THRESHOLD.
A24LANDING FEE FOR ACFT 12,500 LBS & OVER.
A26CLSD TO UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS EXCP PPR; CALL UNICOM 970-819-1333.
A39-10/28PCR VALUE: 600/F/D/X/T
A57-10OBSTRUCTION CLNC SLOPE 50:1 TO DSPLCD THLD.
A81-APTACTVT MALSF RWY 10; REIL RWY 28; PAPI RWY 10; HIRL RWY 10/28 - CTAF.
A82BTN 0600 - 2000 CTC UNICOM PRIOR TO ALL TKFS AND LNDGS FOR PAEW ADVISORIES.
YAMPA VALLEY (ICAO: KHDN, IATA: HDN) is a public airport located in HAYDEN, CO, US.
