KHEE
THOMPSON-ROBBINS
PublicPUB

5 miles NW of HELENA/WEST HELENA, AR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 34' 35"N 90° 40' 33"W
242' MSL
1202' MSL
01E
Jet A, 100LL
JONESBORO (JBR)
MEMPHIS
MEMPHIS (ZME)
9/8/22-10/6/22
KUTA (17nm) VFR
1:15 AM CDT
Clear
9sm
51°F
48°F
30.11"Hg
Calm
AO2 T01070087 $
KUTA 050615Z AUTO 00000KT 9SM CLR 11/09 A3011 RMK AO2 T01070087 $
List Your Business

KHEE FBOs, Flight Schools and Ground Support

Promote Listing
South Delta Aviation
Freq: 122.8
Phone: (870) 572-9011
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 9/5
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.95 5.80

KHEE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KHEE Hotels

No hotels are listed for this airport.

KHEE Restaurants

No restaurants are listed for this airport.

KHEE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

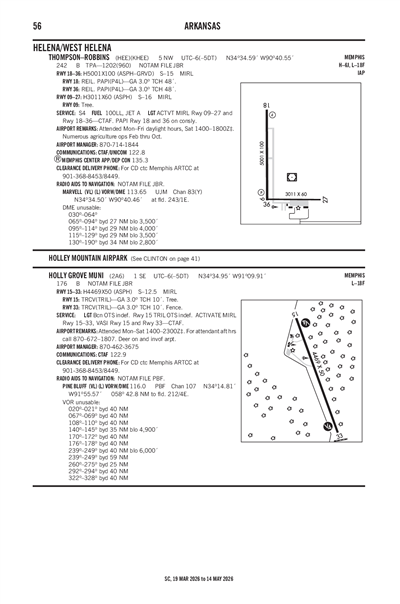

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMEM (45nm)
Wed, 10/5 12:20 AM CDT
Wed, 10/5 1:00 AM CDT - Thu, 10/6 7:00 AM CDT
VFR
1:00 AM CDT - 7:00 AM CDT
Sky Clear
> 6sm
360° 5kts
KMEM 050520Z 0506/0612 36005KT P6SM SKC
KHEE
Domestic
10/4/222210Z !JBR 10/029 HEE OBST TOWER LGT (ASN 2019-ASW-3442-OE) 343319N0905227W (9.9NM W HEE) 508FT (316FT AGL) U/S 2210042210-2211182209
9/15/221501Z !JBR 09/161 HEE OBST TOWER LGT (ASR 1020566) 342747.00N0903610.00W (7.7NM SSE HEE) 473.1FT (290.0FT AGL) U/S 2209151501-2210152359
9/10/221110Z !JBR 09/111 HEE OBST TOWER LGT (ASR 1040838) 343148.30N0903639.50W (4.2NM SE HEE) 853FT (503FT AGL) U/S 2209101110-2210102300
9/9/221613Z !JBR 09/102 HEE OBST TOWER LGT (ASR 1040838) 343148.30N0903639.50W (4.25NM SE HEE) 853FT (503FT AGL) U/S 2209091613-2210102300
1/19/220501Z !JBR 01/236 HEE AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO
TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT
A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE
METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-
12, 2021-23-13 2201190501-2401190501
1/30/210052Z !JBR 01/296 HEE RWY 17/35 CHANGED TO RWY 18/36 2101300052-PERM
1/29/212151Z !JBR 01/295 HEE RWY 08/26 CHANGED TO RWY 09/27 2101292151-PERM
FDC
5/25/221812Z !FDC 2/0083 HEE IAP THOMPSON-ROBBINS, HELENA/WEST HELENA, AR.
RNAV (GPS) RWY 17, AMDT 1...
LNAV/VNAV DA 702/HAT 460. LNAV MDA 840/HAT 598. CIRCLING CATS A/B MDA 840/HAA 598.
2205251812-2501041812EST
2/2/221519Z !FDC 2/0582 HEE IAP THOMPSON-ROBBINS, HELENA/WEST HELENA, AR.
RNAV (GPS) RWY 35, AMDT 1...
LNAV/VNAV DA 672/HAT 432 ALL CATS.
CIRCLING CATS A/B MDA 840/HAA 598.
2202021519-2402021519EST
2/2/221516Z !FDC 2/0580 HEE IAP THOMPSON-ROBBINS, HELENA/WEST HELENA, AR.
VOR RWY 35, AMDT 1...
ECULE FIX MINIMUMS:
CIRCLING CATS A/B MDA 840/HAA 598.
2202021516-2402021516EST
No
MON-FRI DALGT
SAT 0800-1200
HELENA WEST HELENA
CITY OF HELENA / WEST HELENA, 226 PERRY STR
HELENA, AR 72342
Phone: (870) 817-7400
BILL BROTHERS
PO BOX 2948
WEST HELENA, AR 72390
Phone: 870-714-1844
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
JBR
--
ACTVT PAPI RWY 17 & 35; MIRL RWY 08/26 & 17/35 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
11
1
1
1
0
0
Major
Major
None
None
Crop Dusting
Aircraft Sales

Runway 08/26

3009 ft. x 60 ft.
ASPH
Fair

MED

16,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 34' 20"N 34° 34' 20"N
Longitude 90° 40' 40"W 90° 40' 04"W
Elevation 237' 242'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5001 ft. x 100 ft.
ASPH
Excellent
GRVD
MED

15,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 35' 09"N 34° 34' 20"N
Longitude 90° 40' 39"W 90° 40' 40"W
Elevation 241' 238'
Threshold Crossing Height 48 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2(E81) TWY EXIT & GUIDANCE SIGNS.
A110-3NUMEROUS AGRICULTURE OPS FEB THRU OCT.
A110-4FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
THOMPSON-ROBBINS (ICAO: KHEE, IATA: HEE) is a public airport located in HELENA/WEST HELENA, AR.
