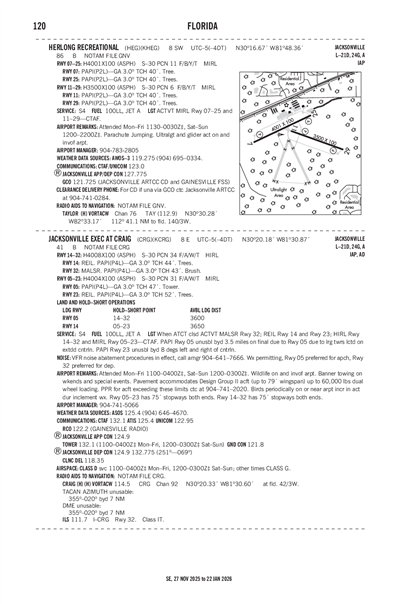

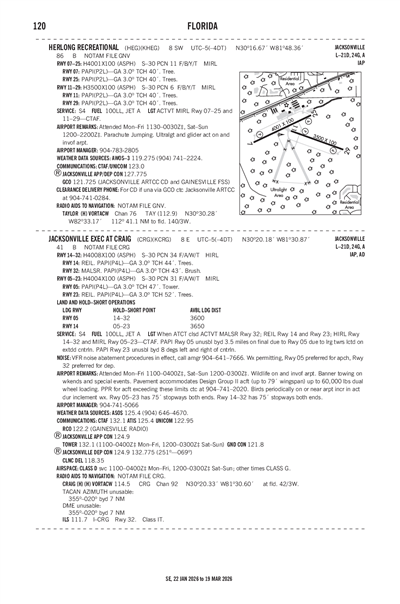

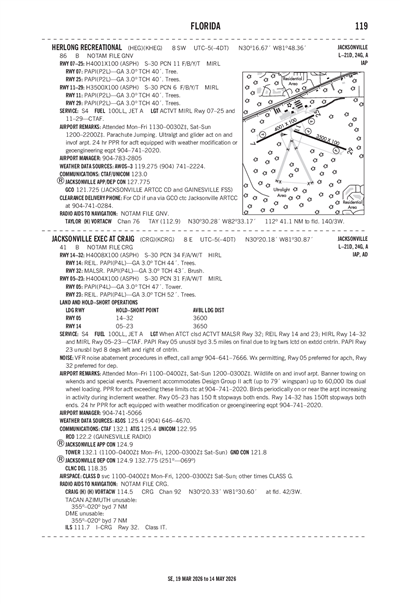

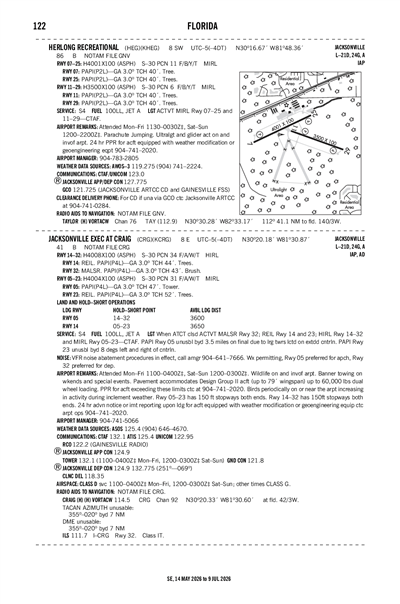

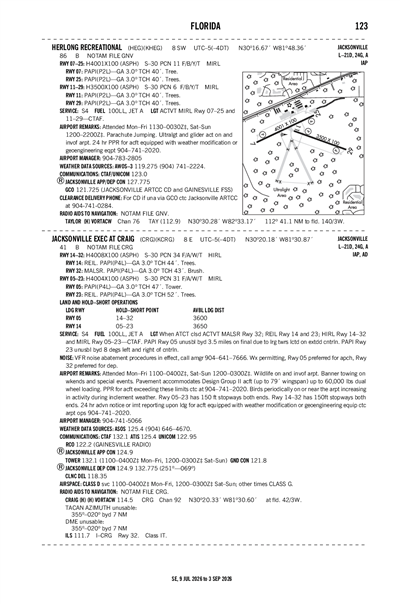

HERLONG RECREATIONAL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHEG
ICAO KHEGIATA HEGLocal HEG
HERLONG RECREATIONAL
PublicPUB

8 miles SW of JACKSONVILLE, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 16' 40"N 81° 48' 21"W
Elevation
86' MSL
Pattern Alt
1086' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JET A, 100LL
FSS
GAINESVILLE (GNV)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
9/3/26-10/1/26
KHEG VFR
2:55 PM EDT
Few 5,500'
Few 4,700'
Few 4,100'
10sm
91°F
75°F
30.01"Hg
VRB° 4kts
AO2 TSNO
METAR KHEG 121855Z AUTO VRB04KT 10SM FEW041 FEW047 FEW055 33/24 A3001 RMK AO2 TSNO
+ Add Your Business

KHEG FBOs

Promote Listing
First Coast Flight Center
UNICOM: 123.0
Phone: (904) 783-2805
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 9/8
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.72
Full Serve 8.27 7.49
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.275
(904) 741-2224

Common

CTAF 123.0
ACTVT MIRL RWY 07/25 & 11/29 - CTAF.
UNICOM 123.0

Approach

JACKSONVILLE APPROACH 127.775
JACKSONVILLE APPROACH 127.775

Departure

JACKSONVILLE DEPARTURE 127.775

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 THRU JACKSONVILLE ARTCC CD AND GAINESVILLE FSS.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KVQQ (6nm)
Sat, 9/12 1:37 PM EDT
Sat, 9/12 2:00 PM EDT - Sun, 9/13 2:00 PM EDT
VFR
2:00 PM EDT - 6:00 PM EDT
Thunderstorm in vicinity
Broken 25,000'
Broken 4,000'
Scattered 2,500'
6sm
230° 7kts
MVFR
Temporary 2:00 PM EDT - 6:00 PM EDT
Thunderstorm and Rain
Broken 2,500'
3sm
VRB° 15kts
Gusts 25kts
MVFR
Temporary 6:00 PM EDT - 8:00 PM EDT
Thunderstorm and Rain
Broken 2,500'
4sm
Calm
VFR
6:00 PM EDT - 9:00 PM EDT
Showers and Rain and Mist and Thunderstorm in vicinity
Overcast 8,000'
Scattered 3,000'
6sm
190° 5kts
VFR
9:00 PM EDT - 2:00 AM EDT
Showers in vicinity
Overcast 20,000'
Scattered 10,000'
Few 3,000'
6sm
170° 4kts
VFR
2:00 AM EDT - 10:00 AM EDT
Broken 15,000'
Scattered 400'
6sm
Calm
VFR
10:00 AM EDT - 2:00 PM EDT
Broken 25,000'
Broken 8,000'
Scattered 2,000'
6sm
290° 6kts
TAF KVQQ 121737Z 1218/1318 23007KT P6SM VCTS SCT025CB BKN040 BKN250
   TEMPO 1218/1222 VRB15G25KT 3SM TSRA BKN025CB
   FM122200 19005KT 6SM SHRA BR VCTS SCT030CB OVC080
   TEMPO 1222/1224 4SM TSRA BKN025CB
   FM130100 17004KT P6SM VCSH FEW030 SCT100 OVC200
   FM130600 00000KT P6SM SCT004 BKN150
   FM131400 29006KT P6SM SCT020 BKN080 BKN250
KHEG
EffectiveExpiresCategoryNOTAM
Domestic
9/17/26
1300Z
9/17/26
2100Z
!GNV 09/181 HEG AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF HEG SFC-3500FT AGL ACFT CS FLC69
2609171300-2609172100
9/7/26
0440Z
10/22/26
0600Z
!GNV 09/111 HEG OBST TOWER LGT (ASR 1306952) 302245.74N0815044.43W (6.44NM NNW HEG) 285FT (199FT AGL) U/S 2609070440-2610220600
9/1/26
1347Z
12/1/26
2359Z
!GNV 09/012 HEG OBST TOWER LGT (ASR 1027349) 301913.00N0814755.00W (2.57NM NNE HEG) 375FT (300FT AGL) U/S 2609011347-2612012359
8/25/26
1850Z
12/31/26
2200Z
Runway!GNV 08/466 HEG RWY 25 PAPI U/S 2608251850-2612312200
8/18/26
2036Z
11/16/26
2359Z
!GNV 08/315 HEG OBST TOWER LGT (ASN 2021-ASO-46798-OE) 300958N0814402W (7.6NM SSE HEG) 241FT (178FT AGL) U/S 2608182036-2611162359
8/10/26
0031Z
11/8/26
0131Z
!GNV 08/151 HEG OBST TOWER LGT (ASR 1028647) 302007.30N0814720.40W (3.6NM NNE HEG) 311.0FT (262.1FT AGL) U/S 2608100031-2611080131
8/9/26
0037Z
11/7/26
0137Z
!GNV 08/137 HEG OBST TOWER LGT (ASR 1028618) 302502.30N0815056.10W (8.6NM NNW HEG) 329.1FT (266.1FT AGL) U/S 2608090037-2611070137
7/25/26
2357Z
10/23/26
2357Z
!GNV 07/421 HEG OBST TOWER LGT (ASR 1221733) 301049.40N0814301.50W (7.3NM SE HEG) 299.9FT (279.9FT AGL) U/S 2607252357-2610232357
7/8/26
1409Z
12/31/26
2100Z
Runway!GNV 07/090 HEG RWY 07 PAPI U/S 2607081409-2612312100
7/8/26
1408Z
12/31/26
2100Z
Runway!GNV 07/089 HEG RWY 29 PAPI U/S 2607081408-2612312100
6/16/26
1718Z
9/16/26
2359Z
!GNV 06/276 HEG OBST TOWER LGT (ASN 2016-ASO-23336-OE) 302025N0814021W (8.0NM ENE HEG) 160FT (135FT AGL) U/S 2606161718-2609162359
FDC
12/1/25
1930Z
!FDC 5/3014 HEG ODP HERLONG RECREATIONAL, JACKSONVILLE, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKE-OFF MINIMUMS: RWY 11: STANDARD WITH MINIMUM CLIMB OF 281 FT/NM TO 400.
ALL OTHER DATA REMAINS AS PUBLISHED. 2512011930-2712011930EST
No
MON-FRI 0630-1930
SAT-SUN 0700-1700
JACKSONVILLE AVIATION AUTHORITY
14201 PECAN PARK ROAD
JACKSONVILLE, FL 32218
Phone: 904-741-2069
ROLF RIECHMANN
9300 NORMANDY BLVD. SUITE 4
JACKSONVILLE, FL 32221
Phone: 904-783-2805
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
GNV
--
ACTVT MIRL RWY 07/25 & 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Charter Service
Glider Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales
Glider Towing

Runway 07/25

4001 ft. x 100 ft.
ASPH
Fair
NONE
MED
11/F/B/Y/T
30,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 65°245°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 30° 16' 35"N 30° 16' 52"N
Longitude 81° 48' 54"W 81° 48' 12"W
Elevation 73' 80'
Threshold Crossing Height 43 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 11/29

3500 ft. x 100 ft.
ASPH
Good
NONE
MED
6/F/B/Y/T
30,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 110°290°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 30° 16' 42"N 30° 16' 30"N
Longitude 81° 48' 27"W 81° 47' 49"W
Elevation 85' 83'
Threshold Crossing Height 44 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11904-741-2040.
A110-1ULTRALIGHT & GLIDER ACTIVITY ON & INVOF ARPT.
A110-2GCO AVBL ON FREQ 121.725 THRU JACKSONVILLE ARTCC CD AND GAINESVILLE FSS.
A110-3FOR CD IF UNA VIA GCO CTC JACKSONVILLE ARTCC AT 904-741-0284.
A110-424-HOUR PPR FOR ACFT EQUIPPED WITH WEATHER MODIFICATION OR GEOENGINEERING EQPT 904-741-2020.
A16FBO (904) 783-2805.
A81-APTACTVT MIRL RWY 07/25 & 11/29 - CTAF.
E111VFR OPERATIONS ONLY.
HERLONG RECREATIONAL (ICAO: KHEG, IATA: HEG) is a public airport located in JACKSONVILLE, FL, US.
