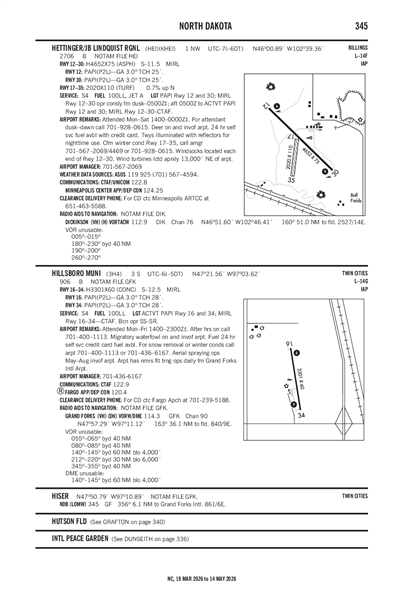

HETTINGER/JB LINDQUIST RGNL - Airport Diagram

KHEI

HETTINGER/JB LINDQUIST RGNL

PublicPUB

1 miles NW of HETTINGER, ND

View on Map

Status

Operational

Coordinates

46° 00' 54"N 102° 39' 22"W

Elevation

2706' MSL

Pattern Alt

3706' MSL

Mag Variation

08E

Fuel

Jet A, 100LL

FSS

GRAND FORKS (GFK)

Sectional

BILLINGS

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

4/18/24-5/16/24

KHEI LIFR

7:14 AM MDT RAW

Mist

Overcast 300'

Viz

3sm

Temp

53°F

Dew

50°F

Pres

29.53"Hg

Wind

030° 5kts

RMK

AO2 T01170100

KHEI 261314Z AUTO 03005KT 3SM BR OVC003 12/10 A2953 RMK AO2 T01170100

List Your Business

KHEI FBOs, Flight Schools and Ground Support

Promote Listing

Air Dakota Flite

Freq: 122.8

Phone: (701) 567-2069

0 Reviews (Read | Sign In To Write)

Independent

As of 4/26	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve	6.60		5.35
Full Serve

KHEI Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KHEI Hotels

No hotels are listed for this airport.

KHEI Restaurants

No restaurants are listed for this airport.

KHEI Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 122.8 CTAF 122.8

ASOS

701-567-4594

119.925

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KDIK (48nm)

RAW

Reported

Fri, 4/26 5:28 AM MDT

Valid

Fri, 4/26 6:00 AM MDT - Sat, 4/27 6:00 AM MDT

LIFR

6:00 AM MDT - 9:00 AM MDT

Fog

Obscured

Viz

0.25sm

Wind

090° 5kts

IFR

Temporary 6:00 AM MDT - 9:00 AM MDT

Mist

Overcast 500'
Scattered 200'

Viz

2sm

Wind

Calm

IFR

9:00 AM MDT - 11:00 AM MDT

Showers in vicinity

Overcast 1,000'
Broken 700'

Viz

6sm

Wind

020° 7kts

MVFR

11:00 AM MDT - 5:00 PM MDT

Light Showers and Rain and Mist

Overcast 2,400'
Scattered 1,500'

Viz

6sm

Wind

020° 13kts

Gusts 18kts

MVFR

5:00 PM MDT - 9:00 PM MDT

Showers in vicinity

Overcast 2,700'

Viz

6sm

Wind

030° 20kts

Gusts 29kts

MVFR

9:00 PM MDT - 6:00 AM MDT

Broken 2,000'

Viz

6sm

Wind

020° 17kts

Gusts 25kts

KDIK 261128Z 2612/2712 09005KT 1/4SM FG VV002
   TEMPO 2612/2615 2SM BR SCT002 OVC005
   FM261500 02007KT P6SM VCSH BKN007 OVC010
   FM261700 02013G18KT 6SM -SHRA BR SCT015 OVC024
   FM262300 03020G29KT P6SM VCSH OVC027
   FM270300 02017G25KT P6SM BKN020

KHEI

No NOTAM Available

ATC Tower

Attendance

MON-SAT 0700-1700
FOR ATTENDANT DUSK-DAWN CALL (701) 567-2069.

Owner

ADAMS CO ARPT AUTH
BOX 429
HETTINGER, ND 58639
Phone: 701-567-2069

Manager

JAY B. LINDQUIST
PO BOX 429
HETTINGER, ND 58639
Phone: 701-567-2069

FSS

GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF

NOTAM

HEI

Light Schedule

Lights

PAPI RWY 12 & 30; MIRL RWY 12/30 OPR CONSLY FM DUSK TO 2200; AFT 2200 TO ACTVT PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Pilot Instruction
Aircraft Sales

Runway 12/30

Dimensions

4652 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	136°	316°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	46° 01' 13"N	46° 00' 40"N
Longitude	102° 39' 43"W	102° 38' 57"W
Elevation	2,705'	2,699'
Threshold Crossing Height	25 ft. AGL	25 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 17/35

Dimensions

2020 ft. x 110 ft.

Surface Type

TURF

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	190°	10°
Traffic Pattern	Left	Left
Markings
Markings Condition
Latitude	46° 00' 57"N	46° 00' 37"N
Longitude	102° 39' 22"W	102° 39' 27"W
Elevation	2,702'	2,688'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-1	CFM WINTER COND RWY 17/35 CALL AMGR 701-567-2069/4469 OR 701-928-0615.
A110-2	TWYS ILLUMINATED WITH REFLECTORS FOR NIGHTIME USE.
A110-3	DEER ON & INVOF ARPT.
A110-4	FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-5	WIND TURBINES LCTD APRXLY 13000 FT NE OF ARPT.

HETTINGER/JB LINDQUIST RGNL (ICAO: KHEI, IATA: HEI) is a public airport located in HETTINGER, ND.
