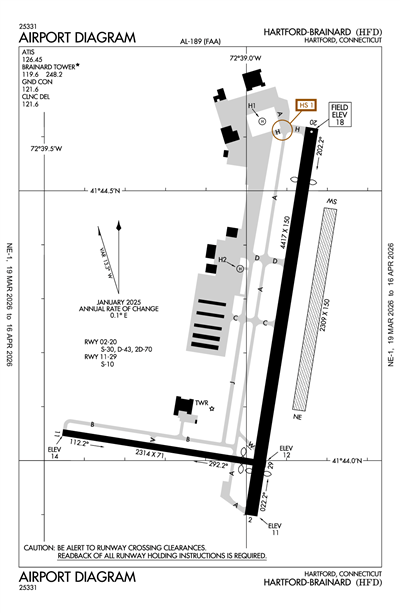

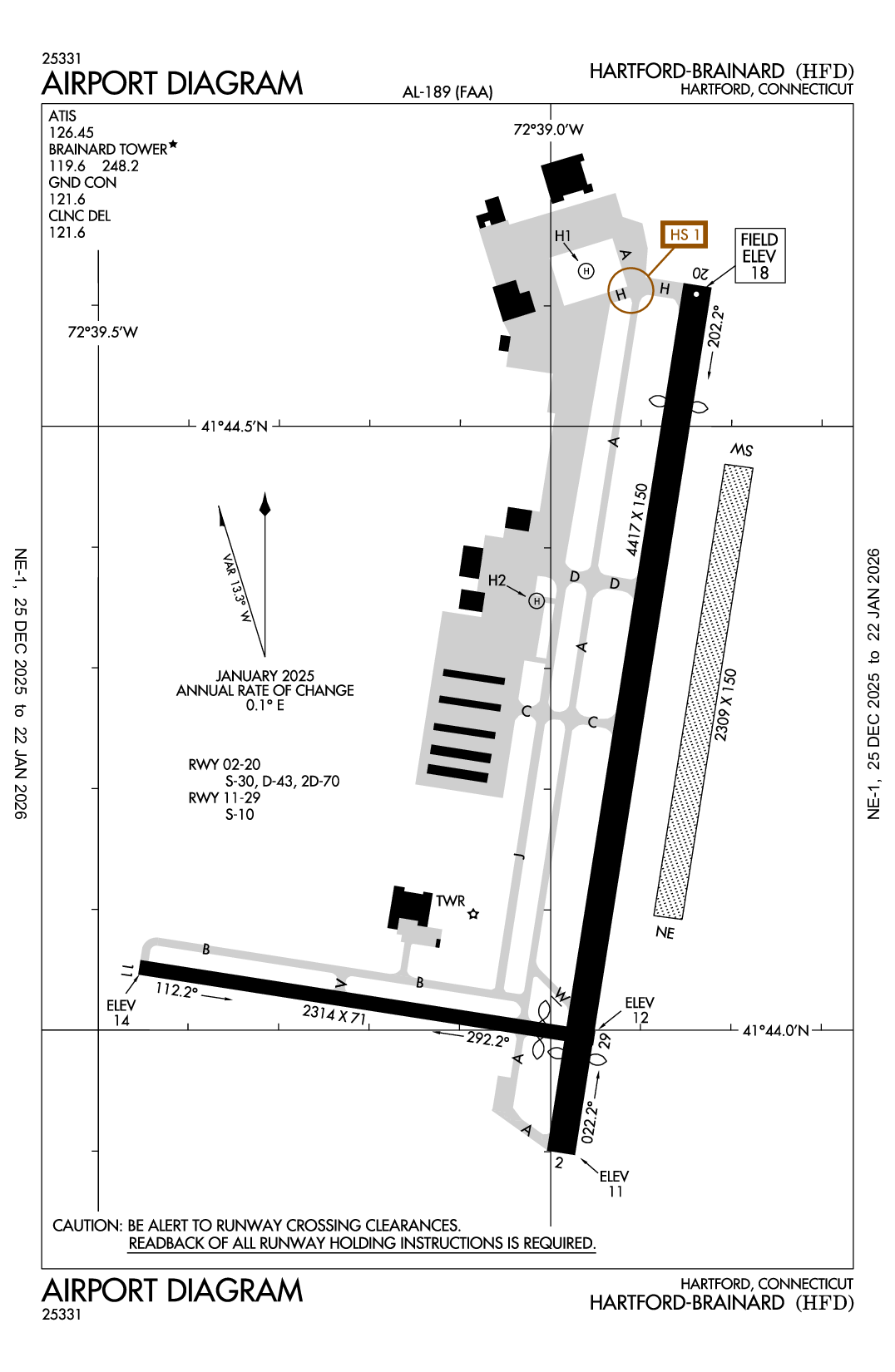

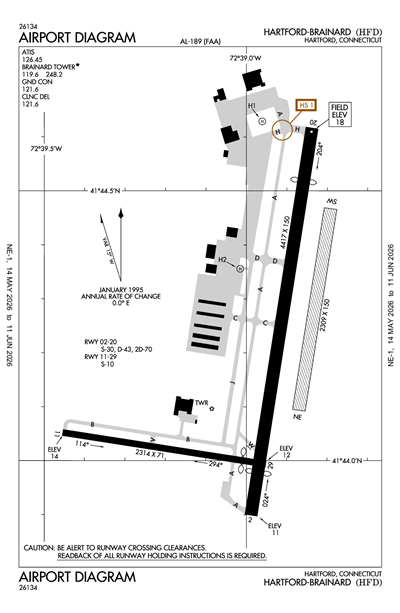

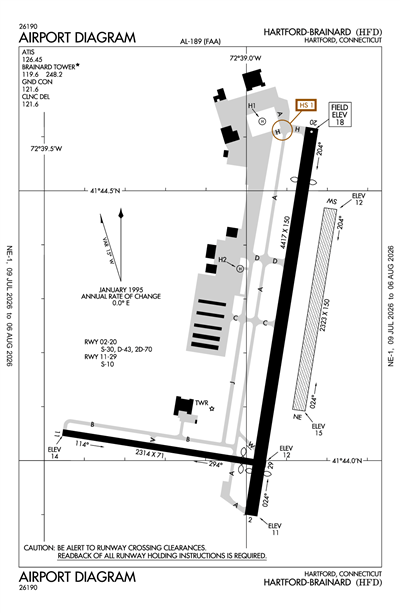

HARTFORD-BRAINARD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHFD
HARTFORD-BRAINARD
PublicPUB

3 miles SE of HARTFORD, CT
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 44' 12"N 72° 38' 58"W
18' MSL
1018' MSL
15W
Jet A, 100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
6/16/22-7/14/22
KHFD VFR
4:53 AM EDT
Few 5,500'
10sm
65°F
57°F
30.01"Hg
020° 6kts
AO2 SLP162 T01830139 51010
KHFD 070853Z AUTO 02006KT 10SM FEW055 18/14 A3001 RMK AO2 SLP162 T01830139 51010

KHFD FBOs, Flight Schools and Ground Support

Hartford Jet Center
Freq: 129.6
Phone: (860) 548-9334
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 6/24
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 8.47 8.89 8.96

KHFD Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KHFD Hotels

No hotels are listed for this airport.

KHFD Restaurants

No restaurants are listed for this airport.

KHFD Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.6

ATIS

ATIS
860-246-5929
126.45

Clearance Delivery

CD/P
121.6

Ground

GND/P
121.6

Tower

LCL/P
119.6

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KBDL (12nm)
Thu, 7/7 4:10 AM EDT
Thu, 7/7 4:00 AM EDT - Fri, 7/8 8:00 AM EDT
VFR
4:00 AM EDT - 11:00 AM EDT
Few 8,000'
> 6sm
010° 3kts
VFR
11:00 AM EDT - 4:00 PM EDT
Scattered 6,000'
> 6sm
130° 3kts
VFR
4:00 PM EDT - 4:00 AM EDT
Broken 3,500'
> 6sm
190° 5kts
MVFR
4:00 AM EDT - 8:00 AM EDT
Broken 1,500'
> 6sm
Calm
KBDL 070810Z 0708/0812 01003KT P6SM FEW080
   FM071500 13003KT P6SM SCT060
   FM072000 19005KT P6SM BKN035
   FM080800 00000KT P6SM BKN015
KHFD
Domestic
7/3/222326Z !HFD 07/003 HFD OBST TOWER LGT (ASR 1200438) 414221.00N0723948.30W (2.0NM SSW HFD) 183.7FT (111.9FT AGL) U/S 2207032326-2207182326
6/29/221538Z !HFD 06/014 HFD OBST TOWER LGT (ASR UNKNOWN) 414412.48N0723944.17W (0.7NM W HFD) 143FT (115FT AGL) U/S 2206291538-2208312300
6/28/220033Z !HFD 06/012 HFD OBST TOWER LGT (ASR UNKNOWN) 414519.16N0723912.39W (1.3NM N HFD) 254FT (238FT AGL) U/S
2206280033-2207142300
5/18/221717Z !HFD 05/007 HFD OBST TOWER LGT (ASR UNKNOWN) 414402.32N0723945.21W (0.7NM WSW HFD) 165FT (115FT AGL) U/S 2205181717-2207182300
1/19/220501Z !HFD 01/011 HFD AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
11/23/211411Z !FDC 1/0772 HFD IAP HARTFORD-BRAINARD, HARTFORD, CT.
LDA RWY 2, AMDT 2C...
RNAV (GPS) RWY 2, ORIG-D...
PROCEDURE NA AT NIGHT.
2111231411-2311231410EST
9/9/211315Z !FDC 1/4587 HFD IAP HARTFORD-BRAINARD, HARTFORD, CT.
VOR-A, AMDT 10B...
PROCEDURE NA.
2109091315-2309091315EST
9/1/211800Z !FDC 1/0094 HFD STAR HARTFORD-BRAINARD, HARTFORD, CT.
STELA ONE ARRIVAL...
ARRIVAL PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV
SYSTEM WITH GPS. ALB VOR R-147 UNUSABLE.
2109011800-2309011800
8/31/212007Z !FDC 1/9328 HFD SID HARTFORD-BRAINARD, HARTFORD, CT.
COASTAL NINE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
HTO VOR R-010 UNUSABLE. 2108312007-2308312007EST
Yes
MON-FRI ALL
SAT-SUN 0600-2300
CONNECTICUT AIRPORT AUTHORITY
SUITE 160, 334 ELLA GRASSO TURNPIKE
WINDSOR LOCKS, CT 06096
Phone: 860-386-6000
PELLEGRINO, ROBERT
239 MAXIM ROAD
HARTFORD, CT 06114
Phone: 860-982-2443
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
HFD
--
WHEN ATCT CLSD, ACTVT REIL RWYS 02 & 20; PAPI RWY 20; HIRL RWY 02/20 - CTAF. PAPI RWY 02 OPR CONSLY.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
50
5
0
3
0
0
Major
Major
None
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

4417 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

30,000lbs
43,000lbs
70,000lbs
--
  Runway 02 Runway 20
True Heading 189°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 43' 54"N 41° 44' 37"N
Longitude 72° 38' 59"W 72° 38' 50"W
Elevation 11' 18'
Threshold Crossing Height 42 ft. AGL 58 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 11/29

2314 ft. x 71 ft.
ASPH
Good

HIGH

10,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 99°279°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 44' 03"N 41° 43' 60"N
Longitude 72° 39' 27"W 72° 38' 57"W
Elevation 14' 12'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway H1

70 ft. x 77 ft.
ASPH
Good

MED

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

44 ft. x 44 ft.
ASPH
Excellent

MED

--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway NE/SW

2309 ft. x 150 ft.

TURF



--
--
--
--
  Runway NE Runway SW
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BIRDS & DEER ON & INVOF ARPT.
A110-2ARPT LCTD IN NOISE SENSITIVE AREA. POPULATED AREAS TO SOUTH & WEST SHOULD BE AVOIDED. APCH/DEP OVR RIVER WHEN PSBL. SEE BRAINARD TWR LTRS TO AIRMEN.
A110-3VOLUNTARY COMPLIANCE REQSTD - NO TGL & PRACTICE INST APCH MON THRU SAT 2200-0600 & SUN 2200-0900.
A110-4TURF NE/SW RWY CLSD DURG WINTER MONTHS FM NOV 2 TO APR 30 EXC FOR SKI-EQUIPPED ACFT & HEL TRNG.
A110-520 FT DROP OFF DER 20.
A110-6BE ALERT: HFD IS LOCATED ON W SIDE OF RIVER. THERE IS A CLSD ARPT 1 MILE ENE OF HFD.
HARTFORD-BRAINARD (ICAO: KHFD, IATA: HFD) is a public airport located in HARTFORD, CT.
