iFlightPlanner



...

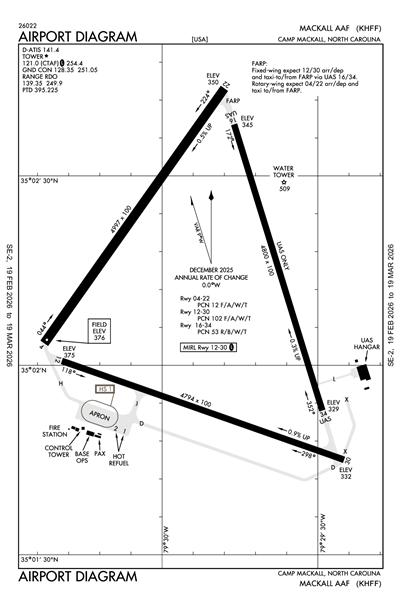

MACKALL AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHFF
MACKALL AAF
PrivatePVT

1 miles E of CAMP MACKALL, NC
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 02' 11"N 79° 29' 51"W
376' MSL
1376' MSL
09W
Jet A+
RALEIGH (RDU)
CHARLOTTE
WASHINGTON (ZDC)
6/16/22-7/14/22
KHFF LIFR
2:56 AM EDT
Fog
Obscured
0.25sm
71°F
70°F
30.23"Hg
Calm
AO2 SLP237 T02150213 RVRNO
KHFF 300656Z AUTO 00000KT 1/4SM FG VV001 22/21 A3023 RMK AO2 SLP237 T02150213 RVRNO

KHFF FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KHFF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KHFF Hotels

No hotels are listed for this airport.

KHFF Restaurants

No restaurants are listed for this airport.

KHFF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 121.0

ATIS

D-ATIS
141.4

ASOS

ASOS
910-396-7804
141.25

Ground

GND/P
FM
41.75
GND/P
128.35

Tower

LCL/P
121.0

Other

PMSV METRO
141.25
RANGE CTL
FM
38.9
RANGE CTL
139.35

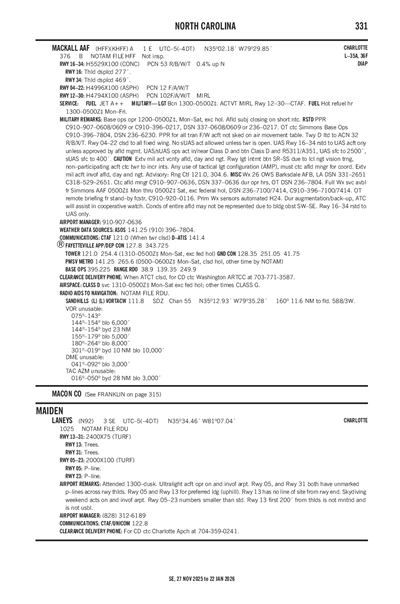

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPOB (25nm)
Wed, 6/29 9:00 PM EDT
Wed, 6/29 9:00 PM EDT - Fri, 7/1 3:00 AM EDT
VFR
9:00 PM EDT - 2:00 AM EDT
Broken 4,500'
Scattered 3,500'
Few 2,000'
> 6sm
30.21"Hg
160° 6kts
IFR
Becoming 2:00 AM EDT - 8:00 AM EDT
Mist
Broken 700'
2.98sm
30.18"Hg
VRB° 3kts
LIFR
Temporary 4:00 AM EDT - 8:00 AM EDT
Fog
Broken 400'
0.5sm
Calm
VFR
Becoming 8:00 AM EDT - 1:00 PM EDT
Scattered 4,000'
Scattered 2,500'
> 6sm
30.21"Hg
070° 7kts
VFR
Becoming 1:00 PM EDT - 1:00 AM EDT
Broken 4,500'
Few 2,500'
> 6sm
30.12"Hg
100° 8kts
IFR
Becoming 1:00 AM EDT - 3:00 AM EDT
Mist
Broken 4,500'
Scattered 1,500'
1.99sm
30.09"Hg
160° 5kts
TAF KPOB 300100Z 3001/0107 16006KT 9999 FEW020 SCT035 BKN045 BKN120 QNH3020INS
   BECMG 3006/3007 VRB03KT 4800 BR BKN007 QNH3018INS
   TEMPO 3008/3012 0800 FG BKN004
   BECMG 3012/3013 07007KT 9999 NSW SCT025 SCT040 QNH3020INS
   BECMG 3017/3018 10008KT 9999 FEW025 BKN045 QNH3012INS
   BECMG 0105/0106 16005KT 3200 BR SCT015 BKN045 QNH3008INS TX31/3020Z TN21/3010Z LAST NO AMDS AFT 3002 NEXT 3017
KHFF
Military
6/30/221200Z AERODROME PJE WI MACKALL AAF CLASS D AIRSPACE AT LUZON DZ. HIGH ALTITUDE LOW OPENING SFC-12500FT AGL AND STATIC LINE SFC-1250FT AGL. SEE FINAL AIR MOVEMENT TABLE DTD 30 JUN 22
6/29/221325Z CAUTION - PERSONNEL & EQUIPMENT ON APRON
6/14/221622Z WINDCONE UNLIT, NORTHERN PORTION OF CENTER SOD (ASN UNKNOWN) 350232.56N 792951.78W (1,180FT SE APCH END RWY 22) (26 FT AGL).
6/14/221621Z AERODROME CAUTION: INCREASED BIRD ACTIVITY POSSIBLE
6/2/220700Z OBST FLAGGED AND UNLIT CRANE 100 FT AGL LOCATED APPROXIMATELY 900 FT NNE OF MACKALL ARMY AFLD 17S PU37607910.
6/1/221141Z AERODROME - FMQ-22 WEATHER EQUIPMENT NOT WITHIN 1000 FEET OF PRIMARY RUNWAY - RWY 12/30
6/1/221140Z AERODROME NO ROTARY WING OPERATIONS IN CENTER SOD DUE TO MULTIPLE OBSTRUCTIONS.
5/24/221931Z RWY 04/22 RESTRICTED TO ROTARY WING ACFT ONLY
5/20/221436Z USE CAUTION, MOWING IN PROGRESS ON AFLD
5/16/221246Z AERODROME CAUTION: PAVEMENT MARKINGS ON RUNWAYS AND TAXIWAYS INTERSECTING RWY 12/30 REFLECT OLD RWY DESIGNATION RWY 11/29.
5/16/221245Z AERODROME V-22 PPR MUST BE APPROVED BY MAAF AIRFIELD MANAGER. LIMITED V-22 OPERATIONS. TAXI/PARKED V-22 CAN NOT REMAIN STATIONARY FOR MORE THAN 5 MINS WITH ENGINES RUNNING EXCEPT ON HOT REFUEL PAD 2.
5/16/221242Z AERODROME UAS WI AN AREA DEFINED AS 5NM RADIUS OF 350220N0792984W (KHFF) SFC- 2,000FT AGL DAILY 1210Z TO 0400Z EXCEPT WEEKENDS AND HOLIDAYS.
5/16/221241Z AERODROME ***PK AIRPARK (5W4) RAEFORD***REMINDER FOR ALL AVIATORS TRANSITIONING PK AIRPARK, THIS IS A DESIGNATED PARACHUTE JUMPING AREA FROM SUNRISE TO SUNSET DAILY. JUMP OPERATIONS MAY BE CONDUCTED AT OTHER TIMES. MONITOR VHF 123.500 FOR PARACHUTE ACTIVITY. ALL AVIATORS TRANSITIONING PK AIRPARK ARE REMINDED OF THEIR RESPONSIBILITY TO CHECK CLASS D NOTAMS.
5/16/221239Z AERODROME ***SAAF/MAAF WEEKEND FUEL REQUESTS***ALL WEEKEND FUEL REQUESTS FOR WSP GLOBAL FORMERLY LOUIS BERGER SERVICES ARE REQUIRED TO BE SUBMITTED TO SIMMONS BASE OPERATIONS BY 1500L THE TUESDAY PRIOR TO THE WEEKEND THE FUEL SERVICES ARE REQUESTED. THIS WILL ALLOW FOR DECONFLICTION AND APPROVAL OF REQUESTS, ALONG WITH STANDBY REFUELERS TO BE SCHEDULED. THE REQUEST SHOULD BE IN MEMORANDUM FORMAT AND CAN BE HAND CARRIED TO SIMMONS BASE OPERATIONS OR SENT TO THE FOLLOWING EMAIL ADDRESS: ARMY.SAAFBASOPS@MAIL.MIL.
5/16/221239Z AERODROME ALL V22 AIRCRAFT ARE RESTRICTED TO PAVED AREAS FOR ALL AIRCRAFT ACTIVITIES AT MACKALL. THERE WILL BE NO V22 AIRCRAFT ON SOD OR UNPAVED AREAS UNTIL FURTHER NOTICE.
5/16/221237Z AERODROME DURING HOURS OF TOWER CLOSURE, USE COMMON TRAFFIC ADVISORY FREQUENCY (CTAF) 121.0 FOR ALL TRAFFIC CALLS, TO INCLUDE TAXI.
5/16/221236Z AERODROME MAAF RAMP IS WEIGHT LIMITED. PAVEMENT CONDITION NUMBER (PCN) IS 25/F/B/W/T BASE ON C17 AT MAXIMUM GROSS WEIGHT (MGW) OF 585,000 LBS. C27J AND LIGHTER AIRCRAFT: UNRESTRICTED; C130H: RAMP WEIGHT GREATER THAN 141,000 LBS REQUIRE AIRFIELD MANAGER APPROVAL; C130J: RAMP WEIGHT GREATER THAN 125,000 LBS REQUIRE AIRFIELD MANAGER APPROVAL; C17: RAMP WEIGHT GREATER THAN 372,000 LBS REQUIRE AIRFIELD MANAGER APPROVAL. NOTE: FOR C17 RAMP WEIGHT ABOVE 508,000 LBS, CONTACT AIRFIELD MANAGER TO COORDINATE USE OF OTHER AREAS ON THE AIRFIELD FOR PARKING/LOADING. ALL FIXED WING AIRCRAFT AVOID TAXIING OVER FOUR CONCRETE HELICOPTER REFUELING PADS ON THE RAMP.
5/16/221234Z AERODROME WIND CONE (ASN UNKNOWN) 3501.86N 7929.57W (396FT NW APCH END RWY 30) (30FT AGL) OBST LGT OUT OF SERVICE UNLESS PILOT CONTROL LIGHTING INITIATED OR AIRFIELD LIGHTING IS ON.
5/16/221232Z AERODROME WIND CONE (ASN UNKNOWN) 350201N 0793005W (400 FT NE APCH END RWY 12) (26 FT AGL) OBST LGT OUT OF SERVICE UNLESS PILOT CONTROL LIGHTING INITIATED OR AIRFIELD LIGHTING IS ON.
5/16/221230Z AERODROME NOISE ABATEMENT PROCEDURES IN EFFECT FOR MOORE COUNTY, PINEHURST AND SOUTHERN PINES (SOP). CLOSED PATTERN WORK OR TOUCH AND GO LANDINGS ARE NOT AUTHORIZED FROM 0200Z-1000Z (2200L-0600L) NIGHTLY. THERE ARE NOISE SENSITIVE AREAS LOCATED AROUND KSOP.
5/16/221225Z AERODROME RWY 30 PAPI NOT AVAILABLE
5/16/221221Z AERODROME OBST UAS ANTENNA FARM (ASN UNKNOWN) 350139.05N 792933.29W (765.5 FT S APCH END RWY 29) (45 FT AGL) LIGHTED.
5/16/221219Z AERODROME THERE WILL BE NO REFUEL FOR AIRCRAFT LARGER THAN A C27 AT MACKALL AAF UNTIL FURTHER NOTICE.
5/16/221218Z AERODROME - USE CAUTION: POTENTIAL EXISTS FOR SOD AREAS TO HAVE EXCESSIVELY TALL GRASS HEIGHTS THAT COULD CREATE AN INCREASED WILDLIFE HAZARD ALONG WITH OBSTRUCTION TO SIGNS AND LIGHTING.
5/16/221217Z AERODROME RWY 04/22 ***PILOTS USE CAUTION*** RUNWAY 04/22 USABLE RUNWAY WIDTH IS 100 FEET. DO NOT EXCEED 50 FEET EITHER SIDE OF THE CENTERLINE. RUNWAY 04/22 MARKINGS ARE INCORRECT.
4/28/221535Z AERODROME PPR REQUIRED FOR ALL ROTARY WING AIRCRAFT THAT REQUIRE ENGINE SHUTDOWN, FIXED WING AIRCRAFT ON *OFFICIAL BUSINESS* THREE DAYS PRIOR TO ARRIVAL ON MAAF. THIS IS DUE TO WEIGHT RESTRICTIONS, PARKING LIMITATION AND ARFF STATUS. CALL MACKALL BASE OPERATIONS AT (910) 907-0608/0609. MACKALL OPERATIONS OFFICER CAN BE REACHED AT (910) 309-9880.
4/28/221441Z AERODROME TAXIWAY HOTEL LIMITED TO C27 AIRCRAFT OR SMALLER WITH A MAXIMUM GROSS WEIGHT OF 67,241 POUNDS.
4/28/221330Z !KHFF M0192/22 HFF RWY 04/22 REDL U/S RWY 04/22 LIGHTS NOT AVAILABLE. 2204281330-2207270459
4/15/221824Z DUE TO POTENTIAL 5G INTERFERENCE, RADIO ALTIMETER MAY BE UNUSABLE. REFER TO 5G – RADIO ALTIMETER TAB ON DAIP FOR MORE INFORMATION AND REPORTING INSTRUCTIONS.
Yes
MON-SAT 1310-0500Z++
BASE OPS OPR 1200-2200Z++ EXC HOLS. ARPT SUBJ CLOSING ON SHORT NTC.
US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060
LARRY LEWIS
SIMMONS AAAF BLDG P4541
FT BRAGG, NC 28307
Phone: 910-396-6605
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
HFF
--
ACTVT HIRL RWY 12/30 - CTAF.
0800-0000.
Split-Clear-Green
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 04/22

4996 ft. x 150 ft.

ASPH


13 /F/B/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 35°215°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 35° 02' 03"N 35° 02' 44"N
Longitude 79° 30' 23"W 79° 29' 48"W
Elevation 376' 350'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

4794 ft. x 150 ft.

ASPH

HIGH
58 /F/A/W/T
--
--
--
--
  Runway 12 Runway 30
True Heading 109°289°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 02' 01"N 35° 01' 45"N
Longitude 79° 30' 19"W 79° 29' 25"W
Elevation 375' 332'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 16/34

5529 ft. x 150 ft.

CONC


49 /R/C/W/T
--
--
--
--
  Runway 16 Runway 34
True Heading 163°343°
Traffic Pattern
Markings
Markings Condition
Latitude 35° 02' 41"N 35° 01' 48"N
Longitude 79° 29' 47"W 79° 29' 27"W
Elevation 349' 329'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HI ALT PRCHT ACT PARTICULARLY IN AM.
A110-10CAUTION: EXTSV MIL ACT VCNTY MACKALL AAF DAY AND NIGHT.
A110-13BASE OPS OPR 1200-0400Z++, MON-SAT, EXC HOL. AFLD SUBJ TO CLOSING ON SHORT NTC.
A110-14SEE FLIP AP/1 FLT RSTNS & LMTNS SANDHILLS VORTAC.
A110-15RSTD: PPR FOR ALL TRANS ACFT.
A110-17RSTD: TWY D LTD TO ACN 40 F/A/W/T.
A110-19RSTD: RWY 04-22 CLSD TO ALL FIXED WING.
A110-2FOR NOTAMS ON FAA CIRCUITS CK RDU.
A110-20CAUTION: EXTV MIL ACT VCNTY AFLD, DAY AND NGT. ADVSY: RNG CTL 121.0, 304.6.
A110-21MISC WX: 26 OWS BARKSDALE AFB, LA DSN 331-2651, C318-529-2651. CTC TWR CHIEF DSN 236-7308/9775 DUR OPR HR, OT DSN 236-7804.
A110-23MISC: WX OBSN AVBL. WX FCST AVBL FR SIMMONS AAF VIA DRCT LINE.
A110-24REMARKS - ANY USE OF TACTICAL LGT CONFIGURATION (AMP), MUST CTC AFLD MGR FOR COORD. MISC- CTC AFLD MGR C910-907-0636, DSN 337-0636 DUR OPR HRS, OT DSN 236-7804.
A110-25REMARKS-RSTD-PPR FOR ALL TRANS F/W ACFT NOT SCHEDULED ON AIR MOVEMENT TABLE.
A110-26RSTD PPR C910-907-0608/0609 OR C910-396-0217, DSN 337-0608/0609 OR 236-0217. OT CTC SIMMONS BASE OPS C910-396-7804, DSN 236-6230.
A110-27RSTD: UAS 16/34 RWY RSTD TO UAS ACFT ONLY UNLESS APPROVED BY AFLD MGMT.
A110-28WHEN ATCT CLSD, FOR CD CTC WASHINGTON ARTCC AT 703-771-3587.
A110-6WT LTD WAIVER REQ CG 18TH AIRBORNE CORPS FT BRAGG ATTN AFZA-CA-PO WITH NR OF CYCLES EST GROSS WT & DATE/TIME/GROUP.
A110-7FUEL AVBL 1300:2030Z TRANS PPR. HOT REFUEL HOURS 1300-0500Z++MON-FRI.
A110-8PPR PHONE C919-396-6230/V236-6230 DURING OPR HRS; OTHER TIMES V236-7804.
MACKALL AAF (ICAO: KHFF, IATA: HFF) is a private airport located in CAMP MACKALL, NC.
