iFlightPlanner



...

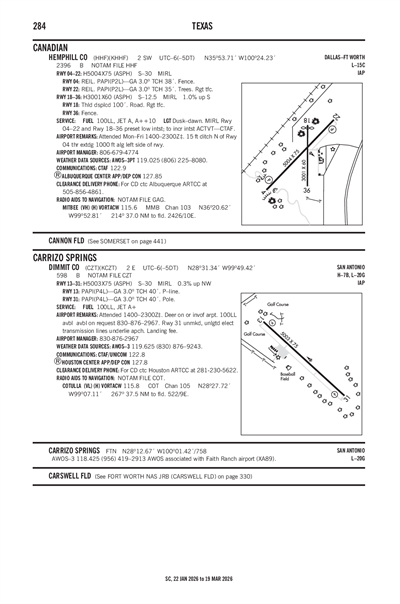

HEMPHILL COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHHF
HEMPHILL COUNTY
PublicPUB

2 miles SW of CANADIAN, TX
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 53' 42"N 100° 24' 14"W
2396' MSL
3396' MSL
06E
Jet A, Jet A+, CILI, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
ALBUQUERQUE (ZAB)
6/16/22-7/14/22
KHHF VFR
10:55 AM CDT
Clear
10sm
95°F
60°F
29.93"Hg
230° 11kts
Gusts 16kts
AO2 T03510155
KHHF 061555Z AUTO 23011G16KT 10SM CLR 35/16 A2993 RMK AO2 T03510155

KHHF FBOs, Flight Schools and Ground Support

Hemphill County Airport
Freq: 122.9
Phone: (806) 679-4774
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/8
100LL Jet A Jet A+ Mogas UL94
Self Serve 5.85 5.85
Full Serve

KHHF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KHHF Hotels

No hotels are listed for this airport.

KHHF Restaurants

No restaurants are listed for this airport.

KHHF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
806-323-8497
119.025

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KWWR (54nm)
Wed, 7/6 6:20 AM CDT
Wed, 7/6 7:00 AM CDT - Thu, 7/7 7:00 AM CDT
VFR
7:00 AM CDT - 11:00 AM CDT
Scattered 25,000'
> 6sm
180° 14kts
VFR
11:00 AM CDT - 7:00 PM CDT
Scattered 25,000'
Scattered 9,000'
> 6sm
200° 16kts
Gusts 26kts
VFR
7:00 PM CDT - 7:00 AM CDT
Broken 25,000'
Scattered 10,000'
> 6sm
170° 11kts
KWWR 061120Z 0612/0712 18014KT P6SM SCT250
   FM061600 20016G26KT P6SM SCT090 SCT250
   FM070000 17011KT P6SM SCT100 BKN250
KHHF
Domestic
6/8/221501Z !HHF 06/003 HHF SVC AUTOMATED WX BCST SYSTEM 119.025 U/S 2206081501-2207082359EST
FDC
2/22/212034Z !FDC 1/6528 HHF ODP HEMPHILL COUNTY, CANADIAN, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3A...
TAKEOFF OBSTACLE NOTES: RWY 36, ANTENNA TOWER, 3723 FT FROM DER, 829 FT LEFT OF CENTERLINE, 175 AGL/2517 MSL (2019-ASW-968-OE PERMANENT).
ALL OTHER DATA REMAINS AS PUBLISHED. 2102222034-2302222034EST
No
MON-FRI 0800-1700
HEMPHILL COUNTY
400 MAIN
CANADIAN, TX 79014
Phone: 806-323-8087
BILL KENDALL
255 AIRPORT ROAD - PO BOX 96
CANADIAN, TX 79014
Phone: (806) 679-4774
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
HHF
--
DUSK-DAWN. MIRL RY 04/22 AND RY 18/36 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
17
3
1
0
0
0
None
None
None
None
None

Runway 04/22

5004 ft. x 75 ft.
ASPH
Excellent

MED

30,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 44°224°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 53' 25"N 35° 53' 60"N
Longitude 100° 24' 37"W 100° 23' 55"W
Elevation 2,387' 2,376'
Threshold Crossing Height 38 ft. AGL 35 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

3001 ft. x 60 ft.
ASPH
Excellent

MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 185°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 53' 58"N 35° 53' 28"N
Longitude 100° 24' 09"W 100° 24' 12"W
Elevation 2,368' 2,396'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-115 FT DITCH NORTH OF RY 04 THLD EXTENDING 1000 FT ALONG LEFT SIDE OF RY.
A110-3FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
HEMPHILL COUNTY (ICAO: KHHF, IATA: HHF) is a public airport located in CANADIAN, TX.
