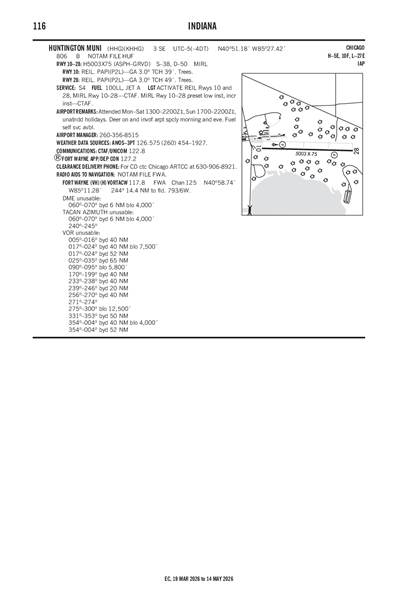

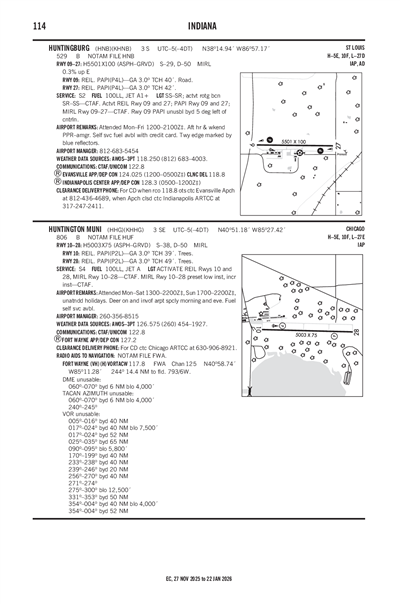

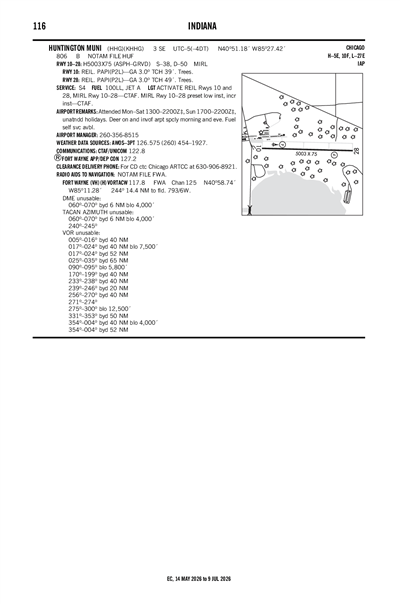

HUNTINGTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHHG
HUNTINGTON MUNI
PublicPUB

3 miles SE of HUNTINGTON, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 51' 10"N 85° 27' 25"W
806' MSL
1806' MSL
06W
Jet A, 100LL
TERRE HAUTE (HUF)
CHICAGO
CHICAGO (ZAU)
6/16/22-7/14/22
KFWA (14nm) IFR
11:09 AM EDT
Broken 13,000'
Broken 5,000'
Broken 700'
10sm
73°F
70°F
29.94"Hg
Calm
AO2 T02280211
KFWA 061509Z 00000KT 10SM BKN007 BKN050 BKN130 23/21 A2994 RMK AO2 T02280211
List Your Business

KHHG FBOs, Flight Schools and Ground Support

Promote Listing
Patriot Aviation
Freq: 122.8
Phone: (260) 356-8515
Other: (765) 418-3933
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/8
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.12 4.31
Full Serve 6.37 4.56

KHHG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KHHG Hotels

No hotels are listed for this airport.

KHHG Restaurants

No restaurants are listed for this airport.

KHHG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
260-454-1927
 126.575

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFWA (14nm)
Wed, 7/6 7:20 AM EDT
Wed, 7/6 8:00 AM EDT - Thu, 7/7 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 3,500'
Scattered 1,500'
> 6sm
160° 8kts
MVFR
Temporary 8:00 AM EDT - 11:00 AM EDT
Showers and Rain and Mist
Broken 1,500'
Scattered 700'
4sm
Calm
MVFR
11:00 AM EDT - 4:00 PM EDT
Showers in vicinity
Overcast 2,500'
> 6sm
070° 6kts
VFR
4:00 PM EDT - 9:00 PM EDT
Light Showers and Rain and Thunderstorm in vicinity
Overcast 4,000'
Scattered 2,500'
> 6sm
040° 7kts
MVFR
5:00 PM EDT - 8:00 PM EDT
Light Thunderstorm and Rain and Mist
Broken 4,000'
4sm
Calm
VFR
9:00 PM EDT - 8:00 AM EDT
Showers in vicinity
Broken 3,500'
> 6sm
050° 6kts
KFWA 061120Z 0612/0712 16008KT P6SM -SHRA VCTS SCT015CB BKN035
   TEMPO 0612/0615 4SM SHRA BR SCT007 BKN015
   FM061500 07006KT P6SM VCSH OVC025
   FM062000 04007KT P6SM -SHRA VCTS SCT025CB OVC040
   PROB30 0621/0624 4SM -TSRA BR BKN040CB
   FM070100 05006KT P6SM VCSH BKN035
KHHG
Domestic
7/6/221452Z !HUF 07/150 HHG OBST TOWER LGT (ASR 1217608) 410006.50N0852814.60W (9.0NM N HHG) 1161.7FT (318.9FT AGL) U/S 2207061452-2207211352
7/6/220521Z !HUF 07/129 HHG OBST TOWER LGT (ASR 1218031) 405333.60N0853234.90W (4.6NM WNW HHG) 1063.6FT (259.8FT AGL) U/S 2207060521-2207210421
6/14/222020Z !HUF 06/392 HHG OBST TOWER LGT (ASR 1298504) 410017.60N0853040.40W (9.5NM NNW HHG) 1107.6FT (259.8FT AGL) U/S 2206142020-2207140001
2/7/221421Z !HUF 02/678 HHG RWY 10 PAPI UNUSABLE 2202071421-2208072111EST
2/7/221419Z !HUF 02/677 HHG RWY 10 RWY END ID LGT U/S 2202071419-2208072111EST
1/19/220501Z !HUF 01/480 HHG AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
No
MON - SAT 0800-1700
SUN 1200-1700
UNATNDD HOLIDAYS.
HUNTINGTON BOAC
1365 WARREN RD
HUNTINGTON, IN 46750
Phone: 260-356-8515
SCOTT NICOLA
1365 WARREN RD
HUNTINGTON, IN 46750
Phone: 260-356-8515
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
HUF
--
ACTVT REIL RWY 10 & 28; MIRL RWY 1028 - CTAF. MIRL RWY 10/28 PRESET LOW INTST; INCR INTST - CTAF.
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
50
5
1
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 10/28

5003 ft. x 75 ft.
ASPH
Good
GRVD
MED

38,000lbs
50,000lbs
--
--
  Runway 10 Runway 28
True Heading 92°272°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 51' 11"N 40° 51' 10"N
Longitude 85° 27' 58"W 85° 26' 53"W
Elevation 805' 804'
Threshold Crossing Height 39 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2DEER ON & INVOF ARPT SPCLY MORNING & EVE.
A110-4FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
HUNTINGTON MUNI (ICAO: KHHG, IATA: HHG) is a public airport located in HUNTINGTON, IN.
