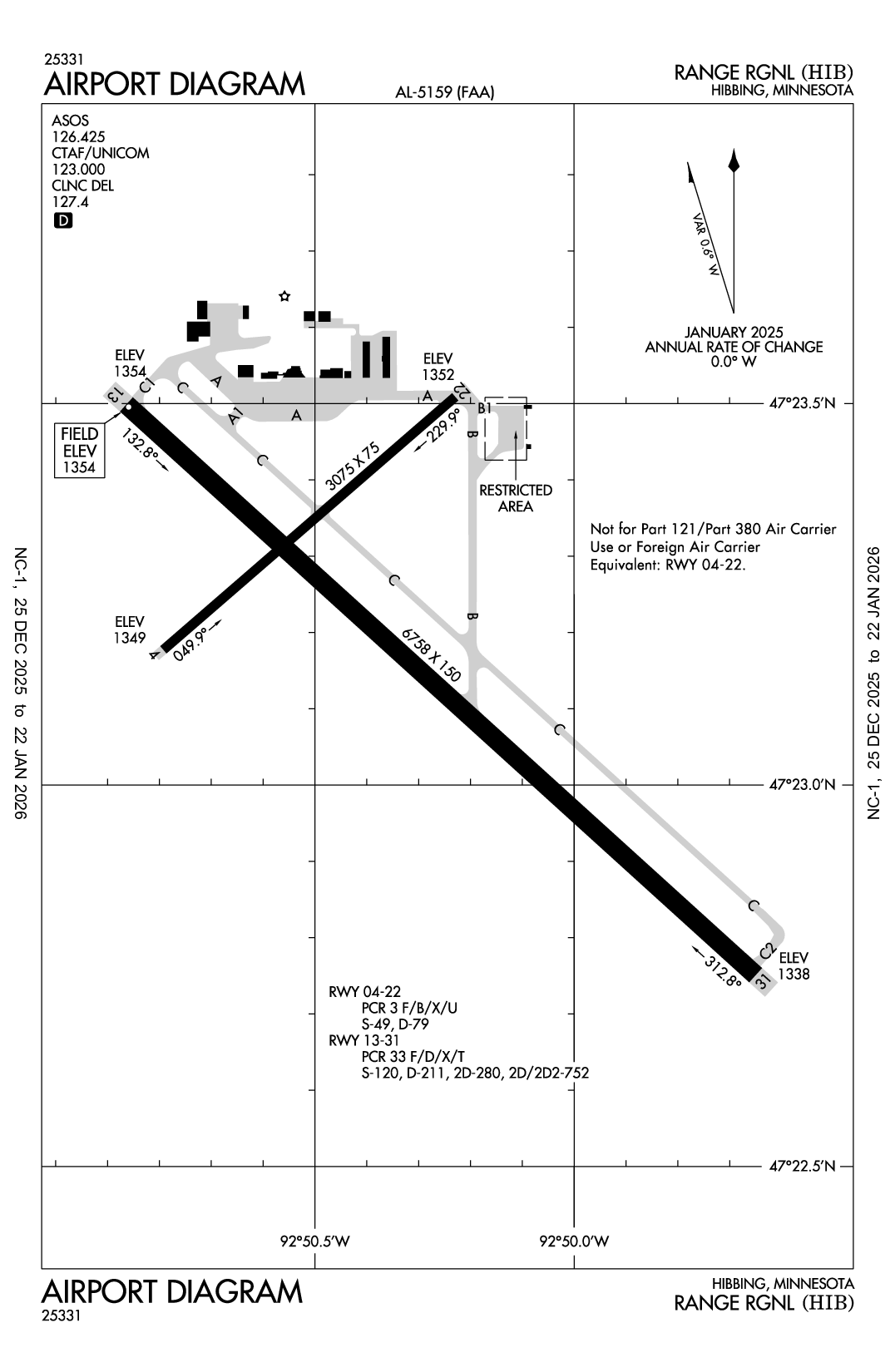

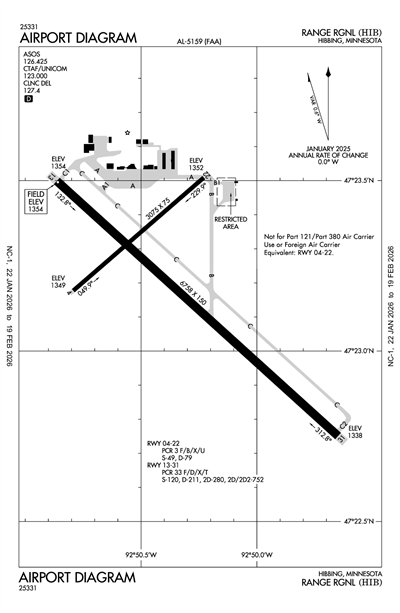

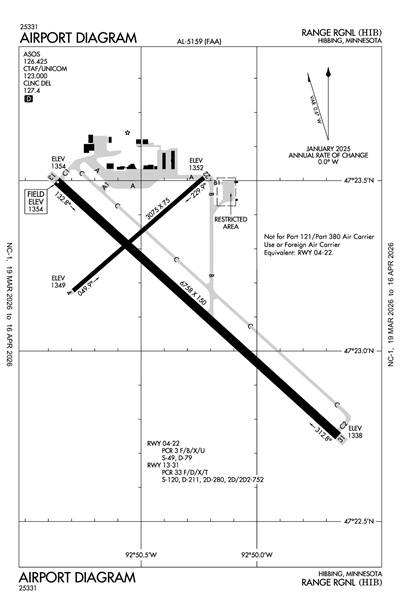

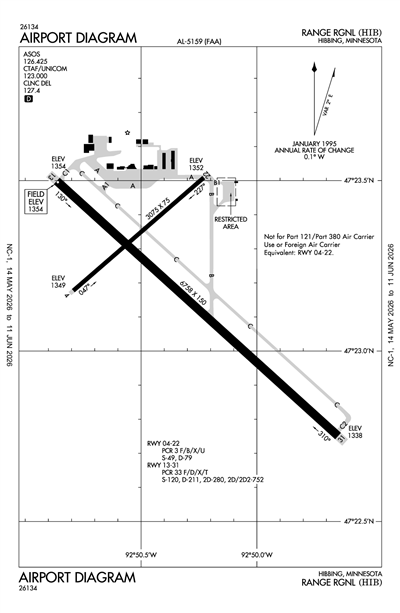

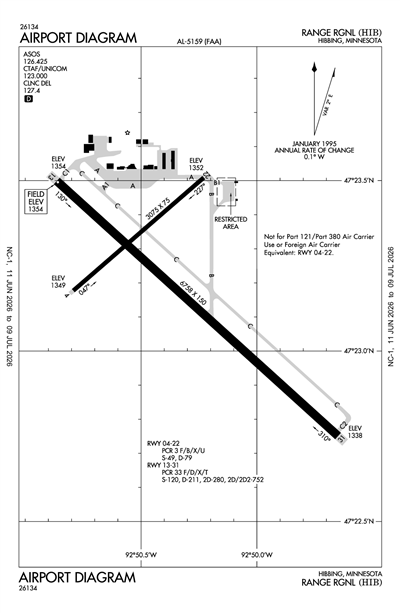

RANGE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHIB
RANGE RGNL
PublicPUB

4 miles SE of HIBBING, MN
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 23' 12"N 92° 50' 20"W
1354' MSL
2354' MSL
02E
Jet A, 100LL
PRINCETON (PNM)
GREEN BAY
MINNEAPOLIS (ZMP)
6/16/22-7/14/22
KHIB VFR
7:53 AM CDT
Scattered 2,300'
10sm
58°F
51°F
30.02"Hg
220° 3kts
AO2 SLP165 T01440106 TSNO
KHIB 071253Z AUTO 22003KT 10SM SCT023 14/11 A3002 RMK AO2 SLP165 T01440106 TSNO

KHIB FBOs, Flight Schools and Ground Support

Hibbing Fueling Facility
Freq: 123.0
Phone: (218) 263-4353
Other: (218) 262-3452
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 7/5
100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.49 7.16 7.16

KHIB Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KHIB Hotels

No hotels are listed for this airport.

KHIB Restaurants

No restaurants are listed for this airport.

KHIB Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
218-263-8384
126.425

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Terminal Area Forecast

KHIB
Thu, 7/7 6:33 AM CDT
Thu, 7/7 7:00 AM CDT - Fri, 7/8 7:00 AM CDT
VFR
7:00 AM CDT - 1:00 PM CDT
Scattered 4,000'
> 6sm
VRB° 3kts
VFR
1:00 PM CDT - 8:00 PM CDT
Broken 25,000'
Scattered 4,500'
> 6sm
330° 6kts
VFR
8:00 PM CDT - 7:00 AM CDT
Scattered 20,000'
Few 6,000'
> 6sm
020° 6kts
KHIB 071133Z 0712/0812 VRB03KT P6SM SCT040
   FM071800 33006KT P6SM SCT045 BKN250
   FM080100 02006KT P6SM FEW060 SCT200
KHIB
Domestic
7/1/221021Z !HIB 07/002 HIB OBST TOWER LGT (ASR 1276677) 470317.00N0925535.40W (20.3NM S HIB) 1619.8FT (350.1FT AGL) U/S 2207011021-2207312359
7/1/220521Z !HIB 07/001 HIB OBST TOWER LGT (ASR 1027748) 472251.30N0925719.60W (4.7NM W HIB) 1914.0FT (269.0FT AGL) U/S 2207010521-2207160421
6/30/222349Z !HIB 06/077 HIB NAV ILS RWY 13 GP U/S 2206302349-2208052000EST
6/30/221939Z !HIB 06/075 HIB TWY B1 SFC PAINTED HLDG PSN SIGNS BTN DEPARTMENT OF NATURAL RESOURCES RAMP AND TWY B NOT MARKED 2206301939-2208121600
6/30/221937Z !HIB 06/074 HIB TWY A EDGE MARKINGS BTN APCH END RWY 22 AND TWY C1 NOT STD 2206301937-2208121600
6/30/221610Z !HIB 06/072 HIB NAV ILS RWY 13 NOT MNT 2206301610-2306302000EST
6/15/221559Z !HIB 06/037 HIB OBST TOWER LGT (ASR 1024466) 471255.00N0930326.00W (13.6NM SW HIB) 1839.2FT (304.1FT AGL) U/S 2206151559-2207150001
4/7/221358Z !HIB 04/067 HIB NAV ILS RWY 31 LOC/GP NOT MNT 2204071358-2212282000EST
FDC
11/1/211230Z !FDC 1/0511 HIB IAP RANGE RGNL, HIBBING, MN.
ILS OR LOC/DME RWY 13, AMDT 1A...
CHART NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 2515.
2111011230-2311011230EST
10/28/211804Z !FDC 1/9266 HIB IAP RANGE RGNL, HIBBING, MN.
ILS OR LOC RWY 31, AMDT 13A...
CHANGE MISSED APPROACH POINT TO READ: 6.6 MILES AFTER HIB VOR/DME/OM OR AT HIB 6.6 DME FIX.
2110281804-2310281804EST
10/27/212013Z !FDC 1/8824 HIB IAP RANGE RGNL, HIBBING, MN.
ILS OR LOC RWY 31, AMDT 13A...
ILS OR LOC/DME RWY 13, AMDT 1A...
NOTE: CAUTION OPPOSING ILS CONTINUOUSLY ON.
2110272013-2310312013EST
10/8/211332Z !FDC 1/1674 HIB IAP RANGE RGNL, HIBBING, MN.
RNAV (GPS) RWY 13, AMDT 1C...
LNAV/VNAV DA 1729/HAT 375 ALL CATS. CIRCLING CAT A/B MDA 1900/HAA 546, CAT C MDA 1920/HAA 566, CAT D MDA 1980/HAA 626.
2110081332-2310201332EST
10/8/211331Z !FDC 1/1672 HIB IAP RANGE RGNL, HIBBING, MN.
RNAV (GPS) RWY 31, AMDT 1B...
LNAV/VNAV DA 1607/HAT 262 ALL CATS. LNAV MDA 1700/HAT 355 ALL CATS. CIRCLING CAT A/B MDA 1900/HAA 546, CAT C MDA 1920/HAA 566, CAT D MDA 1980/HAA 626.
2110081331-2310201331EST
10/8/211331Z !FDC 1/1671 HIB IAP RANGE RGNL, HIBBING, MN.
RNAV (GPS) RWY 22, ORIG-A...
LNAV MDA CAT A/B 1860/HAT 510. CIRCLING CAT A/B MDA 1900/HAA 547.
2110081331-2310201330EST
10/8/211329Z !FDC 1/1670 HIB IAP RANGE RGNL, HIBBING, MN.
ILS OR LOC RWY 31, AMDT 13A...
CIRCLING CAT A/B MDA 1900/HAA 546, CAT C MDA 1920/HAA 566, CAT D MDA 1980/HAA 626. #BOYAC FIX MINIMUMS: CIRCLING CAT A/B MDA 1900/HAA 546, CAT C MDA 1920/HAA 566, CAT D MDA 1980/HAA 626.
2110081329-2310201329EST
10/8/211326Z !FDC 1/1668 HIB IAP RANGE RGNL, HIBBING, MN.
RNAV (GPS) RWY 4, ORIG-A...
CIRCLING CAT A/B MDA 1900/HAA 547.
2110081326-2310201326EST
No
0400-0000
CHISHOLM-HIBBING AIRPORT
11038 HIGHWAY 37
HIBBING, MN 55746-8203
Phone: 218-262-3451
BARRETT ZIEMER
11038 HIGHWAY 37
HIBBING, MN 55746-8203
Phone: 218-262-3451
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
HIB
--
ACTVT OR INCR INTST MALSR RWY 13 & 31; HIRL RWY 13/31 - CTAF. PAPI RWY 13 & 31 OPR CONSLY; HIRL RWY 13/31 PRESET LOW INTST.
Clear-Green
Yes - Lighted
No
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
40
0
0
1
0
0
Major
Major
None
None
Air Ambulance
Avionics

Runway 04/22

3075 ft. x 75 ft.
ASPH
Excellent


3 /F/B/Y/U
35,000lbs
45,000lbs
--
--
  Runway 04 Runway 22
True Heading 49°229°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 47° 23' 11"N 47° 23' 31"N
Longitude 92° 50' 48"W 92° 50' 14"W
Elevation 1,349' 1,352'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

6758 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH
33 /F/C/X/T
60,000lbs
100,000lbs
160,000lbs
--
  Runway 13 Runway 31
True Heading 132°312°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 23' 30"N 47° 22' 45"N
Longitude 92° 50' 52"W 92° 49' 39"W
Elevation 1,354' 1,338'
Threshold Crossing Height 50 ft. AGL 62 ft. AGL
Visual Glide Path Angle 2.9°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights No No
Runway End Identifier Lights No No
A110-2DIVD ACFT LIMITATIONS - NO INTL PSGR PROCESSING. ONLY ONE ACR GATE. LTD STERILE AREA SPACE (125 PSGRS). VENDING CONCESSIONS ONLY.
A110-4FOR CD CTC DULUTH APCH AT 218-740-5950.
A110-5TWY A AND TWY B AT THE APCH END OF RWY 22 CLSD TO ACR OPS DURG THE HRS OF DARKNESS AND CONDS BLW VFR MNMS AIRFIELD. GUIDANCE SIGNS UNLIT.
A110-6BIRDS ON & INVOF ARPT.
A110-7FLD CONDS UNMON 0000-0400.
RANGE RGNL (ICAO: KHIB, IATA: HIB) is a public airport located in HIBBING, MN.
