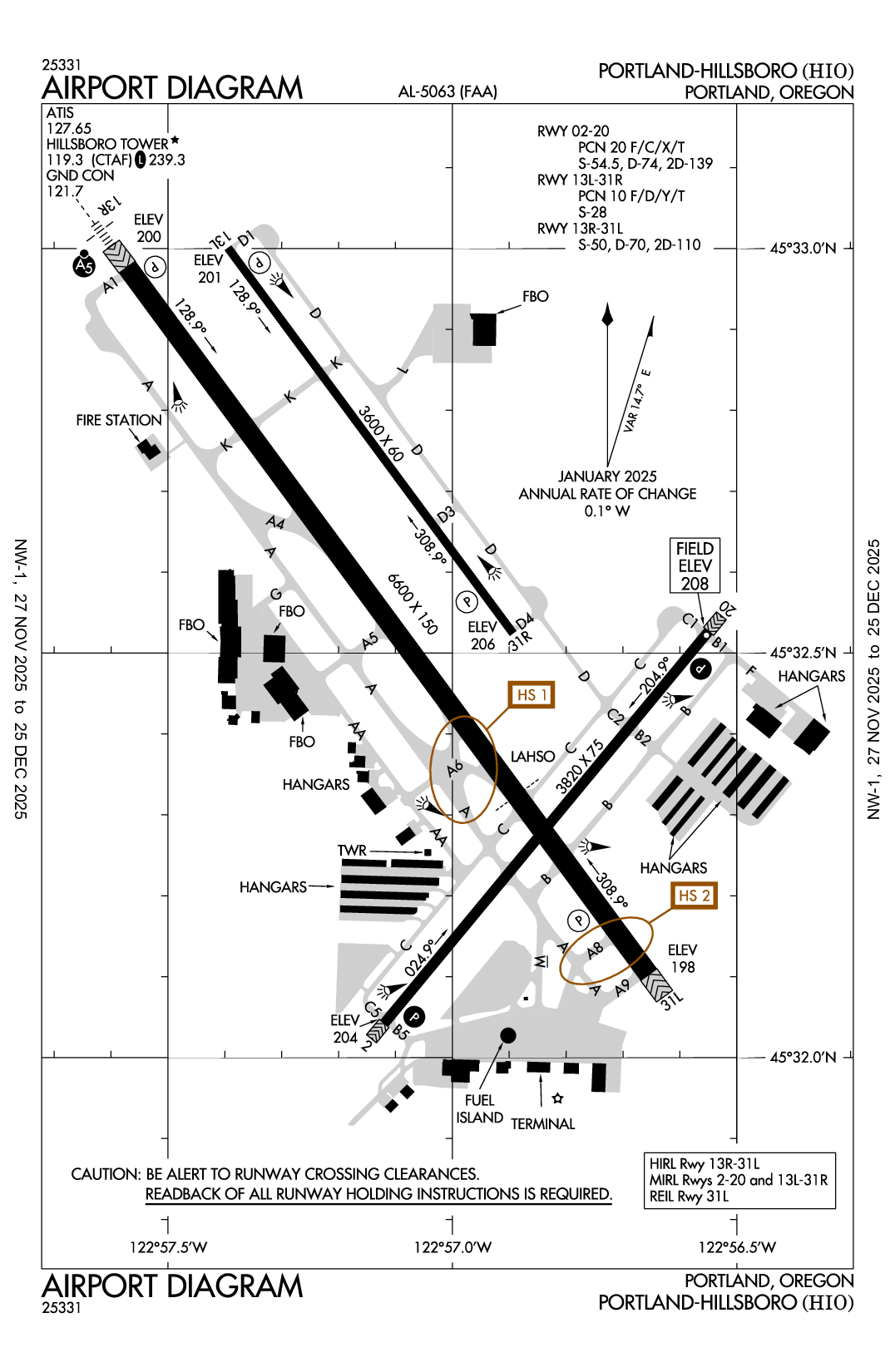

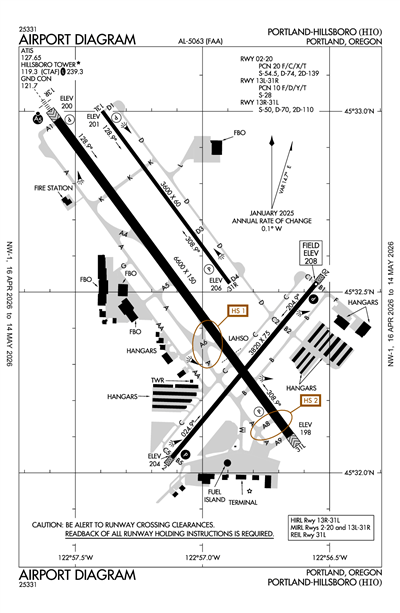

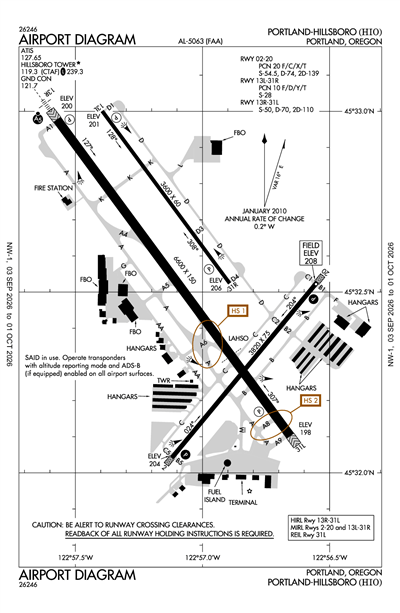

PORTLAND-HILLSBORO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHIO
ICAO KHIOIATA HIOLocal HIO
PORTLAND-HILLSBORO
PublicPUB

15 miles SW of PORTLAND, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 32' 32"N 122° 57' 03"W
Elevation
208' MSL
Pattern Alt
1208' MSL
Mag Variation
15°E
Declination
16°E
Fuel
JET A, 100LL
FSS
MC MINNVILLE (MMV)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
9/3/26-10/1/26
KHIO VFR
11:53 AM PDT
Broken 6,000'
Few 3,900'
Few 3,000'
10sm
62°F
51°F
29.89"Hg
Calm
AO2 SLP122 T01670106
METAR KHIO 121853Z 00000KT 10SM FEW030 FEW039 BKN060 17/11 A2989 RMK AO2 SLP122 T01670106
+ Add Your Business

KHIO FBOs

Global Aviation
UNICOM: 130.75
Phone: (503) 648-6403
Fax: (503) 648-2923
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 8/25
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.88 7.03
Fuel Notes
Prices include tax
Aero Air
UNICOM: 128.825
Phone: (503) 640-3711
Fax: (503) 640-1093
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 9/9
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.95 6.93 7.05
Fuel Notes
Prices include tax
Fuel Hours
LOOKING FOR LONG TERM HANGAR? CALL AERO AIR AND GET A QUOTE 503-640-3711. We are open & Staffed 24/7, 365.
Promote Listing
Hillsboro Aviation
UNICOM: 122.85
Phone: (503) 648-2831
Fax: (503) 648-1886
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 9/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.90 6.88 7.00
Fuel Notes
Prices include tax
Fuel Hours
7am-6pm Monday-Friday / 7am-5pm Saturday and Sunday
Available during off hours with advance notice.

KHIO Flight Schools & Aircraft Rental

Promote Listing
Portland Community College
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.65
ASOS (503) 615-4314

Common

CTAF 119.3
WHEN ATCT CLSD ACTVT MALSR RWY 13R; PAPI RWY 02 & PAPI RWY 20 - CTAF.
UNICOM 122.95

Ground

HILLSBORO GROUND 121.7
0600-2200

Tower

HILLSBORO TOWER 119.3
0600-2200
HILLSBORO TOWER 132.8
0600-2200, Secondary

Arrival

HELNS STAR 124.35
OCITY STAR 124.35

Approach

PORTLAND APPROACH 118.1
HIGH
PORTLAND APPROACH 126.0
Initial Contact - LOW

Departure

PORTLAND DEPARTURE 118.1
HIGH
PORTLAND DEPARTURE 126.0
Initial Contact - LOW

Terminal Area Forecast

KHIO
Sat, 9/12 10:30 AM PDT
Sat, 9/12 11:00 AM PDT - Sun, 9/13 11:00 AM PDT
VFR
11:00 AM PDT - 6:00 PM PDT
Broken 5,000'
6sm
VRB° 4kts
VFR
6:00 PM PDT - 11:00 PM PDT
Light Showers and Rain
Overcast 5,000'
6sm
240° 5kts
VFR
11:00 PM PDT - 8:00 AM PDT
Showers in vicinity
Broken 4,000'
6sm
180° 2kts
MVFR
8:00 AM PDT - 11:00 AM PDT
Light Showers and Rain
Overcast 3,000'
6sm
200° 6kts
TAF KHIO 121730Z 1218/1318 VRB04KT P6SM BKN050
   FM130100 24005KT P6SM -SHRA OVC050
   FM130600 18002KT P6SM VCSH BKN040
   FM131500 20006KT P6SM -SHRA OVC030
KHIO
EffectiveExpiresCategoryNOTAM
Domestic
9/16/26
1400Z
9/17/26
2359Z
!HIO 09/005 HIO OBST CRANE (ASN 2026-ANM-3505-OE) 453234N1225611W (0.6NM E HIO) 324FT (125FT AGL) FLAGGED AND LGTD 2609161400-2609172359
9/3/26
1212Z
12/2/26
1312Z
!HIO 09/001 HIO OBST TOWER LGT (ASR 1222368) 453157.90N1225604.80W (0.9NM SE HIO) 352.0FT (160.1FT AGL) U/S 2609031212-2612021312
7/28/26
1712Z
10/13/26
2130Z
!HIO 07/016 HIO OBST CRANE (ASN 2026-ANM-3141-OE) 453313N1225705W (0.7NM N HIO) 552FT (350FT AGL) FLAGGED AND LGTD 2607281712-2610132130
FDC
9/3/26
1545Z
!FDC 6/0820 HIO IAP PORTLAND-HILLSBORO, PORTLAND, OR.
NDB-B, AMDT 3B...
MISSED APPROACH: CLIMBING LEFT TURN TO 4000 ON HEADING 120 AND BTG VORTAC R-175 TO CANBY BTG 27.24 DME AND HOLD (DME REQUIRED) CONTINUE CLIMB-IN-HOLD TO 4000,
UBG VOR OUT OF SERVICE. 2609031545-2612242355EST
8/7/26
1455Z
!FDC 6/2844 HIO ODP PORTLAND-HILLSBORO, PORTLAND, OR. TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG... ADD TAKEOFF OBSTACLE NOTE: RWY 31R, BUILDING 907FT FROM DER, 276FT RIGHT OF CENTERLINE, 43FT AGL/ 2423FT MSL (2026-ANM-16-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2608071455-2808071455EST
7/17/26
1936Z
!FDC 6/6527 HIO ODP PORTLAND-HILLSBORO, PORTLAND, OR.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT ...
ADD TAKEOFF OBSTACLE NOTE: RWY 02, TEMPORARY CRANES BEGINNING 3380FT FROM DER, 321FT RIGHT OF CENTERLINE, UP TO 111 AGL/ 324FT MSL (2025-ANM-7058-OE). TEMP CRANE 3379FT FROM DER, 619FF RIGHT OF CENTERLINE, UP TO 111 AGL/322 MSL (2026-ANM-3271-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2607171936-2702261936EST
6/17/26
1300Z
!FDC 6/8790 HIO IAP PORTLAND-HILLSBORO, PORTLAND, OR.
ILS OR LOC RWY 13R, AMDT 11B...
JIKIM FIX MINIMUMS (DUAL VOR RECEIVERS REQUIRED)
CIRCLING CATS A/B MDA 920/HAA 712 TEMPORARY CRANE 460FT MSL 4730FT N OF HIO AIRPORT (2022-ANM-3071-OE), TEMPORARY CRANE 501FT MSL 1.3NM E OF HIO AIRPORT (2023-ANM-6214-OE), TEMPORARY CRANE 380 MSL 1.0NM NE OF HIO AIRPORT (2024-ANM-89-OE). TEMP CRANES, STARTING 4253 FT N OF RWY 12R, UP TO 350 AGL/55 MSL (22026-ANM-3141-OE).
2606171300-2610302247EST
6/17/26
1300Z
!FDC 6/8786 HIO IAP PORTLAND-HILLSBORO, PORTLAND, OR. RNAV (GPS) RWY 31L, AMDT 1B... CIRCLING CATS A/B MDA 920/HAA 712 TEMPORARY CRANE 460FT MSL 4730FT N OF HIO AIRPORT (2022-ANM-3071-OE), TEMPORARY CRANE 501FT MSL 1.3NM E OF HIO AIRPORT (2023-ANM-6214-OE), TEMPORARY CRANE 380 MSL 1.0NM NE OF HIO AIRPORT (2024-ANM-89-OE). TEMP CRANES, STARTING 2430 FT NE OF RWY 13L, UP TO 350 AGL/55 MSL (22026-ANM-3141-OE). 2606171300-2610302247EST
6/17/26
1300Z
!FDC 6/8780 HIO IAP PORTLAND-HILLSBORO, PORTLAND, OR.
RNAV (GPS) RWY 13R, AMDT 3A...
LNAV/VNAV DA 753/HAT 560, RVR 6000 ALL CATS.
LNAV MDA 860/HAT 657 ALL CATS, VIS CATS C/D 1 3/8.
CIRCLING CATS A/B MDA 920/HAA 712
TEMPORARY CRANE 460FT MSL 4730FT N OF HIO AIRPORT (2022-ANM-3071-OE), TEMPORARY CRANE 501FT MSL 1.3NM E OF HIO AIRPORT (2023-ANM-6214-OE), TEMPORARY CRANE 380 MSL 1.0NM NE OF HIO AIRPORT (2024-ANM-89-OE).TEMP CRANES, STARTING 4253 FT N OF RWY 13R, UP TO 350 AGL/552 MSL (2026-ANM-3141-OE).
2606171300-2610302247EST
5/14/26
2004Z
!FDC 6/0532 HIO IAP PORTLAND-HILLSBORO, PORTLAND, OR.
ILS OR LOC RWY 13R, AMDT 11B...
MISSED APPROACH: CLIMB TO 1000 THEN CLIMBING LEFT TURN TO 4000 ON HEADING 120 AND BTG VORTAC R-175 TO CANBY/BTG 27.24 DME AND HOLD. (DME REQUIRED) CONTINUE CLIMB-IN-HOLD TO 4000,
UBG VOR OUT OF SERVICE. 2605142004-2612242004EST
5/14/26
1539Z
!FDC 6/0408 HIO IAP PORTLAND-HILLSBORO, PORTLAND, OR.
ILS OR LOC RWY 13R, AMDT 11B...
JIKIM FIX MINIMUMS (DUAL VOR RECEIVERS REQUIRED): CIRCLING CATS A/B MDA 860/HAA 652, CAT C MDA 880/HAA 672,
VIS CAT C 1 3/4. TEMPORARY CRANE 460FT MSL 4730FT N OF HIO AIRPORT (2022-ANM-3071-OE), TEMPORARY
CRANE 501FT MSL 1.3NM E OF HIO AIRPORT (2023-ANM-6214-OE), TEMPORARY CRANE 380 MSL 1.0NM NE OF HIO
AIRPORT (2024-ANM-89-OE).
2605141539-2610092355EST
5/14/26
1413Z
!FDC 6/0350 HIO IAP PORTLAND-HILLSBORO, PORTLAND, OR.
RNAV (GPS) RWY 13R, AMDT 3A...
RNAV (GPS) RWY 31L, AMDT 1B...
CIRCLING CATS A/B MDA 860/HAA 652, CAT C MDA 880/HAA 672, VIS CAT C 1 3/4. TEMPORARY CRANE 460FT MSL 4730FT N OF HIO AIRPORT (2022-ANM-3071-OE), TEMPORARY CRANE 501FT MSL 1.3NM E OF HIO AIRPORT (2023-ANM-6214-OE), TEMPORARY CRANE 380 MSL 1.0NM NE OF HIO AIRPORT (2024-ANM-89-OE).
2605141413-2610092355EST
2/28/26
1946Z
10/10/26
1946Z
!FDC 6/1658 HIO ODP PORTLAND-HILLSBORO, PORTLAND, OR.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7A...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
UBG VOR OUT OF SERVICE. 2602281946-2610101946EST
2/28/26
1946Z
10/10/26
1946Z
!FDC 6/1657 HIO SID PORTLAND-HILLSBORO, PORTLAND, OR.
CANBY TWO DEPARTURE...
DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
UBG VOR OUT OF SERVICE. 2602281946-2610101946EST
2/28/26
1946Z
10/10/26
1946Z
!FDC 6/1656 HIO SID PORTLAND-HILLSBORO, PORTLAND, OR.
FARMINGTON SEVEN DEPARTURE...
SCAPO SEVEN DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
UBG VOR OUT OF SERVICE. 2602281946-2610101946EST
11/19/25
2225Z
!FDC 5/9205 HIO ODP PORTLAND-HILLSBORO, PORTLAND, OR.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7A...
TAKEOFF MINIMUMS: RWY 02, 600-2 1/2 OR STD WITH A MINIMUM CLIMB OF 305 FT PER NM TO 1900.
ALL OTHER DATA REMAINS AS PUBLISHED. CRANE YARD 586 MSL 2.2NM NE OF RWY 31L (2025-ANM-5322-OE). 2511192225-2711192225EST
Yes
0600-2200
THE PORT OF PORTLAND
BOX 3529
PORTLAND, OR 97208
Phone: 503-944-7000
STEPHEN M. NAGY
THE PORT OF PORTLAND BOX 3529
PORTLAND, OR 97208
Phone: 503-460-4119
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
HIO
--
WHEN ATCT CLSD ACTVT MALSR RWY 13R; PAPI RWY 02 & PAPI RWY 20 - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

3820 ft. x 75 ft.
ASPH
Good
NONE
MED
20/F/C/X/T
54,000lbs
74,000lbs
139,000lbs
--
  Runway 02 Runway 20
True Heading 39°219°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 45° 32' 03"N 45° 32' 32"N
Longitude 122° 57' 07"W 122° 56' 33"W
Elevation 204' 208'
Threshold Crossing Height 39 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13L/31R

3600 ft. x 60 ft.
ASPH
Excellent
NONE
MED
10/F/D/Y/T
28,000lbs
--
--
--
  Runway 13L Runway 31R
True Heading 144°324°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 45° 33' 00"N 45° 32' 31"N
Longitude 122° 57' 24"W 122° 56' 53"W
Elevation 201' 206'
Threshold Crossing Height 27 ft. AGL 26 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13R/31L

6600 ft. x 150 ft.
ASPH
Good
NONE
HIGH

50,000lbs
70,000lbs
110,000lbs
--
  Runway 13R Runway 31L
True Heading 143°323°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 45° 32' 59"N 45° 32' 06"N
Longitude 122° 57' 34"W 122° 56' 39"W
Elevation 200' 198'
Threshold Crossing Height 49 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1BE ALERT FOR BIRD ACTIVITY IN VICINITY NOV-MAY.
A110-10NIGHTTIME TOUCH AND GOES ARE DISCOURAGED 0600-1400Z++.
A110-11RWY 2-20 HAS 150' X 75' PAVED BLAST PADS AT BOTH ENDS
A110-12RWY 13R-31L HAS 200' X 150' PAVED BLAST PADS AT BOTH ENDS
A110-13GLIDER OPS 5NM NORTHWEST DURING DALGT HOURS MAR-OCT
A110-14BE ALERT EXTV HELICOPTER TRAINING OPERATIONS TO TWY A, TWY B, TWY D.
A110-15FOR CD WHEN TWR CLSD CTC PORTLAND APCH AT 503-493-7545.
A110-2CSTMS AVBL 2000-0400Z++ 503-693-1069, OTHERWISE CSTMS FLT NOTIFICATION SVC (ADCUS) AVBL; ADVANCE COORDINATION REQ 503-326-3230.
A110-3NOISE ABATEMENT PROCEDURES IN EFFECT CALL 503-460-4100 OR 800-938-6647.
A110-4RY 13R RUN-UP AREA NOT VISIBLE FROM ATCT.
A110-6RY 31L IS PREFERRED RY FOR NOISE ABATEMENT.
A110-7NOISE SENSITIVE AREAS BORDER ARPT WEST, SOUTH AND EAST.
A110-8FEE-BASED CSTMS FACILITY: $60 SINGLE-ENGINE, $175 TWIN-ENGINE, $500 TURBINE.
A110-9AVOID LOW-LEVEL OVERFLIGHTS OF RESIDENTIAL AREAS WHENEVER POSSIBLE.
A24COMMERCIAL ACFT & OPERATORS WITH AN FAA CERTIFIED MAX GROSS LANDING WEIGHT THAT EXCEEDS 10000 LBS ARE REQUIRED TO PAY A LANDING FEE.
A30-02/20CLSD TO TOUCH AND GO LNDGS BETWEEN 2200-0600.
A43-13LUNUSBL BEYOND 8 DEG L AND R OF RWY CNTRLN
A43-31RUNUSBL BEYOND 8 DEG L AND R OF RWY CNTRLN
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 13R; PAPI RWY 02 & PAPI RWY 20 - CTAF.
E147TPA: 1000 FT AGL, TURBINE AND LARGE AIRCRAFT 1500 FT AGL.
PORTLAND-HILLSBORO (ICAO: KHIO, IATA: HIO) is a public airport located in PORTLAND, OR, US.
