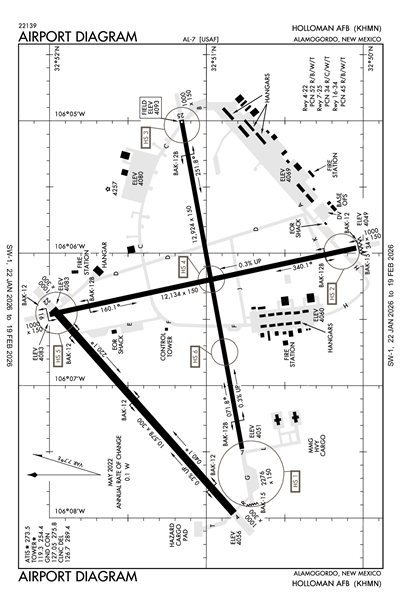

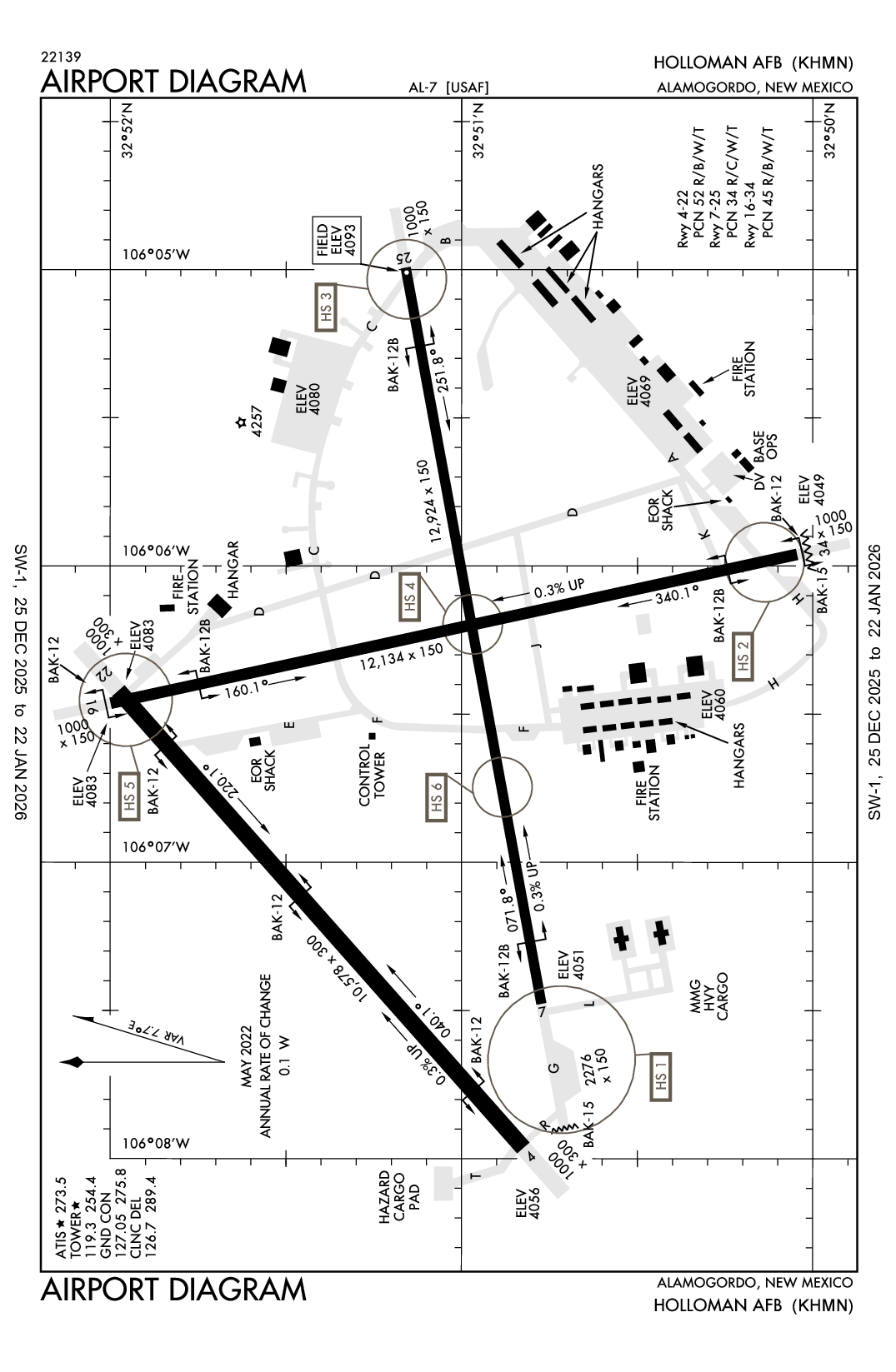

HOLLOMAN AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHMN
ICAO KHMNIATA HMNLocal HMN
HOLLOMAN AFB
PrivatePVT

6 miles SW of ALAMOGORDO, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 51' 07"N 106° 06' 31"W
Elevation
4093' MSL
Pattern Alt
5093' MSL
Mag Variation
8°E
Declination
10°E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
10/1/26-10/29/26
KHMN VFR
7:55 AM MDT
Scattered 15,000'
Scattered 8,000'
10sm
64°F
50°F
30.08"Hg
170° 8kts
AO2A SLP125 T01760102 $
METAR KHMN 231355Z 17008KT 10SM SCT080 SCT150 18/10 A3008 RMK AO2A SLP125 T01760102 $
+ Add Your Business

KHMN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Clearance

Clearance Delivery 126.7

Ground

HOLLOMAN GROUND 127.05
0900Z++ MON THRU 0100Z++FRI; SAT 1500-2200Z++, EXC FOR FINAL SAT OF EV MONTH. CLSD SUN & FEDERAL HOL.

Tower

HOLLOMAN TOWER 119.3
0900Z++ MON THRU 0100Z++FRI; SAT 1500-2200Z++, EXC FOR FINAL SAT OF EV MONTH. CLSD SUN & FEDERAL HOL. - LTD BYD 15 NM 020-140

Approach

HOLLOMAN APPROACH 120.6

Departure

HOLLOMAN DEPARTURE 128.1
LTD BYD 15 NM 020-140

Operations

Operations 126.9
CHEROKEE MISSION

Center

HOLLOMAN CENTER 132.65
LOW/HIGH, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQS 132.65/257.6 (ALAMOGORDO RCAG) WHEN HOLLOMAN APCH CTL (HMN) CLSD.

Emergency

Emergency 121.5

Terminal Area Forecast

KHMN
Fri, 10/23 3:00 AM MDT
Fri, 10/23 3:00 AM MDT - Sat, 10/24 9:00 AM MDT
VFR
3:00 AM MDT - 12:00 PM MDT
Broken 13,000'
Scattered 8,000'
6sm
30.06"Hg
170° 10kts
Gusts 15kts
VFR
Becoming 12:00 PM MDT - 3:00 AM MDT
Broken 10,000'
Scattered 6,000'
6sm
29.94"Hg
180° 15kts
Gusts 25kts
Moderate, Clear Air, Occasional: up to 6,000'
MVFR
Temporary 6:00 PM MDT - 11:00 PM MDT
Thunderstorm and Rain
Overcast 10,000'
Broken 4,000'
3.73sm
VRB° 20kts
Gusts 35kts
MVFR
Temporary 12:00 AM MDT - 3:00 AM MDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 5,000'
4.97sm
VRB° 20kts
Gusts 30kts
VFR
Becoming 3:00 AM MDT - 9:00 AM MDT
Broken 10,000'
Scattered 6,000'
6sm
30.00"Hg
VRB° 6kts
VFR
Temporary 7:00 AM MDT - 9:00 AM MDT
Light Showers and Rain and Thunderstorm in vicinity
Broken 10,000'
Scattered 5,000'
5.59sm
VRB° 15kts
Gusts 25kts
TAF KHMN 230900Z 2309/2415 17010G15KT 9999 SCT080 BKN130 QNH3006INS
   BECMG 2318/2319 18015G25KT 9999 SCT060 BKN100 520006 QNH2995INS
   TEMPO 2400/2405 VRB20G35KT 6000 TSRA BKN040CB OVC100
   TEMPO 2406/2409 VRB20G30KT 8000 -SHRA VCTS BKN050CB
   BECMG 2409/2410 VRB06KT 9999 SCT060 BKN100 QNH3000INS
   TEMPO 2413/2415 VRB15G25KT 9000 -SHRA VCTS SCT050CB BKN100 TX26/2320Z TN18/2312Z
KHMN
EffectiveExpiresCategoryNOTAM
Domestic
10/14/26
1335Z
11/28/26
1335Z
!HMN 10/001 HMN OBST TOWER LGT (ASR 1200637) 330458.70N1060223.20W (14.3NM N HMN) 4939FT (494FT AGL) U/S 2610141335-2611281335
Military
10/25/26
1230Z
10/25/26
1530Z
H60 UAO IN PROGRESS. H60'S TAXIING TO/FROM NORTH RAMP/RWYS (SUN) 25 OCT 26 0630L - (SUN) 25 OCT 26 0930L
10/24/26
1230Z
10/24/26
1530Z
H60 UAO IN PROGRESS. H60'S TAXIING TO/FROM NORTH RAMP/RWYS (SAT) 24 OCT 26 0630L - (SAT) 24 OCT 26 0930L
10/23/26
1406Z
10/23/26
1630Z
RunwayRWY 16/22 INTERSECTION CLOSED DUE TO MEN AND EQUIPMENT ON RUNWAY
10/22/26
1632Z
10/25/26
1632Z
M1230/26 NOTAMC M1216/26
10/22/26
1632Z
10/23/26
2230Z
AerodromeAERODROME RWY 07/25 CLOSED BETWEEN TWY L AND TWY F DUE TO MEN AND EQUIPMENT OPERATING WITHIN THE CMA. 19 OCT 26 - 23 OCT 26 0730L-1630L (1330Z-2230Z)
10/22/26
1627Z
10/25/26
1627Z
M1228/26 NOTAMC M1215/26
10/22/26
1627Z
10/25/26
1627Z
M1227/26 NOTAMC M1217/26
10/22/26
1626Z
10/25/26
1626Z
M1225/26 NOTAMC M1224/26
10/22/26
1626Z
10/26/26
2359Z
RunwayRWY 16 UNDERRUN BAK-12 CABLE UNUSABLE UNTIL FURTHER NOTICE
10/22/26
1459Z
10/31/26
2359Z
BE ADVISED: 1FT X 1FT SINKHOLE ON RWY 16 AND RWY 22 UNDERRUN/INTERSECTION.
10/20/26
1620Z
10/23/26
1620Z
M1222/26 NOTAMC M1221/26
10/19/26
1729Z
11/23/26
2359Z
RunwayRWY 16 ILS OTS.
10/15/26
2118Z
11/15/26
2352Z
RunwayRWY 22 ILS IS VFR ONLY
10/5/26
2046Z
1/5/27
0001Z
M1176/26 NOTAMN Q) ZAB/QMNLC/IV/NBO/A/000/999/3251N10606W005 A) KHMN B) 2610052046 C) 2701050001 E) WEST RAMP CLSD TO TAXING AIRCRAFT SOUTH OF BLDG 21811. USE CAUTION UNLIGHT LOW-PROFILE BARRIERS.
10/5/26
1737Z
11/10/26
2359Z
TaxiwayTWY E CLOSED FROM RWY 22 TO TWY F.
9/23/26
1624Z
10/30/26
1200Z
RunwayM1098/26 NOTAMN Q) ZAB/QXXXX/IV/NBO/A/000/999/3251N10606W005 A) KHMN B) 2609231624 C) 2610301200 E) RWY 16 THRESHOLD LIGHTS OTS
9/23/26
1623Z
10/30/26
1200Z
RunwayRWY 34 THRESHOLD LIGHTS OTS
9/23/26
1621Z
10/30/26
1200Z
OBST LIGHT AT RWY 22 MIDPOINT BAK 12 SHACK SOUTH OF CENTERLINE OTS
9/23/26
1620Z
10/30/26
1200Z
RunwayRWY 34 10K RDR (WEST)/RWY 16 2K RDR (EAST) OTS
9/23/26
1616Z
10/30/26
1200Z
M1090/26 NOTAMN Q) ZAB/QXXXX/IV/NBO/A/000/999/3251N10606W005 A) KHMN B) 2609231616 C) 2610301200 E) TWY D RGL OTS NORTHEAST OF RWY 25
9/23/26
1615Z
10/30/26
1200Z
RunwayRWY 25 MANDATORY SIGN UNLIT AT TWY F (SOUTH SIDE)
9/23/26
1614Z
10/30/26
1200Z
M1087/26 NOTAMN Q) ZAB/QXXXX/IV/NBO/A/000/999/3251N10606W005 A) KHMN B) 2609231614 C) 2610301200 E) VFR HOLD SIGNS LOCATED AT RWY 25 POV UNLIT ON BOTH SIDES
9/23/26
1554Z
10/30/26
1200Z
RunwayRWY 25 ARRESTING GEAR MARKER UNLIT NORTH OF CENTERLINE
9/23/26
1550Z
10/30/26
1200Z
TaxiwayTWY KILO (SOUTH) RGL OTS
9/23/26
1548Z
10/30/26
1200Z
TaxiwayTWY GOLF (ACCESS RD) RGL OTS
9/23/26
1544Z
10/30/26
1200Z
OBST LIGHTS OTS ON DASR
9/23/26
1541Z
10/30/26
1200Z
OBST LIGHT OTS AT RWY 04 INFIELD NEAR BAK 12
9/23/26
1536Z
10/30/26
1200Z
TaxiwayTWY F RGL SOUTHEAST OF RWY 25 OTS
9/23/26
1527Z
10/30/26
1200Z
RunwayM1071/26 NOTAMN Q) ZAB/QXXXX/IV/NBO/A/000/999/3251N10606W005 A) KHMN B) 2609231527 C) 2610301200 E) RWY 25 1K FT RDR (NORTH OF CENTERLINE)/RWY 07 12K FT RDR UNLIT
9/8/26
1331Z
11/5/26
1500Z
M0998/26 NOTAMN Q) ZAB/QXXXX/IV/NBO/A/000/999/3251N10606W005 A) KHMN B) 2609081331 C) 2611051500 E) HI-ILS OR LOC RWY 22 VFR ONLY UFN.
8/31/26
1143Z
11/25/26
0001Z
M0971/26 NOTAMN Q) ZAB/QXXXX/IV/NBO/A/000/999/3251N10606W005 A) KHMN B) 2608311143 C) 2611250001 E) SOUTH BAK-15 REQUIRES 15 MINUTES PRIOR NOTIFICATION BEFORE ACTIVATION.
8/31/26
1141Z
11/25/26
0001Z
WEST BAK-15 OUT OF SERVICE.
8/19/26
1814Z
11/16/26
2359Z
MEN & EQUIPMENT WORKING 500 FT FROM RWY 16/34 (32 85 98.85° N, -106 10 75.57° W)
Yes
Unknown
USAF
49TH CSG/TAC/
HOLLOMAN AFB, NM 88330
BASE OPERATIONS
49TH CSG/TAC/
HOLLOMAN AFB, NM 88330
Phone: 575-572-5411
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
HMN
Sunset to Sunrise
--
N/A
ABN UNSERVICEABLE.
Yes
No
No
None
No
Major
Major
None
High & Low Pressure
None

Runway 04/22

10578 ft. x 300 ft.

PEM
NONE
HIGH
52/R/B/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 48°228°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 50' 48"N 32° 51' 59"N
Longitude 106° 07' 57"W 106° 06' 26"W
Elevation 4,056' 4,083'
Threshold Crossing Height -- 53 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 07/25

12922 ft. x 150 ft.

PEM
NONE
HIGH
34/R/C/W/T
--
--
--
--
  Runway 07 Runway 25
True Heading 79°259°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 50' 46"N 32° 51' 10"N
Longitude 106° 07' 29"W 106° 04' 60"W
Elevation 4,051' 4,093'
Threshold Crossing Height -- 43 ft. AGL
Visual Glide Path Angle -- 2.5°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 16/34

12134 ft. x 150 ft.

PEM
NONE
HIGH
45/R/B/W/T
--
--
--
--
  Runway 16 Runway 34
True Heading 168°348°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 51' 60"N 32° 50' 02"N
Longitude 106° 06' 28"W 106° 05' 58"W
Elevation 4,083' 4,049'
Threshold Crossing Height 50 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1CAUTION: MT TERRAIN 10 NM EAST AND 20 NM WEST.
A110-10CAUTION: PORTIONS OF ARPT NOT VIS FR TWR. EXIT RWY 22 ON TWY R HOLD SHORT TWY G.
A110-104ILS/RADAR: RWY 16 ILS AVBL FOR CIR APCH TO RWY 22.
A110-105MISC: AERODROME WX SVC AVBL MON-FRI 0700Z++ UNTIL AFLD CLSD. SVC UNAVBL SAT, SUN, HOL, TRNG/DOWN DAYS UNLESS AFLD NOTAM OPEN. AUTO OBSN AVBL DURG NON-OPR HRS. WX OBSN SITE LTD 220 DEGS - 350 DEGS DUE TO BLDG; NGT OBSN LTD DUE TO HI INTST LGT. WX DSN 572-3924/5 C575-572-3924/5. FOR STBY SVC DURG NON-OPR HRS CTC 25 OWS DSN 228-6674.
A110-106SERVICE-A-GEAR: RWY 04-22 BAK-12B (MID FLD) AND RWY 25 APCH BAK-12B 30 MIN PN. BAK-15 LCTD RWY 16 UNDER-RUN UNSVC. NETS AVBL TO BE RAISED AT PILOT REQ. RWY 34 HOOK BAK-12 B (60 FT OVRN) UNIT IS NOT BI-DIRECTIONAL.
A110-107CAUTION: AFLD HAS HI POTENTIAL FOR FOD FR ENG BLAST, MINIMIZE THRUST DURG GRD OPS.
A110-108MISC: ONLY SINGLE APCH AND FULL STOP LDG AUTHORIZED FOR TRAN ACFT.
A110-109RSTD: RWY 16-34 RSTD TO ACFT WITH WINGSPAN 175 FT OR LESS.
A110-11CAUTION: COPTER ARR/DEP AVOID HOVER OVER UNPREPARED SFC.
A110-110SERVICE-LGT: RWY 16-34 DIST REM MRK OTS.
A110-111TWY GOLF EDGE LGTS LOCATED 150 FT SOUTH OF TWY GOLF PAVEMENT EDGE INVOF CLSD END OF RWY (EOR) GULF.
A110-113REMARKS-RSTD: CTC AM OPS DSN 572-5411, C575-572-5411 TO SKED.
A110-114UNITS WISHING TO FORWARD DEPLOY TO HOLLOMAN AFB CTC 49 WG/XP DSN 572-7483 FOR WG APVL.
A110-115CAUTION: BIRD HAZARD: WETLANDS AND LAKE LOCATED LESS THAN 1 NM S OF RWY 34 APCH END. BASH PHASE II IN EFF: 1 MAR-31 MAY AND 1 AUG-31 OCT.
A110-116RSTD: ALL ACFT RQRG CARGO AND/OR PAX SVC RQR TO CTC 49 LRS AT DSN 572-0905, C575-572-0905.
A110-117RSTD: NO ENG RUNNING ON/OFF LOADS WITHOUT PRIOR COORD WITH 49 LRS.
A110-118CAUTION: NON-FRANGIBLE SIGN LCTD ON TWY F/TWY E INT LESS THAN 100 FT FR TWY F CNTRLN ON S SIDE.
A110-119SERVICE-A-GEAR: CAUTION: RWY 25 APCH BAK-12 INCREASED STRIKE HAZ TO F-16 CONFIGURED WITH EXTERNAL CNTRLN STORES/TANKS.
A110-13SERVICE-LGT: GATED THLD LGT ALL RWY.
A110-15BEARING STRENGTH RWY 04-22: ST155 SBTT590 DDT837.
A110-16BEARING STRENGTH RWY 07-25: ST155.
A110-17BEARING STRENGTH RWY 16-34: ST155 SBTT590.
A110-2CAUTION: UNCTL VEH ON MOVEMENT AREA.
A110-20MISC: STD AETC RSRS APPLIED, NON-AETC ASGN ACFT RQR WRITTEN APVL.
A110-22MISC: RADAR MONITORING NOT AVBL ALL RWY.
A110-23JASU: 2(MD-3) 2(MA-1A) 3(MC-1) 1(MC-1A) 1(M32A-60).
A110-24FUEL: A++.
A110-25FLUID: SP LHOX LOX.
A110-26OIL: O-128-133-148-156 SOAP.
A110-28OPR 1230-0600Z++ MON-THU, 1230-0100Z++ FRI, CLSD WKENDS, HOL, RESILIENCY DAYS, AND TRNG DAYS.
A110-30PPR MUST BE REQ 72 HR PRIOR BUT NO EARLIER THAN 7 DAYS PRIOR TO ARR. CTC AFLD MGMT DSN 572-5411/5412, C575-572-5411/5412. PPR VALID +/- 30 MIN PRIOR/AFTER ETA. EARLY/LATE ARR/DEP MUST BE RE-COORD WITH AFLD MGMT.
A110-31SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-32MISC: TWY GOLF WIDTH 150 FT WT BEARING.
A110-39RSTD: HEAVY ACFT SHOULD EXPECT TO LAND RWY 22.
A110-43MISC: WX OBSN SITE LTD 220-350 DEG DUE TO BLDG; NGT OBSN LTD DUE TO HI INST LGT. SVC UNAVBL WHEN AFLD NOTAM CLSD. WX DSN 572-3924/5 C575-572-3924/5. FOR SBY SVC DUR NON-OPR WX HR CTC 25 OWS DSN 228-6674.
A110-49MISC: TRANSIENT ACFT LAST PRIORITY ON REFUELING DUE TO REFUELING MECHANICAL PROBLEMS, EXPECT DELAYS.
A110-5SERVICE: TRAN ALERT: TRAN ALERT SVC AVBL 1230-0330++ MON-FRI, 1430-2230++ SAT & CLSD SUN & HOL. NO PRIORITY BASIS.
A110-56MISC: WX SUPPORT AND AUGMENTED AUTOMATED OBSN AVBL DUR WING FLYING HRS.AUTOMATED OBSN AVBL DURG NON-OPR WX HRS AND DURG AFLD CLOSURE.
A110-58CAUTION: UNCONTROLLED AFLD OPS (UAO) IN EFFECT DURG OUTSIDE PUB AFLD HRS. UAO ONLY AUTH FOR FLYING UNITS LISTED IN HAFBI 11-250. CTC COMD POST DSN 572-7575, C575-572-7575 FOR CURRENT UAO STATUS.
A110-60MISC: VFR HOLD LINES LCTD AT INTERSECTIONS OF RWY 16/34 (4 EA.). ACFT GIVEN CLNC TO LAND OR TAKE-OFF SHALL DISREGARD HOLD LINES AT THE INTERSECTIONS DURG LANDING AND TAKE-OFF ROLL. LAND AND HOLD SHORT OPS NOT AUTH.
A110-67RSTD: HEAVY ACFT PROH FR DEP OR ARR RWY 07/25.
A110-74CAUTION: PAVEMENT MARKINGS THROUGHOUT AFLD FADED & NON-REFLECTIVE.
A110-77CAUTION: USE EXTREME CAUTION, UAS ACFT CONDUCTING STD OPS IN HOLLOMAN AIRSPACE.
A110-86RSTD: 180 DEGS TURNS ON RWY ASPHALT SFC NOT PERMITTED WITHOUT AFLD MGR APVL.
A110-89OPR 1230-0600Z++ MON-THU, 1230-0100Z++ FRI, CLSD WKENDS, HOL, RESILIENCY DAYS, AND TRNG DAYS.REQ TO OPEN THE AFLD ON DAYS WHEN CLSD RQR A MIN OF TWO WKS PRIOR COORD; SEND REQ TO 54OSS.OSAA.AMOPS@US.AF.MIL.
A110-9CSTMS/AG/IMG: CSTMS/ IMG AVBL TO 49 TFW FR OUTSIDE CONUS.
A110-90RWY 34 & RWY 04; AT 2000 FT DIST REMAINING MRK, ONLY 1700 FT OF RWY AVBL.
A33-04/22_SURF1000 FT X 300 FT CONC THLD, REMAINING RWY IS 8575 FT X 300 FT ASPHALT. RWY MRK 10575 FT X 150 FT.
A33-07/25_SURFFIRST 1000 FT RWY 25 CONCRETE, WEST OF TWY F MIDDLE 75 FT CONCRETE OUTER 37.5 FT WT BRG ASPHALT.
A33-16/34_SURFFIRST 1850 FT RWY 34, FIRST 1700 FT RWY 16 CONCRETE, MID 8581 FT ASPHALT.
A43-22PAPI UNUSABLE BYD 8 DEG LEFT OF CENTERLINE.
A43-34PAPI UNUSABLE BYD 8 DEG LEFT OF CENTERLINE.
A80ABN UNSERVICEABLE.
E147OVERHEAD 6100 FT /300 KT.
E60-04_BAK-12BHOOK BAK-12B(B) (1450 FT) HOOK BAK-12B(B) (5287 FT).
E60-07_BAK-12BBAK-15 CHAG (2276 FT OVRN) HOOK BAK-12B(B) (1500 FT).
E60-16_BAK-12BHOOK BAK-12B (63 FT OVRN) HOOK BAK-12B(B) (1500 FT).
E60-22_BAK-12BHOOK BAK-12B(B) (1498 FT).
E60-25_BAK-12BHOOK BAK-12B(B) (1630 FT).
E60-34_BAK-12BHOOK BAK-12B(B) (1507 FT) HOOK BAK-12B (59 FT OVRN) BAK-15 (NI) UNK (121 FT OVRN).
HOLLOMAN AFB (ICAO: KHMN, IATA: HMN) is a private airport located in ALAMOGORDO, NM, US.
