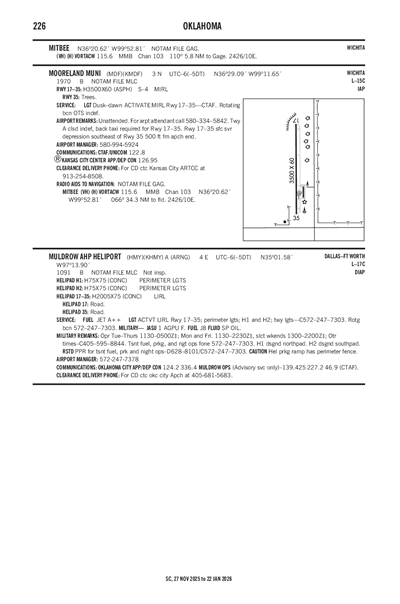

MULDROW AHP - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHMY
ICAO KHMYLocal HMY
MULDROW AHP
PrivatePVT

4 miles E of LEXINGTON, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 01' 35"N 97° 13' 54"W
Elevation
1091' MSL
Pattern Alt
2091' MSL
Mag Variation
3°E
Declination
3°E
Fuel
JET A+, CILI
FSS
MC ALESTER (MLC)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
5/14/26-6/11/26
KOUN (18nm) VFR
1:45 PM CDT
Broken 5,000'
Scattered 3,900'
10sm
84°F
66°F
29.98"Hg
160° 11kts
Gusts 20kts
METAR KOUN 041845Z 16011G20KT 10SM SCT039 BKN050 29/19 A2998
+ Add Your Business

KHMY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Approach

OKE CITY APPROACH 124.2

Departure

OKE CITY DEPARTURE 124.2

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KOUN (18nm)
Thu, 6/4 12:22 PM CDT
Thu, 6/4 1:00 PM CDT - Fri, 6/5 1:00 PM CDT
VFR
1:00 PM CDT - 8:00 PM CDT
Broken 25,000'
Scattered 4,000'
6sm
160° 10kts
Gusts 15kts
VFR
8:00 PM CDT - 12:00 AM CDT
Scattered 24,000'
Few 5,000'
6sm
160° 10kts
VFR
12:00 AM CDT - 10:00 AM CDT
Broken 23,000'
Scattered 1,500'
6sm
170° 10kts
MVFR
Temporary 6:00 AM CDT - 10:00 AM CDT
Broken 1,500'
N/A
Calm
MVFR
10:00 AM CDT - 1:00 PM CDT
Broken 23,000'
Broken 1,500'
6sm
190° 15kts
Gusts 20kts
TAF KOUN 041722Z 0418/0518 16010G15KT P6SM SCT040 BKN250
   FM050100 16010KT P6SM FEW050 SCT240
   FM050500 17010KT P6SM SCT015 BKN230 WS020/19035KT
   TEMPO 0511/0515 BKN015
   FM051500 19015G20KT P6SM BKN015 BKN230
KHMY
EffectiveExpiresCategoryNOTAM
Military
6/1/26
1530Z
6/17/26
2100Z
!KHMY M0045/26 HMY UNMANNED ACFT WITHIN AREA DEFINED AS 5NM RADIUS OF HMY ARMY UAS OPERATING NO MORE THAN 3 SKYDIO X10D AND TEAL AIRCRAFT IN AND AROUND MULDROW AHP. 2606011530-2606172100
5/19/26
1506Z
9/3/26
0001Z
Aerodrome!KHMY V0273/26 HMY AERODROME IFR TAKE-OFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES CHANGED TAKEOFF OBSTACLE NOTES: RWY 18 LOW CLOSE IN OBSTACLES: TERRAIN, AND TREES BEGINNING WITHIN 500 FT FROM DER EXTENDING TO 1500 FT, LEFT, RIGHT AND CROSSING CENTERLINE, UP TO 1140 FT MSL, 51 FT ABOVE DER. CROSSING DER 38 FT ABOVE DER ELEV CLEARS LOW CLOSE IN OBSTACLES. RWY 36 LOW CLOSE IN OBSTACLES: OBSTACLES 35 FT AND BELOW. CROSSING DER 20 FT ABOVE DER ELEV CLEARS LOW CLOSE IN OBSTACLES. 2605191506-2609030001
4/28/26
1352Z
9/3/26
2359Z
Aerodrome!KHMY V0200/26 HMY AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED COPTER RNAV (GPS) RWY 18, PROCEDURE NA AT NIGHT. VDP NA DUE TO VISUAL SURFACE AREA OBSTRUCTIONS. 2604281352-2609032359
3/31/26
2006Z
6/29/26
0001Z
RunwayRWY 18/36 OVERRUNS NOT DOCUMENTED ON CHARTS AND OTHER SUPPLEMENTS. DOCUMENTATION IN PROGRESS. RWY 18 OVERRUN MEASURES 73 FT EAST TO WEST AND 75 FT NORTH TO SOUTH RWY 36 OVERRUN MEASURES 73 FT EAST TO WEST AND 75 FT NORTH TO SOUTH
3/31/26
1959Z
6/29/26
0001Z
Runway!KHMY M0028/26 HMY RWY 18/36 REDL U/S LESS THAN 85% EDGE LIGHTING OPERATIONAL 2603311959-2606290001
3/31/26
1958Z
6/29/26
0001Z
Runway!KHMY M0027/26 HMY RWY 18/36 SFC MARKINGS W SIDE NOT STD RWY 18/36 MARKED AS 17/35 2603311958-2606290001
No
SEE REMARKS
TUES - THURS 1130-0500Z++; MON & FRI 1130-2230Z++; SLCT WKENDS 1300-2200Z++; OTR TIMES - C405-595-8844.
OKLAHOMA ARMY NATIONAL GUARD
HIGHWAY 39E & 144TH AVE
LEXINGTON, OK 73051
Phone: 405-217-8101
CYRUS HAINES
HIGHWAY 39E & 144TH AVE
LEXINGTON, OK 73051
Phone: 572-247-7378
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
--
ACTVT LIRL RWY 17/35; PERIMETER LGTS; H1 & H2; TWY LGTS - C572-247-7303.
ROTG BCN - 572-247-7303.
N/A
Yes
No
No
None
No
None
None
None
None
None

Runway 18/36

2005 ft. x 75 ft.
CONC
Fair
NONE
LOW

--
--
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 35° 01' 45"N 35° 01' 25"N
Longitude 97° 13' 54"W 97° 13' 54"W
Elevation 1,091' 1,089'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

75 ft. x 75 ft.
CONC
Fair
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 35° 01' 40"N N/A
Longitude 97° 13' 57"W N/A
Elevation 1,091' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

75 ft. x 75 ft.
CONC
Fair
NONE
PERI

--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 35° 01' 32"N N/A
Longitude 97° 13' 57"W N/A
Elevation 1,080' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1CTN: HEL PRKG RAMP HAS PERIMETER FENCE.
A110-2RSTD: PPR FOR TSNT FUEL, PRK & NGT OPS - D628-8101/C572-247-7303.
A110-4SERVICE: FLUID - SP OIL.
A110-5SERVICE: JASU - 1, AGPU F.
A110-6FOR CD CTC OKC CITY APCH AT 405-681-5683.
A110-7TSNT FUEL, PRKG, AND NGT OPS FONE 572-247-7303.
A16572-247-7378.
A17-M1TUES - THURS 1130-0500Z++; MON & FRI 1130-2230Z++; SLCT WKENDS 1300-2200Z++; OTR TIMES - C405-595-8844.
A30A-18RWY 18 OVERRUN (FORMERLY 17) MEASURES 73 FT EAST TO WEST AND 75 FT NORTH TO SOUTH.
A30A-36RWY 36 OVERRUN (FORMERLY 35) MEASURES 73 FT EAST TO WEST AND 75 FT NORTH TO SOUTH.
A30-H1DSGND NORTHPAD.
A30-H2DSGND SOUTHPAD.
A81-APTACTVT LIRL RWY 17/35; PERIMETER LGTS; H1 & H2; TWY LGTS - C572-247-7303.
A81-BCNROTG BCN - 572-247-7303.
MULDROW AHP (ICAO: KHMY, IATA: HMY) is a private heliport located in LEXINGTON, OK, US.
