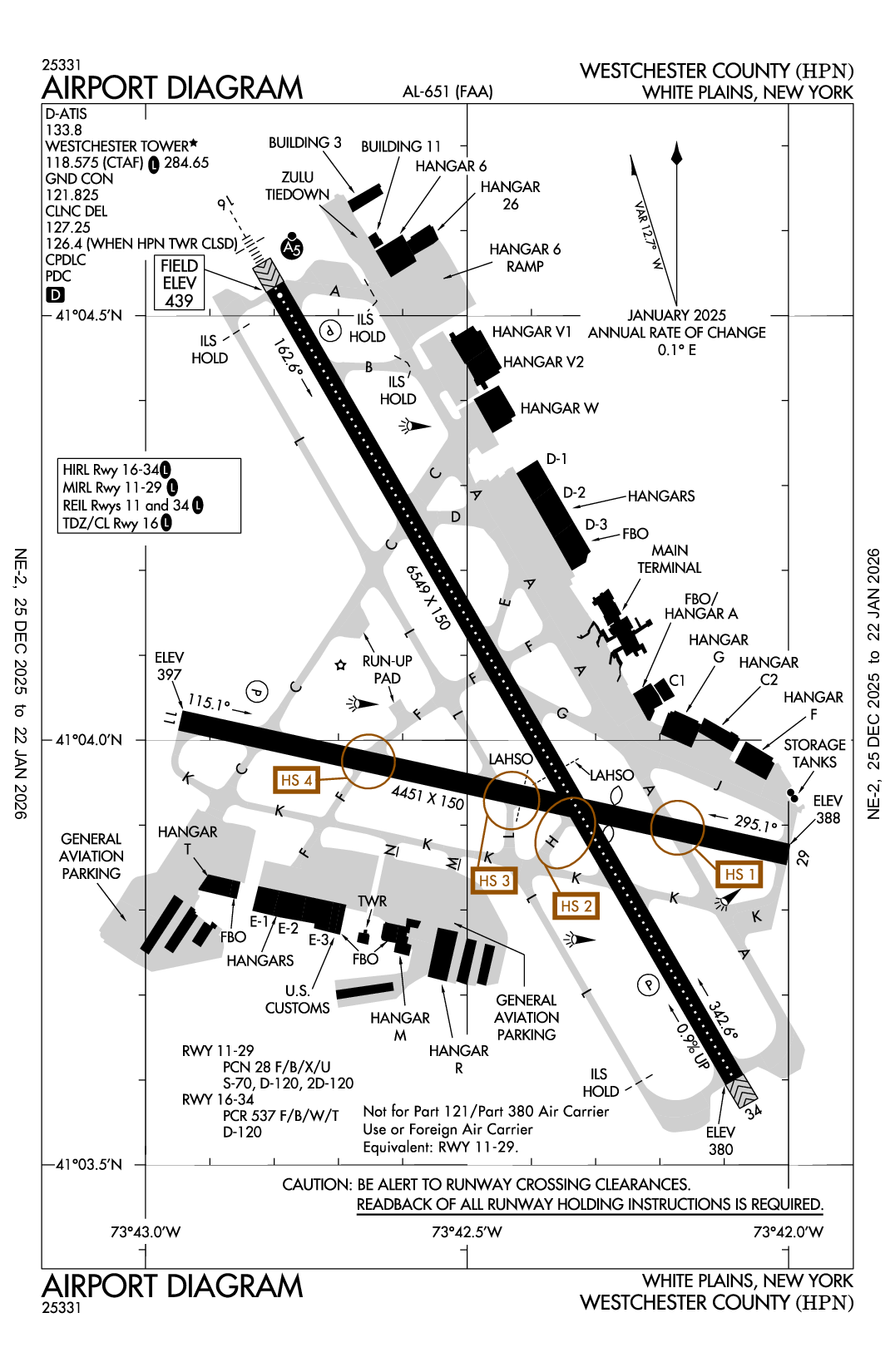

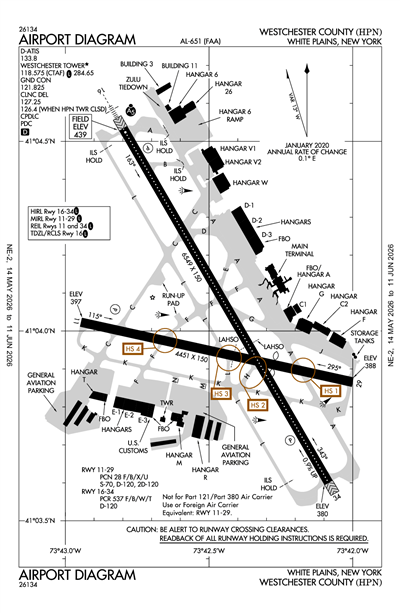

WESTCHESTER COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHPN
ICAO KHPNIATA HPNLocal HPN
WESTCHESTER COUNTY
PublicPUB

3 miles NE of WHITE PLAINS, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 04' 01"N 73° 42' 27"W
Elevation
439' MSL
Pattern Alt
1439' MSL
Mag Variation
13°W
Declination
13°W
Fuel
JET A, 100LL
FSS
NEW YORK (ISP)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
5/14/26-6/11/26
KHPN VFR
8:56 AM EDT
Broken 10,000'
Scattered 6,000'
10sm
56°F
45°F
29.84"Hg
300° 15kts
Gusts 20kts
AO2 SLP105 T01330072
METAR KHPN 151256Z 30015G20KT 10SM SCT060 BKN100 13/07 A2984 RMK AO2 SLP105 T01330072
+ Add Your Business

KHPN FBOs

Promote Listing
Signature Aviation - West
UNICOM: 131.1
Phone: (914) 761-3730
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.15 10.02
Fuel Notes
Prices include tax
Atlantic Aviation West
UNICOM: 132.0
Phone: (914) 328-9800
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.30 10.68
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation - East
UNICOM: 132.0
Phone: (914) 682-7770
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.15 10.03
Fuel Notes
Prices include tax
Promote Listing
Million Air
UNICOM: 129.05
Phone: (914) 946-0100
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 5/12
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.22 11.61 11.69
Fuel Notes
Prices include tax
Atlantic Aviation East
UNICOM: 129.6
Phone: (914) 761-3000
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.30 10.68
Fuel Notes
Prices include tax

KHPN Aircraft Service & Maintenance

Promote Listing
Duncan Aviation - Oxford
Phone: (203) 266-2149
Fax: (914) 686-8295
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
Empire Avionics
Phone: (914) 761-5400
Fax: (914) 761-8951
No Rating Available
0 Reviews (Read | Sign In To Write)

KHPN Other Aviation Services

Promote Listing
Performance Flight
Phone: (914) 397-1444
No Rating Available
0 Reviews (Read | Sign In To Write)

KHPN Ground Transportation (Taxi, Limo, Car Service)

Bermuda Limousine International
Phone: (212) 647-8400
Fax: (212) 633-2685
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 133.8
(914) 948-0130
ASOS (914) 288-0216

Common

CTAF 118.575
WHEN ATCT CLSD ACTVT MALSR RWY 16; REIL RWY 11 & 34; TDZ LGTS RWY 16; CNTRLN LGTS RWY 16/34; HIRL RWY 16/34; MIRL RWY 11/29; TWY LGTS - CTAF.
UNICOM 122.95
ACFT OPRG WITH MGTOW OVR 120000 LBS MUST HAVE PRIOR PERMISSION. CTC ARPT OPNS FOR PPR LINK, CALL 914-995-4850. ALL APVD ACFT MUST CTC ARPT OPNS ON UNICOM WITH ACTUAL TKOF & LDG WTS.

Clearance

Clearance Delivery 126.4
WHEN HPN TWR CLSD
Clearance Delivery 127.25

Ground

WESTCHESTER GROUND 121.825
0600-2300

Tower

WESTCHESTER TOWER 118.575
0600-2300

Arrival

BOUNO STAR 124.075
BOUNO STAR 133.1
NOBBI STAR 120.8
VALRE STAR 120.8
VALRE STAR 126.4

Approach

NEW YORK APPROACH 120.8
2300-0700
NEW YORK APPROACH 126.4
0700-2300
NEW YORK APPROACH 124.65
Secondary

Departure

NEW YORK DEPARTURE 120.55

Emergency

Emergency 121.5

Terminal Area Forecast

KHPN
Fri, 5/15 7:24 AM EDT
Fri, 5/15 8:00 AM EDT - Sat, 5/16 8:00 AM EDT
VFR
8:00 AM EDT - 12:00 PM EDT
Broken 5,000'
Few 3,000'
6sm
320° 10kts
VFR
12:00 PM EDT - 7:00 PM EDT
Broken 5,000'
Scattered 3,000'
6sm
330° 12kts
Gusts 20kts
VFR
7:00 PM EDT - 11:00 PM EDT
Broken 5,000'
Few 1,000'
6sm
330° 8kts
VFR
11:00 PM EDT - 8:00 AM EDT
Scattered 5,000'
6sm
VRB° 4kts
TAF KHPN 151124Z 1512/1612 32010KT P6SM FEW030 BKN050
   FM151600 33012G20KT P6SM SCT030 BKN050
   FM152300 33008KT P6SM FEW010 BKN050
   FM160300 VRB04KT P6SM SCT050 AMD NOT SKED
KHPN
EffectiveExpiresCategoryNOTAM
Domestic
5/18/26
0400Z
5/22/26
0930Z
Runway!HPN 05/121 HPN RWY 16/34 CLSD MON-FRI 0400-0930 2605180400-2605220930
5/15/26
1210Z
!HPN 05/132 HPN NAV ILS RWY 16 DME NOT MNT 2605151210-2606022359EST
5/15/26
1208Z
!HPN 05/131 HPN NAV ILS RWY 16 GP U/S 2605151208-2606022359EST
5/14/26
1447Z
5/28/26
2000Z
!HPN 05/122 HPN TWY C RUNUP PAD CLSD FOR ACFT PRKG 2605141447-2605282000
5/12/26
1500Z
5/22/26
2359Z
!HPN 05/110 HPN NAV ILS RWY 16 SPECIAL AUTH CAT II NA 2605121500-2605222359
5/12/26
1452Z
5/22/26
2359Z
!HPN 05/107 HPN NAV ILS RWY 34 NOT MNT 2605121452-2605222359
5/12/26
1452Z
5/22/26
2359Z
!HPN 05/104 HPN NAV ILS RWY 16 GP/DME U/S 2605121452-2605222359
5/12/26
1228Z
5/19/26
2359Z
Runway!HPN 05/103 HPN RWY 16 RAI LGT U/S 2605121228-2605192359
4/29/26
0434Z
5/31/26
1200Z
Runway!HPN 04/217 HPN RWY 34 RWY EXIT SIGN AT TWY C RIGHT SIDE LGT U/S 2604290434-2605311200
4/14/26
1919Z
10/31/26
2300Z
!HPN 04/112 HPN TWY C BTN RWY 11/29 AND TWY L WIP CONST EQPT NORTH SIDE ADJ 2604141919-2610312300
3/10/26
0300Z
10/31/26
1000Z
!HPN 03/063 HPN NAV ILS RWY 16 NOT MNT DLY 0300-1000 2603100300-2610311000
3/9/26
1839Z
3/9/27
1500Z
!HPN 03/062 HPN APRON MAIN TERMINAL RAMP BTN GATE 1 AND GATE 6 CLSD EXC SKED AIR CARRIER OPS 2603091839-2703091500
3/9/26
0000Z
11/1/26
1200Z
!HPN 03/058 HPN TWY K BTN APCH END RWY 29 AND TWY A CLSD FOR ACFT PRKG DLY 0000-1200 2603090000-2611011200
3/9/26
0000Z
11/1/26
1200Z
!HPN 03/057 HPN TWY K HOLD PAD CLSD FOR ACFT PRKG DLY 0000-1200 2603090000-2611011200
3/8/26
0300Z
10/31/26
1000Z
!HPN 03/045 HPN NAV ILS RWY 34 NOT MNT DLY 0300-1000 2603080300-2610311000
3/8/26
0300Z
10/31/26
1000Z
!HPN 03/043 HPN NAV ILS RWY 16 SPECIAL AUTH CAT II NA DLY 0300-1000 2603080300-2610311000
FDC
5/14/26
0001Z
!FDC 6/9015 HPN STAR HPN STAR WESTCHESTER COUNTY, WHITE PLAINS, NY. EEGOR ONE ARRIVAL. DISREGARD NOTE: STAR LIMITED TO JET AND MULTI-ENGINE AIRCRAFT CAPABLE OF 210K OR GREATER. 2605140001Z-PERM 2605140001-PERM
3/9/26
1405Z
!FDC 6/5381 HPN SID WESTCHESTER COUNTY, WHITE PLAINS, NY.
WESTCHESTER EIGHT DEPARTURE...
WHITE DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
COL VOR OUT OF SERVICE. 2603091405-2610191405EST
2/17/26
1423Z
!FDC 6/4758 HPN SID WESTCHESTER COUNTY, WHITE PLAINS, NY.
WESTCHESTER EIGHT DEPARTURE...
COATE, ELIOT, NEWEL, ZIMMZ DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, SAX VORTAC OUT OF SERVICE. 2602171423-2609291423EST
2/17/26
1423Z
!FDC 6/4747 HPN SID WESTCHESTER COUNTY, WHITE PLAINS, NY.
PROP ONE DEPARTURE...
COATE, ELIOT DEPARTURES NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAX VORTAC OUT OF SERVICE. 2602171423-2609291423EST
Yes
ALL
COUNTY OF WESTCHESTER
COUNTY OFFICE BLDG
WHITE PLAINS, NY 10604
Phone: 914-995-2900
APRIL GASPARRI
240 AIRPORT ROAD SUITE 202
WHITE PLAINS, NY 10604
Phone: 914-995-4887
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
HPN
--
WHEN ATCT CLSD ACTVT MALSR RWY 16; REIL RWY 11 & 34; TDZ LGTS RWY 16; CNTRLN LGTS RWY 16/34; HIRL RWY 16/34; MIRL RWY 11/29; TWY LGTS - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 11/29

4451 ft. x 150 ft.
ASPH
Fair
GRVD
MED
28/F/B/X/U
70,000lbs
120,000lbs
120,000lbs
--
  Runway 11 Runway 29
True Heading 102°282°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 04' 01"N 41° 03' 52"N
Longitude 73° 42' 57"W 73° 41' 60"W
Elevation 397' 388'
Threshold Crossing Height 54 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 16/34

6549 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

--
120,000lbs
--
--
  Runway 16 Runway 34
True Heading 150°330°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 04' 32"N 41° 03' 36"N
Longitude 73° 42' 48"W 73° 42' 05"W
Elevation 439' 380'
Threshold Crossing Height 55 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1NOISE ABATEMENT PROC IN EFCT CTC ARPT MGMT 914-995-4861.
A110-13EQUIP AND MTRLS STAGED ADJ TO SOUTHERN EDGE OF HNGR 6 RAMP.
A110-14FOUR DSGND HEL RTES IN USE FOR NOISE ABATEMENT.
A110-16ATC CLNC RQRD FOR PUSHBACK ONTO MOV AREAS.
A110-19MOWING WITHIN SAFETY AREAS OF ALL RWYS AND TWYS MAY THRU NOV.
A110-2BIRDS & OTHER WILDLIFE ON & INVOF ARPT.
A110-20SN REMOVAL EQUIP OPRG ON ALL ACFT MOV AREAS NOV THRU APR.
A110-21RWY 29 CLSD TO LDG ACFT MORE THAN 12500 LBS.
A110-22HNGR D3 RAMP ADJ TO ACTV PAX LOADING AREA AT MAIN TRML RAMP, ACFT REQSTD USE MNM THRUST AND AVOID EXCESS PWR AND JET BLAST.
A110-23FOR CD WHEN ATCT CLSD CTC NEW YORK APCH ON 126.4, IF UNA CALL 516-683-2849.
A110-25RWY 11/29 DLY CLOSURES FOR STAGING AND/OR PRKG OF SKED ACR.
A110-26LIGHTER THAN AIR AIRCRAFT RSTRD FM OPNS AT ARPT.
A110-27FAR 139 ARFF INDEX C IS RSTRD TO MAX. ACFT LEN OF 130 FT WHEN OPERG AT MAIN TERMINAL, GATES 1 THRU 6.
A110-9ACFT OPRG WITH MGTOW OVR 120000 LBS MUST HAVE PRIOR PERMISSION. CTC ARPT OPNS FOR PPR LINK, CALL 914-995-4850. ALL APVD ACFT MUST CTC ARPT OPNS ON UNICOM WITH ACTUAL TKOF & LDG WTS.
A30-11/29RWY 11/29 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. NO PART 121/PART 380 OPS EXC FOR TAX.
A39-16/34PCR VALUE: 537/F/B/W/T
A42-11_MARKRWY 11 AIMING POINT MARKINGS.
A57-29APCH RATIO 25:1 TO DSPLCD THR.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 16; REIL RWY 11 & 34; TDZ LGTS RWY 16; CNTRLN LGTS RWY 16/34; HIRL RWY 16/34; MIRL RWY 11/29; TWY LGTS - CTAF.
WESTCHESTER COUNTY (ICAO: KHPN, IATA: HPN) is a public airport located in WHITE PLAINS, NY, US.
