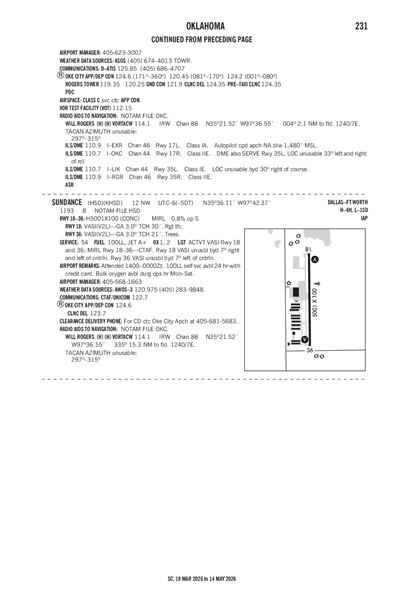

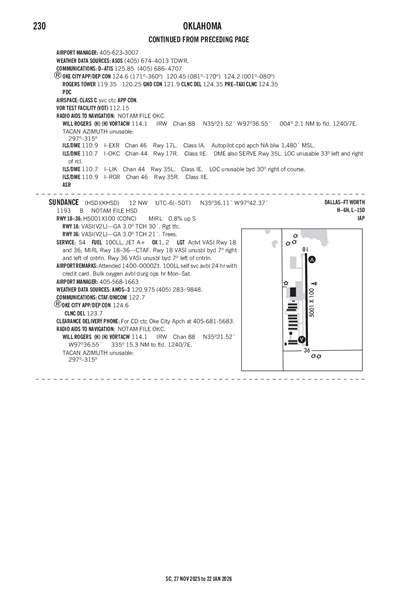

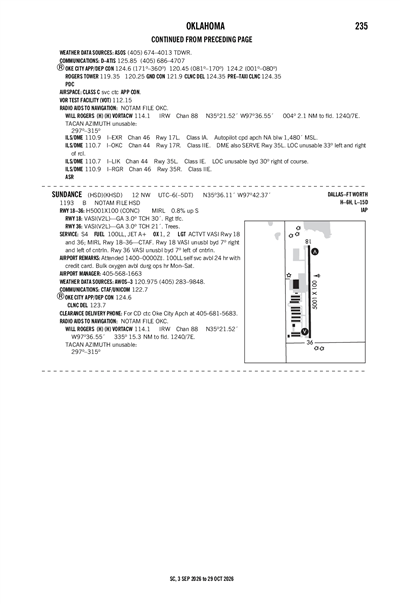

SUNDANCE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHSD
ICAO KHSDLocal HSD
SUNDANCE
PublicPUB

12 miles NW of OKLAHOMA CITY, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 36' 07"N 97° 42' 22"W
Elevation
1193' MSL
Pattern Alt
2193' MSL
Mag Variation
3°E
Declination
4°E
Fuel
JET A (FSII), 100LL
FSS
MC ALESTER (MLC)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
6/11/26-7/9/26
KHSD VFR
7:40 PM CDT
Clear
10sm
77°F
64°F
30.06"Hg
150° 6kts
A01
METAR KHSD 240040Z AUTO 15006KT 10SM CLR 25/18 A3006 RMK A01
+ Add Your Business

KHSD FBOs

Promote Listing
Sundance Airport
UNICOM: 122.7
Phone: (405) 373-3886
No Rating Available
1 Review (Read | Sign In To Write)
1 out of 1 Recommend
Phillips 66
As of 6/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.05
Full Serve 6.35 4.50
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.975
(405) 283-9848

Common

CTAF 122.7
ACTVT VASI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
UNICOM 122.7

Clearance

Clearance Delivery 123.7

Approach

OKE CITY APPROACH 124.6

Departure

OKE CITY DEPARTURE 124.6

Terminal Area Forecast

KOKC (14nm)
Tue, 6/23 6:22 PM CDT
Tue, 6/23 7:00 PM CDT - Wed, 6/24 7:00 PM CDT
VFR
7:00 PM CDT - 7:00 AM CDT
Broken 12,000'
Broken 4,000'
6sm
110° 8kts
VFR
7:00 AM CDT - 1:00 PM CDT
Broken 18,000'
Scattered 8,000'
6sm
130° 7kts
MVFR
8:00 AM CDT - 12:00 PM CDT
Light Thunderstorm and Rain
Broken 1,500'
4sm
Calm
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 18,000'
Broken 4,000'
6sm
120° 8kts
TAF KOKC 232322Z 2400/2424 11008KT P6SM BKN040 BKN120
   FM241200 13007KT P6SM SCT080 BKN180
   PROB30 2413/2417 4SM -TSRA BKN015CB
   FM241800 12008KT P6SM BKN040 BKN180
KHSD
EffectiveExpiresCategoryNOTAM
Domestic
6/22/26
0921Z
10/20/26
0921Z
!HSD 06/003 HSD OBST TOWER LGT (ASR 1277632) 354843.90N0974101.30W (12.6NM NE HSD) 1429.5FT (310.4FT AGL) U/S 2606220921-2610200921
6/17/26
0244Z
10/15/26
0244Z
!HSD 06/002 HSD OBST TOWER LGT (ASR 1055458) 353357.80N0974131.60W (2.2NM SSE HSD) 1511.2FT (194.9FT AGL) U/S 2606170244-2610150244
5/16/26
2050Z
8/31/26
2359Z
!HSD 05/002 HSD AD AP ABN U/S 2605162050-2608312359
No
0800-1800
HUNTER GROUP LLC
13000 N. SARA RD.
YUKON, OK 73099
Phone: 405-373-3886
BILL EICHHORN
13000 N. SARA RD.
YUKON, OK 73099
Phone: 405-568-1663
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
HSD
--
ACTVT VASI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
No
Major
Major
None
High & Low Pressure
Pilot Instruction

Runway 18/36

5001 ft. x 100 ft.
CONC
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 178°358°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 36' 31"N 35° 35' 42"N
Longitude 97° 42' 23"W 97° 42' 21"W
Elevation 1,153' 1,193'
Threshold Crossing Height 30 ft. AGL 21 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11JERRY HUNTER
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1FOR CD CTC OKE CITY APCH AT 405-681-5683.
A16OTR FONE CTC 405-373-3886.
A43-18VASI UNUSBL BYD 7 DEGS RIGHT & LEFT OF CNTRLN.
A43-36VASI UNUSBL BYD 7 DEGS LEFT OF CNTLRN.
A58-3610 FT ROAD AT 103 FT, 3 FT FENCE AT 65 FT, 2 FT BERM 130FT FM THLD, 17 FT TREES 120 FT FM THLD AND 150 FT RIGHT.
A70-100LL100LL SELF SVC AVBL 24 HR WITH CREDIT CARD.
A74AVBL DURG OPS HR MON-SAT.
A81-APTACTVT VASI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
E111CONDL - PRVDD ALL TFC PAT OPNS SHOULD BE WEST OF THE ARPT'S N/S RWY; IE. ALL TURNS TO THE LEFT WHEN LNDG OR TAKING OFF TO THE NORTH & ALL TURNS TO THE RIGHT WHEN LNDG OR TAKING OFF TO THE SOUTH; ALL EASTBOUND DEPS SHOULD ESTAB RDO CTC WITH THE WILEY POST ATCT PRIOR TO DEP.
SUNDANCE (ICAO: KHSD, IATA: HSD) is a public airport located in OKLAHOMA CITY, OK, US.
