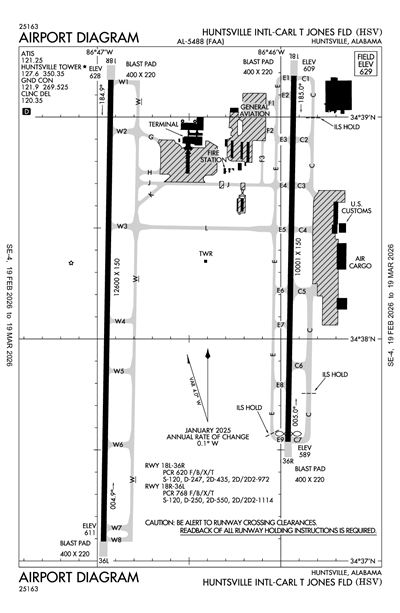

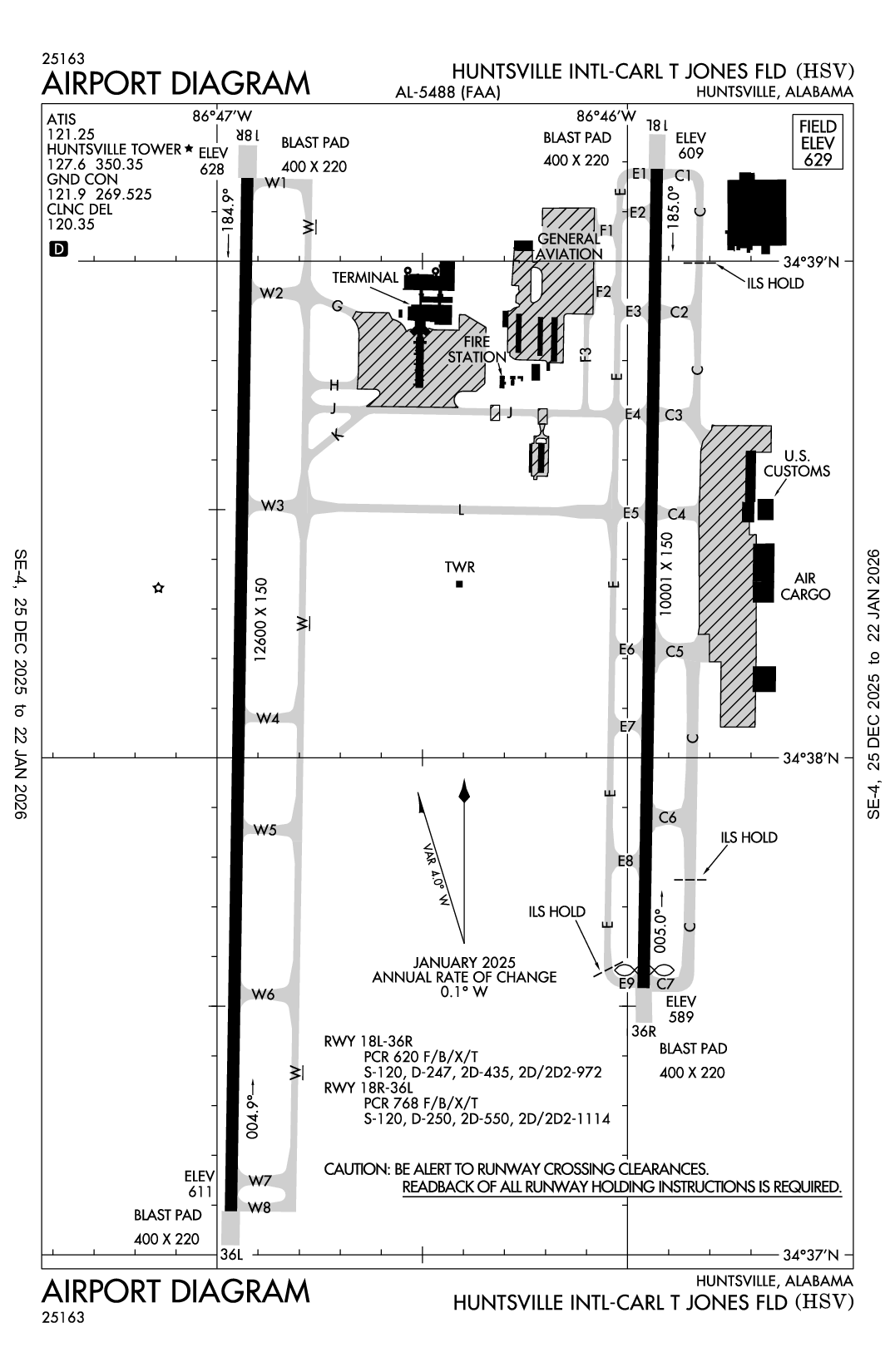

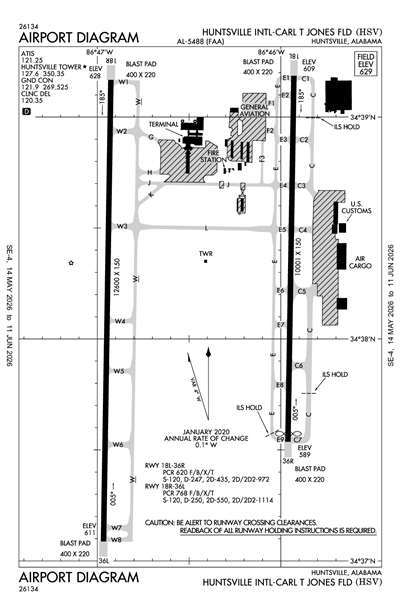

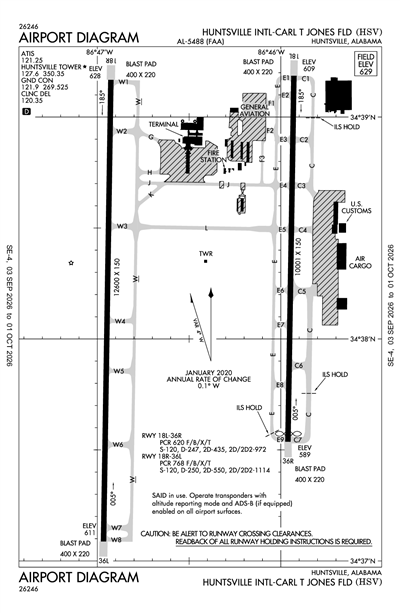

HUNTSVILLE INTL-CARL T JONES FLD - Airport Diagram

KHSV

ICAO KHSVIATA HSVLocal HSV

HUNTSVILLE INTL-CARL T JONES FLD

PublicPUB

9 miles SW of HUNTSVILLE, AL, US

View on Map

Status

Operational

Coordinates

34° 38' 14"N 86° 46' 30"W

Elevation

629' MSL

Pattern Alt

1629' MSL

Mag Variation

4°W

Declination

4°W

Fuel

JET A, 100LL

FSS

ANNISTON (ANB)

Sectional

ATLANTA

ARTCC

MEMPHIS (ZME)

Data Effective

3/19/26-4/16/26

KHSV VFR

6:53 PM CDT RAW

Overcast 20,000'
Broken 8,000'

Viz

10sm

Temp

76°F

Dew

61°F

Pres

30.05"Hg

Wind

220° 5kts

RMK

AO2 SLP168 T02440161 10278 20244 56005 $

METAR KHSV 042353Z 22005KT 10SM BKN080 OVC200 24/16 A3005 RMK AO2 SLP168 T02440161 10278 20244 56005 $

Add Your Business

KHSV FBOs

Promote Listing

Signature Aviation

UNICOM: 130.375

Phone: (256) 772-9341

0 Reviews (Read | Sign In To Write)

Independent

As of 4/2	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.48	9.05

Fuel Notes

Prices include tax

KHSV Aircraft Service & Maintenance

Promote Listing

Kronotek Enterprises LLC

Phone: (256) 812-1617

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

ATIS	121.25
ASOS	121.25
(256) 207-5925

Common

CTAF	127.6
CTC HSV ARFF ON CTAF OR PHONE 256-461-1115 FOR EMERG WHEN ATCT CLSD.; ACTVT MALSR RWY 18L, 36L & 36R; HIRL RWY 18L/36R & 18R/36L - CTAF. RWY 18R ALSF ON STEP 2 WHEN ATCT CLSD.
UNICOM	122.95

Clearance

Clearance Delivery

120.35

Ground

HUNTSVILLE GROUND	121.9
0600-0000

Tower

HUNTSVILLE TOWER	127.6
0600-0000

Approach

HUNTSVILLE APPROACH	118.05
185-004
HUNTSVILLE APPROACH	125.6
Initial Contact - 005-184
HUNTSVILLE APPROACH	118.75
Secondary

Departure

HUNTSVILLE DEPARTURE	118.05
185-004
HUNTSVILLE DEPARTURE	125.6
Initial Contact - 005-184

Center

HUNTSVILLE CENTER	120.8
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 120.8/307.0 (HUNTSVILLE RCAG) WHEN HUNTSVILLE APCH CTL CLSD.

Flight Service

Flight Service	122.2
(ANB)

Emergency

121.5

Other

CLASS C	118.05
185-004
CLASS C	125.6
005-184

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

HUNTSVILLE FOUR

Instrument Approach

Terminal Area Forecast

KHSV

RAW

Reported

Sat, 4/4 6:20 PM CDT

Valid

Sat, 4/4 7:00 PM CDT - Sun, 4/5 7:00 PM CDT

VFR

7:00 PM CDT - 1:00 AM CDT

Thunderstorm in vicinity

Broken 9,000'

Viz

6sm

Wind

230° 7kts

MVFR

Temporary 9:00 PM CDT - 1:00 AM CDT

Showers and Rain and Mist

Overcast 2,500'

Viz

3sm

Wind

Calm

IFR

Temporary 1:00 AM CDT - 5:00 AM CDT

Showers and Rain and Mist

Overcast 800'

Viz

1sm

Wind

Calm

MVFR

1:00 AM CDT - 7:00 AM CDT

Showers and Rain and Mist

Overcast 1,500'

Viz

3sm

Wind

300° 8kts

VFR

7:00 AM CDT - 7:00 PM CDT

Scattered 25,000'

Viz

6sm

Wind

360° 8kts

Gusts 15kts

TAF KHSV 042320Z 0500/0524 23007KT P6SM VCTS BKN090CB
   TEMPO 0502/0506 3SM SHRA BR OVC025
   FM050600 30008KT 3SM SHRA BR OVC015
   TEMPO 0506/0510 1SM SHRA BR OVC008
   FM051200 36008G15KT P6SM SCT250

KHSV

Effective	Expires	Category	NOTAM
Domestic
3/31/26 1921Z	4/30/26 0500Z		!HSV 03/072 HSV AIRSPACE UAS WI AN AREA DEFINED AS 1.5NM RADIUS OF 343757N0864755W (.8NM S HSV) SFC-400FT AGL 2603311921-2604300500
3/30/26 1313Z	4/17/26 2000Z		!HSV 03/067 HSV TWY C BTN TWY C5 AND TWY C7 CLSD 2603301313-2604172000
3/30/26 1313Z	4/17/26 2000Z		!HSV 03/066 HSV TWY C BTN TWY C1 AND AIR CARGO APN CLSD 2603301313-2604172000
3/30/26 1313Z	4/17/26 2000Z		!HSV 03/065 HSV TWY E BTN TWY E1 AND TWY F1 CLSD 2603301313-2604172000
3/30/26 1312Z	4/30/26 2300Z	Runway	!HSV 03/069 HSV RWY 18R/36L LEAD ON/OFF CL MARKINGS AT TWY W2, W6 OBSC 2603301312-2604302300
3/30/26 1312Z	4/17/26 2000Z		!HSV 03/064 HSV TWY E BTN TWY E5 AND TWY E9 CLSD 2603301312-2604172000
3/30/26 1312Z	4/17/26 2000Z		!HSV 03/063 HSV TWY C1, C2, C3, C5, C6, C7, E1, E2, E3, E4, E6, E7, E8, E9 CLSD 2603301312-2604172000
3/30/26 1311Z	4/30/26 2300Z	Runway	!HSV 03/062 HSV RWY 18R/36L CL MARKINGS OBSC 2603301311-2604302300
3/30/26 1311Z		Runway	!HSV 03/061 HSV RWY 18L/36R CLSD 2603301311-2604172000EST
3/2/26 0820Z	4/16/26 0819Z		!HSV 03/001 HSV OBST TOWER LGT (ASR 1213056) 344216.10N0864103.60W (6.1NM NE HSV) 824.8FT (148.0FT AGL) U/S 2603020820-2604160819
1/29/26 1329Z	5/1/26 2100Z	Runway	!HSV 01/130 HSV RWY 18L PAPI U/S 2601291329-2605012100
1/29/26 1329Z	5/1/26 2100Z		!HSV 01/129 HSV NAV ILS RWY 36R U/S 2601291329-2605012100
1/29/26 1328Z	5/1/26 2100Z		!HSV 01/128 HSV NAV ILS RWY 18L U/S 2601291328-2605012100
1/29/26 1328Z	5/1/26 2100Z	Runway	!HSV 01/127 HSV RWY 36R PAPI U/S 2601291328-2605012100
1/29/26 1327Z	5/1/26 2100Z	Runway	!HSV 01/126 HSV RWY 18L ALS U/S 2601291327-2605012100
1/29/26 1327Z	5/1/26 2100Z	Runway	!HSV 01/125 HSV RWY 36R ALS U/S 2601291327-2605012100
9/30/25 1530Z	9/30/26 2000Z		!HSV 09/089 HSV TWY L WIP CONST NORTH SIDE EAST OF FUEL FARM 2509301530-2609302000
FDC
2/19/25 0732Z			!FDC 5/4144 HSV IAP HUNTSVILLE INTL-CARL T JONES FLD, HUNTSVILLE, AL. ILS OR LOC RWY 36L, AMDT 12... DISREGARD NOTE: DME FROM RQZ VORTAC. DISREGARD NOTE: DME USE REQUIRES SIMULTANEOUS RECEPTION OF I-ELL DME AND RQZ DME. 2502190732-2702190732EST

ATC Tower

Yes

Attendance

ALL

Owner

HUNTSVILLE MADISON COUNTY
1000 GLENN HEARN BLVD,
HUNTSVILLE, AL 35824
Phone: 256-772-9395

Manager

BUTCH ROBERTS
1000 GLENN HEARN BLVD, BOX 20008
HUNTSVILLE, AL 35824
Phone: 256-258-1958

FSS

ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF

NOTAM

HSV

Light Schedule

Lights

ACTVT MALSR RWY 18L, 36L & 36R; HIRL RWY 18L/36R & 18R/36L - CTAF. RWY 18R ALSF ON STEP 2 WHEN ATCT CLSD.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 18L/36R

Dimensions

10001 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

120,000lbs

Double Wheel

247,000lbs

Double Tandem

435,000lbs

Dual Dbl Tand

972,000lbs

	Runway 18L	Runway 36R
True Heading	181°	1°
Traffic Pattern	Left	Right
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	34° 39' 11"N	34° 37' 32"N
Longitude	86° 45' 56"W	86° 45' 58"W
Elevation	609'	589'
Threshold Crossing Height	73 ft. AGL	72 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	P4R
Approach Lights	MALSR	MALSR
Centerline Lights
Runway End Identifier Lights	No	No

Runway 18R/36L

Dimensions

12600 ft. x 150 ft.

Surface Type

ASPH CONC

Surface Cond

Excellent

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

120,000lbs

Double Wheel

250,000lbs

Double Tandem

550,000lbs

Dual Dbl Tand

1,114,000lbs

	Runway 18R	Runway 36L
True Heading	181°	1°
Traffic Pattern	Right	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	34° 39' 10"N	34° 37' 05"N
Longitude	86° 46' 56"W	86° 46' 58"W
Elevation	628'	611'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights	ALSF2	MALSR
Centerline Lights	Yes	Yes
Runway End Identifier Lights	No	No

A11	AIRPORT AUTHORITY
A110-10	LINE UP AND WAIT NA.
A110-13	FOR CD WHEN TWR CLSD, IF UNA TO CTC ON FSS FREQ, CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A110-14	FLT NOTIFICATION SVC (ADCUS) AVBL.
A110-5	INTXN OF TWY J AND SERVICE RD IS UNCONTROLLED.
A26-C	CTC HSV ARFF ON CTAF OR PHONE 256-461-1115 FOR EMERG WHEN ATCT CLSD.
A39-18L/36R	PCR VALUE: 620/F/B/X/T
A39-18R/36L	PCR VALUE: 768/F/B/X/T
A57-36R	OBSTN CLNC SLOPE 50:1 AT DSPLCD THR.
A81-APT	ACTVT MALSR RWY 18L, 36L & 36R; HIRL RWY 18L/36R & 18R/36L - CTAF. RWY 18R ALSF ON STEP 2 WHEN ATCT CLSD.

HUNTSVILLE INTL-CARL T JONES FLD (ICAO: KHSV, IATA: HSV) is a public airport located in HUNTSVILLE, AL, US.
