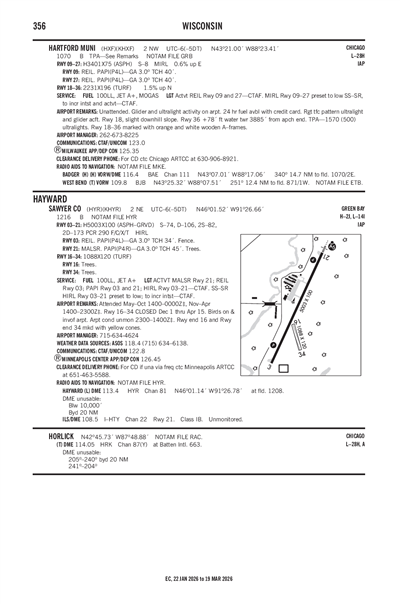

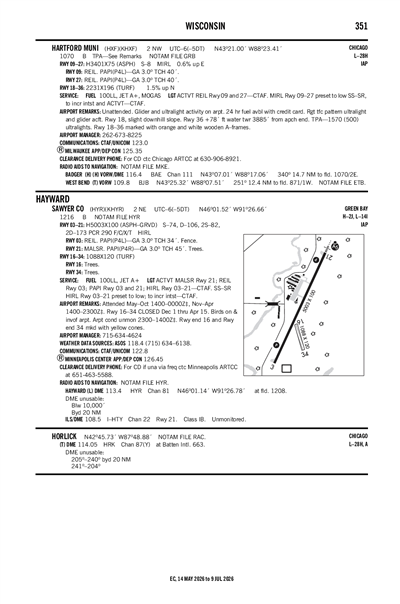

HARTFORD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHXF
ICAO KHXFLocal HXF
HARTFORD MUNI
PublicPUB

2 miles NW of HARTFORD, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 21' 00"N 88° 23' 25"W
Elevation
1070' MSL
Pattern Alt
1570' MSL
Mag Variation
4°W
Declination
3°W
Fuel
JET A (FSII), 100LL, MOGAS
FSS
GREEN BAY (GRB)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
10/1/26-10/29/26
KETB (12nm) VFR
10:55 PM CDT
Clear
10sm
41°F
41°F
30.31"Hg
Calm
AO2
METAR KETB 030355Z AUTO 00000KT 10SM CLR 05/05 A3031 RMK AO2
+ Add Your Business

KHXF FBOs

Promote Listing
Hartford Municipal Airport
UNICOM: 123.0
Phone: (262) 673-8225
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 9/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.99 5.69 5.29
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
ACTVT REIL RWY 9 & 27 - CTAF. MIRL RWY 09/27 PRESET TO LOW SS-SR, TO INCR INTST & ACTVT - CTAF.
UNICOM 123.0

Arrival

GOPAC STAR 126.5

Approach

MILWAUKEE APPROACH 125.35

Departure

MILWAUKEE DEPARTURE 125.35

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KUES (20nm)
Fri, 10/2 6:32 PM CDT
Fri, 10/2 7:00 PM CDT - Sat, 10/3 7:00 PM CDT
VFR
7:00 PM CDT - 10:00 AM CDT
Sky Clear
6sm
VRB° 3kts
VFR
10:00 AM CDT - 7:00 PM CDT
Scattered 12,000'
6sm
140° 6kts
TAF KUES 022332Z 0300/0324 VRB03KT P6SM SKC
   FM031500 14006KT P6SM SCT120
KHXF
EffectiveExpiresCategoryNOTAM
Domestic
9/21/26
0739Z
10/6/26
0639Z
!GRB 09/263 HXF OBST TOWER LGT (ASR 1221965) 431123.60N0882801.40W (10.2NM SSW HXF) 1152.2FT (199.1FT AGL) U/S 2609210739-2610060639
No
UNATNDD
CITY OF HARTFORD
109 N. MAIN
HARTFORD, WI 53027
Phone: 262-673-8263
TIM PUESTOW
109 N MAIN
HARTFORD, WI 53027
Phone: 262-673-8225
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
ACTVT REIL RWY 9 & 27 - CTAF. MIRL RWY 09/27 PRESET TO LOW SS-SR, TO INCR INTST & ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 09/27

3401 ft. x 75 ft.
ASPH
Excellent
NONE
MED

8,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 43° 21' 02"N 43° 21' 02"N
Longitude 88° 23' 46"W 88° 22' 60"W
Elevation 1,051' 1,070'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 18/36

2231 ft. x 196 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading 185°5°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 21' 08"N 43° 20' 46"N
Longitude 88° 23' 27"W 88° 23' 29"W
Elevation 1,070' 1,036'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2GLIDER & ULTRALIGHT ACTVTY ON ARPT.
A110-5(A23) RIGHT TFC PAT ULTRALIGHT & GLIDER ACFT.
A110-6FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A15TPUESTOW@HARTFORD.WI.GOV.
A30A-18SLIGHT DOWNHILL SLOPE.
A30A-36+78 FT WATER TWR 3885 FT FM APCH END.
A42-18_MARKMKD WITH ORANGE & WHITE WOODEN A-FRAMES.
A42-36_MARKMKD WITH ORANGE & WHITE WOODEN A-FRAMES.
A70-100LL24 HR FUEL AVBL WITH CREDIT CARD.
A81-APTACTVT REIL RWY 9 & 27 - CTAF. MIRL RWY 09/27 PRESET TO LOW SS-SR, TO INCR INTST & ACTVT - CTAF.
E147TPA: 500 FT AGL ULTRALIGHTS.
HARTFORD MUNI (ICAO: KHXF, IATA: HXF) is a public airport located in HARTFORD, WI, US.
