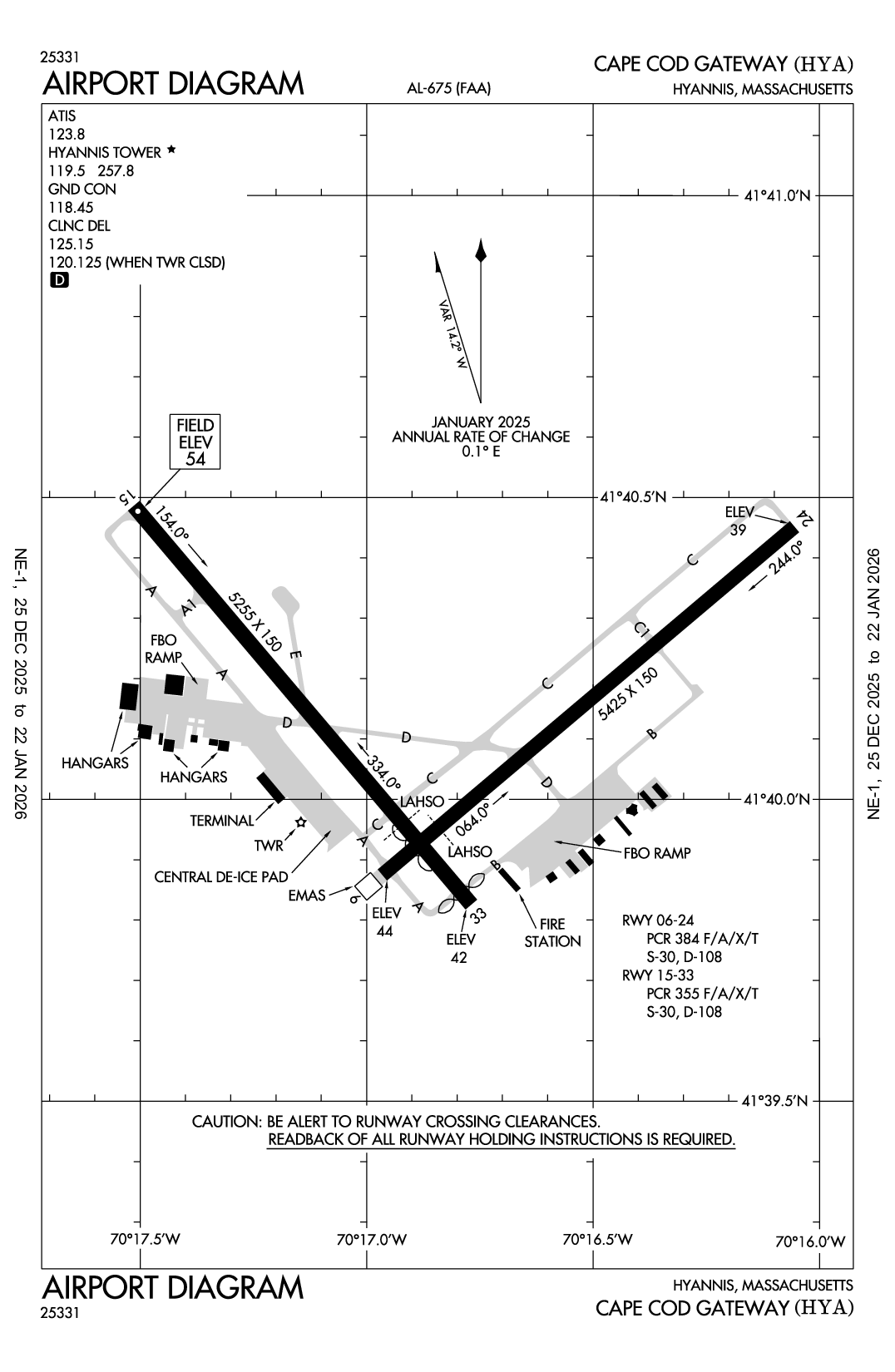

CAPE COD GATEWAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHYA
CAPE COD GATEWAY
PublicPUB

1 miles N of HYANNIS, MA
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 40' 10"N 70° 16' 49"W
54' MSL
1054' MSL
16W
Jet A, 100LL
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
7/15/21-8/12/21
KHYA VFR
5:56 AM EDT
Clear
10sm
57°F
55°F
30.03"Hg
Calm
AO2 SLP168 T01390128
KHYA 290956Z 00000KT 10SM CLR 14/13 A3003 RMK AO2 SLP168 T01390128

KHYA FBOs, Flight Schools and Ground Support

RECTRIX by Ross Aviation
Freq: 128.825
Phone: (508) 771-7520
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 6/15
  100LL Jet A Jet A+ Mogas UL94
SS
FS 6.50
Town of Barnstable
Freq: 122.95
Phone: (508) 778-7770
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 7/28
  100LL Jet A Jet A+ Mogas UL94
SS
FS 4.72
Griffin Avionics
Freq: 122.95
Phone: (508) 771-2865
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 7/27
  100LL Jet A Jet A+ Mogas UL94
SS
FS 6.27
Air Cape Cod
Freq: 122.95
Phone: (508) 771-5725
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 7/13
  100LL Jet A Jet A+ Mogas UL94
SS
FS 5.50

KHYA Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KHYA Hotels

No hotels are listed for this airport.

KHYA Restaurants

No restaurants are listed for this airport.

KHYA Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.5

ATIS

ATIS
508-778-1143
123.8

ASOS

ASOS
508-862-2601
123.8

Clearance Delivery

CD/P
125.15

Ground

GND/P
118.45

Tower

LCL/P
119.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Terminal Area Forecast

KHYA
Thu, 7/29 1:41 AM EDT
Thu, 7/29 2:00 AM EDT - Fri, 7/30 2:00 AM EDT
VFR
2:00 AM EDT - 9:00 AM EDT
Few 25,000'
> 6sm
Calm
VFR
9:00 AM EDT - 1:00 PM EDT
Few 25,000'
> 6sm
200° 5kts
VFR
1:00 PM EDT - 9:00 PM EDT
Scattered 25,000'
> 6sm
190° 11kts
Gusts 21kts
VFR
9:00 PM EDT - 11:00 PM EDT
Showers in vicinity
Overcast 4,000'
> 6sm
190° 11kts
Gusts 21kts
MVFR
11:00 PM EDT - 2:00 AM EDT
Heavy Showers and Rain and Thunderstorm in vicinity
Overcast 1,500'
> 6sm
190° 11kts
Gusts 23kts
KHYA 290541Z 2906/3006 00000KT P6SM FEW250
   FM291300 20005KT P6SM FEW250
   FM291700 19011G21KT P6SM SCT250
   FM300100 19011G21KT P6SM VCSH OVC040
   FM300300 19011G23KT P6SM +SHRA VCTS OVC015CB
KHYA
FDC
4/20/211521Z !FDC 1/1898 HYA PART 1 OF 4 ODP CAPE COD GATEWAY, HYANNIS, MA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3A...
TAKEOFF MINIMUMS: RWY 33, 300-1 OR STANDARD WITH MINIMUM CLIMB OF
366 FT PER NM TO 300.
ADD TAKEOFF OBSTACLE NOTES: RWY 06, TRAVERSE WAY 67 FT FROM DER,
393 FT RIGHT OF CENTERLINE, 58 FT MSL.
POLE, TREE BEGINNING 227 FT FROM DER, 410 FT RIGHT OF CENTERLINE,
UP TO 35 FT AGL/70 FT MSL.
TREE 1360 FT FROM DER, 613 FT RIGHT OF CENTERLINE, 48 FT AGL/77 FT
MSL.
RWY 15, BUILDING, POLE BEGINNING 7 FT FROM DER, 363 FT LEFT OF
CENTERLINE, UP TO 31 FT AGL/72 FT MSL.
TREE, POLE BEGINNING 164 FT FROM DER, 450 FT RIGHT OF CENTERLINE,
UP TO 37 FT AGL/76 FT MSL.
POLE, TREE BEGINNING 283 FT FROM DER, 299 FT RIGHT OF CENTERLINE,
UP TO 40 FT AGL/78 FT MSL.
POLE 399 FT FROM DER, 522 FT LEFT OF CENTERLINE, 36 FT AGL/76 FT
MSL.
POLE 444 FT FROM DER, 455 FT LEFT OF CENTERLINE, 39 FT AGL/79 FT
MSL.
POLE BEGINNING 608 FT FROM DER, 370 FT LEFT OF CENTERLINE, UP TO 40
ALL OTHER DATA REMAINS AS PUBLISHED. 2104201521-2304201521EST
END PART 1 OF 4
!FDC 1/1898 HYA PART 2 OF 4 ODP CAPE COD GATEWAY, HYANNIS, MA.
FT AGL/80 FT MSL.
TREE, POLE BEGINNING 956 FT FROM DER, 19 FT LEFT OF CENTERLINE, UP
TO 46 FT AGL/85 FT MSL.
TREE, POLE BEGINNING 981 FT FROM DER, 140 FT RIGHT OF CENTERLINE,
UP TO 45 FT AGL/79 FT MSL.
TREES BEGINNING 1243 FT FROM DER, 131 FT LEFT OF CENTERLINE, UP TO
56 FT AGL/92 FT MSL.
TREE 1837 FT FROM DER, 330 FT RIGHT OF CENTERLINE, 60 FT AGL/91 FT
MSL.
RWY 24, POLE, TRAVERSE WAY BEGINNING 117 FT FROM DER, 223 FT LEFT
OF CENTERLINE, UP TO 33 FT AGL/74 FT MSL.
VEGETATION 229 FT FROM DER, 485 FT RIGHT OF CENTERLINE, 7 FT AGL/52
FT MSL.
BUILDING 446 FT FROM DER, 263 FT RIGHT OF CENTERLINE, 16 FT AGL/60
FT MSL.
POLE 515 FT FROM DER, 482 FT LEFT OF CENTERLINE, 39 FT AGL/81 FT
MSL.
POLE, BUILDING BEGINNING 669 FT FROM DER, 210 FT RIGHT OF
CENTERLINE, UP TO 31 FT AGL/76 FT MSL.
POLE, BUILDING BEGINNING 907 FT FROM DER, 551 FT RIGHT OF
ALL OTHER DATA REMAINS AS PUBLISHED. 2104201521-2304201521EST
END PART 2 OF 4
!FDC 1/1898 HYA PART 3 OF 4 ODP CAPE COD GATEWAY, HYANNIS, MA.
CENTERLINE, UP TO 35 FT AGL/81 FT MSL.
TREE, POLE BEGINNING 968 FT FROM DER, 120 FT LEFT OF CENTERLINE, UP
TO 57 FT AGL/98 FT MSL.
TREE 1221 FT FROM DER, 549 FT RIGHT OF CENTERLINE, 47 FT AGL/93 FT
MSL.
TREE 1442 FT FROM DER, 495 FT RIGHT OF CENTERLINE, 54 FT AGL/96 FT
MSL.
TREE 1693 FT FROM DER, 75 FT LEFT OF CENTERLINE, 64 FT AGL/105 FT
MSL.
TREE 2228 FT FROM DER, 572 FT LEFT OF CENTERLINE, 69 FT AGL/108 FT
MSL.
RWY 33, TREES BEGINNING 1741 FT FROM DER, 732 FT LEFT OF
CENTERLINE, UP TO 44 FT AGL/106 FT MSL.
TREE 2364 FT FROM DER, 431 FT LEFT OF CENTERLINE, 49 FT AGL/115 FT
MSL.
TREE 3806 FT FROM DER, 977 FT RIGHT OF CENTERLINE, 53 FT AGL/159 FT
MSL.
TREE 3853 FT FROM DER, 1053 FT RIGHT OF CENTERLINE, 57 FT AGL/167
FT MSL.
TREE 3862 FT FROM DER, 1334 FT RIGHT OF CENTERLINE, 52 FT AGL/179
ALL OTHER DATA REMAINS AS PUBLISHED. 2104201521-2304201521EST
END PART 3 OF 4
!FDC 1/1898 HYA PART 4 OF 4 ODP CAPE COD GATEWAY, HYANNIS, MA.
FT MSL.
TRANSMISSION LINE, ELECTRICAL SYSTEM, POLE, TOWER, CATENARY
BEGINNING 3961 FT FROM DER, 1113 FT RIGHT OF CENTERLINE, UP TO 97
FT AGL/235 FT MSL.
CATENARY, TRANSMISSION LINE BEGINNING 4472 FT FROM DER, 397 FT
RIGHT OF CENTERLINE, UP TO 105 FT AGL/220 FT MSL.
TRANSMISSION LINE, TOWER BEGINNING 4691 FT FROM DER, 334 FT LEFT OF
CENTERLINE, UP TO 95 FT AGL/181 FT MSL.
TRANSMISSION LINE 5163 FT FROM DER, 184 FT LEFT OF CENTERLINE, 95
FT AGL/200 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2104201521-2304201521EST
END PART 4 OF 4
Yes
ALL
AVGAS UNAVBL BTN 1900 AND 0600 LCL DLY. CALL GRIFFIN AFT HRS 508-367-2140.
TOWN OF BARNSTABLE
TOWN HALL 367 MAIN ST
HYANNIS, MA 02601
Phone: 508-862-4600
KATIE RILEY SERVIS
480 BARNSTABLE RD
HYANNIS, MA 02601
Phone: 508-775-2020
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
HYA
--
ACTVT MALSR RWY 15; MALSF RWY 24; HIRL RWYS 06/24 & 15/33 - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
31
6
0
0
0
0
Major
Major
None
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

5425 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
32 /F/A/X/T
30,000lbs
108,000lbs
--
--
  Runway 06 Runway 24
True Heading 50°230°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 39' 53"N 41° 40' 27"N
Longitude 70° 16' 58"W 70° 16' 03"W
Elevation 44.4 ft. 39.2 ft.
Threshold Crossing Height 37 ft. AGL 50 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes

Runway 15/33

5253 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
43 /F/A/X/T
30,000lbs
108,000lbs
--
--
  Runway 15 Runway 33
True Heading 140°320°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 40' 29"N 41° 39' 50"N
Longitude 70° 17' 31"W 70° 16' 46"W
Elevation 54.1 ft. 42.6 ft.
Threshold Crossing Height -- 53 ft. AGL
Visual Glide Path Angle --
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1ANT ON TANK 4600 FT SE ELEV 208 FT; STANDPIPE 7050 FT NORTH 236 FT; OBSTN LGTD.
A110-12TWY B CLSD TO ACFT WITH WINGSPAN GTR THAN 118 FT. TWY B BTN TWY D AND RWY 6-24 CLSD TO ACFT WITH WINGSPAN GTR THAN 78 FT.
A110-13INDEX B ARFF EQUIP AVBL DURG ALL SKED ACR OPNS.
A110-14BE AWARE OF HIGH-SPD MIL JET & HVY HEL TFC VCNTY JOINT BASE CAPE COD. DO NOT CONFUSE JOINT BASE CAPE COD, 10NM W WITH BARNSTABLE MUNI.
A110-3BIRDS, COYOTES ON & INVOF ARPT.
A110-5ARPT HAS NOISE ABATEMENT CTC AMGR 508-778-7765.
A110-6TGL OPNS PROHIBITED BTN 2100-0559 UNLESS PRIOR APVL BY AMGR.
A110-8ALL TSNT AND GENL AVN PILOTS MUST CTC ARPT OPNS ON FREQ 122.95 PRIOR TO ENG SHTDN FOR AIRFIELD ESCORT BTN 2200-0559 LCL.

View hangar and property listings at KHYA, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

CAPE COD GATEWAY (ICAO: KHYA, IATA: HYA) is a public airport located in HYANNIS, MA.
