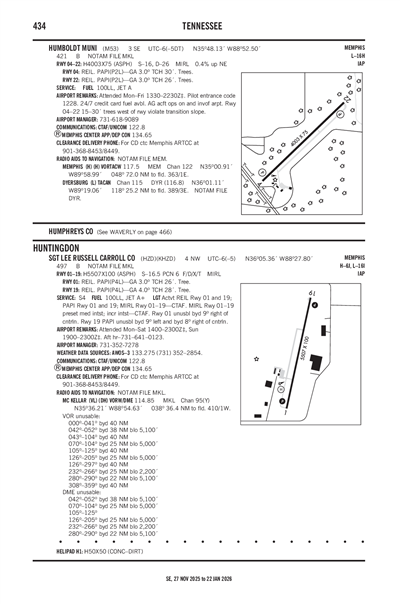

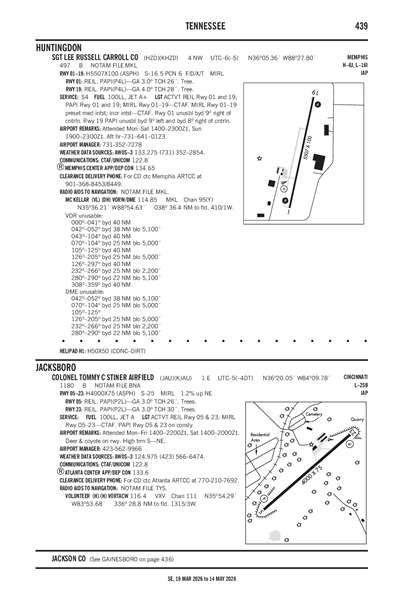

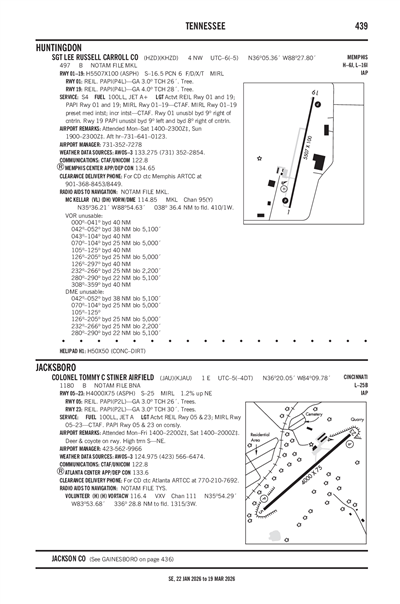

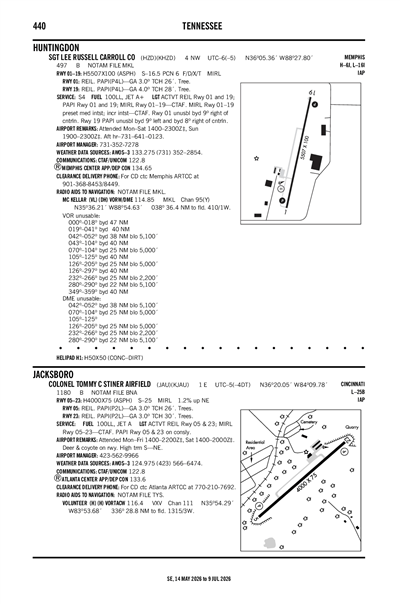

SGT LEE RUSSELL CARROLL COUNTY - Airport Diagram

KHZD

ICAO KHZDLocal HZD

SGT LEE RUSSELL CARROLL COUNTY

PublicPUB

4 miles NW of HUNTINGDON, TN, US

View on Map

Status

Operational

Coordinates

36° 05' 21"N 88° 27' 48"W

Elevation

497' MSL

Pattern Alt

1497' MSL

Mag Variation

3°W

Declination

2°W

Fuel

JET A (FSII), 100LL

FSS

JACKSON (MKL)

Sectional

MEMPHIS

ARTCC

MEMPHIS (ZME)

Data Effective

2/19/26-3/19/26

KHZD VFR

8:15 AM CDT RAW

Clear

Viz

10sm

Temp

63°F

Dew

54°F

Pres

29.75"Hg

Wind

180° 12kts

Gusts 17kts

RMK

A01

METAR KHZD 151315Z AUTO 18012G17KT 10SM CLR 17/12 A2975 RMK A01

Add Your Business

KHZD FBOs

Promote Listing

Swor Aviation

UNICOM: 122.8

Phone: (731) 352-7278

0 Reviews (Read | Sign In To Write)

Titan

As of 2/20	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	3.99		3.63
Full Serve	3.99		3.63

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3	133.275
(731) 352-2854

Common

CTAF	122.8
ACTVT REIL RWY 01 & 19; PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF. MIRL RWY 01/19 PRESET MED INTST; INCR INTST - CTAF.
UNICOM	122.8

Center

MEMPHIS CENTER	134.65
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 134.65/316.15 (MCKELLAR RCAG).

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

TAKEOFF MINIMUMS

Instrument Approach

Terminal Area Forecast

KMKL (37nm)

RAW

Reported

Sun, 3/15 6:20 AM CDT

Valid

Sun, 3/15 7:00 AM CDT - Mon, 3/16 7:00 AM CDT

VFR

7:00 AM CDT - 9:00 AM CDT

Broken 25,000'

Viz

6sm

Wind

180° 12kts

Gusts 20kts

VFR

9:00 AM CDT - 6:00 PM CDT

Overcast 10,000'
Scattered 3,000'

Viz

6sm

Wind

190° 21kts

Gusts 30kts

MVFR

6:00 PM CDT - 11:00 PM CDT

Light Showers and Rain

Overcast 4,500'
Broken 3,500'

Viz

5sm

Wind

240° 21kts

Gusts 28kts

MVFR

Temporary 7:00 PM CDT - 10:00 PM CDT

Thunderstorm and Rain

Overcast 2,000'

Viz

3sm

Wind

270° 27kts

Gusts 37kts

MVFR

11:00 PM CDT - 1:00 AM CDT

Light Showers and Rain

Overcast 3,500'
Broken 2,500'

Viz

5sm

Wind

300° 21kts

Gusts 30kts

MVFR

1:00 AM CDT - 7:00 AM CDT

Broken 2,000'

Viz

6sm

Wind

300° 18kts

Gusts 26kts

TAF KMKL 151120Z 1512/1612 18012G20KT P6SM BKN250 WS020/19045KT
   FM151400 19021G30KT P6SM SCT030 OVC100 WS020/21040KT
   FM152300 24021G28KT 5SM -SHRA BKN035 OVC045 WS020/19040KT
   TEMPO 1600/1603 27027G37KT 3SM TSRA OVC020CB
   FM160400 30021G30KT 5SM -SHRA BKN025 OVC035
   FM160600 30018G26KT P6SM BKN020

KHZD

Effective	Expires	NOTAM
Domestic
3/15/26 0238Z	7/13/26 0238Z	!MKL 03/154 HZD OBST TOWER LGT (ASR 1044019) 360655.40N0883037.00W (2.8NM NW HZD) 869.4FT (364.8FT AGL) U/S 2603150238-2607130238
2/16/26 1321Z		!MKL 02/255 HZD OBST TOWER LGT (ASR 1285215) 360353.90N0883414.10W (5.4NM WSW HZD) 677.8FT (323.8FT AGL) U/S 2602161321-2603181700EST

ATC Tower

Attendance

MON-SAT 0800-1700
SUN 1300-1700
AFT HR - 731-641-0123.

Owner

CARROLL COUNTY
625 HIGH STREET SUITE 101
HUNTINGDON, TN 38344
Phone: 731-986-1936

Manager

RICHARD DOMINAS
535 AIRPORT LANE
MCKENZIE, TN 38201
Phone: 731-352-7278

FSS

JACKSON FSS (MKL)
Toll Free: 1-800-WX-BRIEF

NOTAM

MKL

Light Schedule

Lights

ACTVT REIL RWY 01 & 19; PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF. MIRL RWY 01/19 PRESET MED INTST; INCR INTST - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01/19

Dimensions

5507 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

6/F/D/X/T

Single Wheel

16,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 01	Runway 19
True Heading	12°	192°
Traffic Pattern
Markings	NPI	NPI
Markings Condition	GOOD	FAIR
Latitude	36° 04' 55"N	36° 05' 48"N
Longitude	88° 27' 55"W	88° 27' 41"W
Elevation	495'	497'
Threshold Crossing Height	26 ft. AGL	28 ft. AGL
Visual Glide Path Angle	3°	4°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway H1

Dimensions

50 ft. x 50 ft.

Surface Type

CONC

Surface Cond

DIRT

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H1	Runway
True Heading	Not Listed	Not Listed
Traffic Pattern
Markings
Markings Condition
Latitude	36° 05' 04"N	N/A
Longitude	88° 27' 58"W	N/A
Elevation	497'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A17-M1	AFT HR - 731-641-0123.
A43-01	PAPI UNUSBL BYD 9 DEGS RIGHT OF CNTRLN.
A43-19	PAPI UNUSBL BYD 9 DEGS LEFT AND 8 DEGS RIGHT OF CNTRLN.
A81-APT	ACTVT REIL RWY 01 & 19; PAPI RWY 01 & 19; MIRL RWY 01/19 - CTAF. MIRL RWY 01/19 PRESET MED INTST; INCR INTST - CTAF.
E111	PRVDD VFR ONLY.

SGT LEE RUSSELL CARROLL COUNTY (ICAO: KHZD, IATA: HZD) is a public airport located in HUNTINGDON, TN, US.
