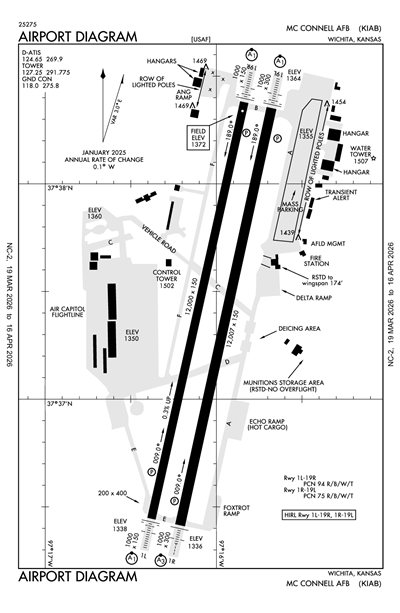

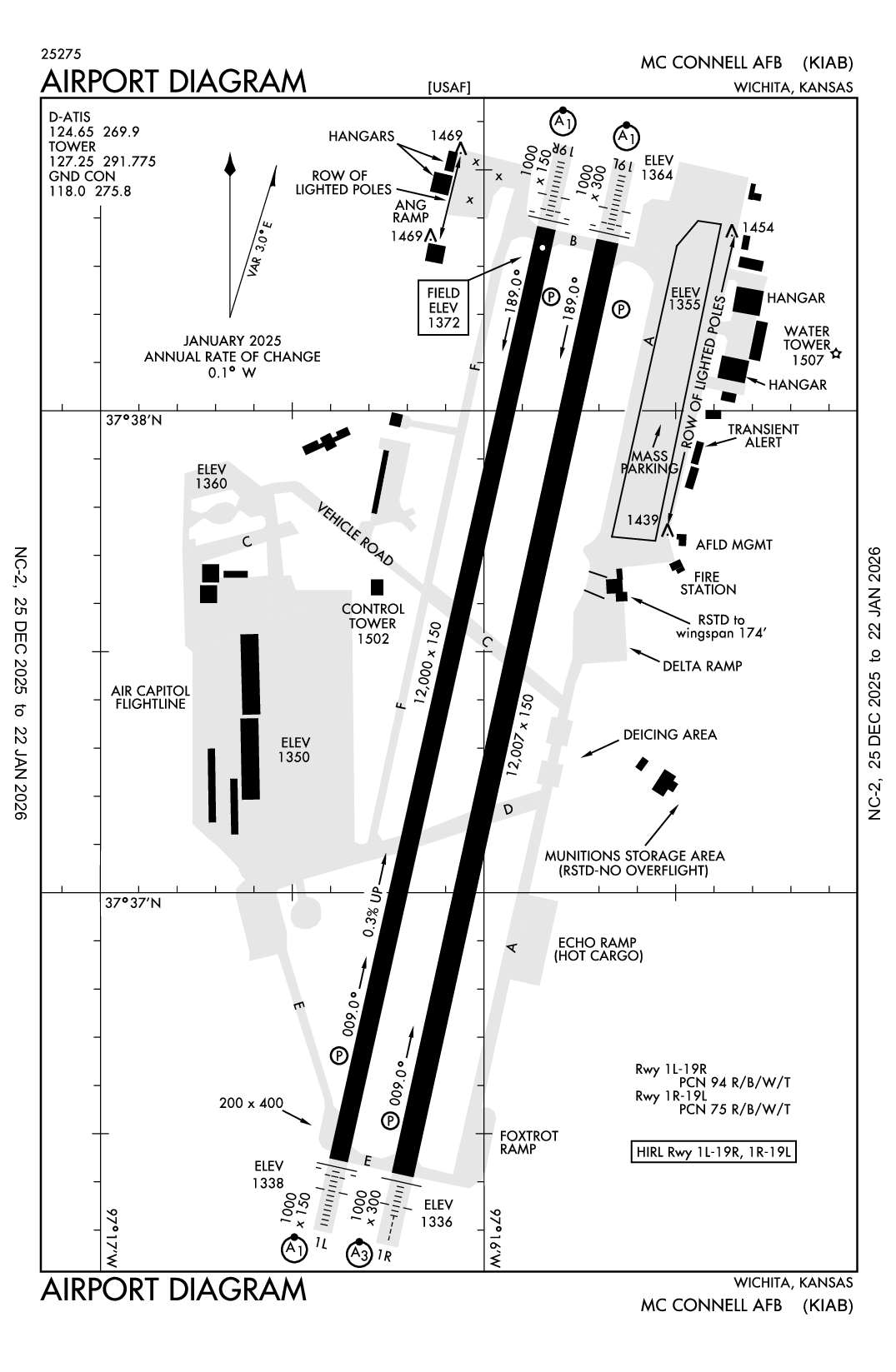

MC CONNELL AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIAB
MC CONNELL AFB
PrivatePVT

4 miles S of WICHITA, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 37' 23"N 97° 16' 03"W
1372' MSL
2372' MSL
04E
None Listed
WICHITA (ICT)
WICHITA
KANSAS CITY (ZKC)
11/27/25-12/25/25
KIAB VFR
12:55 AM CST
Broken 4,900'
Broken 3,800'
10sm
28°F
18°F
30.05"Hg
180° 7kts
AO2 SLP191 T10231076 $
METAR KIAB 050655Z AUTO 18007KT 10SM BKN038 BKN049 M02/M08 A3005 RMK AO2 SLP191 T10231076 $
+ Add Your Business

KIAB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

D-ATIS
 124.65

Emergency

EMERG
 121.5

Ground

GND/P
 118.0

Tower

LCL/P
 127.25

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIAB
Thu, 12/4 8:00 PM CST
Thu, 12/4 8:00 PM CST - Sat, 12/6 2:00 AM CST
VFR
8:00 PM CST - 3:00 AM CST
Few 20,000'
6sm
30.00"Hg
200° 6kts
IFR
Becoming 3:00 AM CST - 10:00 AM CST
Mist
Scattered 300'
2.98sm
29.94"Hg
180° 6kts
LIFR
Temporary 5:00 AM CST - 9:00 AM CST
Freezing Fog
Obscured
0.5sm
Calm
VFR
Becoming 10:00 AM CST - 5:00 PM CST
Sky Clear
6sm
29.88"Hg
210° 9kts
VFR
Becoming 5:00 PM CST - 2:00 AM CST
Overcast 15,000'
Broken 10,000'
Few 6,000'
6sm
29.88"Hg
240° 9kts
TAF KIAB 050200Z 0502/0608 20006KT 9999 FEW200 QNH3000INS
   BECMG 0509/0510 18006KT 4800 BR SCT003 QNH2995INS
   TEMPO 0511/0515 0800 FZFG VV002
   BECMG 0516/0517 21009KT 9999 NSW SKC QNH2988INS
   BECMG 0523/0524 24009KT 9999 FEW060 BKN100 OVC150 QNH2989INS TX06/0521Z TNM04/0512Z
KIAB
EffectiveExpiresCategoryNOTAM
Military
12/9/25
1300Z
12/9/25
1900Z
DUE TO RADAR MAINTENANCE, CAPABLE 22 ARW AIRCRAFT WILL OPERATE WITH ADS-B OUT ENABLED DURING THE HOURS OF 0700L-1300L 1300Z-1900Z. APPROVED BY DEPUTY DIRECTOR OF OPERATIONS, HQ AMC
12/4/25
1658Z
12/7/25
1658Z
M1528/25 NOTAMC M1509/25
12/4/25
1657Z
12/12/25
2359Z
Runway!KIAB M1527/25 IAB RWY 01R/19L CLSD 2512041657-2512122359
12/4/25
1655Z
12/7/25
1655Z
M1526/25 NOTAMC M1519/25
12/4/25
1655Z
12/7/25
1655Z
M1524/25 NOTAMC M1516/25
12/4/25
1655Z
12/12/25
2359Z
TaxiwayTWY C CLOSED BETWEEN TWY A, AND RWY 19R/01L
12/4/25
1654Z
12/7/25
1654Z
M1522/25 NOTAMC M1521/25
12/4/25
1654Z
12/12/25
2359Z
TaxiwayTWY D CLOSED BETWEEN TWY A, AND RWY 19R/01L
12/3/25
2305Z
12/6/25
2305Z
M1520/25 NOTAMC M1513/25
12/3/25
2304Z
12/6/25
2304Z
M1518/25 NOTAMC M1506/25
12/3/25
2304Z
12/6/25
2304Z
M1517/25 NOTAMC M1515/25
12/3/25
2255Z
12/6/25
2255Z
M1514/25 NOTAMC M1511/25
12/3/25
2254Z
12/6/25
2254Z
M1512/25 NOTAMC M1507/25
12/3/25
2252Z
12/6/25
2252Z
M1510/25 NOTAMC M1508/25
11/27/25
0121Z
12/15/25
0500Z
CAUTION; DUE TO AIRFIELD CONSTRUCTION, AIRCRAFT ARRIVING & DEPARTING FROM THE ACFL APRON (DREAM LIFTER/COMMERCIAL AIRCRAFT) MAY BE REQUIRED TO CONDUCT A 180 DEGREE TURN ON RUNWAY 19R/01L.
11/27/25
0120Z
12/15/25
2359Z
TaxiwayTWY B BETWEEN TWY F AND RWY 01L/19R CLSD LGTD AND BARRICADED
11/27/25
0120Z
12/15/25
2359Z
TaxiwayTWY F CLSD NORTH OF TWY C. LTGD AND BARRICADED
11/27/25
0119Z
12/31/25
2359Z
FOUR 180FT CRANES LOCATED APPROXIMATELY 2000' WEST OF RWY 01L/19R NEAR TWY ECHO AND AIR CAPITOL FLIGHTLINE INTERSECTION. CRANES WILL HAVE OBSTRUCTION LIGHT.
11/27/25
0118Z
12/31/25
2359Z
KANG RAMP/FIRE DEPT/AGR (2) BALL PARK OBSTRUCTION LIGHTS UNLIT
11/27/25
0118Z
12/31/25
2359Z
MAPA RAMP, (2) TWO BALL PARK OBSTRUCTION LIGHTS UNLIT
11/27/25
0118Z
12/31/25
2359Z
FIRE CRASH CAPABILITY: 3 VEHICLES/5200 GALLONS OF AGENT REDUCING LEVEL OF SERVICE. KIAB AIRCRAFT RESCUE AND FIRE FIGHTING (ARFF) IS DOWNGRADED TO A REDUCED LEVEL OF SERVICE FOR USAF CAT 4/NFPA CAT 8 (B-1, B-2, B-52, C-17) AND CRITICAL LEVEL OF SERVICE FOR USAF CAT 5 AND 6/NFPA CAT 9 AND 10 (E-4, VC-25, KC-10, C-5). SERVICES REMAIN FULLY AVAILABLE FOR KC-135 AND KC-46
11/21/25
1029Z
12/25/25
2359Z
B-52 ARE NOT AUTHORIZED UNLESS EMERGENCY IS DECLARED OR PRIOR APPROVAL IS RECEIVED FROM THE AIRFIELD MANAGER DUE TO AIRFIELD RESTRICTIONS.
10/27/25
1717Z
1/24/26
2359Z
ECHO RAMP (3) BALL PARK OBSTRUCTION LIGHTS UNLIT
10/17/25
1634Z
1/8/26
2359Z
AIRCRAFT WITH WINGSPANS GREATER THAN 190FT, NOT AUTHORIZED ON TWY B BETWEEN RWY 19L/01R AND TWY A
10/15/25
2111Z
12/31/25
2359Z
TOWER RADAR DISPLAY OUT OF SERVICE EXPECT LIMITED TRAFFIC ADVISORY
10/10/25
1506Z
1/2/26
2359Z
TRANSIENT APPROACHES/PATTERN WORK AUTHORIZED WITHOUT RESTRICTION. PPR?S STILL REQUIRED FOR FULL STOP LANDING.
10/5/25
1412Z
12/12/25
2359Z
(1) ONE OB LIGHT UNLIT AT THE FIRE TRAINING AREA
Yes
ALL
USAF
HQ MCCONNELL AFB
WICHITA, KS 67221
CHIEF AIRFIELD MANAGEMENT
HQ MCCONNELL AFB
WICHITA, KS 67221
Phone: 316-759-3835
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
IAB
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Cargo Handling

Runway 01L/19R

12000 ft. x 150 ft.
ASPH
CONC
NONE
HIGH
94 /R/B/W/T
--
--
--
--
  Runway 01L Runway 19R
True Heading 12°192°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition
Latitude 37° 36' 26"N 37° 38' 22"N
Longitude 97° 16' 25"W 97° 15' 52"W
Elevation 1,338' 1,372'
Threshold Crossing Height 55 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 01R/19L

12007 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
75 /R/B/W/T
--
--
--
--
  Runway 01R Runway 19L
True Heading 12°192°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 37° 36' 24"N 37° 38' 20"N
Longitude 97° 16' 15"W 97° 15' 42"W
Elevation 1,336' 1,364'
Threshold Crossing Height 64 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALR ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-25JASU: 4(M32A-86) (MA-1A) (MC-1A) 2(MC-2A) 5(MD-4) 3(AM32-95)
A110-26FUEL: A++
A110-28OIL: O-133-148-156 SOAP.
A110-29TRAN ALERT: NO PRIORITY BASIS. LTD TRAN MAINT SVC AVBL 1300-0500Z++ WKD; 1400-0000Z++ SAT-SUN; CLSD FED HOL.
A110-30TRANS ALERT: TRAN MAINT NOT AVBL OUTSIDE PUBL HR. TRANS SVC LIMITED. WEAPONS/GUNS, ARM/DE-ARM/SAFEING NOT AVBL.
A110-32REQ FOR PPR TAKEN NO ERYR THAN 7 DAYS PRIOR TO PLANNED MSN. PPR'S VALID +/- 1 HR SKED PPR SLOT TIMES. PPR INCL SKED DV, AIREVAC, AMC AND SAM MSN DUE LTD RAMP SPACE, TRAN ACFT PRK LT. CTC AMOPS DSN 743-3701, C316-759-3701. INBD ACFT WITH DV CTC COMD POST 30 MIN PRIOR TO ETA WITH BLOCK TIME.
A110-33RSTD: INBD ACFT WITH DV CTC COMD POST 30 MIN PRIOR TO ETA WITH BLOCK TIME. DO NOT OVFT MUNITIONS STOR AREA 2500' E OF MIDPOINT RWY 01R-19L. ALL INBD PAX/CARGO ACFT MUST CTC COMD POST NO LATER THAN 30 MIN PRIOR TO LDG.ACFT OPR RSTD DUR BIRD WATCH COND MODERATE (TKOF OR LDG PERMS ONLY WHEN DEP AND ARR RTE AVOID IDENT BIRD ACT. NO LCL IFR/VFR TFC PAT ACT) AND SEVERE (TKOF AND LDG PROH WO OG/CC APVL), CTC ATIS, TWR, COMD POST, OR PTD/AMOPS FOR CURRENT BIRD WATCH COND.
A110-36CAUTION: ACFT MAY APPEAR TO BE LEFT OF CRS WHEN FLYING INST APCH TO RWY 01L IN IMC DUE TO PARL RWY 01R APCH LGT.
A110-42SOAP SVCS NOT AVBL FOR TRANSIENT ACFT.
A110-45TRAN ALERT: PRK SPACE, SVCG, AND RON CANNOT BE ASSURED WITHOUT PRIOR COORD DSN 743-3701, C316-759-3701. GND SVCG NOT AVBL WHEN LIGHTNING WITHIN 5 NM.
A110-50CAUTION: RWY 01R/19L EDGE LIGHTS LCTD MORE THAN 10 FT FR EDGE OF USABLE RWY SFC.
A110-52TRAN ALERT: NO DEICING CAPABILITY FOR C-5, C-17, B-747, KC OR DC-10.
A110-58RWY 01L-19R FULLY GROOVED. RWY 01R-19L: FIRST 1000 FT AND LAST 1000 FT- CONC; MID 10,000 FT- ASPH; MID 9500 FT GROOVED.
A110-59PMSV METRO: WX SVC AVBL H24 UNLESS AFLD CLSD AT DSN 743-3707/4311, C316-759-3707/4311. AN/FMQ-19 AWOS IN USE, AUGMENTED BY HUMAN OBSN WHEN NEC. VIS OF AFLD RSTD FR BASE WX OPS NNE-SE DUR MANUAL AUGMENTATION BY WX FORECASTER. CTC TACC DSN 779-0308, C618-229-0308, OR 26 OWS DSN 331-2651/2652/2653, C318-529-2641/2652/2653 DUR WX FLT CLOSURE OR EVAC. WHEN POSSIBLE, PROVIDE 2 HR ADVANCE NTC FOR ALL RQR BRIEFS.
A110-60CAUTION: BACKUP WX OBSN VIEW LTD, RSTD FR 020-140 BY FLIGHTLINE FAC. ATC PERS IAW COOPERATIVE WX WATCH WILL ALERT WX PERS ON ANY UNREPORTED WX COND THAT COULD AFCT FLT SAFETY. ALTN WX LCTN VIEW LTD, RSTD FR 210-320 BY BLDGS.
A110-62RSTD: HAZ CARGO PRK AVBL WITH 48 HRS PN.
A110-64STOR OF CLASSIFIED MATERIAL NOT AVBL AT AFLD MGMT, CTC COMD POST DSN 743-3251, C316-759-3251, 24 HR PRIOR.
A110-65RSTD: PRACTICE APCH (VFR/IFR) RSTD TO KC-135, KC-46, A10, C-12, T-1, C-130, UH-60 AND T-38 ACFT ONLY 0400-1200Z++.
A110-66MISC: ACFT RESCUE FIRE FIGHTING (ARFF) CAPABILITIES HAS PERM REDUCED LEVEL OF SVC (RLS) FOR USAF CAT 5 AND 6/NFPA CAT 9 AND 10 (ACFT TYPE: C5, VC-25, KC-10 AND E-4).
A110-67KANSAS ANG APRON CLSD, NO ACFT OPS WITHOUT AFLD MGR APVL.
A110-68NVD TRNG EVERY MON AND WED 0300-0830Z++ (MON, WED 2100-0230L). RWY 19L-01R UNAVBL FOR ACFT NOT PARTICIPATING IN NVD OPS. VFR PAT WILL BE CLSD FOR ALL TFC EXC PARTICIPATING ACFT.
A110-69RWYCC NOT RPT.
A110-70(CONTACT TITLE) MR. LENZI CAN BE REACHED AT RICHARD.LENZI@US.AF.MIL
MC CONNELL AFB (ICAO: KIAB, IATA: IAB) is a private airport located in WICHITA, KS.
