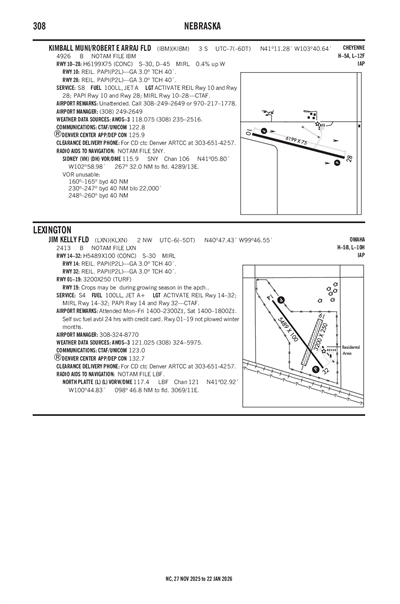

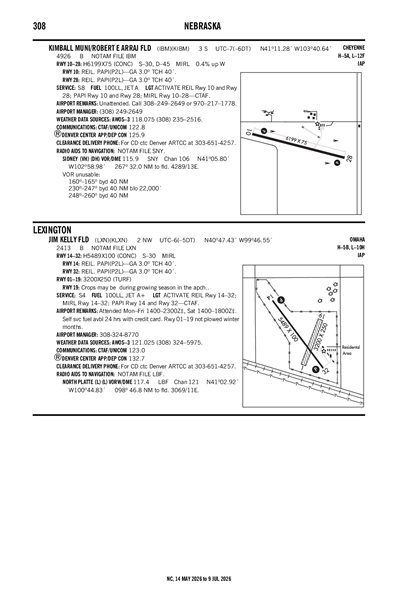

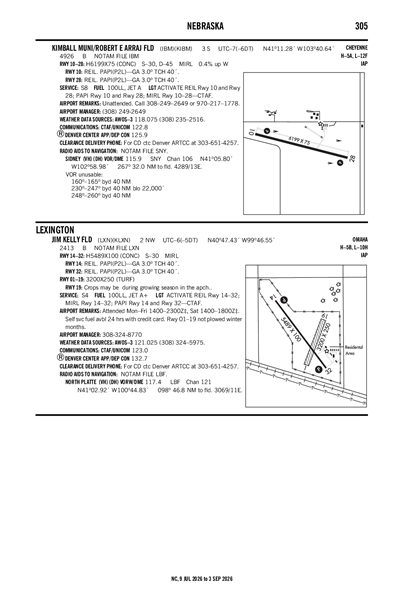

KIMBALL MUNI/ROBERT E ARRAJ FLD - Airport Diagram

KIBM

ICAO KIBMLocal IBM

KIMBALL MUNI/ROBERT E ARRAJ FLD

PublicPUB

3 miles S of KIMBALL, NE, US

View on Map

Status

Operational

Coordinates

41° 11' 17"N 103° 40' 39"W

Elevation

4926' MSL

Pattern Alt

5926' MSL

Mag Variation

7°E

Declination

10°E

Fuel

JET A, 100LL

FSS

COLUMBUS (OLU)

Sectional

CHEYENNE

ARTCC

DENVER (ZDV)

Data Effective

2/19/26-3/19/26

KIBM VFR

12:15 PM MST RAW

Clear

Viz

10sm

Temp

42°F

Dew

13°F

Pres

30.46"Hg

Wind

200° 7kts

RMK

AO2 T00581108

METAR KIBM 221915Z AUTO 20007KT 10SM CLR 06/M11 A3046 RMK AO2 T00581108

Add Your Business

KIBM FBOs

Promote Listing

Kimball Municipal Airport

UNICOM: 122.8

Phone: (308) 249-2649

Other: (970) 217-1778

0 Reviews (Read | Sign In To Write)

World Fuel

As of 2/17	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.05	4.05
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3	118.075
(308) 235-2516

Common

CTAF	122.8
ACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.
UNICOM	122.8

Center

DENVER CENTER	125.9
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 125.9/284.7 (CHEYENNE RCAG).

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSNY (32nm)

RAW

Reported

Sun, 2/22 10:20 AM MST

Valid

Sun, 2/22 11:00 AM MST - Mon, 2/23 11:00 AM MST

VFR

11:00 AM MST - 2:00 PM MST

Scattered 20,000'

Viz

6sm

Wind

180° 10kts

VFR

2:00 PM MST - 3:00 AM MST

Sky Clear

Viz

6sm

Wind

150° 8kts

VFR

3:00 AM MST - 10:00 AM MST

Sky Clear

Viz

6sm

Wind

200° 8kts

VFR

10:00 AM MST - 11:00 AM MST

Sky Clear

Viz

6sm

Wind

260° 12kts

TAF KSNY 221720Z 2218/2318 18010KT P6SM SCT200
   FM222100 15008KT P6SM SKC
   FM231000 20008KT P6SM SKC
   FM231700 26012KT P6SM SKC

KIBM

Effective	Expires	NOTAM
Domestic
2/19/26 1423Z	2/22/26 1700Z	!IBM 02/002 IBM AD AP SFC COND NOT REP 2602191423-2602221700
1/19/26 1633Z	4/19/26 2359Z	!IBM 01/001 IBM OBST TOWER LGT (ASR 1241900) 411249.20N1032336.80W (12.9NM E IBM) 4954.7FT (349.7FT AGL) U/S 2601191633-2604192359

ATC Tower

Attendance

UNATTENDED
CALL (308) 249-2649 OR (970) 217-1778.

Owner

KIMBALL AIRPORT AUTHORITY
223 S CHESTNUT STREET
KIMBALL, NE 69145
Phone: (308) 249-2649

Manager

RYAN MCELROY
223 S CHESTNUT STREET
KIMBALL, NE 69145
Phone: (308) 249-2649

FSS

COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF

NOTAM

IBM

Light Schedule

Lights

ACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental

Runway 10/28

Dimensions

6199 ft. x 75 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

30,000lbs

Double Wheel

45,000lbs

Double Tandem

Dual Dbl Tand

	Runway 10	Runway 28
True Heading	105°	285°
Traffic Pattern
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	41° 11' 25"N	41° 11' 09"N
Longitude	103° 41' 18"W	103° 39' 59"W
Elevation	4,926'	4,900'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110*G	THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1	FOR CD CTC DENVER ARTCC AT 303-651-4257.
A17-M1	CALL (308) 249-2649 OR (970) 217-1778.
A57-10	RWY 10 CLNC SLOPE 36:1 TO RWY THR DUE TO ROAD 641 FT FM & 12 FT ABV RWY END, 316 RIGHT.
A57-28	RWY 28 CLNC SLOPE 43:1 TO RWY THR DUE TO ROAD 768 FT FM & 13 FT ABV RWY END, 335 R.
A81-APT	ACTVT REIL RWY 10 & 28; PAPI RWY 10 & 28; MIRL RWY 10/28 - CTAF.

KIMBALL MUNI/ROBERT E ARRAJ FLD (ICAO: KIBM, IATA: IBM) is a public airport located in KIMBALL, NE, US.
