KIEN
ICAO KIENIATA XPRLocal IEN
PINE RIDGE
PublicPUB

2 miles E of PINE RIDGE, SD, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 01' 17"N 102° 30' 24"W
Elevation
3333' MSL
Pattern Alt
4333' MSL
Mag Variation
7°E
Declination
7°E
Fuel
None Listed
FSS
HURON (HON)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
6/11/26-7/9/26
KIEN MVFR
3:52 PM MDT
Light Rain
Overcast 2,200'
10sm
59°F
53°F
30.07"Hg
110° 8kts
AO2 RAE2054B49 SLP168 P0000 T01500117
METAR KIEN 252152Z AUTO 11008KT 10SM -RA OVC022 15/12 A3007 RMK AO2 RAE2054B49 SLP168 P0000 T01500117
+ Add Your Business

KIEN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 126.775
(605) 229-9337

Common

CTAF 122.9
MIRL RY 12/30 AND PAPI RY 30 OPER DUSK-2230; AFT 2230 ACTVT - CTAF.

Center

DENVER CENTER 127.95
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 127.95/338.2 (CRAWFORD RCAG).

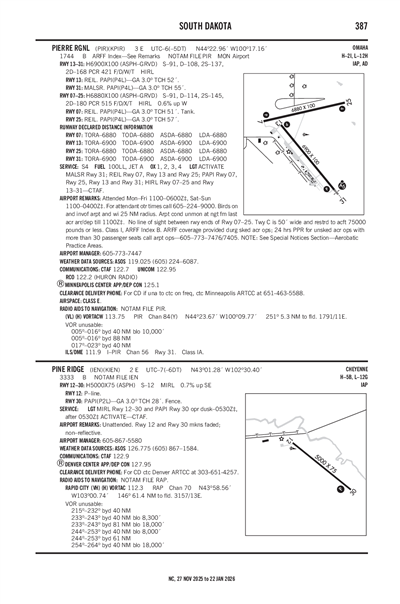

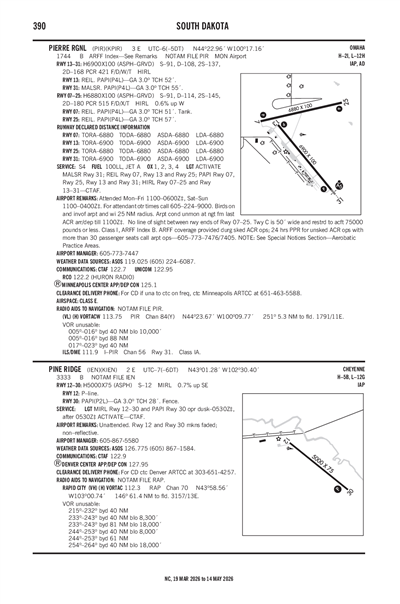

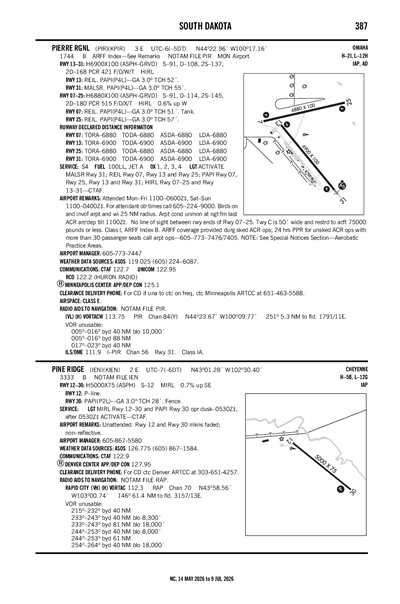

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCDR (28nm)
Thu, 6/25 11:20 AM MDT
Thu, 6/25 12:00 PM MDT - Fri, 6/26 12:00 PM MDT
VFR
12:00 PM MDT - 2:00 PM MDT
Overcast 3,500'
6sm
120° 10kts
MVFR
Temporary 12:00 PM MDT - 2:00 PM MDT
Light Rain
Overcast 2,500'
5sm
Calm
MVFR
2:00 PM MDT - 4:00 PM MDT
Light Showers and Rain
Overcast 2,000'
4sm
140° 10kts
MVFR
4:00 PM MDT - 7:00 PM MDT
Broken 2,000'
6sm
150° 14kts
MVFR
7:00 PM MDT - 10:00 PM MDT
Showers in vicinity
Overcast 2,000'
6sm
170° 15kts
Gusts 25kts
MVFR
Temporary 7:00 PM MDT - 10:00 PM MDT
Thunderstorm and Rain
Broken 3,500'
3sm
VRB° 35kts
Gusts 45kts
IFR
10:00 PM MDT - 2:00 AM MDT
Overcast 800'
6sm
180° 12kts
Gusts 22kts
IFR
2:00 AM MDT - 9:00 AM MDT
Mist
Overcast 800'
2sm
180° 7kts
VFR
9:00 AM MDT - 12:00 PM MDT
Broken 5,000'
6sm
190° 10kts
TAF KCDR 251720Z 2518/2618 12010KT P6SM OVC035
   TEMPO 2518/2520 5SM -RA OVC025
   FM252000 14010KT 4SM -SHRA OVC020
   FM252200 15014KT P6SM BKN020
   FM260100 17015G25KT P6SM VCSH OVC020
   TEMPO 2601/2604 VRB35G45KT 3SM TSRA BKN035CB
   FM260400 18012G22KT P6SM OVC008
   FM260800 18007KT 2SM BR OVC008
   FM261500 19010KT P6SM BKN050
KIEN
EffectiveExpiresCategoryNOTAM
Domestic
4/27/26
1934Z
!IEN 04/002 IEN SVC AUTOMATED WX BCST SYSTEM CHANGED TO 605-229-9337 2604271934-PERM
FDC
10/8/25
1040Z
!FDC 5/7751 IEN ODP PINE RIDGE, PINE RIDGE, SD.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS: RWY 12: STANDARD WITH MINIMUM CLIMB OF 460 FT/NM TO 3900.
TAKE-OFF MINIMUMS: RWY 30: 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 413 FT/NM TO 3600.
ALL OTHER DATA REMAINS AS PUBLISHED. 2510081040-2710081040EST
No
UNATNDD
OGLALA SIOUX TRIBE
PO BOX 3044
PINE RIDGE, SD 57770
Phone: 605-867-5580
DAVID RABBIT
P.O. BOX 3044
PINE RIDGE, SD 57770
Phone: 605-867-5580
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
IEN
--
MIRL RY 12/30 AND PAPI RY 30 OPER DUSK-2230; AFT 2230 ACTVT - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Ambulance

Runway 12/30

5000 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 129°309°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 43° 01' 32"N 43° 01' 01"N
Longitude 102° 30' 50"W 102° 29' 58"W
Elevation 3,300' 3,332'
Threshold Crossing Height -- 28 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2FOR CD CTC DENVER ARTCC AT 303-651-4257.
A81-APTMIRL RY 12/30 AND PAPI RY 30 OPER DUSK-2230; AFT 2230 ACTVT - CTAF.
PINE RIDGE (ICAO: KIEN, IATA: IEN) is a public airport located in PINE RIDGE, SD, US.
