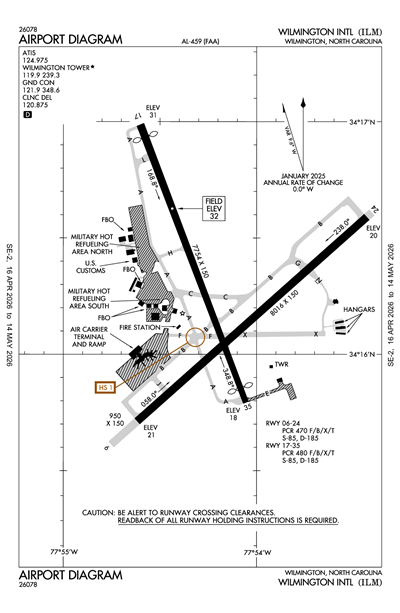

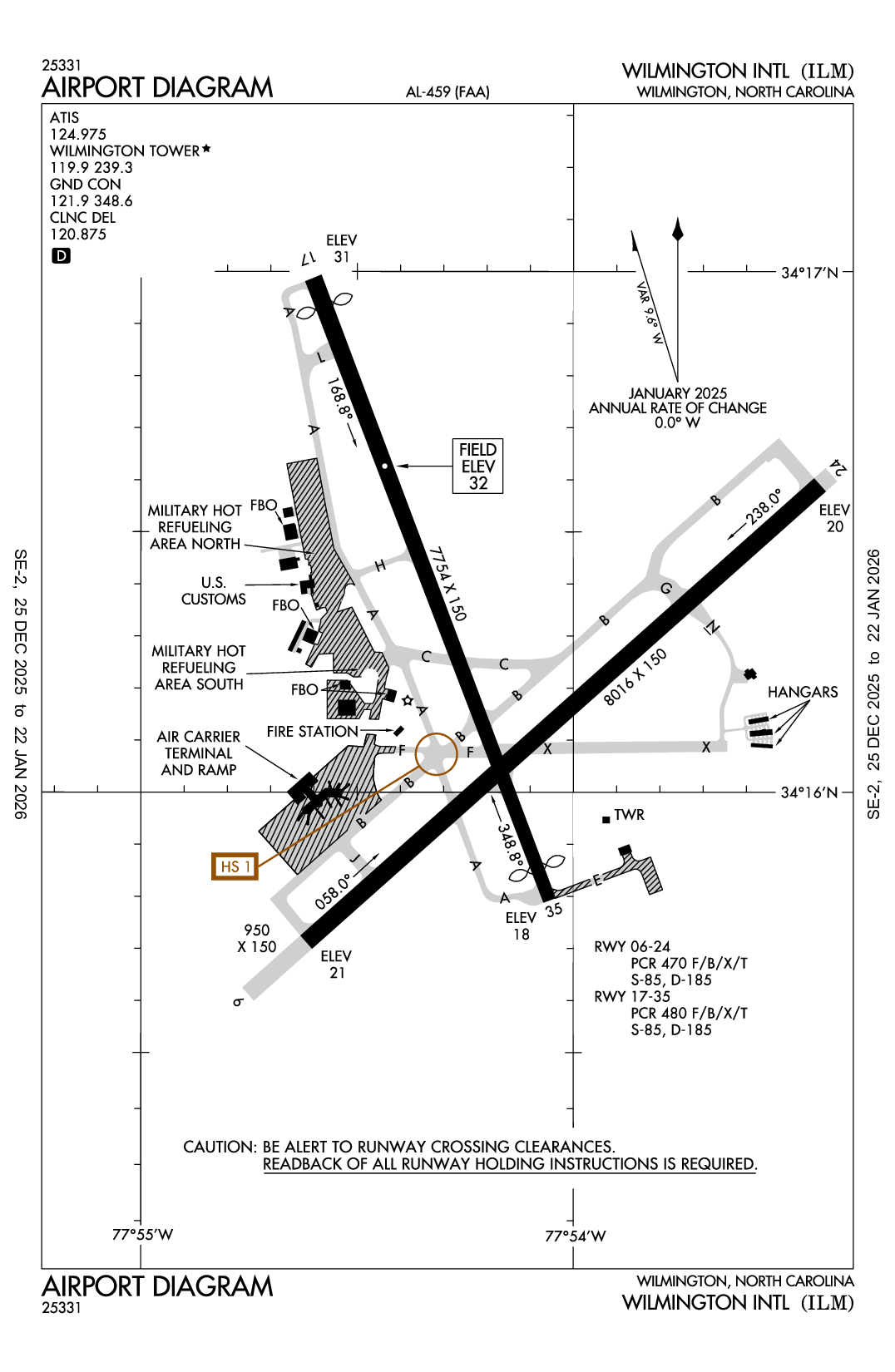

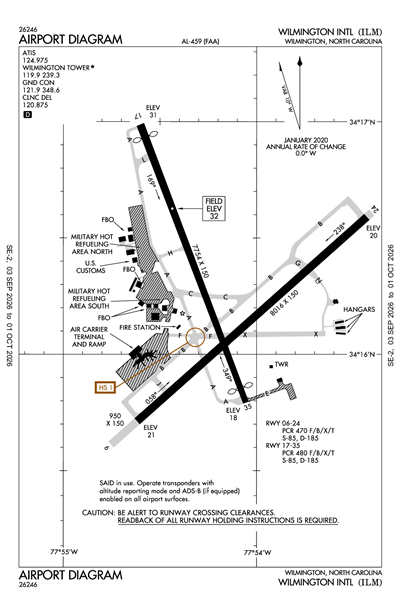

WILMINGTON INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KILM
ICAO KILMIATA ILMLocal ILM
WILMINGTON INTL
PublicPUB

3 miles NE of WILMINGTON, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 16' 16"N 77° 54' 10"W
Elevation
32' MSL
Pattern Alt
1032' MSL
Mag Variation
10°W
Declination
10°W
Fuel
JET A, JET A (FSII), 100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
7/9/26-8/6/26
KILM MVFR
1:15 AM EDT
Light Rain
Broken 4,700'
Broken 2,400'
Scattered 1,000'
10sm
76°F
75°F
29.88"Hg
170° 6kts
AO2 P0001 T02440239
SPECI KILM 030515Z 17006KT 10SM -RA SCT010 BKN024 BKN047 24/24 A2988 RMK AO2 P0001 T02440239
+ Add Your Business

KILM FBOs

Promote Listing
Aero Center
UNICOM: 130.325
Phone: (910) 260-4933
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 7/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.91 8.38 8.45
Fuel Notes
Prices include tax
FSII available on request
Fuel Hours
After Hours available. Fees apply.
Call 910-760-9198
Volume Discounts
FBO is CAA preferred
Modern Aviation
UNICOM: 130.4
Phone: (910) 763-0146
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 7/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.54 7.61 7.70
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.975
VFR Advisory 119.9
ASOS (910) 212-6314

Common

CTAF 119.9
ACTVT MALSR RWY 24 & 35; REIL RWY 06 & 17; PAPI RWY 06, 17, 24; HIRL RWY 06/24 & 17/35; AND ALL TWY LGTS - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 120.875

Ground

WILMINGTON GROUND 121.9
0600-2300

Tower

WILMINGTON TOWER 119.9
0600-2300

Terminal

TRSA 118.25
164-343
TRSA 135.75
344-163

Approach

WILMINGTON APPROACH 118.25
164-343
WILMINGTON APPROACH 135.75
344-163

Departure

WILMINGTON DEPARTURE 118.25
164-343
WILMINGTON DEPARTURE 135.75
344-163

Center

WILMINGTON CENTER 124.025
HIGH, APCH/DEP SVC PRVDD BY WASHINGTON ARTCC ON FREQS 124.025/269.15 (WILMINGTON RCAG) WHEN WILMINGTON APCH CTL CLSD.

Flight Service

Flight Service 122.1
(RDU)

Emergency

Emergency 121.5

Terminal Area Forecast

KILM
Sun, 8/2 10:59 PM EDT
Sun, 8/2 11:00 PM EDT - Mon, 8/3 8:00 PM EDT
MVFR
11:00 PM EDT - 3:00 AM EDT
Showers and Rain
Overcast 2,000'
4sm
Calm
VFR
11:00 PM EDT - 12:00 PM EDT
Scattered 2,500'
6sm
200° 9kts
Gusts 19kts
MVFR
12:00 PM EDT - 8:00 PM EDT
Showers in vicinity
Broken 1,500'
6sm
200° 11kts
Gusts 20kts
TAF KILM 030259Z 0303/0324 20009G19KT P6SM SCT025
   PROB30 0303/0307 4SM SHRA OVC020
   FM031600 20011G20KT P6SM VCSH BKN015
KILM
EffectiveExpiresCategoryNOTAM
Domestic
8/6/26
1300Z
8/6/26
2100Z
!ILM 07/055 ILM AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF ILM SFC-3500FT AGL ACFT CS FLC68 2608061300-2608062100
8/5/26
1100Z
8/7/26
2300Z
!ILM 07/054 ILM TWY B BTN AIR CARRIER TERMINAL RAMP AND APCH END RWY 06 CLSD 2608051100-2608072300
8/5/26
1100Z
8/7/26
2300Z
!ILM 07/053 ILM TWY J CLSD 2608051100-2608072300
8/5/26
1100Z
8/7/26
2300Z
Runway!ILM 07/052 ILM RWY 06/24 CLSD 2608051100-2608072300
8/3/26
0450Z
8/18/26
0350Z
!ILM 08/009 ILM OBST TOWER LGT (ASR 1012341) 341001.40N0775639.00W (6.7NM SSW ILM) 534.1FT (500.0FT AGL) U/S 2608030450-2608180350
8/3/26
0316Z
8/4/26
0316Z
Runway!ILM 08/008 ILM RWY 17 FICON 5/5/5 100 PCT WET OBS AT 2608030316. 2608030316-2608040316
8/3/26
0315Z
8/4/26
0315Z
Runway!ILM 08/007 ILM RWY 06 FICON 5/5/5 100 PCT WET OBS AT 2608030315. 2608030315-2608040315
8/2/26
2128Z
9/30/26
0500Z
Runway!ILM 08/006 ILM RWY 24 ALS U/S 2608022128-2609300500
8/2/26
2127Z
9/30/26
0500Z
!ILM 08/005 ILM NAV ILS RWY 24 SPECIAL AUTH CAT II NA 2608022127-2609300500
7/30/26
2330Z
10/9/26
0500Z
Runway!ILM 07/058 ILM RWY 24 RAI LGT U/S 2607302330-2610090500
7/30/26
2313Z
!ILM 07/056 ILM NAV ILS RWY 35 OM U/S 2607302313-2701292111EST
7/24/26
1937Z
9/24/26
2359Z
!ILM 07/042 ILM OBST TOWER LGT (ASR 1000327) 341540.60N0775034.90W (3.0NM ESE ILM) 323.8FT (279.9FT AGL) U/S 2607241937-2609242359
7/18/26
1302Z
9/1/26
1301Z
!ILM 07/032 ILM OBST TOWER LGT (ASR 1290149) 342426.00N0775332.00W (8.2NM NE ILM) 290.0FT (264.8FT AGL) U/S 2607181302-2609011301
7/13/26
1647Z
10/11/26
1647Z
!ILM 07/022 ILM OBST TOWER LGT (ASR 1001770) 341436.00N0780439.00W (8.8NM W ILM) 482.9FT (419.9FT AGL) U/S 2607131647-2610111647
7/9/26
1219Z
11/6/26
1219Z
!ILM 07/013 ILM OBST TOWER LGT (ASR 1062175) 342344.50N0774201.00W (12.7NM NE ILM) 347.8FT (294.9FT AGL) U/S 2607091219-2611061219
5/12/26
1405Z
8/31/26
2200Z
!ILM 05/025 ILM OBST CRANE (ASN UNKNOWN) 341603N0775438W (0.44NM N APCH END RWY 06)
UNKNOWN (140FT AGL) FLAGGED AND LGTD 2605121405-2608312200
FDC
7/9/26
2157Z
!FDC 6/4527 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
ILS Y OR LOC RWY 6, AMDT 2B...
ILS Z RWY 6, ORIG-B...
NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 700FT MSL.
2607092157-2807092157EST
4/14/26
2027Z
!FDC 6/2386 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
ILS Y OR LOC RWY 24, AMDT 2...
ILS Y OR LOC RWY 35, AMDT 22D...
ILS Y OR LOC RWY 6, AMDT 2B...
RNAV (GPS) RWY 24, AMDT 3A...
RNAV (GPS) RWY 35, AMDT 3C...
RNAV (GPS) RWY 6, AMDT 3B...
TACAN-A, AMDT 1...
CIRCLING RWY 17 NA AT NIGHT.
2604142027-2804142027EST
4/14/26
2027Z
!FDC 6/2385 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
RNAV (GPS) RWY 17, AMDT 4A...
LPV DA NA ALL CATS. LNAV/VNAV DA NA ALL CATS. LNAV MDA 440/HAT 408 ALL CATS. RWY 17 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA. STRAIGHT-IN RWY 17 NA AT NIGHT; CIRCLING RWY 17 NA AT NIGHT.
2604142027-2804142027EST
2/18/25
1623Z
!FDC 5/3778 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
ILS Y OR LOC RWY 24, AMDT 2...
ALTERNATE MINIMUMS
ILS STANDARD
LOC A, B, C STANDARD, CAT D 900-3.
2502181623-2702181621EST
9/30/24
1724Z
!FDC 4/2384 ILM IAP WILMINGTON INTL, WILMINGTON, NC.
ILS Y OR LOC RWY 35, AMDT 22D...
ILS Z RWY 35, ORIG-B...
CHART NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 238.
2409301724-2609301724EST
Yes
ALL
NEW HANOVER COUNTY
1740 AIRPORT BLVD
WILMINGTON, NC 28405
Phone: 910-341-4333
JEFFREY BOURK, A.A.E.
1740 AIRPORT BLVD
WILMINGTON, NC 28405
Phone: 910-341-4333
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
ILM
--
ACTVT MALSR RWY 24 & 35; REIL RWY 06 & 17; PAPI RWY 06, 17, 24; HIRL RWY 06/24 & 17/35; AND ALL TWY LGTS - CTAF.
N/A
Yes - Lighted
N/A
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

8016 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

85,000lbs
185,000lbs
--
--
  Runway 06 Runway 24
True Heading 48°228°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 15' 43"N 34° 16' 35"N
Longitude 77° 54' 37"W 77° 53' 26"W
Elevation 21' 20'
Threshold Crossing Height 57 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 17/35

7754 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

85,000lbs
185,000lbs
--
--
  Runway 17 Runway 35
True Heading 159°339°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 16' 59"N 34° 15' 48"N
Longitude 77° 54' 36"W 77° 54' 03"W
Elevation 31' 18'
Threshold Crossing Height 50 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1FUEL: AIR WILMINGTON, INC, 910-763-4691.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC WASHINGTON ARTCC AT 703-771-3587.
A110-7PILOTS CONDUCTING EFVS OPS; BE AWARE LED ALS IN USE RWY 35.
A16EXT 1001.
A30-06/24WT LMT FOR RWY 06-24: USE ACFT PCR FOR ALL GEAR TYPES OTHER THAN "S" OR D".
A30-17/35WT LMT FOR RWY 17-35: USE ACFT PCR FOR ALL GEAR TYPES OTHER THAN "S" OR "D".
A39-06/24PCR VALUE: 470/F/B/X/T
A39-17/35PCR VALUE: 480/F/B/X/T
A81-APTACTVT MALSR RWY 24 & 35; REIL RWY 06 & 17; PAPI RWY 06, 17, 24; HIRL RWY 06/24 & 17/35; AND ALL TWY LGTS - CTAF.
E111TPA: ARPT IN EXISTENCE IN 1956.
E147TPA: 1000 FT AGL RECIPROCATING ENGINE, 1500 FT AGL TBJT/JET. OHD: 5 MILE INITIAL 2500 FT AGL, BREAK 2000 FT AGL. TOWER CALLS DRCTN OF BREAK. CARRIER BREAK NA.
WILMINGTON INTL (ICAO: KILM, IATA: ILM) is a public airport located in WILMINGTON, NC, US.
