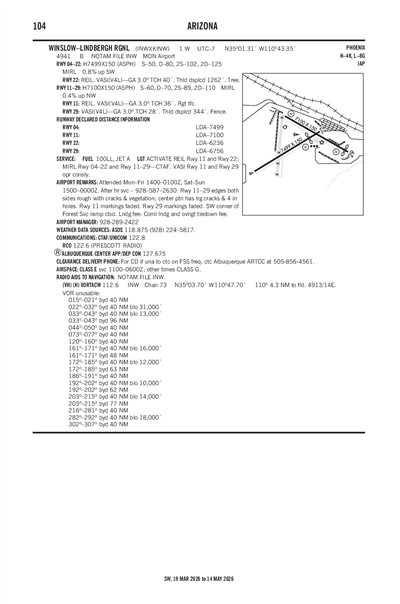

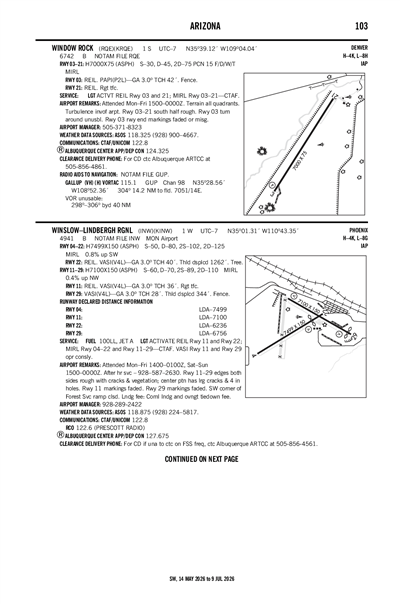

WINSLOW-LINDBERGH RGNL - Airport Diagram

KINW

ICAO KINWIATA INWLocal INW

WINSLOW-LINDBERGH RGNL

PublicPUB

1 miles W of WINSLOW, AZ, US

View on Map

Status

Operational

Coordinates

35° 01' 19"N 110° 43' 21"W

Elevation

4941' MSL

Pattern Alt

5941' MSL

Mag Variation

10°E

Declination

14°E

Fuel

JET A, 100LL

FSS

PRESCOTT (PRC)

Sectional

PHOENIX

ARTCC

ALBUQUERQUE (ZAB)

Data Effective

7/9/26-8/6/26

KINW VFR

6:56 PM MST RAW

Clear

Viz

10sm

Temp

85°F

Dew

50°F

Pres

30.11"Hg

Wind

240° 18kts

Gusts 28kts

RMK

AO2 PK WND 23033/0129 SLP111 T02940100

METAR KINW 140156Z AUTO 24018G28KT 10SM CLR 29/10 A3011 RMK AO2 PK WND 23033/0129 SLP111 T02940100

Add Your Business

KINW FBOs

Wiseman Aviation

UNICOM: 122.8

Phone: (928) 289-0100

0 Reviews (Read | Sign In To Write)

Avfuel

As of 7/7	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.05	5.80
Full Serve	7.29	6.99	7.04

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ASOS	118.875
(928) 224-5817

Common

CTAF	122.8
ACTVT REIL RWY 11 & 22; MIRL RWY 04/22 & 11/29 - CTAF. VASI RWY 11 & 29 OPR CONSLY.
UNICOM	122.8

Center

ALBUQUERQUE CENTER	127.675
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQ 127.675/306.2 (WINSLOW RCAG).

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

VOR OR GPS RWY 11

Terminal Area Forecast

KINW

RAW

Reported

Mon, 7/13 4:20 PM MST

Valid

Mon, 7/13 5:00 PM MST - Tue, 7/14 5:00 PM MST

VFR

5:00 PM MST - 10:00 PM MST

Scattered 10,000'

Viz

6sm

Wind

200° 13kts

Gusts 20kts

VFR

7:00 PM MST - 9:00 PM MST

Light Thunderstorm and Rain

Broken 10,000'
Scattered 7,000'

Viz

6sm

Wind

VRB° 15kts

Gusts 25kts

VFR

10:00 PM MST - 1:00 PM MST

Broken 10,000'

Viz

6sm

Wind

VRB° 5kts

VFR

1:00 PM MST - 5:00 PM MST

Thunderstorm in vicinity

Scattered 10,000'

Viz

6sm

Wind

230° 7kts

TAF KINW 132320Z 1400/1424 20013G20KT P6SM SCT100
   PROB30 1402/1404 VRB15G25KT 6SM -TSRA SCT070CB BKN100
   FM140500 VRB05KT P6SM BKN100
   FM142000 23007KT P6SM VCTS SCT100CB

KINW

Effective	Expires	NOTAM
Domestic
6/22/26 1628Z	7/15/26 1500Z	!INW 06/001 INW APRON MAIN RAMP CLSD TO TRANSIENT PRKG EXC FIRE FIGHTING ACFT 2606221628-2607151500
FDC
6/29/26 1514Z		!FDC 6/1430 INW IAP WINSLOW-LINDBERGH RGNL, WINSLOW, AZ. VOR OR GPS RWY 11, AMDT 4D... S-11 CAT C VISIBILITY 1 3/8. CHANGE RWY 11 STRAIGHT-IN AND CIRCLING AND CIRCLING NOTE TO READ: STRAIGHT-IN RWY 11 NA AT NIGHT, CIRCLING RWY 4, 11 NA AT NIGHT. CHART NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, PROCEDURE NA. CHANGE HELICOPTER VISIBILITY REDUCTION NOTE TO READ: RWY 11 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. MSA FROM INW VORTAC 160-300 9000, 300-160 8100. THIS IS VOR OR GPS RWY 11, AMDT 4E. 2606291514-PERM

ATC Tower

Attendance

MON-FRI 0700-1800
SAT-SUN 0800-1700
AFT HR SVC - 928-587-2630.

Owner

CITY OF WINSLOW
21 WILLIAMSON AVE
WINSLOW, AZ 86047
Phone: 928-289-2422

Manager

TIM WESTOVER
21 WILLIAMSON AVE
WINSLOW, AZ 86047
Phone: 928-289-2422

FSS

PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF

NOTAM

INW

Light Schedule

Lights

ACTVT REIL RWY 11 & 22; MIRL RWY 04/22 & 11/29 - CTAF. VASI RWY 11 & 29 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Ambulance

Runway 04/22

Dimensions

7499 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

50,000lbs

Double Wheel

80,000lbs

Double Tandem

125,000lbs

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	59°	239°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	35° 00' 51"N	35° 01' 30"N
Longitude	110° 44' 16"W	110° 42' 59"W
Elevation	4,941'	4,881'
Threshold Crossing Height	--	40 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	V4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	Yes

Runway 11/29

Dimensions

7100 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

60,000lbs

Double Wheel

70,000lbs

Double Tandem

110,000lbs

Dual Dbl Tand

	Runway 11	Runway 29
True Heading	120°	300°
Traffic Pattern	Right	Left
Markings	NPI	NPI
Markings Condition	POOR	POOR
Latitude	35° 01' 45"N	35° 01' 10"N
Longitude	110° 43' 40"W	110° 42' 26"W
Elevation	4,899'	4,870'
Threshold Crossing Height	36 ft. AGL	28 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	V4L	V4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	No

A110-2	SW CORNER FOREST SVC RAMP CLSD.
A110-3	FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
A14	ORVILLE WISEMAN - 928-289-0100.
A17-H2	AFT HR SVC - 928-587-2630.
A24	COML LNDG & OVNGT TIEDOWN FEE.
A33-11/29_COND	EDGES BOTH SIDES ROUGH WITH CRACKS & VEGETATION; CENTER PTN HAS LRG CRACKS & 4 IN HOLES.
A42-11_COND	FADED.
A42-29_COND	FADED.
A57-22	APCH RATIO 50:1 TO DTHR.
A58-11	+4 FT BRUSH 0-200 FT FM THR 75-250 FT L & R OF CNTRLN.
A58-22	15 FT DITCH 15 FT FM RWY END ACRS THR. +12 FT TREES 10 FT FM THR 80 FT L OF CNTRLN.
A58-29	8 FT FENCE 200 FT FM RWY END ACRS THR. 3 FT BRUSH 0-200 FT FM RWY END ACRS THR.
A81-APT	ACTVT REIL RWY 11 & 22; MIRL RWY 04/22 & 11/29 - CTAF. VASI RWY 11 & 29 OPR CONSLY.
A84	SEGMETED CIRCLE MISSING RWY 11 R TFC ARMS.
E111	ESTABD PRIOR TO 1959.

WINSLOW-LINDBERGH RGNL (ICAO: KINW, IATA: INW) is a public airport located in WINSLOW, AZ, US.
