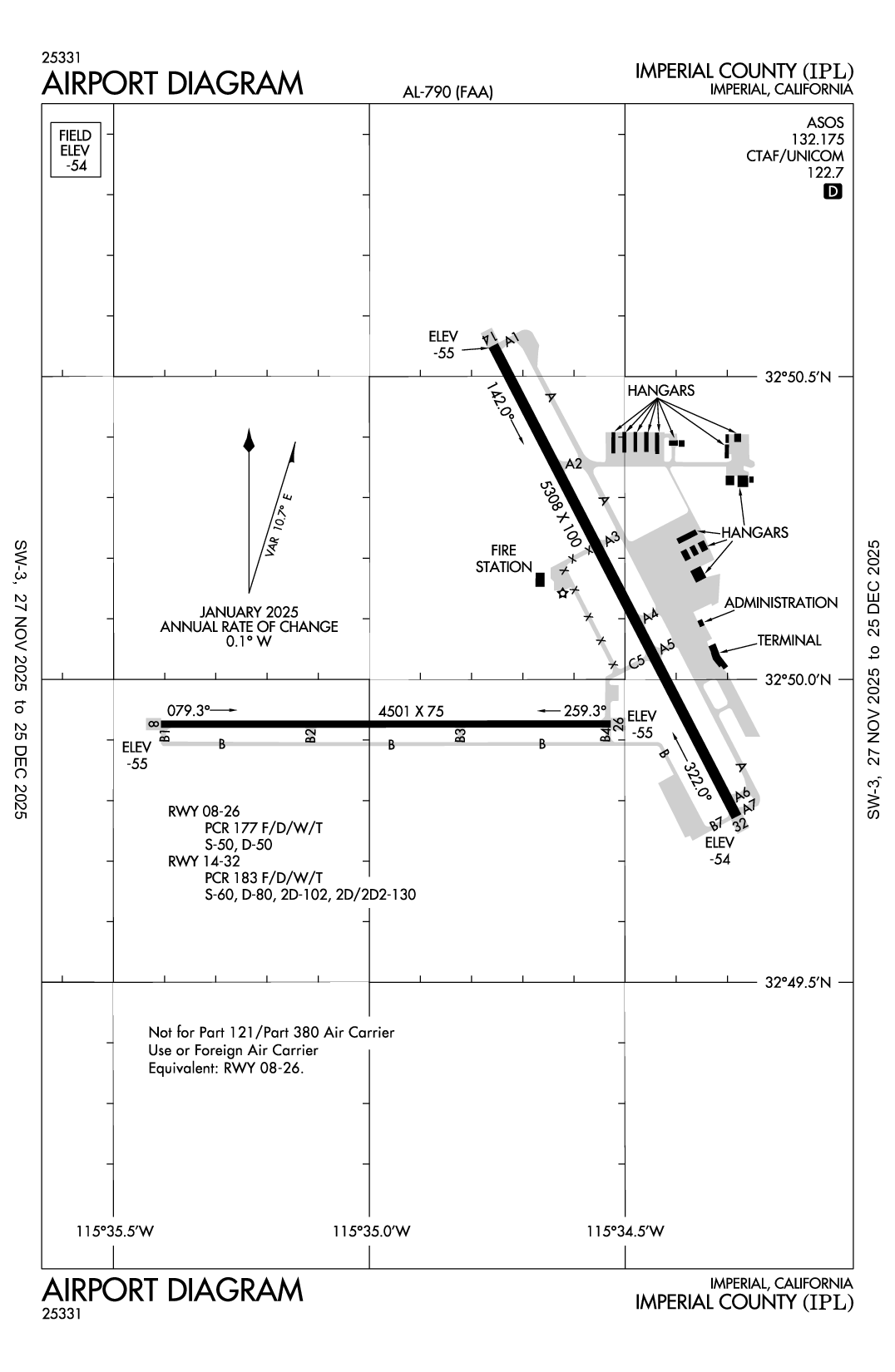

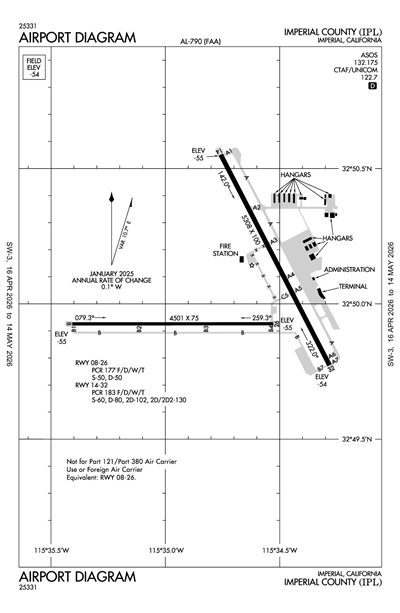

IMPERIAL COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIPL
IMPERIAL COUNTY
PublicPUB

1 miles S of IMPERIAL, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 50' 03"N 115° 34' 43"W
-54' MSL
946' MSL
14E
Jet A, 100LL
SAN DIEGO (SAN)
PHOENIX
LOS ANGELES (ZLA)
4/18/24-5/16/24
KIPL VFR
4:53 PM PDT
Clear
10sm
93°F
34°F
29.69"Hg
240° 6kts
AO2 SLP054 T03390011 10339 20278 56020 PWINO $
KIPL 192353Z AUTO 24006KT 10SM CLR 34/01 A2969 RMK AO2 SLP054 T03390011 10339 20278 56020 PWINO $
List Your Business

KIPL FBOs, Flight Schools and Ground Support

Promote Listing
Imperial Flying Service
Freq: 122.7
Phone: (760) 353-1375
Other: (760) 693-0276
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/9
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.49
Full Serve 6.49 5.93 6.08

KIPL Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KIPL Hotels

No hotels are listed for this airport.

KIPL Restaurants

No restaurants are listed for this airport.

KIPL Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

ASOS

ASOS
760-355-2851
 132.175

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIPL
Fri, 4/19 4:25 PM PDT
Fri, 4/19 5:00 PM PDT - Sat, 4/20 5:00 PM PDT
VFR
5:00 PM PDT - 6:00 PM PDT
Sky Clear
6sm
220° 5kts
VFR
6:00 PM PDT - 12:00 AM PDT
Sky Clear
6sm
260° 18kts
Gusts 28kts
VFR
12:00 AM PDT - 5:00 AM PDT
Sky Clear
6sm
270° 8kts
Gusts 15kts
VFR
5:00 AM PDT - 5:00 PM PDT
Sky Clear
6sm
260° 5kts
KIPL 192325Z 2000/2024 22005KT P6SM SKC
   FM200100 26018G28KT P6SM SKC
   FM200700 27008G15KT P6SM SKC
   FM201200 26005KT P6SM SKC
KIPL
Domestic
4/17/240446Z !IPL 04/005 IPL OBST TOWER LGT (ASR 1235433) 325232.60N1153352.60W (2.6NM NNE IPL) 118.1FT (187.0FT AGL) U/S 2404170446-2405020346
4/10/240021Z !IPL 04/003 IPL COM VOR VOICE U/S 2404100021-2412312359
4/1/240000Z !IPL 03/019 IPL AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF
324200N1152100W (8.7NM ENE CXL) SFC-1200FT AGL DLY 0000-2359
2404010000-2404302359
3/21/240342Z !IPL 03/016 IPL TWY A HLDG PSN SIGN FOR RWY 14/32 NOT LGTD 2403210342-2409212359
3/21/240340Z !IPL 03/015 IPL RWY 26 PAPI U/S 2403210340-2412312359
3/21/240340Z !IPL 03/014 IPL RWY 08 PAPI U/S 2403210340-2412312359
3/21/240339Z !IPL 03/013 IPL RWY 14/32 SFC MARKING NOT STD 2403210339-2409212359
2/29/242306Z !IPL 02/011 IPL OBST TOWER LGT (ASR 1238815) 324454.80N1153351.60W (5.2NM S IPL) 231.0FT (250.0FT AGL) U/S 2402292306-2404302359
FDC
4/12/241504Z !FDC 4/0185 IPL IAP IMPERIAL COUNTY, IMPERIAL, CA.
VOR OR GPS-A, AMDT 4C...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
IPL VORTAC UNMONITORED. 2404121504-2405121504EST
No
0700-1630
IMPERIAL COUNTY
1099 AIRPORT ROAD
IMPERIAL, CA 92251
Phone: 442-265-1001
JENELL GUERRERO
1099 AIRPORT ROAD
IMPERIAL, CA 92251
Phone: 442-265-3220
SAN DIEGO FSS (SAN)
Toll Free: 1-800-WX-BRIEF
IPL
--
ACTVT MIRL RWYS 08/26 & 14/32 - CTAF.
N/A
Yes
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
28
2
0
2
0
0
None
None
None
None
Air Freight
Crop Dusting
Air Ambulance
Charter Service

Runway 08/26

4501 ft. x 75 ft.
ASPH
Good
NONE
MED
6 /F/D/W/T
50,000lbs
50,000lbs
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 49' 56"N 32° 49' 56"N
Longitude 115° 35' 24"W 115° 34' 32"W
Elevation -55' -55'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

5308 ft. x 100 ft.
ASPH
Good
PFC
MED
26 /F/C/W/T
60,000lbs
80,000lbs
102,000lbs
130,000lbs
  Runway 14 Runway 32
True Heading 153°333°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 50' 33"N 32° 49' 46"N
Longitude 115° 34' 45"W 115° 34' 17"W
Elevation -55' -54'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-12PPR FOR NON-SKEDD AIR CARRIER ARFF SER, CONTACT AMER 442-264-3220.
A110-15TWY C3 CLSD BTN RWY 14/32 AND TWY C5.
A110-16NOISE ABATEMENT: NOISE SENSITIVE AREA NE EDGE OF AP: SCHOOLS AND RESIDENTIAL. CONDS PMTG, HEL ARRS SHOULD BE TO RWY 32, TOUCHDOWN MIDFIELD (BTN TWY A4 AND A3). HEL DEPARTURES SHOULD BE FM RWY 14 MIDFIELD. WHEN CONDS REQ RWY 32 DEPARTURE, MNTN RWY CNTRLN FOR 1.5 NM BEFORE INITIATING TURN. FOR HEL TRNG PATS/AUTOROTATIONS USE RWY 08/26, MAX OF 3 CIRCUITS. BTN SS-SR AVOID CONS PAT CIRCUITS.
A110-17FOR CD CTC YUMA CERAP AT 928-269-9569.
A110-2AVOID NAF EL CENTRO TFC; ACFT DEPG RWY 26 MAKE IMT RIGHT TURN - STAY BELOW 1000 FT; CTC NAF TWR 119.1 FOR ADZY.
A110-3FRQ HIGH-SPD MIL JET TFC TRANSITS IMPERIAL COUNTY TFC AREA WB DESCENDING VFR TO NAF EL CENRTO. AVOID 2500 FT TO 3500 FT MSL NEAR IMPERIAL COUNTY. CTC NAF TWR 119.1 FOR NAVY TFC ADZY.
A110-9RADIO ANT +70 FT LCTD ON CTL TWR AT MIDFIELD RWY 14/32 AND 500 FT WEST RWY CNTRLN.
IMPERIAL COUNTY (ICAO: KIPL, IATA: IPL) is a public airport located in IMPERIAL, CA.
