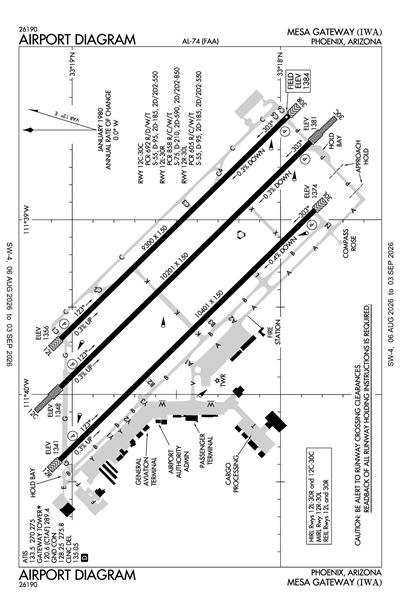

MESA GATEWAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIWA
ICAO KIWAIATA AZALocal IWA
MESA GATEWAY
PublicPUB

20 miles SE of PHOENIX, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 18' 28"N 111° 39' 20"W
Elevation
1384' MSL
Pattern Alt
2602' MSL
Mag Variation
10°E
Declination
13°E
Fuel
JET A, 100LL
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
8/6/26-9/3/26
KIWA VFR
7:56 PM MST
Clear
10sm
100°F
63°F
29.89"Hg
250° 4kts
METAR KIWA 210256Z 25004KT 10SM CLR 38/17 A2989
+ Add Your Business

KIWA FBOs

Promote Listing
Gateway Aviation Services
ASRI: 129.875, UNICOM: 129.875
Phone: (480) 988-7700
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 8/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.04 7.63 7.70
Fuel Notes
Prices include tax

KIWA Aircraft Service & Maintenance

Promote Listing
International Air Response
Phone: (480) 818-0249
Fax: (480) 840-9866
No Rating Available
0 Reviews (Read | Sign In To Write)
Promote Listing
United Rotorcraft
Phone: (480) 980-7519
No Rating Available
0 Reviews (Read | Sign In To Write)

KIWA Flight Schools & Aircraft Rental

Promote Listing
CGCC/Williams Education Center
Phone: (480) 988-8112
Fax: (480) 988-8129
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 133.5
AWOS-3 133.5
(480) 988-9428, AWOS IS AVAILABLE FROM 0000-0500 (MST) ON 133.5, OR 24 HRS VIA PHONE: 480-988-9428.

Common

CTAF 120.6

Clearance

Clearance Delivery 135.05

Ground

GATEWAY GROUND 128.25
0500-2400

Tower

GATEWAY TOWER 120.6
0500-2400

Arrival

BLYTHE STAR 124.1
DSERT STAR 120.7
HUUTY STAR 124.9
SUNSS STAR 124.1

Approach

PHOENIX APPROACH 124.9

Departure

PHOENIX DEPARTURE 124.9

Emergency

Emergency 121.5

Terminal Area Forecast

KIWA
Thu, 8/20 7:15 PM MST
Thu, 8/20 7:00 PM MST - Fri, 8/21 5:00 PM MST
VFR
7:00 PM MST - 11:00 PM MST
Scattered 25,000'
Few 15,000'
Few 10,000'
6sm
300° 8kts
VFR
11:00 PM MST - 11:00 AM MST
Scattered 25,000'
Scattered 15,000'
6sm
130° 7kts
VFR
11:00 AM MST - 5:00 PM MST
Few 25,000'
Few 15,000'
Few 10,000'
6sm
290° 8kts
TAF KIWA 210215Z 2102/2124 30008KT P6SM FEW100 FEW150 SCT250
   FM210600 13007KT P6SM SCT150 SCT250
   FM211800 29008KT P6SM FEW100 FEW150 FEW250
KIWA
EffectiveExpiresCategoryNOTAM
Domestic
8/24/26
1400Z
8/24/26
1630Z
!IWA 08/044 IWA OBST CRANE (ASN 2026-AWP-1632-NRA) 331805N1113958W (.65NM SW OF IWA) 1526FT (180FT AGL) FLAGGED 2608241400-2608241630
8/24/26
1300Z
8/26/26
2100Z
!IWA 08/052 IWA OBST CRANE (ASN 2026-AWP-5354-OE) 332011N1114035W (2.0NM NNW IWA) 1565FT (230FT AGL) FLAGGED AND LGTD DLY 1300-2100 2608241300-2608262100
8/21/26
1300Z
8/28/26
2300Z
!IWA 08/058 IWA OBST CRANE (ASN 2026-AWP-92-NRA) 331824N1113816W (.5NM NE APCH END RWY 30R) UNKNOWN (90FT AGL) FLAGGED AND LGTD 2608211300-2608282300
8/20/26
1430Z
8/20/26
1800Z
!IWA 08/050 IWA OBST CRANE (ASN 2026-AWP-14390-OE) 331658N1113942W (1.5NM SSW IWA) 1526FT (165FT AGL) FLAGGED, NOT LGTD 2608201430-2608201800
8/20/26
1200Z
8/20/26
2200Z
!IWA 08/054 IWA OBST TOWER LGT (ASN 2026-AWP-75-OE) 331705N1113806W (1.7NM SE IWA) 1443FT (45FT AGL) U/S 2608201200-2608202200
8/20/26
1200Z
8/20/26
2200Z
!IWA 08/053 IWA OBST TOWER LGT (ASN 2026-AWP-2971-OE) 331706N1113806W (1.7NM SE IWA) 1431FT (37FT AGL) U/S 2608201200-2608202200
8/20/26
1200Z
8/20/26
2000Z
!IWA 08/051 IWA OBST CRANE (ASN UNKNOWN) 331820N1114009W (.72NM SW APCH END RWY 12C)
UNKNOWN (55FT AGL) FLAGGED 2608201200-2608202000
8/10/26
1300Z
8/26/26
2359Z
!IWA 08/001 IWA OBST CRANE (2026-AWP-76-NRA) 331859N1113847W (.75NM E APCH END RWY 12L) 1418FT (40FT AGL) FLAGGED, NOT LGTD DLY 1300-2359 2608101300-2608262359
8/5/26
1300Z
8/21/26
2359Z
!IWA 08/002 IWA OBST CRANE (2026-AWP-77-NRA) 331849N1113906W (.53NM SE APCH END RWY 12L) 1406FT (40FT AGL) FLAGGED, NOT LGTD DLY 1300-2359 2608051300-2608212359
7/29/26
2300Z
12/30/26
2359Z
Runway!IWA 07/055 IWA RWY 30L CLSD TO ACFT WINGSPAN MORE THAN 118FT 2607292300-2612302359
7/29/26
2300Z
12/30/26
2359Z
Runway!IWA 07/048 IWA RWY 12R/30L NW 3501FT CLSD. DECLARED DIST: RWY 12R TORA 6900FT TODA 6900FT
ASDA 0FT LDA 0FT. RWY 30L TORA 0FT TODA 0FT ASDA 6900FT LDA 6900FT. 2607292300-2612302359
7/28/26
1734Z
12/30/26
2359Z
Runway!IWA 07/050 IWA RWY 12R CLSD TO LDG 2607281734-2612302359
7/28/26
1734Z
12/30/26
2359Z
Runway!IWA 07/049 IWA RWY 30L CLSD TO TKOF 2607281734-2612302359
7/28/26
1300Z
9/30/26
2300Z
!IWA 07/045 IWA OBST CRANE (ASN 2025-AWP-13378-OE) 332115N1113908W (2.8NM NE IWA) 1734FT (350FT AGL) FLAGGED AND LGTD 2607281300-2609302300
7/20/26
1400Z
10/21/26
2359Z
!IWA 07/030 IWA TWY B BTN TWY G AND TWY Y1 CLSD TO ACFT WINGSPAN MORE THAN 49FT CONST 2607201400-2610212359
7/20/26
1400Z
10/21/26
2359Z
!IWA 07/029 IWA TWY Y BTN TWY G AND TWY Y1 CLSD TO ACFT WINGSPAN MORE THAN 118FT CONST 2607201400-2610212359
6/18/26
2055Z
8/27/26
2359Z
!IWA 06/052 IWA TWY K BTN RWY 12R/30L AND RWY 12C/30C CLSD TO ACFT WINGSPAN MORE THAN 78FT 2606182055-2608272359
6/17/26
1800Z
12/14/26
2359Z
!IWA 06/049 IWA TWY G CL MARKINGS FOR APCH END RWY 12R SOUTH SIDE NOT STD 2606171800-2612142359
6/17/26
1600Z
12/14/26
2359Z
!IWA 06/048 IWA TWY G BTN APCH END RWY 12R AND APCH END RWY 12C WIP CONST 2606171600-2612142359
6/16/26
0630Z
12/15/26
0700Z
!IWA 06/037 IWA TWY G HLDG PSN SIGN FOR RWY 12R EAST SIDE REMOVED 2606160630-2612150700
6/16/26
0630Z
12/15/26
0700Z
!IWA 06/035 IWA TWY G BTN TWY B AND RWY 12C TWY EDGE LGT U/S 2606160630-2612150700
6/16/26
0630Z
10/6/26
0700Z
!IWA 06/031 IWA TWY G BTN TWY B AND RWY 12C CLSD TO ACFT WITH WINGSPAN GREATER THAN 118 FEET 2606160630-2610060700
6/15/26
1930Z
8/27/26
2359Z
Runway!IWA 06/042 IWA RWY 12C/30C SAFETY AREA NOT STD SW IRREGULAR SFC 2606151930-2608272359
6/10/26
1644Z
12/31/26
2359Z
Runway!IWA 06/027 IWA RWY 12C CHEVRON SFC MARKING MISSING 2606101644-2612312359
6/10/26
1321Z
10/29/26
2359Z
!IWA 06/026 IWA AD AP BIRD ACT 2606101321-2610292359
5/1/26
1325Z
12/31/26
2359Z
!IWA 05/003 IWA OBST POLE (ASN UNKNOWN) 331923N1114032W (0.20NM NNE APCH END RWY 12R)
UNKNOWN (20FT AGL) NOT LGTD 2605011325-2612312359
2/6/26
1300Z
8/31/26
1700Z
!IWA 02/012 IWA OBST POLE (ASN UNKNOWN) 331924N1114037W (.46NM NNE IWA)
UNKNOWN (30FT AGL) NOT LGTD 2602061300-2608311700
FDC
8/21/26
1600Z
8/28/26
2015Z
!FDC 6/6900 IWA ODP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
PHOENIX ONE DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
IWA VOR OUT OF SERVICE. 2608211600-2608282015EST
8/21/26
1600Z
8/28/26
2015Z
!FDC 6/6899 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
VOR OR TACAN RWY 30C, AMDT 2C...
VOR PORTION NA,
IWA VOR OUT OF SERVICE. 2608211600-2608282015EST
8/21/26
1600Z
8/28/26
2015Z
!FDC 6/6898 IWA IAP PHOENIX-MESA GATEWAY, PHOENIX, AZ.
ILS OR LOC RWY 30C, AMDT 3C...
MISSED APPROACH: CLIMB TO 2800 THEN CLIMBING RIGHT TURN TO 5000 VIA 162.00 HEADING AND TFD VORTAC R-012 TO TFD VORTAC AND HOLD SE, RT, 314.00 INBOUND. (TACAN AIRCRAFT CLIMB TO 2800 THEN CLIMBING RIGHT TURN TO 5000 VIA HEADING 162.00 AND TFD VORTAC R-012 TO JIPON/TFD 14.41 DME AND HOLD N, RT, 192.00 INBOUND),
IWA VOR OUT OF SERVICE. 2608211600-2608282015EST
8/14/26
1300Z
!FDC 6/4965 IWA IAP MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 12C, AMDT 1C...
LNAV/VNAV DA 1880/HAT 521 ALL CATS, VIS ALL CATS 1 3/8. LNAV MDA 1880/HAT 521 ALL CATS. VIS CATS C/D/E 1 3/8. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2160/HAA 776, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. CRANES UP TO 1554 MSL BEGINNING 1.9NM SW OF IWA AIRPORT (2022-AWP-16564/16565-OE), CRANE 1525 MSL 4.2NM NW OF RWY 12C (2023-AWP-6152-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), CRANE 1793 MSL 2.6NM NE OF IWA AIRPORT (2025-AWP-1394-OE). CRANE 1606FT MSL, 1.1NM E OF IWA AIRPORT (2024-AWP-4953-NRA) TEMP CRANE 1575 MSL, 1.8NM NW OF RWY 12C (2025-AWP-14209-OE). TEMP CRANE 1534 MSL, 1.5 NM SE OF KIWA AIRPORT (2026-AWP-3725-OE). TEMP CRANE 1650 MSL, 2.7NM N OF KIWA AIRPORT (2026-AWP-5036-OE).
TEMP CRANE 1734 MSL, 2.6NM N OF KIWA AIRPORT (2025-AWP-13378-OE). TEMP CRANE 1453 MSL, 1.0NM NW OF RWY 12C (2025-AWP-1874-OE).
2608141300-2610301925EST
8/7/26
1325Z
!FDC 6/2815 IWA IAP MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 30R, ORIG-A...
LPV DA 1687/HAT303, VIS 7/8 ALL CATS. LNAV/VNAV DA 1900//HAT 516 ALL CATS, VIS 1 3/8 ALL CATS. LNAV MDA 1900/HAT 516 ALLCATS, VIS CAT C/D 1 3/8. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2160/HAA 776, VIS CAT C 2 1/4, CATD 2 1/2, CAT E 2 3/4. VDP 1.37NM TO RW30R, CRANE 1484 MSL 4563FT E OF RWY 30R (2022-AWP-22247-OE), CRANE1587 MSL 2445FT NE OF RWY 30R (2023-AWP-723-NRA), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1494 MSL 5380FT SW OFIWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), CRANE 1793 MSL 2.6NM NE OF IWA AIRPORT (2025-AWP-1394-OE), TEMPORARY CRANE, 1748FTMSL, 2.93 NM NORTH OF KIWA AIRPORT (2025-AWP-3043-OE). TEMP CRANE, 1606FT MSL, 1397FT NORTH OF RWY30R (2024-AWP-4953-NRA). CRANE 1606FT MSL, 1605FT NE OF RWY 30R (2024-AWP-4953-NRA), TEMP CRANE 1579MSL 1.1NM SE OF RWY 30R (2025-AWP-13952-OE). MESA GATEWAY, PHOENIX, AZ. TEMP CRANE 1585 MSL, 1.3NMSE OF IWA PART 2 OF 2 RWY 30R (2024-AWP-5838-OE).TEMP CRANE 1534 MSL, 1.5 NM SE OF KIWA AIRPORT (2026-AWP-3725-OE). TEMP CRANE 1650 MSL, 2.7NM N OFKIWA AIRPORT (2026-AWP-5036-OE). TEMP CRANE 1650 MSL, 2.7NM N OF KIWA AIRPORT (2026-AWP-5036-OE).
2608071325-2703191325EST
8/7/26
1325Z
!FDC 6/2814 IWA IAP MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) Y RWY 30C, AMDT 1C...
LNAV/VNAV DA 1943/HAT 562 ALL CATS, VIS ALL CATS 1 5/8. LNAV MDA 1900/HAT 519 ALL CATS, VIS CAT C/D/E 1 3/8. CIRCLING CAT A MDA 2000/HAA 616, CAT B MDA 2020/HAA 636, CAT C/D/E MDA 2160/HAA 776, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. VDP 1.40NM TO RW30C. CRANE 1587 MSL 3372FT NE OF RWY 30C (2023-AWP-723-NRA), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA) CRANE 1793 MSL 2.6NM NE OF IWA AIRPORT (2025-AWP-1394-OE). CRANE, 1748 MSL, 2.93 NM NORTH OF KIWA AIRPORT (2025-AWP-3043-OE). CRANE, 1606FT MSL, 2309FT NE OF RWY 30C (2024-AWP-4953-NRA), TEMP CRANE 1579 MSL 1.1NM SE OF RWY 30R (2025-AWP-13952-OE). TEMP CRANE 1585 MSL, 1.33NM SE OF RWY 30C (2024-AWP-5838-OE), TEMP CRANE 1534 MSL, 1.5 NM SE OF KIWA AIRPORT (2026-AWP-3725-OE), TEMP CRANE 1650 MSL, 2.7NM N OF KIWA AIRPORT (2026-AWP-5036-OE). TEMP CRANE 1565 MSL 2.7 NM NW OF RWY 30C (2026-AWP-5354-OE) TEMP CRANE 1734 MSL, 2.6NM N OF KIWA AIRPORT (2025-AWP-13378-OE)..
2608071325-2703191325EST
8/7/26
1325Z
!FDC 6/2813 IWA IAP MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 12R, AMDT 1D...
LP MDA CATS A/B/C/D 1800/HAT 451, VISIBILITY CATS C/D 1 3/8. LNAV MDA CATS A/B/C/D 1880/HAT 531, VISIBILITY CATS C/D 1 1/2. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2160/HAA 776, VISIBILITY CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. VDP NA. CRANES UP TO 1554 MSL BEGINNING 1.9NM SW OF IWA AIRPORT (2022-AWP-16564/16565-OE), CRANES UP TO 1602 MSL BEGINNING 2.2NM S OF IWA AIRPORT (2022-AWP-16570/16571-OE), CRANE 1525 MSL 3.9NM NW OF RWY 12R (2023-AWP-6152-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), CRANE 1793 MSL 2.6NM NE OF IWA AIRPORT (2025-AWP-1394-OE). CRANE 1606FT MSL, 1.1NM E OF IWA AIRPORT (2024-AWP-4953-NRA). TEMP CRANE 1534 MSL, 1.5 NM SE OF KIWA AIRPORT (2026-AWP-3725-OE). TEMP CRANE 1650 MSL, 2.7NM N OF KIWA AIRPORT (2026-AWP-5036-OE) TEMP CRANE 1565 MSL 1.0 NM N OFRWY 12R (2026-AWP-5354-OE)
TEMP CRANE 1734 MSL, 2.6NM N OF KIWA AIRPORT (2025-AWP-13378-OE).
2608071325-2703191325EST
8/7/26
1324Z
3/19/27
1324Z
!FDC 6/2812 IWA PART 1 OF 2 IAP MESA GATEWAY, PHOENIX, AZ. VOR OR TACAN RWY 30C, AMDT 2C... DMEMINIMUMS NA. CIRCLING CAT A/B MDA 2000/HAA 616, CATS C/D/E MDA 2160/HAA 776, VIS CAT C 2 1/4, CAT D 2 1/2,CAT E 2 3/4. DME MINIMUMS: S-30C MDA 1920/HAT 540 ALL CATS, VIS CAT C/D 1 1/2. SIDESTEP 30R MDA 1960/HAT558 ALL CATS. CIRCLING CAT A/B MDA 2000/HAA 616, CAT C/D/E MDA 2160/HAA 776, VIS CAT C 2 1/4, CAT D 2 1/2,CAT E 2 3/4. ALTITUDE AT ALBNY FIX 1960. VDP NA. ALTERNATE MINIMUMS: CATEGORY C 800 2 1/4, CATEGORY D800 2 1/2, CATEGORY E 800 2 3/4. CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OFIWA AIRPORT (2024-AWP-2026-NRA), CRANE1793 MSL 2.6NM NE OF IWA AIRPORT (2025-AWP-1394-OE). CRANE 1606FT MSL, 2309FT NE OF RWY 30C (2024-AWP-4953-NRA), TEMPORARY CRANE 1579 MSL 1.1NM SE OF RWY 30R (2025-AWP-13952-OE), TEMP CRANE 1534MSL, 1.5 NM SE OF KIWA AIRPORT (2026-AWP-3725-OE). TEMP CRANE 1650 MSL, 2.7NM N OF KIWA AIRPORT (2026-AWP-5036-OE).TEMP CRANE 1575 MSL, 1.8NM NW OF RWY 12C (2025-AWP-14209-OE). TEMP 2608071324-2703191324EST END PART 1 OF 2
!FDC 6/2812 IWA PART 2 OF 2 CRANE 1534 MSL, 1.5 NM SE OF KIWA AIRPORT (2026-AWP-3725-OE). TEMP CRANE 1650 MSL, 2.7NM N OF KIWA AIRPORT MESA GATEWAY, PHOENIX, AZ. (2026-AWP-5036-OE) TEMP CRANE 1734 MSL, 2.6NM N OF KIWA AIRPORT (2025-AWP-13378-OE).. 2608071324-2703191324EST END PART 2 OF 2
8/7/26
1324Z
!FDC 6/2811 IWA IAP MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 30L, AMDT 1D...
LNAV MDA 1900/HAT 526 ALLCATS, VIS CAT C/D 1 1/2. CIRCLING CAT A /B MDA 2000/HAA 616, CAT C/D/E MDA 2160/HAA 776, VIS CAT C 2 1/4, CATD 2 1/2, CAT E 2 3/4. VDP 1.29NM TO RW30L. CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA),CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1494 MSL 5380FT SW OF IWAAIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA), CRANE 1793 MSL 2.6NM NE OF IWA AIRPORT (2025-AWP-1394-OE). TEMPORARY CRANE, 1748 MSL, 2.93NM NORTH OF KIWA AIRPORT (2025-AWP-3043-OE), TEMPORARY CRANE, 1606FT MSL, 4000FT NE OF RWY 30L(2024-AWP-4953-NRA). TEMPORARY CRANE, 1606FT MSL, 3940FT NE OF RWY 30L (2024-AWP-4953-NRA), TEMPCRANE 1534 MSL, 1.5 NM SE OF KIWA AIRPORT (2026-AWP-3725-OE). TEMP CRANE 1650 MSL, 2.7NM N OF KIWAAIRPORT (2026-AWP-5036-OE).
TEMP CRANE 1650 MSL, 2.7NM N OF KIWA AIRPORT (2026-AWP-5036-OE) TEMP CRANE 1734 MSL, 2.6NM N OF KIWA AIRPORT (2025-AWP-13378-OE).
2608071324-2703191324EST
8/7/26
1324Z
!FDC 6/2810 IWA IAP MESA GATEWAY, PHOENIX, AZ.
ILS OR LOC RWY 30C, AMDT 3C...
S-LOC 30C MDA 1960/HAT 580 ALL CATS, VIS CAT C/D/E 1 5/8. CIRCLING CATS A/B MDA 2000/HAA 616, CATS C/D/E MDA 2160/HAA 776, VISIBILITY CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. ORIYE FIX MINIMUMS: CIRCLING CAT A/B MDA 1960/HAA 576, CATS C/D/E MDA 2160/HAA 776, VIS CAT C 2 1/4, CAT D 2 1/2, CAT E 2 3/4. ALTITUDE AT ORIYE FIX 1960.CRANE UP TO 1602 MSL 2.2NM S OF IWA AIRPORT (2022-AWP-16571-OE), CRANE 1606 MSL 5040FT SE OF IWA AIRPORT (2024-AWP-4956-NRA), CRANE 1559 MSL 5104FT NE OF IWA AIRPORT (2024-AWP-2028-NRA), CRANE 1494 MSL 5380FT SW OF IWA AIRPORT (2023-AWP-2893-NRA), CRANE 1639 MSL 2.8NM NW OF IWA AIRPORT (2024-AWP-15650-OE), CRANE 1559 MSL 5846FT NE OF IWA AIRPORT (2024-AWP-2026-NRA),CRANE 1793 MSL 2.6NM NE OF IWA AIRPORT (2025-AWP-1394-OE). CRANE 1606FT MSL, 1.1NM E OF IWA AIRPORT (2024-AWP-4953-NRA). TEMP CRANE 1534 MSL, 1.5 NM SE OF KIWA AIRPORT (2026-AWP-3725-OE). TEMP CRANE 1650 MSL, 2.7NM N OF KIWA AIRPORT (2026-AWP-5036-OE), TEMP CRANE 1565 MSL 2.7 NM NW OF RWY 30C (2026-AWP-5354-OE) TEMP CRANE 1734 MSL, 2.6NM N OF KIWA AIRPORT (2025-AWP-13378-OE).
2608071324-2703191324EST
5/27/26
1106Z
!FDC 6/3160 IWA IAP MESA GATEWAY, PHOENIX, AZ.
RNAV (RNP) Z RWY 30C, ORIG-B...
RNP 0.21 DA 1835/HAT 454, VIS 1 3/8 ALL CATS. RNP 0.30 DA 1870/HAT 489, VIS 1 3/8 ALL CATS.
TEMP CRANE 1534 MSL, 4557FT SE OF RWY 30C (2026-AWP-3725-OE).
2605271106-2701061106EST
5/14/26
1639Z
!FDC 6/0431 IWA IAP MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 12C, AMDT 1C...
RNAV (GPS) RWY 12R, AMDT 1D...
RNAV (GPS) RWY 30L, AMDT 1D...
RNAV (GPS) Y RWY 30C, AMDT 1C...
CIRCLING CAT C MDA 1900/HAA 516.
2605141639-2805121639EST
5/14/26
1637Z
!FDC 6/0430 IWA IAP MESA GATEWAY, PHOENIX, AZ.
RNAV (GPS) RWY 30R, ORIG-A...
LNAV/VNAV DA 1800/HAT 416, VIS ALL CATS 1 1/8.
LNAV MDA 1800/HAT 416, VIS CATS C/D 1 1/8.
CIRCLING CAT C MDA 1900/HAA 516.
2605141637-2805121637EST
3/31/26
1225Z
!FDC 6/6142 IWA IAP MESA GATEWAY, PHOENIX, AZ.
VOR OR TACAN RWY 30C, AMDT 2C...
TDZE 30R 1384. SIDESTEP 30R MDA 1940/HAT 556 ALL CATS. DME MINIMUMS: S-30C MDA 1840/HAT 460 ALL CATS. VIS CAT C 1 3/8. SIDESTEP 30R MDA 1840/HAT 456 ALL CATS. CIRCLING CAT C MDA 1900/HAA 516.
2603311225-2611101225EST
3/31/26
1224Z
!FDC 6/6139 IWA IAP MESA GATEWAY, PHOENIX, AZ.
ILS OR LOC RWY 30C, AMDT 3C...
ORIYE FIX MINIMUMS CIRCLING CAT C MDA 1900/HAA 516.
2603311224-2611101224EST
3/12/26
1220Z
!FDC 6/7192 IWA IAP MESA GATEWAY, PHOENIX, AZ.
RNAV (RNP) Z RWY 30C, ORIG-B...
RNP 0.21 DA 1690/HAT 309 ALL CATS. RNP 0.30 DA 1812/HAT 431 ALL CATS, VIS ALL CATS 1 1/4.
TL LINE 1530 MSL 1.3NM SE OF RWY 30C (04-086008).
BUILDING 1455 MSL, 4010FT SE OF RWY 30C (2023-AWP-10550-OE).
2603121220-2610221220EST
Yes
ALL
MESA GATEWAY ARPT AUTH
5835 S. SOSSAMAN RD
MESA, AZ 85212
Phone: 480-988-7570
IVAN SMITH
5835 S. SOSSAMAN ROAD
MESA, AZ 85212
Phone: 480-988-7708
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
IWA
--
WHEN ATCT CLSD LGTS ON CONSLY.
N/A
Yes
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Major
High & Low Pressure
None
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 12C/30C

10201 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH

55,000lbs
95,000lbs
185,000lbs
550,000lbs
  Runway 12C Runway 30C
True Heading 136°316°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 19' 03"N 33° 17' 51"N
Longitude 111° 39' 57"W 111° 38' 33"W
Elevation 1,348' 1,380'
Threshold Crossing Height 50 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12L/30R

9300 ft. x 150 ft.
CONC
Good
NONE
HIGH

75,000lbs
210,000lbs
590,000lbs
850,000lbs
  Runway 12L Runway 30R
True Heading 136°316°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 19' 03"N 33° 17' 58"N
Longitude 111° 39' 41"W 111° 38' 24"W
Elevation 1,356' 1,384'
Threshold Crossing Height 74 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 12R/30L

10401 ft. x 150 ft.
CONC
Good
NONE
MED

55,000lbs
95,000lbs
185,000lbs
550,000lbs
  Runway 12R Runway 30L
True Heading 136°316°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 19' 04"N 33° 17' 50"N
Longitude 111° 40' 22"W 111° 38' 57"W
Elevation 1,341' 1,374'
Threshold Crossing Height 60 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No
Runway End Identifier Lights
A110-23NOISE ABATEMENT PROC IN EFCT; AVOID LOW OVR FLT OF NOISE SENSITIVE AREAS SRNDG ARPT.
A110-28TWY Y RSTD TO WINGSPAN LESS THAN 79 FT.
A110-297 FT FENCE S PORTION OF TWY W APRON.
A110-30LRG/HVY INBOARD ENGINE TAX ONLY.
A110-34NON EMERG AV-8 MODEL OPS LMTD TO RWY 12L/30R.
A110-3524 HR PPR FOR UNSKED ACR GTR THAN 30 PAX SEATS - ARPT OPS.
A110-38FOR CD WHEN ATCT CLSD, CTC PHOENIX APCH AT 602-306-2565.
A110-39FUEL AVBL H24 - 480-988-7700 OR 129.875.
A110-8WILDLIFE INVOF ARPT.
A24US GOV OWNED, NON REVENUE & FLT TRNG UP TO 12500 LB LNDG FEE NA.
A30A-30RSPORT FIELD LGTG E OF APCH.
A39-12C/30CPCR VALUE: 692/R/D/W/T
A39-12L/30RPCR VALUE: 858/R/C/W/T
A39-12R/30LPCR VALUE: 605/R/C/W/T
A81-APTWHEN ATCT CLSD LGTS ON CONSLY.
E147TPA FIXED WING 1218 FT AGL, JET 1718 FT AGL, ROTORCRAFT 718 FT AGL.
MESA GATEWAY (ICAO: KIWA, IATA: IWA) is a public airport located in PHOENIX, AZ, US.
