iFlightPlanner



...

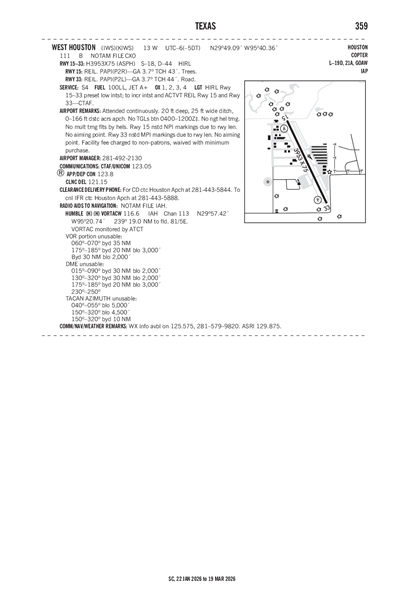

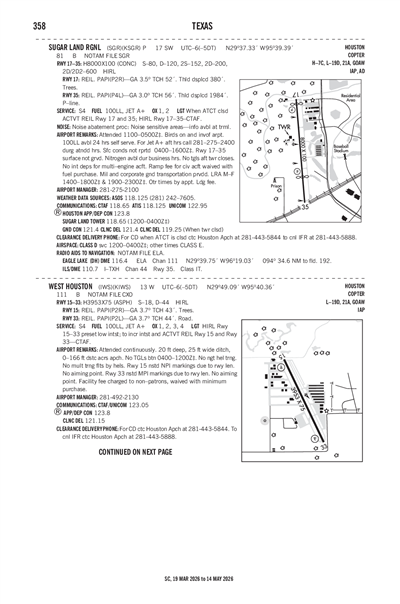

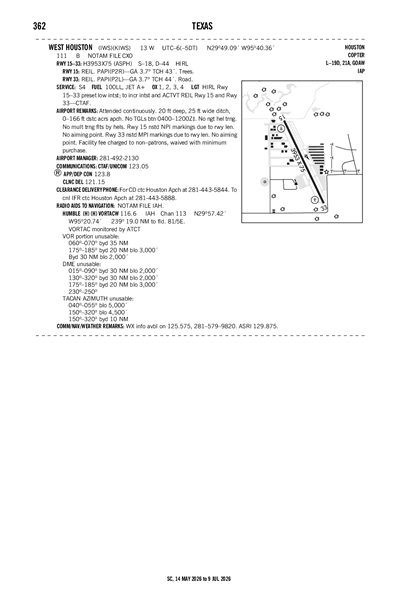

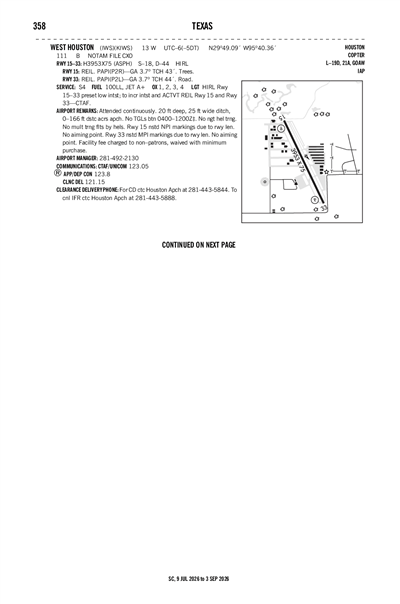

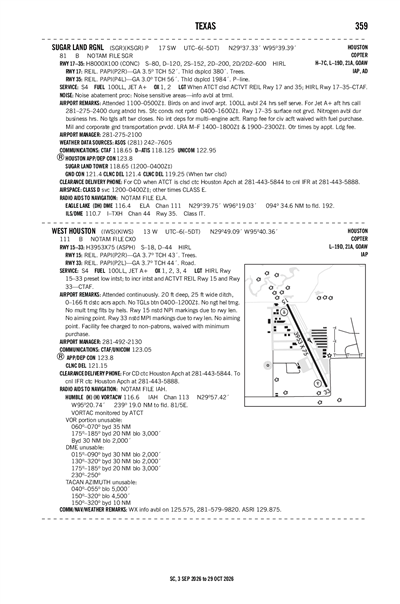

WEST HOUSTON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KIWS
ICAO KIWSIATA IWSLocal IWS
WEST HOUSTON
PublicPUB

13 miles W of HOUSTON, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 49' 05"N 95° 40' 21"W
Elevation
111' MSL
Pattern Alt
1111' MSL
Mag Variation
2°E
Declination
5°E
Fuel
JET A (FSII), 100LL
FSS
MONTGOMERY COUNTY (CXO)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
7/9/26-8/6/26
KSGR (12nm) VFR
7:53 PM CDT
Few 11,000'
10sm
78°F
76°F
30.04"Hg
130° 8kts
AO2 RAE18 SLP172 P0001 T02560244
METAR KSGR 140053Z 13008KT 10SM FEW110 26/24 A3004 RMK AO2 RAE18 SLP172 P0001 T02560244
+ Add Your Business

KIWS FBOs

Promote Listing
West Houston Airport
UNICOM: 123.05
Phone: (281) 492-2130
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 7/13
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.98 6.06
Fuel Notes
Prices include tax

KIWS Aircraft Service & Maintenance

Promote Listing
General Avionics Inc.
Phone: (281) 647-9600
Fax: (281) 647-9899
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.05
DUSK-DAWN. HIRL RWY 15/33 PRESET LOW INTST; TO INCR INTST & ACTVT REIL RWYS 15 & 33 - CTAF.
UNICOM 123.05

Clearance

Clearance Delivery 121.15

Arrival

BLUBELL STAR 124.225
CESAN STAR 121.3
HUDZY STAR 120.05
OHIIO STAR 120.05
SNDAY RNAV STAR 124.225
TKNIQ STAR 119.625
TSHIRT STAR 119.175
TSHRT STAR 119.175
WAPPL STAR 120.05

Approach

HOUSTON APPROACH 123.8

Departure

ALEXANDRIA DP 123.8
BLTWY RNAV DP 123.8
BORRN RNAV DP 123.8
CRIED DP 123.8
DREMR DP 123.8
EL DORADO DP 123.8
GIFFA DP 123.8
HOODO RNAV DP 123.8
HOUSTON DEPARTURE 123.8
INDIE RNAV DP 123.8
KARRR RNAV DP 123.8
LEONA DP 123.8
LUFKIN DP 123.8
LURIC DP 123.8
MMALT RNAV DP 123.8
STRYA DP 123.8
STYCK DP 123.8
WATFO DP 123.8
WYLSN RNAV DP 123.8

Terminal Area Forecast

KSGR (12nm)
Mon, 7/13 6:22 PM CDT
Mon, 7/13 7:00 PM CDT - Tue, 7/14 7:00 PM CDT
VFR
7:00 PM CDT - 9:00 PM CDT
Showers in vicinity
Broken 15,000'
Few 12,000'
6sm
VRB° 4kts
VFR
9:00 PM CDT - 5:00 AM CDT
Broken 3,500'
Scattered 2,500'
6sm
VRB° 2kts
VFR
5:00 AM CDT - 7:00 AM CDT
Thunderstorm in vicinity
Broken 3,500'
Scattered 2,000'
6sm
VRB° 3kts
MVFR
Temporary 7:00 AM CDT - 11:00 AM CDT
Thunderstorm and Rain
Overcast 1,500'
3sm
Calm
MVFR
7:00 AM CDT - 3:00 PM CDT
Showers and Rain and Thunderstorm in vicinity
Broken 2,000'
Scattered 1,500'
5sm
130° 5kts
VFR
3:00 PM CDT - 5:00 PM CDT
Showers and Rain and Mist
Overcast 4,000'
Scattered 2,500'
6sm
140° 7kts
VFR
5:00 PM CDT - 7:00 PM CDT
Overcast 10,000'
Scattered 3,000'
6sm
150° 7kts
TAF KSGR 132322Z 1400/1424 VRB04KT P6SM VCSH FEW120 BKN150
   FM140200 VRB02KT P6SM SCT025 BKN035
   FM141000 VRB03KT P6SM VCTS SCT020 BKN035CB
   FM141200 13005KT 5SM SHRA VCTS SCT015 BKN020CB
   TEMPO 1412/1416 3SM TSRA OVC015CB
   FM142000 14007KT 6SM SHRA BR SCT025 OVC040
   FM142200 15007KT P6SM SCT030 OVC100
KIWS
EffectiveExpiresCategoryNOTAM
Domestic
7/13/26
2046Z
8/27/26
2046Z
!CXO 07/288 IWS OBST TOWER LGT (ASR 1010632) 295424.00N0953733.00W (5.8NM NNE IWS) 434.7FT (304.8FT AGL) U/S 2607132046-2608272046
7/13/26
1755Z
7/28/26
1755Z
!CXO 07/281 IWS OBST POWER LINE LGT (ASN 2017-ASW-4117-OE) 294949N0954539W (4.7NM W IWS) 346FT (210FT AGL) U/S 2607131755-2607281755
7/5/26
0205Z
10/3/26
0205Z
!CXO 07/078 IWS OBST TOWER LGT (ASR 1266080) 294719.30N0954010.80W (1.8NM S IWS) 234.9FT (134.8FT AGL) U/S 2607050205-2610030205
6/30/26
0550Z
9/28/26
0550Z
!CXO 06/607 IWS OBST TOWER LGT (ASR 1049016) 294736.90N0953130.30W (7.9NM E IWS) 370.1FT (293.0FT AGL) U/S 2606300550-2609280550
5/26/26
1303Z
8/26/26
2359Z
!CXO 05/670 IWS OBST TOWER LGT (ASR 1274468) 294341.60N0953615.90W (6.4NM SSE IWS) 405.8FT (329.7FT AGL) U/S 2605261303-2608262359
3/7/26
1242Z
10/31/26
2337Z
!CXO 03/084 IWS AIRSPACE SEE ZHU 03/083 UAS DLY SR-SS
2603071242-2610312337
3/6/26
1243Z
10/31/26
2337Z
!CXO 03/061 IWS AIRSPACE SEE IAH 03/066 UAS DLY SR-SS
2603061243-2610312337
3/6/26
1243Z
10/31/26
2337Z
!CXO 03/057 IWS AIRSPACE SEE IAH 03/064 UAS DLY SR-SS
2603061243-2610312337
FDC
7/2/26
2032Z
9/1/26
2032Z
!FDC 6/2773 IWS SID WEST HOUSTON, HOUSTON, TX.
GIFFA ONE DEPARTURE...
DEPARTURE PROCEDURE DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LOA VORTAC OUT OF SERVICE. 2607022032-2609012032EST
7/2/26
2032Z
9/1/26
2032Z
!FDC 6/2751 IWS SID WEST HOUSTON, HOUSTON, TX.
LEONA FOUR DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LOA VORTAC OUT OF SERVICE. 2607022032-2609012032EST
2/13/26
1339Z
!FDC 6/3834 IWS SID WEST HOUSTON, HOUSTON, TX.
CRIED ONE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CQY VOR OUT OF SERVICE. 2602131339-2802141339EST
2/13/26
1339Z
!FDC 6/3821 IWS SID WEST HOUSTON, HOUSTON, TX.
LEONA FOUR DEPARTURE...
BONHAM TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CQY VOR OUT OF SERVICE. 2602131339-2802141339EST
3/12/25
1402Z
!FDC 5/2013 IWS SID WEST HOUSTON, HOUSTON, TX.
KARRR SEVEN DEPARTURE (RNAV)...
CORPUS CHRISTI TRANSITION YOMOM TO CRP VORTAC MOCA 1600.
TRUAX TRANSITION,WWREN TRANSITION KAVCY TO RIIGG MOCA 2100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2503121402-2703121402EST
No
ALL
WEST HOUSTON AIRPORT CORP
BOX 941789
HOUSTON, TX 77094
Phone: 281-492-2130
WOODY LESIKAR
BOX 941789
HOUSTON, TX 77094
Phone: 281-492-2130
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
CXO
--
DUSK-DAWN. HIRL RWY 15/33 PRESET LOW INTST; TO INCR INTST & ACTVT REIL RWYS 15 & 33 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
No
Major
Major
High & Low Pressure
High & Low Pressure
Avionics
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 15/33

3953 ft. x 75 ft.
ASPH
Good
NONE
HIGH

18,000lbs
44,000lbs
--
--
  Runway 15 Runway 33
True Heading 155°335°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 29° 49' 23"N 29° 48' 48"N
Longitude 95° 40' 31"W 95° 40' 12"W
Elevation 110' 109'
Threshold Crossing Height 43 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3.7° 3.7°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-120 FT DEEP, 25 FT WIDE DITCH, 0-166 FT DSTC ACRS APCH.
A110-3NO TGLS BTN 2200-0600.
A110-4NO NGT HEL TRNG.
A110-5NO MULT TRNG FLTS BY HELS.
A110-7WX INFO AVBL ON 125.575, 281-579-9820. ASRI 129.875.
A110-8FOR CD CTC HOUSTON APCH AT 281-443-5844. TO CNL IFR CTC HOUSTON APCH AT 281-443-5888.
A24FACILITY FEE CHARGED TO NON-PATRONS, WAIVED WITH MINIMUM PURCHASE.
A42-15_MARKNSTD NPI MARKINGS DUE TO RWY LEN. NO AIMING POINT.
A42-33_MARKNSTD NPI MARKINGS DUE TO RWY LEN. NO AIMING POINT.
A58-3315 FT ROAD 150 FT EAST OF THR.
A81-APTDUSK-DAWN. HIRL RWY 15/33 PRESET LOW INTST; TO INCR INTST & ACTVT REIL RWYS 15 & 33 - CTAF.
WEST HOUSTON (ICAO: KIWS, IATA: IWS) is a public airport located in HOUSTON, TX, US.
