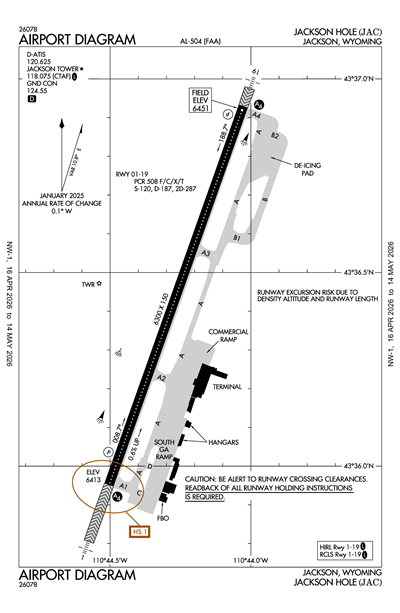

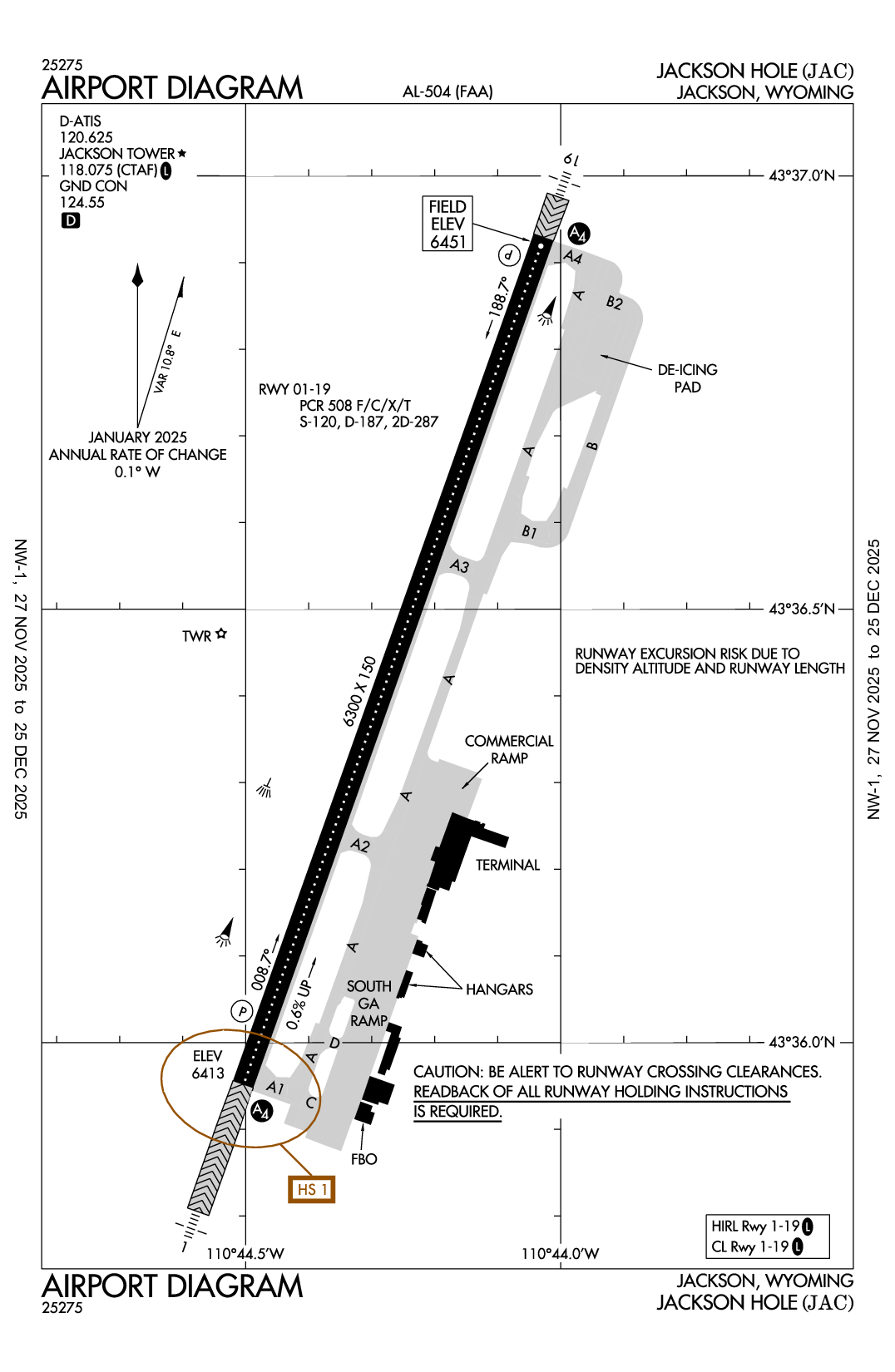

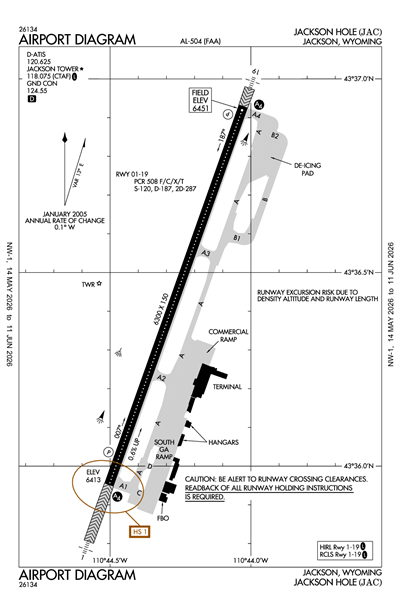

JACKSON HOLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJAC
ICAO KJACIATA JACLocal JAC
JACKSON HOLE
PublicPUB

7 miles N of JACKSON, WY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 36' 26"N 110° 44' 16"W
Elevation
6451' MSL
Pattern Alt
7451' MSL
Mag Variation
11°E
Declination
13°E
Fuel
JET A, 100LL
FSS
CASPER (CPR)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
7/9/26-8/6/26
KJAC VFR
8:56 PM MDT
Clear
10sm
71°F
30°F
30.06"Hg
210° 9kts
AO2 SLP116 T02171011 53002
METAR KJAC 030256Z 21009KT 10SM CLR 22/M01 A3006 RMK AO2 SLP116 T02171011 53002
+ Add Your Business

KJAC FBOs

Promote Listing
Jackson Hole Flight Services
UNICOM: 122.95
Phone: (307) 733-4767
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 7/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.85 9.83 9.91
Fuel Notes
Prices include tax
Fuel Hours
0600-2130 MST
No fuel or ramp access available outside of these hours.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 120.625
(307) 201-5099
AWOS-3PT (307) 739-9108

Common

CTAF 118.075
WHEN ATCT CLSD ACTVT MALS RWY 01 & 19; HIRL RWY 01/19; RCLS RWY 01/19; TWY LGTS; WDI - CTAF.
UNICOM 122.95

Ground

JACKSON GROUND 124.55
0700-2130

Tower

JACKSON TOWER 118.075
0700-2130

Center

SALT LAKE CENTER 133.25
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON FREQS 133.25/285.6 (JACKSON RCAG).

Flight Service

Flight Service 122.2
(CPR)

Terminal Area Forecast

KJAC
Sun, 8/2 5:20 PM MDT
Sun, 8/2 6:00 PM MDT - Mon, 8/3 6:00 PM MDT
VFR
6:00 PM MDT - 8:00 PM MDT
Scattered 25,000'
Few 11,000'
6sm
250° 13kts
Gusts 21kts
VFR
8:00 PM MDT - 10:00 PM MDT
Few 25,000'
6sm
240° 7kts
VFR
10:00 PM MDT - 9:00 AM MDT
Sky Clear
6sm
200° 5kts
VFR
9:00 AM MDT - 1:00 PM MDT
Sky Clear
6sm
230° 8kts
VFR
1:00 PM MDT - 6:00 PM MDT
Sky Clear
6sm
280° 9kts
TAF KJAC 022320Z 0300/0324 25013G21KT P6SM FEW110 SCT250
   FM030200 24007KT P6SM FEW250
   FM030400 20005KT P6SM SKC
   FM031500 23008KT P6SM SKC
   FM031900 28009KT P6SM SKC
KJAC
EffectiveExpiresCategoryNOTAM
Domestic
8/3/26
1215Z
8/6/26
0240Z
!JAC 07/143 JAC AIRSPACE UAS WI AN AREA DEFINED AS 1.5NM RADIUS OF 432204N1104328W (14.4NM SSE JAC) SFC-400FT AGL MON WED SR-SS 2608031215-2608060240
8/2/26
0403Z
8/2/26
1200Z
!JAC 08/006 JAC AD AP SFC COND NOT REP 2608020403-2608021200
8/1/26
1938Z
!JAC 08/004 JAC AD AP RVR ALL U/S 2608011938-2609032000EST
8/1/26
1853Z
Runway!JAC 08/003 JAC RWY 19 RVRT U/S 2608011853-2609042000EST
8/1/26
1853Z
Runway!JAC 08/002 JAC RWY 01 RVRR U/S 2608011853-2609042000EST
7/31/26
1437Z
9/1/26
0559Z
!JAC 07/145 JAC APRON GA RAMP CLSD TO OVERNIGHT PARKING EXC 24HR PPR 307-733-4767 2607311437-2609010559
7/31/26
1212Z
8/4/26
0243Z
!JAC 07/141 JAC AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF 431804N1104726W (13.0NM NE 46U) SFC-400FT AGL FRI MON SR-SS 2607311212-2608040243
7/31/26
1211Z
8/4/26
0242Z
!JAC 07/140 JAC AIRSPACE UAS WI AN AREA DEFINED AS 2.5NM RADIUS OF 431820N1103959W (17.9NM NE 46U) SFC-400FT AGL FRI MON SR-SS 2607311211-2608040242
7/15/26
1400Z
10/2/26
0400Z
!JAC 07/041 JAC TWY B2 NONMOVEMENT AREA W SIDE BDRY MARKINGS REMOVED 2607151400-2610020400
7/1/26
1245Z
9/30/26
1300Z
!JAC 06/150 JAC SVC TWR OPN PLUS SEE CHART SUPPLEMENT DLY 1245-1300 2607011245-2609301300
6/26/26
1024Z
Runway!JAC 06/109 JAC RWY 01 RVRT U/S 2606261024-2706252000EST
6/26/26
1023Z
Runway!JAC 06/108 JAC RWY 19 RVRR U/S 2606261023-2706252000EST
6/23/26
2344Z
8/23/26
0200Z
!JAC 06/099 JAC TWY A BTN TWY A3 AND TWY A4 WIP CONST ADJ EAST SIDE ACFT TAXI SPEED LESS THAN 9 KNOTS 2606232344-2608230200
5/27/26
1517Z
8/5/26
1200Z
!JAC 05/102 JAC APRON DEICE PAD S 400FT CLSD CENTER AND SOUTH DEICE SPOT 2605271517-2608051200
5/4/26
1935Z
8/23/26
0200Z
!JAC 05/007 JAC TWY B, B1 CLSD 2605041935-2608230200
5/4/26
1500Z
8/23/26
0200Z
!JAC 04/305 JAC OBST RIG (ASN UNKNOWN) 433625N1104406W (0.1NM E APCH END RWY 19)
UNKNOWN (20FT AGL) FLAGGED 2605041500-2608230200
4/27/26
1748Z
12/1/26
0300Z
!JAC 04/306 JAC OBST STACK (ASN UNKNOWN) 433547N1104425W (0.2NM SE APCH END RWY 01)
UNKNOWN (30FT AGL) FLAGGED AND LGTD 2604271748-2612010300
4/27/26
1704Z
11/30/26
1300Z
!JAC 04/301 JAC OBST RIG (ASN UNKNOWN) 433547N1104422W (0.2NM SE APCH END RWY 01)
UNKNOWN (40FT AGL) FLAGGED AND LGTD 2604271704-2611301300
4/27/26
1655Z
12/1/26
0300Z
!JAC 04/298 JAC AD AP ALL SFC WIP CONST SE SIDE 0.2NM APCH END RWY 01 2604271655-2612010300
12/25/25
1239Z
12/31/26
2000Z
Runway!JAC 12/790 JAC RWY 01/19 SAFETY AREA LGT NOT STD 2512251239-2612312000
8/26/25
1306Z
9/1/26
1800Z
!JAC 08/095 JAC OBST STACK (ASN UNKNOWN) 433641N1104358W (0.25NM SE APCH END RWY 19)
UNKNOWN (10FT AGL) FLAGGED 2508261306-2609011800
8/26/25
1305Z
9/1/26
1800Z
!JAC 08/094 JAC OBST STACK (ASN UNKNOWN) 433634N1104402W (0.35NM SSE JAC)
UNKNOWN (10FT AGL) FLAGGED AND LGTD 2508261305-2609011800
FDC
6/25/26
1541Z
!FDC 6/0750 JAC ODP JACKSON HOLE, JACKSON, WY.
TETON THREE DEPARTURE ...
DEPARTURE PROCEDURE.
TAKEOFF MINIMUMS: RWY 19: STANDARD WITH MINIMUM CLIMB OF 335 FT/NM TO 14000, OR 4500-5 FOR VCOA.
TAKEOFF OBSTACLE NOTES: RWY 19: VEGETATION 43 FT FROM DER, 406 FT RIGHT OF CENTERLINE, 4 FT AGL/6415 FT MSL.
VEHICLE ON ROAD 367 FT FROM DER, 576 FT RIGHT OF CENTERLINE, 6423 FT MSL.
VEHICLE ON ROAD 470 FT FROM DER, 537 FT RIGHT OF CENTERLINE, 6425 FT MSL.
TREE 732 FT FROM DER, 512 FT RIGHT OF CENTERLINE, 6438 FT MSL.
TREES BEGINNING 799 FT FROM DER, 609 FT RIGHT OF CENTERLINE, UP TO 6443 FT MSL.
TREE 1077 FT FROM DER, 594 FT RIGHT OF CENTERLINE, 6444 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2606251541-2806261541EST
5/19/26
0349Z
!FDC 6/1379 JAC IAP JACKSON HOLE, JACKSON, WY.
VOR RWY 1, AMDT 1...
PROCEDURE NA.
2605190349-2612292355EST
2/13/26
1508Z
!FDC 6/3985 JAC IAP JACKSON HOLE, JACKSON, WY.
RNAV (RNP) Z RWY 1, AMDT 1...
RNP 0.11 DA* 6843/HAT 412 ALL CATS. RNP 0.30 DA 7060/HAT 629, VIS 1 1/2 ALL CATS. CHANGE MISSED APPROACH INSTRUCTIONS TO READ: *MISSED APPROACH REQUIRES MINIMUM CLIMB OF 425 FEET PER NM TO 8200; IF UNABLE TO MEET CLIMB GRADIENT, SEE RNAV (RNP) Y RWY 1. DISREGARD NOTE: INOP TABLE DOES NOT APPLY TO RNP 0.11* ALL CATS VISIBILITY. CHANGE NOTE TO READ: FOR INOP ALS, INCREASE RNP 0.11* TO 1 1/8 SM AND RNP 0.30* ALL CATS VISIBILITY TO 1 3/8 SM.
2602131508-2609251508EST
2/10/26
0325Z
!FDC 6/1725 JAC IAP JACKSON HOLE, JACKSON, WY.
RNAV (GPS) X RWY 1, AMDT 2...
LPV DA 7462/HAT 1031 ALL CATS.
LNAV/VNAV 7341/HAT 910 ALL CATS.
2602100325-2609220325EST
2/10/26
0325Z
!FDC 6/1723 JAC IAP JACKSON HOLE, JACKSON, WY.
RNAV (RNP) X RWY 19, ORIG...
RNP 0.30 DA 7885/HAT 1434, VIS 5 ALL CATS.
RNP 0.30 DA# 7361/HAT 910 ALL CATS, VIS 4 ALL CATS.
CHANGE MISSED APPROACH INSTRUCTIONS FOR TO READ: #MISSED APPROACH REQUIRES MINIMUM CLIMB OF 272 FEET PER NM TO 11600.
2602100325-2609220325EST
4/15/25
1402Z
!FDC 5/6429 JAC IAP JACKSON HOLE, JACKSON, WY.
ILS Z OR LOC Z RWY 19, AMDT 2...
S-ILS 19* DA 6818/HAT 367.
S-LOC 19# MDA 7040/HAT 589 ALL CATS.
CIRCLING CAT A/B MDA 7040/HAA 589 VIS 1.
2504151402-2704151402EST
4/10/25
2014Z
!FDC 5/5084 JAC IAP JACKSON HOLE, JACKSON, WY.
RNAV (GPS) Z RWY 19, AMDT 3A...
LNAV 19 MDA 7300/HAT 849 ALL CATS.
CIRCLING CATS A/B MDA 7300/HAA 849. VIS CAT A 1 1/4.
2504102014-2704102014EST
Yes
0700-2130
JACKSON HOLE AIRPORT BOARD
P. O. BOX 159
JACKSON, WY 83001
Phone: 307-733-7682
JIM ELWOOD
P. O. BOX 159
JACKSON, WY 83001
Phone: (307) 733-7695
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
JAC
--
WHEN ATCT CLSD ACTVT MALS RWY 01 & 19; HIRL RWY 01/19; RCLS RWY 01/19; TWY LGTS; WDI - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
High Pressure
None
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 01/19

6300 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
187,000lbs
287,000lbs
--
  Runway 01 Runway 19
True Heading 20°200°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 43° 35' 57"N 43° 36' 56"N
Longitude 110° 44' 30"W 110° 44' 02"W
Elevation 6,413' 6,451'
Threshold Crossing Height 50 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALS MALS
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A11LEASED FROM U S PARK SERVICE.
A110-135'-53' TREES 700'-800' WEST OF THR RY 01.
A110-10PAVED 950X200 FT SAFETY AREA AT THE DEP END OF RWY 19; NOT USBL FOR PER CALCULATIONS; PLOWED & BROOMED DURG WINTER.
A110-11DEICING PAD LOCATED AT NORTH END OF TWY A.
A110-12COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -21C.
A110-13FOR CD IF UNA TO CTC ON FSS FREQ, CTC JAC TWR GND AT 124.55 DURG NML OPRG HRS. OUTSIDE OF NML OPRG HRS, CTC SALT LAKE ARTCC AT 801-320-2568.
A110-14ACFT PUSHING BACK FM TRML CAUSE CGSTN, MAKING A2 UNAVBL. COORD RWY EXITS WITH TWR.
A110-15ALL MOVEMENT AREA SFCS AVBL FOR AIR CARRIER OPS.
A110-2NOISE ABATEMENT PROCEDURES IN EFFECT FOR ACFT DEPARTURES ON RWY 19.
A110-3SAGE GROUSE ON & INVOF ARPT APR THRU OCT.
A110-5POSSIBLE SEVERE WINTER CONDITIONS FROM NOV-APR; NO ARPT INFO OR SNOW REMOVAL GUARANTEED DURING HOURS OF NON ATTENDANCE. 307-733-7682
A110-6HANG GLIDING OPNS 9 MILES S OF ARPT NEAR SKI ARE & 9 MILES SSW OF ARPT ALONG THE RIDGE.
A110-7BALLOON OPERATIONS IN VICINITY OF AIRPORT, W AND SW, MAY-OCT.
A110-8FOR PUBLIC HEALTH & SAFETY FLIGHTS, CONTACT AMGR @ 307-733-7682.
A110-9ACFT THAT FAIL TO TOUCH DOWN WITHIN THE FIRST THIRD OF RY 01/19 SOMETIMES FAIL TO STOP ON THE RY AND ARE AT RISK FOR A RY EXCURSION.
A39-01/19PCR VALUE: 508/F/C/X/T
A81-APTWHEN ATCT CLSD ACTVT MALS RWY 01 & 19; HIRL RWY 01/19; RCLS RWY 01/19; TWY LGTS; WDI - CTAF.
JACKSON HOLE (ICAO: KJAC, IATA: JAC) is a public airport located in JACKSON, WY, US.
