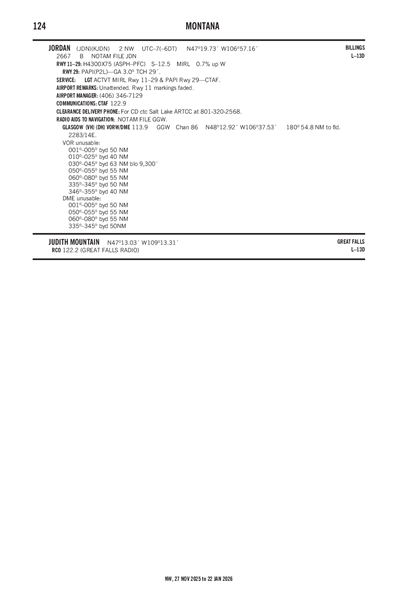

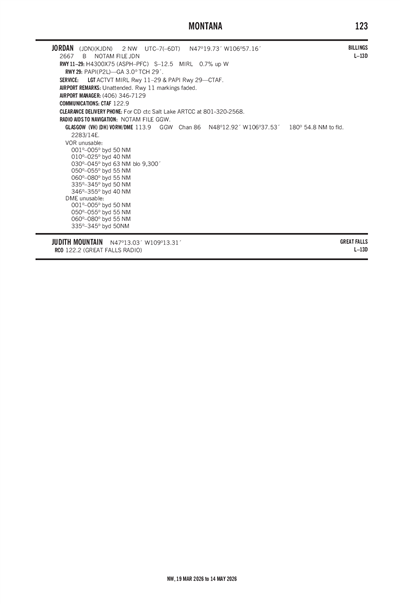

JORDAN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJDN
ICAO KJDNIATA JDNLocal JDN
JORDAN
PublicPUB

2 miles NW of JORDAN, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 19' 43"N 106° 57' 10"W
Elevation
2667' MSL
Pattern Alt
3667' MSL
Mag Variation
10°E
Declination
14°E
Fuel
None Listed
FSS
GREAT FALLS (GTF)
Sectional
BILLINGS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
5/14/26-6/11/26
KJDN VFR
2:48 PM MDT
No Clouds
N/A
70°F
51°F
29.86"Hg
VRB° 4kts
AO1 SLP112 60001 T02110106 58013
METAR KJDN 042048Z AUTO VRB04KT 21/11 A2986 RMK AO1 SLP112 60001 T02110106 58013
+ Add Your Business

KJDN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RWY 11/29 & PAPI RWY 29 - CTAF.

FAA A/FD Pages

Terminal Area Forecast

KGGW (55nm)
Thu, 6/4 11:27 AM MDT
Thu, 6/4 12:00 PM MDT - Fri, 6/5 12:00 PM MDT
VFR
12:00 PM MDT - 2:00 PM MDT
Scattered 8,000'
6sm
230° 7kts
VFR
Temporary 12:00 PM MDT - 2:00 PM MDT
Light Thunderstorm and Rain
Overcast 4,500'
6sm
Calm
VFR
2:00 PM MDT - 4:00 PM MDT
Broken 7,000'
6sm
240° 9kts
VFR
Temporary 2:00 PM MDT - 4:00 PM MDT
Light Thunderstorm and Rain
Overcast 4,500'
6sm
VRB° 20kts
Gusts 30kts
VFR
4:00 PM MDT - 10:00 PM MDT
Broken 7,000'
6sm
230° 8kts
VFR
4:00 PM MDT - 10:00 PM MDT
Light Thunderstorm and Rain
Overcast 4,500'
6sm
VRB° 20kts
Gusts 30kts
VFR
10:00 PM MDT - 12:00 PM MDT
Few 6,000'
6sm
VRB° 6kts
TAF KGGW 041727Z 0418/0518 23007KT P6SM SCT080
   TEMPO 0418/0420 6SM -TSRA OVC045CB
   FM042000 24009KT P6SM BKN070
   TEMPO 0420/0422 VRB20G30KT 6SM -TSRA OVC045CB
   FM042200 23008KT P6SM BKN070
   PROB30 0422/0504 VRB20G30KT 6SM -TSRA OVC045CB
   FM050400 VRB06KT P6SM FEW060
KJDN
No NOTAM Available
No
UNATNDD
GARFIELD COUNTY
PO BOX 7
JORDAN, MT 59337
Phone: (406) 557-2760
BRIAN SCHWEND
P.O BOX 45
JORDAN, MT 59337
Phone: (406) 346-7129
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
JDN
--
ACTVT MIRL RWY 11/29 & PAPI RWY 29 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting

Runway 11/29

4300 ft. x 75 ft.
ASPH
Fair
PFC
MED

12,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 115°295°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 47° 19' 53"N 47° 19' 34"N
Longitude 106° 57' 38"W 106° 56' 41"W
Elevation 2,666' 2,638'
Threshold Crossing Height -- 29 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A42-11_CONDRWY MARKINGS FADED.
A58-11+10 FT RISING TRRN 100 FT LEFT PARALLEL TO RWY CNTRLN.
A81-APTACTVT MIRL RWY 11/29 & PAPI RWY 29 - CTAF.
JORDAN (ICAO: KJDN, IATA: JDN) is a public airport located in JORDAN, MT, US.
