iFlightPlanner



...

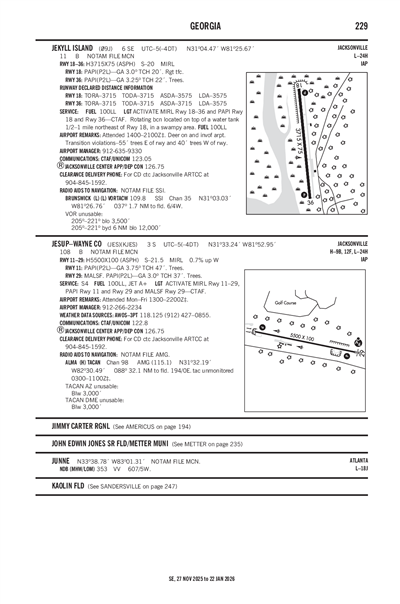

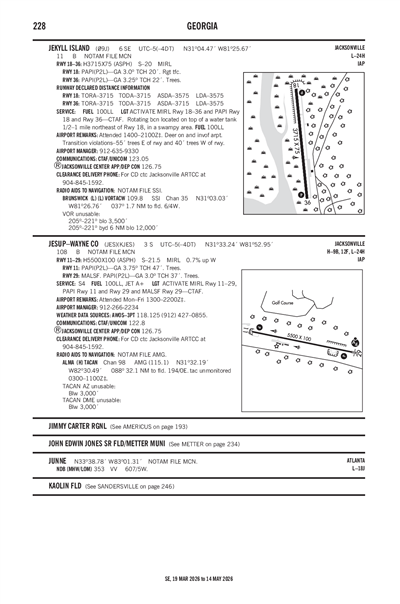

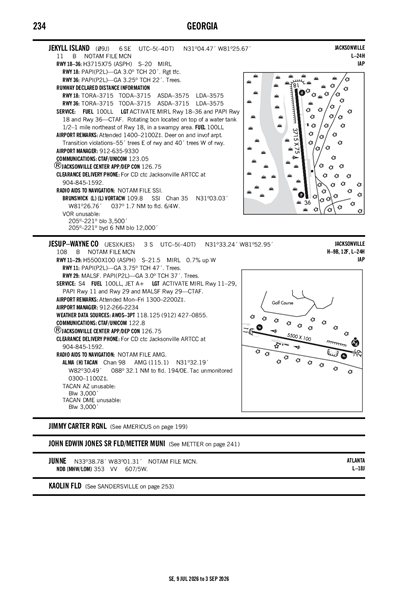

JESUP-WAYNE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJES
JESUP-WAYNE COUNTY
PublicPUB

3 miles S of JESUP, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 33' 14"N 81° 52' 57"W
107' MSL
1107' MSL
04W
Jet A+, 100LL
MACON (MCN)
JACKSONVILLE
JACKSONVILLE (ZJX)
4/18/24-5/16/24
KJES VFR
10:55 AM EDT
Clear
10sm
77°F
61°F
30.18"Hg
Calm
AO2
KJES 251455Z AUTO 00000KT 10SM CLR 25/16 A3018 RMK AO2
List Your Business

KJES FBOs, Flight Schools and Ground Support

Promote Listing
SutAir Flying Service
Freq: 122.8
Phone: (912) 427-5949
Other: (912) 266-2234
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/15
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.75 5.75
Full Serve

KJES Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KJES Hotels

No hotels are listed for this airport.

KJES Restaurants

No restaurants are listed for this airport.

KJES Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
912 427 0855
 118.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSSI (35nm)
Thu, 4/25 7:20 AM EDT
Thu, 4/25 8:00 AM EDT - Fri, 4/26 8:00 AM EDT
VFR
8:00 AM EDT - 9:00 AM EDT
Few 6,000'
6sm
240° 8kts
VFR
9:00 AM EDT - 2:00 PM EDT
Scattered 6,000'
6sm
280° 8kts
VFR
2:00 PM EDT - 8:00 PM EDT
Scattered 6,000'
6sm
130° 11kts
VFR
8:00 PM EDT - 4:00 AM EDT
Broken 6,000'
6sm
140° 7kts
VFR
4:00 AM EDT - 8:00 AM EDT
Scattered 6,000'
6sm
110° 4kts
KSSI 251120Z 2512/2612 24008KT P6SM FEW060
   FM251300 28008KT P6SM SCT060
   FM251800 13011KT P6SM SCT060
   FM260000 14007KT P6SM BKN060
   FM260800 11004KT P6SM SCT060
KJES
Domestic
4/23/240036Z !MCN 04/712 JES OBST TOWER LGT (ASR 1013874) 314639.20N0814909.40W (13.9NM NNE JES) 416.0FT (344.2FT AGL) U/S 2404230036-2405221700
4/20/241606Z !MCN 04/647 JES OBST TOWER LGT (ASR 1280468) 312922.70N0814441.60W (7.9NM ESE JES) 338.9FT (259.8FT AGL) U/S 2404201606-2407190400
4/10/240507Z !MCN 04/248 JES OBST TOWER LGT (ASR 1013487) 313509.60N0815119.80W (2.4NM NE JES) 479.7FT (420.9FT AGL) U/S 2404100507-2405100001
3/31/240857Z !MCN 03/881 JES OBST TOWER LGT (ASR 1249081) 314109.80N0820602.30W (13.5NM NW JES) 564.6FT (404.9FT AGL) U/S 2403310857-2404300001
3/26/241440Z !MCN 03/694 JES OBST TOWER LGT (ASR 1061615) 312807.00N0820156.00W (9.4NM SW JES) 462.3FT (347.1FT AGL) U/S 2403261440-2404261200
3/18/242341Z !MCN 03/440 JES OBST TOWER LGT (ASR 1020426) 313839.00N0815423.00W (5.5NM NNW JES) 360.9FT (250.0FT AGL) U/S 2403182341-2405312359
1/1/240535Z !MCN 01/011 JES RWY 29 PAPI U/S 2401010535-2409302359
1/1/240534Z !MCN 01/010 JES RWY 11 PAPI U/S 2401010534-2409302359
No
MON-FRI 0800-1700
WAYNE COUNTY
PO BOX 270
JESUP, GA 31598
Phone: 912-427-5900
MITCH SUTTON
535 AIRPORT ROAD
JESUP, GA 31546
Phone: 912-266-2234
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT MIRL RY 11/29; PAPI RY 11; PAPI RY 29 & MALSF RY 29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
1
0
0
0
0
Major
Major
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 11/29

5500 ft. x 100 ft.
ASPH
Good
NONE
MED

22,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 99°279°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 31° 33' 19"N 31° 33' 10"N
Longitude 81° 53' 28"W 81° 52' 26"W
Elevation 107' 70'
Threshold Crossing Height 47 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3.75° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC JACKSONVILLE ARTCC AT 904-845-1592.
JESUP-WAYNE COUNTY (ICAO: KJES, IATA: JES) is a public airport located in JESUP, GA.
