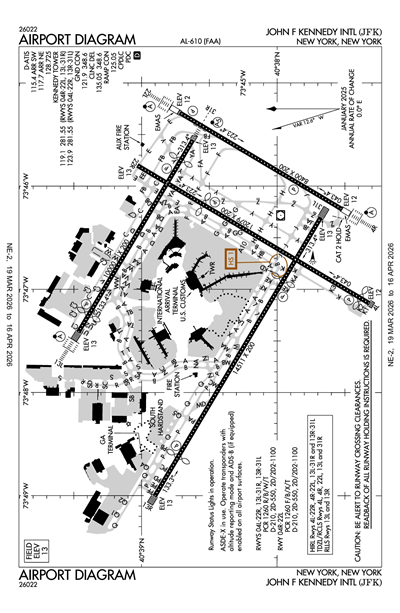

JOHN F KENNEDY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJFK
JOHN F KENNEDY INTL
PublicPUB

13 miles SE of NEW YORK, NY
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 38' 24"N 73° 46' 43"W
13' MSL
1013' MSL
13° W (2020)
Jet A, 100LL
NEW YORK (ISP)
NEW YORK
NEW YORK (ZNY)
7/16/20-8/13/20
KJFK VFR
5:51 AM EDT
Scattered 12,000'
Few 6,000'
10sm
70°F
69°F
29.96"Hg
190° 5kts
AO2 SLP144 T02110206 $
KJFK 050951Z 19005KT 10SM FEW060 SCT120 21/21 A2996 RMK AO2 SLP144 T02110206 $

KJFK FBOs, Flight Schools and Ground Support

Sheltair
Freq: 122.950
Phone: (347) 566-6620
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
Fuel as of 7/22 100LL SS-- 100LL FS$6.82 Jet A-- Jet A+$6.37 MoGas--

KJFK Ground Transportation (Taxi, Limo, Car Service)

Bermuda Limousine International
Phone: (212) 647-8400
Fax: (212) 633-2685
No Rating Available
0 Reviews (Read | Sign In To Write)

KJFK Hotels

No hotels are listed for this airport.

KJFK Restaurants

No restaurants are listed for this airport.

KJFK Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.950 N/A

ATIS

D-ATIS
ARR-SW
115.400
D-ATIS
ARR-NE
117.700
D-ATIS
ARR/DEP
128.725

ASOS

ASOS
718-656-0956
128.725

Approach

APCH/P
125.700

Clearance Delivery

CD PRE TAXI CLNC
135.050

Emergency

EMERG
121.500

Ground

GND/P
121.900
GND/S
121.650

Tower

LCL/P
RWY 04R/22L, 13L/31R
119.100
LCL/P
RWY 04L/22R, 13R/31L
123.900

Other

CLASS B
FREQS 2000 FT & BLW W/N 8 NM ARE TWR
125.250
PARCH STAR
125.700
RAMP CTL
125.050
ROBER STAR
125.700

Terminal Area Forecast

KJFK
Wed, 8/5 4:43 AM EDT
Wed, 8/5 5:00 AM EDT - Thu, 8/6 8:00 AM EDT
VFR
5:00 AM EDT - 2:00 PM EDT
Scattered 4,000'
> 6sm
N/A
200° 8kts
VFR
2:00 PM EDT - 8:00 PM EDT
Few 6,000'
> 6sm
N/A
210° 9kts
Gusts 15kts
VFR
8:00 PM EDT - 10:00 PM EDT
Few 6,000'
> 6sm
N/A
210° 8kts
VFR
10:00 PM EDT - 12:00 AM EDT
Few 6,000'
> 6sm
N/A
250° 6kts
VFR
12:00 AM EDT - 2:00 AM EDT
Few 6,000'
> 6sm
N/A
280° 4kts
VFR
2:00 AM EDT - 4:00 AM EDT
Few 10,000'
Few 6,000'
> 6sm
N/A
310° 4kts
VFR
4:00 AM EDT - 8:00 AM EDT
Scattered 10,000'
Few 6,000'
> 6sm
N/A
350° 4kts
KJFK 050843Z 0509/0612 20008KT P6SM SCT040
   FM051800 21009G15KT P6SM FEW060
   FM060000 21008KT P6SM FEW060
   FM060200 25006KT P6SM FEW060
   FM060400 28004KT P6SM FEW060
   FM060600 31004KT P6SM FEW060 FEW100
   FM060800 35004KT P6SM FEW060 SCT100
KJFK NOTAMs
Domestic
8/6/202330Z !JFK 08/066 JFK AIRSPACE SEE FDC 0/8476 ZNY, FDC 0/8479 ZBW 91.141
VIP TFR 2008062330-2008070045
8/5/201100Z !JFK 08/057 JFK TWY B BTN TWY NA AND TWY NB CLSD TO ACFT WINGSPAN MORE THAN 214FT 2008051100-2008051900
8/5/200937Z !JFK 08/072 JFK NAV ILS RWY 04R CAT II NA 2008050937-2008062359
8/5/200936Z !JFK 08/071 JFK RWY 22L RVRR U/S 2008050936-2008062359
8/5/200935Z !JFK 08/070 JFK RWY 04R RVRT U/S 2008050935-2008062359
8/5/200932Z !JFK 08/069 JFK RWY 04R RVRT U/S 2008050932-2008062359
8/5/200924Z !JFK 08/068 JFK RWY 31L RVRR U/S 2008050924-2008062359
8/5/200923Z !JFK 08/067 JFK RWY 13R RVRT U/S 2008050923-2008062359
8/4/201745Z !JFK 08/048 JFK OBST TOWER LGT (ASR 1006554) 404009.30N0734504.70W (2.2NM NE JFK) 131.9FT (106.0FT AGL) U/S 2008041745-2011020400
8/3/201120Z !JFK 08/026 JFK TWY D SFC PAINTED HLDG PSN SIGNS FOR RWY 13L/31R REMOVED 2008031120-2008312300
8/3/201116Z !JFK 08/025 JFK TWY J SFC PAINTED HLDG PSN SIGNS FOR RWY 04L/22R WEST SIDE FADED 2008031116-2008312300
7/31/200508Z !JFK 07/568 JFK TWY Y HLDG PSN SIGN FOR ILS NORTH SIDE FOR RWY 13L/31R LGT U/S 2007310508-2008312300
7/30/201200Z !JFK 07/521 JFK OBST PARKED ACFT (ASN 2020-AEA-1302-NRA) 403933N0734749W (1.4NM NW JFK) 74FT (64FT AGL) U/S DLY 1200-0100 2007301200-2010010100
7/29/201616Z !JFK 07/520 JFK TWY ZA SFC PAINTED HLDG PSN SIGNS FOR RWY 13L/31R SOUTH SIDE REMOVED 2007291616-2008282300
7/29/201556Z !JFK 07/515 JFK TWY W SFC PAINTED HLDG PSN SIGNS FOR RWY 13L/31R SOUTH SIDE REMOVED 2007291556-2008282300
7/20/201512Z !JFK 07/335 JFK APRON HANGARS 345 NORTH RAMP CLSD 2007201512-2012312300
7/16/201219Z !JFK 07/283 JFK TWY DB SFC PAINTED HLDG PSN SIGNS SOUTH SIDE FADED 2007161219-2009010901
7/8/202139Z !JFK 07/150 JFK TWY J CL MARKINGS BTN RWY 04L/22R AND TWY B REMOVED 2007082139-2009251100
6/30/200725Z !JFK 06/628 JFK TWY WW CL MARKINGS BTN RWY 13L/31R AND TWY B FADED 2006300725-2009251100
6/30/200723Z !JFK 06/627 JFK TWY WW SFC PAINTED HLDG PSN SIGNS AT RWY 13L/31R REMOVED 2006300723-2008091100
6/29/201640Z !JFK 06/614 JFK TWY A CL MARKINGS BTN TWY LL AND TWY LA REMOVED 2006291640-2009251100
6/25/201105Z !JFK 06/562 JFK TWY A CLR BAR LGT AT TWY G NOT STD 2006251105-2009261100
6/22/201802Z !JFK 06/497 JFK TWY C3 HLDG PSN MARKINGS FOR ILS NOT STD 2006221802-2009010001
5/8/201233Z !JFK 05/119 JFK RWY 04L RWY END ID LGT U/S 2005081233-2009082111EST
12/25/190916Z !JFK 12/676 JFK TWY C4 DECOMMISSIONED 1912250916-PERM
7/29/191228Z !JFK 07/319 JFK TWY Z BTN RWY 04L/22R AND TWY Y CLSD 1907291228-2010302200
FDC
8/6/201000Z !FDC 0/8219 JFK IAP JOHN F KENNEDY INTL, NEW YORK, NY.
VOR RWY 22L, AMDT 4F...
S-22L MDA 600/HAT 588 ALL CATS. VISIBILITY CATS A/B RVR 5000, CATS
C/D 1 1/4.
VDP AT JFK 2.73 DME, DISTANCE VDP TO THLD 1.63 NM.
CHANGE NOTE: FOR INOP ALS, INCREASE S-22L CAT A/B VISIBILITY TO RVR
5500, TO READ: INOP TABLE DOES NOT APPLY TO CATS A/B.
DISREGARD CEMUG FIX CROSSING ALTITUDE AND RESTRICTIONS IN PLANVIEW
AND PROFILE VIEWS.
TEMPORARY CRANE 295FT MSL 5464FT SOUTHEAST OF RWY 22L
(2020-AEA-5925-OE).
2008061000-2008211000EST
8/6/201000Z !FDC 0/8218 JFK IAP JOHN F KENNEDY INTL, NEW YORK, NY.
RNAV (GPS) Y RWY 31R, AMDT 2C...
LPV DA, 664/HAT 651 ALL CATS. VISIBILITY ALL CATS 1 3/8.
LNAV/VNAV DA 666/HAT 653 ALL CATS. VISIBILITY ALL CATS 1 3/8.
LNAV MDA 600/HAT 587 ALL CATS. VISIBILITY CATS C/D 1 1/4.
VDP AT 1.67 NM TO RW31R.
CHANGE NOTE: FOR INOP ALS INCREASE LNAV/VNAV ALL CATS VISIBILITY TO
RVR 5500, TO READ: FOR INOP ALS INCREASE LPV ALL CATS VISIBILITY TO
1 7/8 SM.
TEMPORARY CRANE 295FT MSL 1.20 NM SOUTHEAST OF RWY 31R
(2020-AEA-5925-OE).
2008061000-2008211000EST
8/6/201000Z !FDC 0/8216 JFK IAP JOHN F KENNEDY INTL, NEW YORK, NY.
RNAV (RNP) Z RWY 31R, AMDT 1B...
RNP 0.30 DA 636/HAT 623 ALL CATS. VISIBILITY ALL CATS 1 3/8.
NOTE: FOR INOPERATIVE ALS, INCREASE ALL CATS VISIBILITY TO 1 3/4
SM.
TEMPORARY CRANE 295FT MSL 1.20 NM SOUTHEAST OF RWY 31R
(2020-AEA-5925-OE).
2008061000-2008211000EST
8/6/201000Z !FDC 0/8215 JFK IAP JOHN F KENNEDY INTL, NEW YORK, NY.
RNAV (RNP) Z RWY 22L, AMDT 1C...
RNP 0.30 DA, 484/HAT 472 ALL CATS. VISIBILITY ALL CATS RVR 5000.
CHANGE NOTE TO READ: FOR INOPERATIVE ALS, INCREASE RNP 0.20 ALL
CATS VISIBILITY TO RVR 5500, INCREASE.RNP 0.30 ALL CATS VISIBILITY
TO 1 3/8 SM.
TEMPORARY CRANE 295FT MSL 5464FT SOUTHEAST OF RWY 22L
(2020-AEA-5925-OE).
2008061000-2008211000EST
8/6/201000Z !FDC 0/8214 JFK IAP JOHN F KENNEDY INTL, NEW YORK, NY.
ILS OR LOC RWY 31R, AMDT 16B...
S-ILS 31R DA, 595/HAT 582 ALL CATS. VISIBILITY ALL CATS 1 1/4.
S-LOC 31R MDA 600/HAT 587 ALL CATS. VISIBILITY CATS C/D 1 1/4.
VDP AT I-RTH 1.30 DME, DISTANCE VDP TO THLD 1.67 NM.
TEMPORARY CRANE 295FT MSL 1.20 NM SOUTHEAST OF RWY 31R
(2020-AEA-5925-OE).
2008061000-2008211000EST
8/6/201000Z !FDC 0/8213 JFK ODP JOHN F KENNEDY INTL, NEW YORK, NY.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 9...
TAKEOFF MINIMUMS: RWY 13L, 300-1 1/4 OR STANDARD WITH MINIMUM CLIMB
OF 446FT PER NM TO 500.
ADD TAKEOFF OBSTACLE NOTE: RWY 13L, TEMPORARY CRANE 5972FT FROM
DER, 746FT LEFT OF CENTERLINE, 290FT AGL/ 295FT MSL
(2020-AEA-5925-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2008061000-2008211000EST
8/5/200352Z !FDC 0/8591 JFK SID JOHN F KENNEDY INTL, New York, NY.
MERIT SIX DEPARTURE...
DEPARTURE PROCEDURE.
PUTNAM TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE
RNAV SYSTEM WITH GPS.
2008050352-2009042359EST
6/12/201342Z !FDC 0/8990 JFK IAP JOHN F KENNEDY INTL, NEW YORK, NY.
ILS OR LOC RWY 4L, AMDT 11D...
AUTO COUPLED APPROACHES NA BELOW 500FT MSL.
2006121342-2206121342EST
5/21/201153Z !FDC 0/2669 JFK IAP JOHN F KENNEDY INTL, NEW YORK, NY.
VOR RWY 31L, ORIG-A...
CIRCLING CATS C/D MDA 680/HAA 667.
2005211153-2201311153EST
5/21/201142Z !FDC 0/2658 JFK IAP JOHN F KENNEDY INTL, NEW YORK, NY.
RNAV (GPS) Y RWY 13R, ORIG-A...
PROCEDURE NA.
2005211142-2012311142EST
5/21/201139Z !FDC 0/2655 JFK IAP JOHN F KENNEDY INTL, NEW YORK, NY.
ILS OR LOC RWY 22R, AMDT 3A...
S-LOC 22R MDA 600/HAT 587 ALL CATS, VISIBILITY CATS C/D 1 3/4.
TEMPORARY CRANE 348FT MSL 4.03 NM NORTHEAST OF RWY 22R
(2019-AEA-12154/12156-OE).
2005211139-2009151139EST
10/22/191130Z !FDC 9/9713 JFK IAP JOHN F KENNEDY INTL, New York, NY.
ILS OR LOC RWY 13L, AMDT 18B...
UXHUB FIX MINIMUMS: CIRCLING CATS C/D MDA 680/HAA 667.
1910221130-2110221130EST
9/20/191400Z !FDC 9/3379 JFK SID JOHN F KENNEDY INTL, New York, NY.
GREKI SIX DEPARTURE...
JUDDS TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV
SYSTEM WITH GPS.
CMK VOR/DME R-057 UNUSABLE. 1909201400-2109201400EST
8/22/191100Z !FDC 9/5926 JFK SPECIAL JOHN F KENNEDY INTL,NEW YORK, NY.
SPECIAL RNAV VISUAL RWY 13L, AMDT 2...
SPECIAL RNAV VISUAL RWY 13R, AMDT 2...
PROCEDURE NA

1908221100-2108221100
1/11/191513Z !FDC 9/3359 JFK VFP JOHN F KENNEDY INTL, New York, NY.
BELMONT VISUAL RWY 22L, ORIG...
PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM
WITH GPS, CRI R-068 UNUSABLE.
1901111513-2101111512EST
1/26/151320Z !FDC 5/6744 JFK STAR KENNEDY INTERNATIONAL, JAMAICA, NY
LENDY ARRIVAL...UNUSABLE BELOW 4000FT 1501261320-PERM
Yes
ALL
PORT AUTHORITY OF NY AND NJ
4 WORLD TRADE CENTER, 150 GREENWICH ST 18TH FLOO
NEW YORK, NY 10006
Phone: 212-435-3640
CHARLES EVERETT
BLDG 14
JAMAICA, NY 11430
Phone: (718) 244-3501
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
JFK
--
--
Clear-Green
Yes - Lighted
No
Yes
Hangar
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
High Pressure
Air Freight
Cargo Handling

Runway 04L/22R

12079 ft. x 200 ft.
CONC
Excellent
GRVD
HIGH
90 /R/B/W/T
0 lbs
210000 lbs
550000 lbs
1100000 lbs
  Runway 04L Runway 22R
Runway Heading 31° 211°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 37' 19"N 40° 39' 02"N
Longitude 73° 47' 08"W 73° 45' 48"W
Elevation 11.9 ft. 12.7 ft.
Threshold Crossing Height 75 ft. AGL 77 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 04R/22L

8400 ft. x 200 ft.
ASPH
Excellent
GRVD
HIGH
90 /F/B/W/T
0 lbs
210000 lbs
550000 lbs
1100000 lbs
  Runway 04R Runway 22L
Runway Heading 31° 211°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 37' 32"N 40° 38' 43"N
Longitude 73° 46' 13"W 73° 45' 18"W
Elevation 11.8 ft. 11.8 ft.
Threshold Crossing Height 69 ft. AGL 66 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 13L/31R

10000 ft. x 200 ft.
CONC
Excellent
GRVD
HIGH
148/R/A/W/T
0 lbs
210000 lbs
550000 lbs
1100000 lbs
  Runway 13L Runway 31R
Runway Heading 121° 301°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 39' 28"N 40° 38' 37"N
Longitude 73° 47' 25"W 73° 45' 33"W
Elevation 13 ft. 12.7 ft.
Threshold Crossing Height 74 ft. AGL 54 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 13R/31L

14511 ft. x 200 ft.
CONC
Excellent
GRVD
HIGH
98 /R/B/W/T
0 lbs
210000 lbs
550000 lbs
1100000 lbs
  Runway 13R Runway 31L
Runway Heading 121° 301°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 38' 54"N 40° 37' 41"N
Longitude 73° 49' 00"W 73° 46' 18"W
Elevation 12.5 ft. 12.5 ft.
Threshold Crossing Height 79 ft. AGL 67 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights RLLS
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-19ASDE-X IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
A110-2FLOCKS OF BIRDS ON & INVOF ARPT.
A110-24CONVERGING OPNS ON RYS 13R AND 22L CONDUCTED VIA ARRIVAL DISTANCE WINDOW.
A110-26METERING PROCEDURES IN EFFECT- CONTACT RAMP CONTROL PRIOR TO PUSHBACK 1200Z-1500Z DAILY/1900Z-0300Z DAILY.
A110-28ACFT OPS & TWY RESTRICTIONS EXIST FOR A380, B747-800, B777-300ER, A340-600 AND A350-1000. PLEASE CTC JFK ARPT OPS FOR MORE INFO.
A110-29GAT HELIPAD NON-STANDARD MARKINGS & LIGHTING.
A110-3RLLS RY 13L USES 1000 FT LGT STN OF THE ALS ONLY WITH CRI VOR APCHS & IS ANGLED TOWARD AQUEDUCT; ALSO 5 SFL FM 1200-2000 FT & A 5 SFL GROUPING APROXLY 1 MI FM RY +1 ADJ FORMING APCH. APCH GATE ANGLED 35 DEGS S OF RY 13L CNTRLN DESIGNED TO PRVD EARLIER IDENT OF RY ENVI.
A110-30RY 13R HAS TWO (2) PAPI - P4L SYSTEMS. ( RY 13R) OFFSET PAPI SUPPORTS VOR OR GPS RWY 13R & PARKWAY VISUAL RY 13R.
A110-31TWY 'A' BTN TWY 'NA' & TWY 'NB' ARCFT SPEED RESTRICTION OF 17KTS/20MPH MAXIMUM FOR A380, B747-800, B747-400, B777-300ER, B777-200, A340, A330, B787, AND A350
A110-32TWY 'H' CL LGTS BTN TERMINAL 4 RAMP AND TWY A OTS.
A110-33TWY 'H' CL LGTS BTN TWY 'A' & RY 4L/22R OTS.
A110-35RY 31R HOLDING POSITION MARKINGS AT RY 4L/22R 'SE' SIDE OBSC.
A110-36RY 13L HOLDING POSITION MARKINGS AT RY 4L/22R 'NW' SIDE OBSC.
A110-37UFN TWY 'D' BTN TWY 'C' AND HANGAR 7 CLOSED.
A110-38OBST BLDG LGT OTS 6.3 NM ESE JFK 222 FT MSL (220 FT AGL).
A110-39NON-STANDARD ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 393 FT IN LENGTH BY 226 FT IN WIDTH LCTD AT THE DER 4R.
A110-4FOR NOISE ABATEMENT RESTRICTIONS CALL 212-435-3747 DURING NORMAL BUSINESS HOURS.
A110-40NON-STANDARD ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 405 FT IN LENGTH BY 226 FT IN WIDTH LCTD AT THE DER 22L.
A110-42RWY STATUS LGTS IN OPS.
A110-43CONTINUOUS TAXIWAY MAINTENANCE ACTIVITIES AT NUMEROUS LOCATIONS
A110-44HIGH VOLUME OF LOW LEVEL VFR TRAFFIC, 500 FT AND BLO, ALONG SHORELINE SOUTH OF JFK.
A110-46TWY NB CLSD TO SB TURNS AT TWY A.
A110-47ACFT ARE NOT PMTD TO STOP ON EITHER TWY A OR B BRIDGES.
A110-48PERIODIC FIRE DEPT TRNG ADJACENT APCH END OF RWYS 22L & 22R.
A110-49TWY Q3 CNTRLN LGTS OTS.
A110-50RWY 31R 1000 FT DIST REMAINING SIGN MISG.
A110-7PARA-SAIL & BANNER TOWING OPNS 1000 FT & BLO IN UPPER & LOWER NEW YORK BAYS INCLUDING ROCKAWAY INLET INDEFLY.
A110-8SPECIAL AIR TFC RULES-PART 93 HIGH DENSITY ARPT. PROR RESERVATION REQUIRED. SEE AERONAUTICAL INFORMATION MANUAL.

View hangar and property listings at KJFK, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

JOHN F KENNEDY INTL (ICAO: KJFK, IATA: JFK) is a public airport located in NEW YORK, NY.
