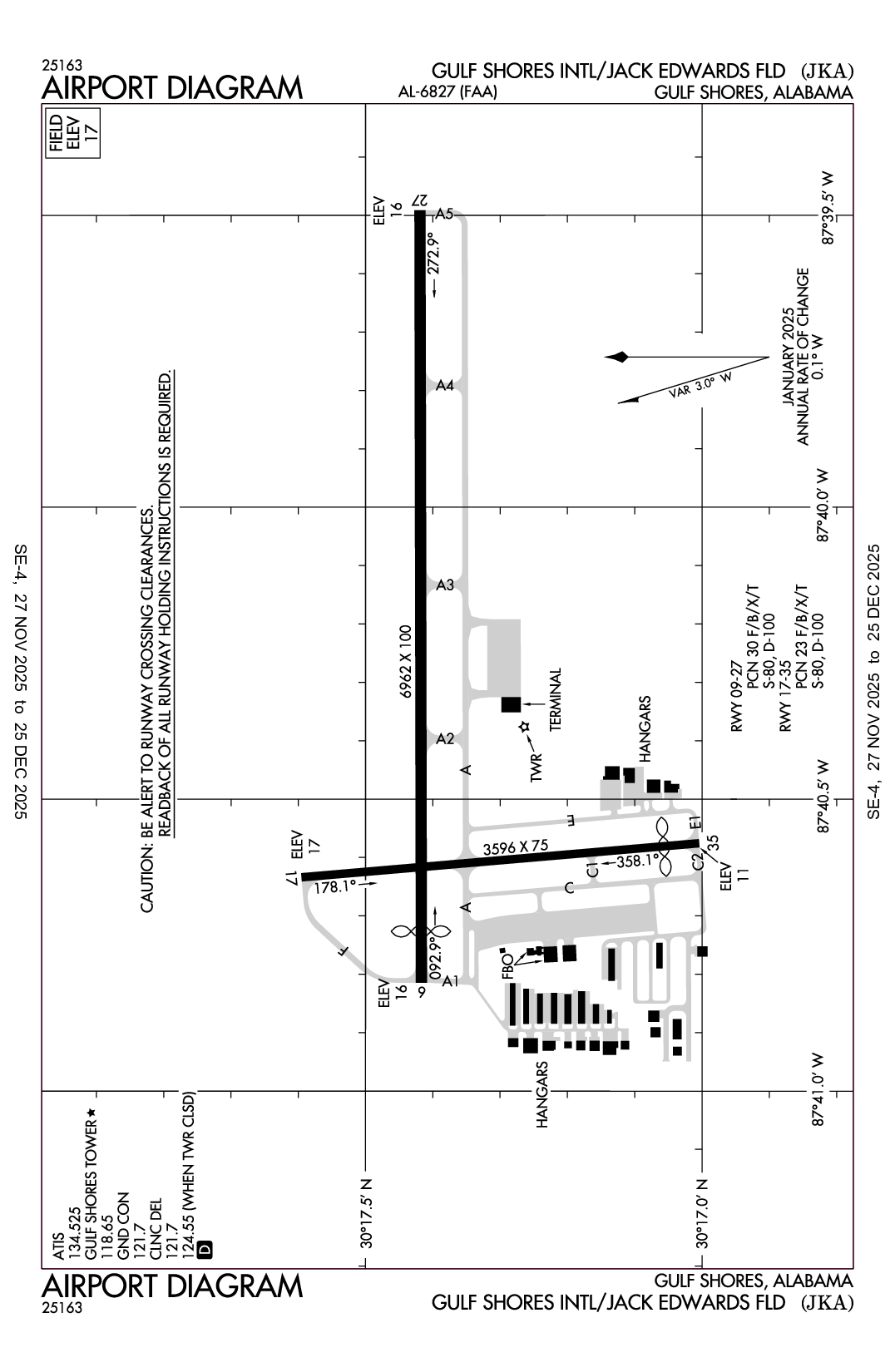

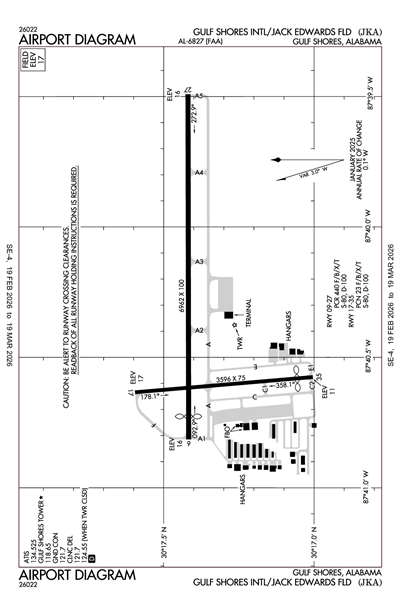

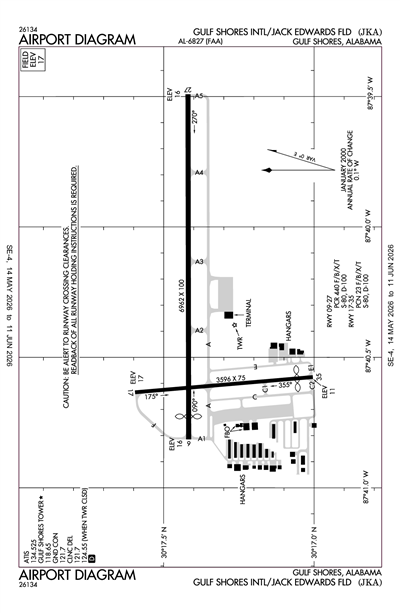

GULF SHORES INTL/JACK EDWARDS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJKA
ICAO KJKAIATA GUFLocal JKA
GULF SHORES INTL/JACK EDWARDS FLD
PublicPUB

2 miles N of GULF SHORES, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 17' 23"N 87° 40' 18"W
Elevation
17' MSL
Pattern Alt
1017' MSL
Mag Variation
3°W
Declination
0°
Fuel
JET A (FSII), 100LL
FSS
ANNISTON (ANB)
Sectional
NEW ORLEANS
ARTCC
JACKSONVILLE (ZJX)
Data Effective
7/9/26-8/6/26
KJKA VFR
10:56 AM CDT
Few 3,700'
Few 2,900'
10sm
91°F
77°F
30.05"Hg
290° 7kts
Gusts 16kts
METAR KJKA 261556Z 29007G16KT 10SM FEW029 FEW037 33/25 A3005
+ Add Your Business

KJKA FBOs

Promote Listing
Gulf Air Center
UNICOM: 129.375
Phone: (251) 968-5200
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 7/21
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.60 8.68 8.78
Fuel Notes
Prices include tax
FSII available on request
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 134.525
(251) 968-7581
AWOS-3PT (251) 923-5615

Common

CTAF 118.65
WHEN ATCT CLSD ACTVT MALSR RWY 27; PAPI RWYS 09, 27, 17 & 35; HIRL RWY 09/27; MIRL RWY 17/35 - CTAF.
UNICOM 122.7
FREQ 122.7 FOR UNICOM USE ONLY.

Clearance

Clearance Delivery 121.7
Clearance Delivery 124.55
WHEN TWR CLSD

Ground

GULF SHORES GROUND 121.7
0700-2100

Tower

GULF SHORES TOWER 118.65
0700-2100

Approach

PENSACOLA APPROACH 120.65

Departure

PENSACOLA DEPARTURE 120.65

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KJKA
Sun, 7/26 6:44 AM CDT
Sun, 7/26 7:00 AM CDT - Mon, 7/27 7:00 AM CDT
VFR
7:00 AM CDT - 12:00 PM CDT
Sky Clear
6sm
290° 7kts
VFR
12:00 PM CDT - 1:00 AM CDT
Scattered 25,000'
Scattered 4,000'
6sm
260° 10kts
MVFR
4:00 PM CDT - 7:00 PM CDT
Thunderstorm and Rain and Mist
Broken 2,500'
3sm
Calm
VFR
1:00 AM CDT - 7:00 AM CDT
Scattered 25,000'
6sm
280° 5kts
TAF KJKA 261144Z 2612/2712 29007KT P6SM SKC
   FM261700 26010KT P6SM SCT040 SCT250
   PROB30 2621/2624 3SM TSRA BR BKN025CB
   FM270600 28005KT P6SM SCT250
KJKA
EffectiveExpiresCategoryNOTAM
Domestic
7/12/26
0140Z
10/10/26
0140Z
!ANB 07/336 JKA OBST TOWER LGT (ASR 1244608) 301508.00N0874907.10W (8.0NM WSW JKA) 174.9FT (165.0FT AGL) U/S 2607120140-2610100140
6/26/26
0221Z
9/24/26
0221Z
!ANB 06/013 JKA OBST TOWER LGT (ASR 1022532) 302051.20N0873743.30W (4.2NM NNE JKA) 442.3FT (408.1FT AGL) U/S 2606260221-2609240221
5/18/26
1244Z
11/30/26
2300Z
Runway!ANB 05/473 JKA RWY 27 PAPI U/S 2605181244-2611302300
3/31/26
2147Z
10/1/26
2200Z
!ANB 03/884 JKA OBST CRANE (ASN 2024-ASO-16982-OE) 301648N0874059W (0.8NM SW JKA) 260FT (250FT AGL) FLAGGED 2603312147-2610012200
3/31/26
1614Z
10/2/26
2359Z
!ANB 03/876 JKA OBST TOWER LGT (ASR 1281651) 301954.90N0873859.00W (2.8NM NNE JKA) 306.1FT (260.2FT AGL) U/S 2603311614-2610022359
FDC
7/22/26
1405Z
8/22/26
1405Z
!FDC 6/7720 JKA IAP GULF SHORES INTL/JACK EDWARDS FLD, GULF SHORES, AL.
ILS OR LOC RWY 27, AMDT 1B...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
NUN VOR OUT OF SERVICE. 2607221405-2608221405EST
5/27/26
1827Z
1/6/27
1827Z
!FDC 6/3337 JKA IAP GULF SHORES INTL/JACK EDWARDS FLD, GULF SHORES, AL.
ILS OR LOC RWY 27, AMDT 1B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
NUN VOR UNMONITORED. 2605271827-2701061827EST
4/29/26
1501Z
!FDC 6/6824 JKA IAP GULF SHORES INTL/JACK EDWARDS FLD, GULF SHORES, AL. ILS OR LOC RWY 27, AMDT 1B... S-ILS 27 DA 387/HAT 370 ALL CATS, VIS ALL CATS 1. S-LOC 27 VIS ALL CATS 1. CIRCLING MDA CATS A/B 580/HAA 563. GEVBE FIX MINIMUMS: S-LOC 27 MDA 440/HAT 423 ALL CATS, VIS ALL CATS 1. CIRCLING MDA CATS A/B 580/HAA 563. VDP NA. RWY 27 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA. CHANGE NOTES TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE PENSACOLA INTL ALTIMETER SETTING AND INCREASE DA TO 465 FEET; INCREASE ALL MDAS 80 FEET; INCREASE S-LOC 27 VISIBILITY CATS C AND D 3/8 SM; INCREASE ALL CIRCLING VISIBILITY CAT C AND D 1/4 SM. GEVBE FIX MINIMUMS: FOR INOP ALS, INCREASE S-LOC VISIBILITY CATS C AND D TO 1 1/4 SM. PENSACOLA INTL ALTIMETER SETTING MINIMUMS: FOR INOP ALS, INCREASE S-ILS 27 VISIBILITY ALL CATS TO 1 3/8 SM, INCREASE S-LOC 27 VISIBILITY CATS C AND D TO 1 3/4 SM; INCREASE GEVBE FIX MINIMUMS S-LOC 27 VISIBILITY CATS C AND D TO 1 3/8 SM. TEMPORARY CRANES UP TO 265 MSL 4964FT SW OF JKA AIRPORT (2024-ASO-16982/16983-OE). 2604291501-2610161501EST
4/29/26
1501Z
!FDC 6/6822 JKA IAP GULF SHORES INTL/JACK EDWARDS FLD, GULF SHORES, AL.
RNAV (GPS) RWY 27, AMDT 2B...
LPV DA 387/HAT 370 ALL CATS, VIS ALL CATS 1. LNAV MDA 440/HAT 423 ALL CATS, VIS ALL CATS 1. CIRCLING MDA CATS A/B 580/HAA 563. VDP NA. RWY 27 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA. CHANGE NOTES TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE PENSACOLA INTL ALTIMETER SETTING AND INCREASE LPV DA TO 465 FEET; INCREASE LNAV/VNAV DA TO 559 FEET AND ALL VISIBILITIES 1/4 SM; INCREASE ALL MDAS 80 FEET AND VISIBILITY CATS C AND D 1/4 SM. FOR INOP ALS, INCREASE LNAV CAT C/D VISIBILITY TO 1 1/4 SM. FOR INOP ALS, WHEN USING PENSACOLA INTL ALTIMETER SETTING MINIMUMS, INCREASE LPV ALL CATS VISIBILITY TO 1 3/8 SM, INCREASE LNAV CATS C/D VISIBILITY TO 1 3/8 SM. TEMPORARY CRANES UP TO 265 MSL 4964FT SW OF JKA AIRPORT (2024-ASO-16982/16983-OE).
2604291501-2610161501EST
4/29/26
1501Z
!FDC 6/6821 JKA IAP GULF SHORES INTL/JACK EDWARDS FLD, GULF SHORES, AL.
RNAV (GPS) RWY 9, AMDT 3C...
LNAV/VNAV DA 410/HAT 394 ALL CATS, VIS ALL CATS 1 1/8. LNAV MDA 500/HAT 484 ALL CATS, VIS CATS C/D 1 3/8. CIRCLING MDA CATS A/B 580/HAA 563. VDP NA. CHANGE NOTE TO READ: INCREASE LNAV/VNAV DA TO 488 FEET AND ALL VISIBILITIES 1/4 SM. TEMPORARY CRANES UP TO 265 MSL 3956FT SW OF RWY 9 (2024-ASO-16982/16983-OE).
2604291501-2610161501EST
9/10/25
1559Z
!FDC 5/1162 JKA IAP GULF SHORES INTL/JACK EDWARDS FLD, GULF SHORES, AL.
RNAV (GPS) RWY 27, AMDT 2B...
RNAV (GPS) RWY 9, AMDT 3C...
CIRCLING CAT B MDA 540/HAA 523.
2509101559-2709101559EST
9/10/25
1556Z
!FDC 5/1161 JKA IAP GULF SHORES INTL/JACK EDWARDS FLD, GULF SHORES, AL.
ILS OR LOC RWY 27, AMDT 1B...
GEVBE FIX MINIMUMS: CIRCLING CAT B MDA 540/HAA 523.
2509101556-2709101556EST
Yes
0600-2200
AFT HRS SVC CALL (251) 968-5200.
GULF SHORES AIRPORT AUTHORITY
PO BOX 919
GULF SHORES, AL 36547
Phone: 251-967-3968
JESSE FOSNAUGH
PO BOX 919
GULF SHORES, AL 36547
Phone: 251-967-3968
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
WHEN ATCT CLSD ACTVT MALSR RWY 27; PAPI RWYS 09, 27, 17 & 35; HIRL RWY 09/27; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

6962 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

80,000lbs
100,000lbs
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern
Markings NPI PIR
Markings Condition FAIR GOOD
Latitude 30° 17' 25"N 30° 17' 25"N
Longitude 87° 40' 49"W 87° 39' 29"W
Elevation 16' 16'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 17/35

3596 ft. x 75 ft.
ASPH
Good
NONE
MED
23/F/B/X/T
80,000lbs
100,000lbs
--
--
  Runway 17 Runway 35
True Heading 175°355°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 30° 17' 36"N 30° 17' 00"N
Longitude 87° 40' 38"W 87° 40' 35"W
Elevation 17' 11'
Threshold Crossing Height 48 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3.63° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10ACR OPNS INVOLVING ACFT WITH MORE THAN 9 PAX SEATS ARE NA IN EXCESS OF 15 MINS BFR OR AFT SKED ARR OR DEP TIMES WO PRIOR CDN WITH ARPT MGMT OR THE ARPT SAFETY DEPT AND CFM THAT ARFF SVCS ARE AVBL PRIOR TO LDG OR TKOF. UNSKED ACR OPNS WITH MORE THAN 30 PAX SEATS SHOULD CTC AMGR (251) 967-3968.
A110-2EXTSV BANNER TOWING, HEL AND PARA-SAIL OPS ALONG COASTLINE 15 NM MILES W TO 20 NM E OF GULF SHORES/ORANGE BEACH, AND 15 NM WSW TO 20 NM ESE OF JKA.
A110-4CAUTION: HOP AT OR BLW 300 FT MSL WI 1 NM OF JKA WHEN LNDG/DEP HELIPAD LCTD 1.6 NM E, DIRECTLY UNDER RWY 27 FINAL. NOLF BARIN LCTD 6 MILES NE OF AP MAY BE MISTAKEN FOR JACK EDWARDS NTL AP. HI VOL OF MIL TFC WILL BE OPRG IN THE BARIN FIELD TFC PAT FROM SFC TO 3000 FT AGL.
A110-9FREQ 122.7 FOR UNICOM USE ONLY.
A17-M6AFT HRS SVC CALL (251) 968-5200.
A26-CINDEX B AVAILABLE UPON REQUEST CTC ARPT MGMT 850-501-5257.
A39-09/27PCR VALUE: 440/F/B/X/T
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 27; PAPI RWYS 09, 27, 17 & 35; HIRL RWY 09/27; MIRL RWY 17/35 - CTAF.
GULF SHORES INTL/JACK EDWARDS FLD (ICAO: KJKA, IATA: JKA) is a public airport located in GULF SHORES, AL, US.
