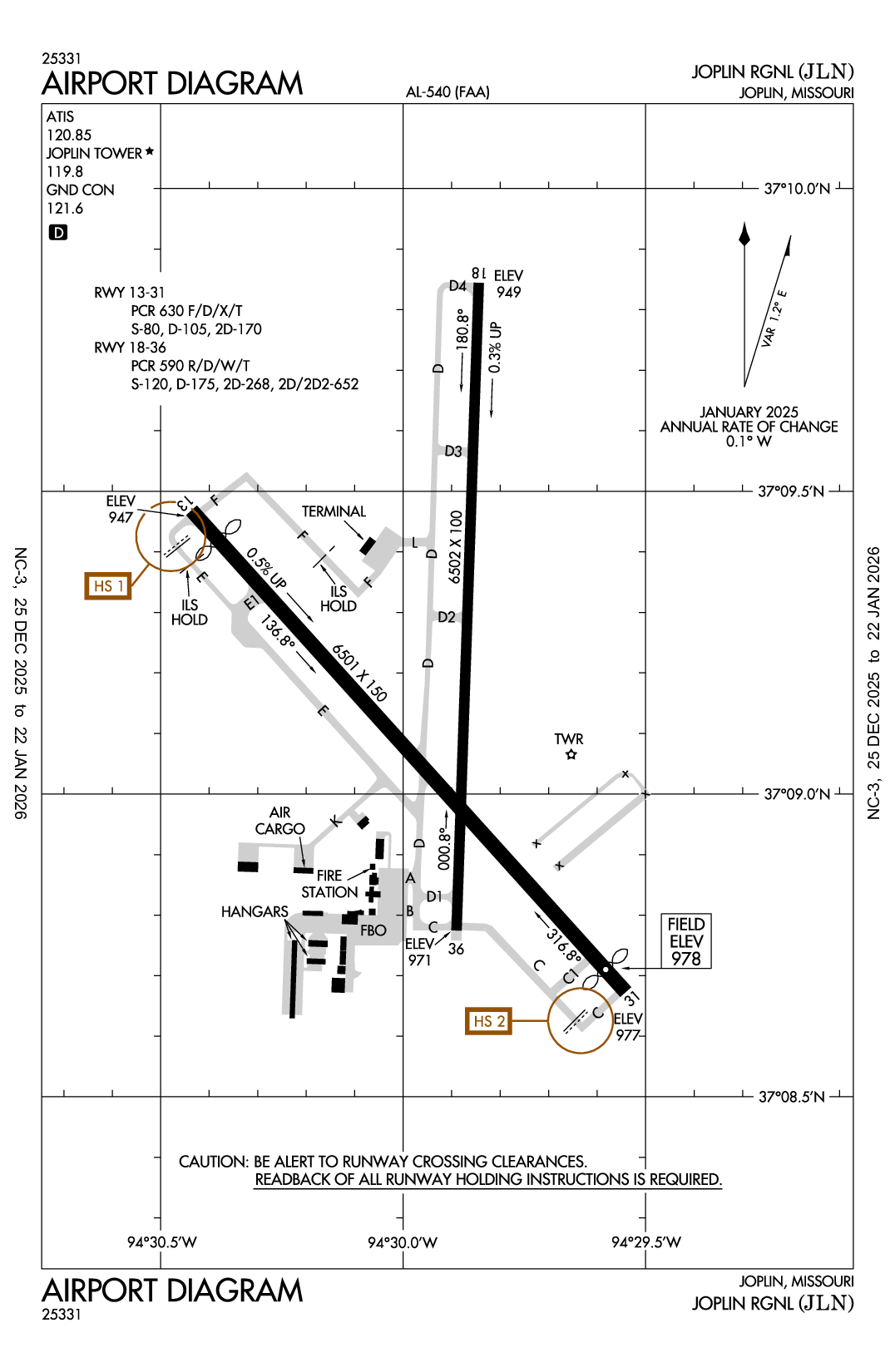

JOPLIN RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJLN
ICAO KJLNIATA JLNLocal JLN
JOPLIN RGNL
PublicPUB

4 miles N of JOPLIN, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 09' 11"N 94° 29' 56"W
Elevation
978' MSL
Pattern Alt
1978' MSL
Mag Variation
1°E
Declination
4°E
Fuel
JET A, 100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
9/3/26-10/1/26
KJLN VFR
6:53 PM CDT
Clear
10sm
74°F
64°F
30.01"Hg
010° 5kts
AO2 SLP152 60000 T02330178 10256 20233 56008
METAR KJLN 212353Z 01005KT 10SM CLR 23/18 A3001 RMK AO2 SLP152 60000 T02330178 10256 20233 56008
+ Add Your Business

KJLN FBOs

Promote Listing
Mizzou Aviation
UNICOM: 122.95
Phone: (417) 623-1331
Fax: (417) 782-6283
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 9/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.99
Full Serve 6.99 6.75
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.85
ASOS (417) 623-8892

Common

CTAF 119.8
WHEN ATCT CLSD ACTVT MALSF RWY 13; ODALS RWY 31; PAPI RWY 18; HIRL RWY 13/31 - CTAF. MALSR RWY 18; PAPI RWY 31; HIRL RWY 18/36 - OPR DUSK-DAWN.
UNICOM 122.95

Ground

JOPLIN GROUND 121.6
0600-2100

Tower

JOPLIN TOWER 119.8
0600-2100

Center

KANSAS CITY CENTER 128.6
LOW, APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQS 128.6/282.325 (EDNA RCAG).

Terminal Area Forecast

KJLN
Mon, 9/21 6:20 PM CDT
Mon, 9/21 7:00 PM CDT - Tue, 9/22 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 AM CDT
Overcast 10,000'
Broken 4,000'
6sm
350° 6kts
MVFR
1:00 AM CDT - 4:00 AM CDT
Overcast 2,500'
Scattered 1,000'
6sm
010° 4kts
IFR
4:00 AM CDT - 10:00 AM CDT
Overcast 1,500'
Broken 700'
6sm
020° 6kts
MVFR
10:00 AM CDT - 1:00 PM CDT
Overcast 2,500'
Scattered 1,000'
6sm
030° 7kts
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 5,000'
Few 2,500'
6sm
020° 10kts
TAF KJLN 212320Z 2200/2224 35006KT P6SM BKN040 OVC100
   FM220600 01004KT P6SM SCT010 OVC025
   FM220900 02006KT P6SM BKN007 OVC015
   FM221500 03007KT P6SM SCT010 OVC025
   FM221800 02010KT P6SM FEW025 BKN050
KJLN
EffectiveExpiresCategoryNOTAM
Domestic
9/21/26
1955Z
9/23/26
2300Z
Runway!JLN 09/039 JLN RWY 13/31 CLSD 2609211955-2609232300
9/21/26
1930Z
9/24/26
2000Z
Runway!JLN 09/038 JLN RWY 31 PAPI U/S 2609211930-2609242000
9/21/26
1930Z
9/24/26
2000Z
Runway!JLN 09/037 JLN RWY 31 ALS U/S 2609211930-2609242000
9/21/26
1923Z
9/24/26
2000Z
Runway!JLN 09/036 JLN RWY 13 ALS U/S 2609211923-2609242000
9/21/26
1923Z
9/24/26
2000Z
!JLN 09/035 JLN NAV ILS RWY 13 U/S 2609211923-2609242000
9/21/26
0600Z
9/21/26
1000Z
!JLN 09/019 JLN NAV ILS RWY 13 GP/LOC NOT MNT 2609210600-2609211000
9/21/26
0436Z
10/6/26
0336Z
!JLN 09/033 JLN OBST TOWER LGT (ASR 1243124) 371002.30N0943424.70W (3.7NM WNW JLN) 1132.9FT (270.0FT AGL) U/S 2609210436-2610060336
9/21/26
0210Z
10/6/26
0110Z
!JLN 09/032 JLN OBST TOWER LGT (ASR 1230774) 371449.70N0943509.10W (7.0NM NW JLN) 1188.0FT (307.1FT AGL) U/S 2609210210-2610060110
9/21/26
0034Z
10/5/26
2334Z
!JLN 09/031 JLN OBST TOWER LGT (ASR 1243123) 370941.80N0942051.70W (7.3NM E JLN) 1362.9FT (319.9FT AGL) U/S 2609210034-2610052334
9/20/26
2214Z
1/18/27
2214Z
!JLN 09/030 JLN OBST TOWER LGT (ASR 1216279) 371558.30N0941723.50W (12.1NM NE JLN) 1297.2FT (345.1FT AGL) U/S 2609202214-2701182214
9/17/26
2307Z
11/17/26
2301Z
!JLN 09/029 JLN OBST TOWER LGT (ASR 1266277) 370603.00N0942056.00W (7.8NM ESE JLN) 1314.0FT (254.9FT AGL) U/S 2609172307-2611172301
9/12/26
1800Z
11/12/26
2359Z
!JLN 09/018 JLN OBST TOWER LGT (ASR 1048320) 370512.00N0944003.00W (9.0NM WSW JLN) 1216.9FT (355.0FT AGL) U/S 2609121800-2611122359
9/10/26
2058Z
10/25/26
2057Z
!JLN 09/014 JLN OBST TOWER LGT (ASR 1249650) 365954.00N0942835.80W (9.3NM S JLN) 1353.0FT (265.1FT AGL) U/S 2609102058-2610252057
9/5/26
0712Z
10/20/26
0711Z
!JLN 09/010 JLN OBST TOWER LGT (ASR 1007604) 370115.00N0943224.00W (8.2NM SSW JLN) 1568.6FT (498.7FT AGL) U/S 2609050712-2610200711
9/5/26
0126Z
9/30/26
1200Z
Runway!JLN 09/009 JLN RWY 13/31 CLSD TO AIR CARRIERS DLY SS-SR 2609050126-2609301200
8/28/26
1340Z
!JLN 08/026 JLN NAV ILS RWY 13 OM U/S 2608281340-2711232000EST
8/5/26
2144Z
10/6/26
2142Z
!JLN 08/011 JLN AD AP WINDCONE FOR RWY 18 LGT U/S 2608052144-2610062142
7/30/26
1720Z
10/30/26
2359Z
!JLN 07/046 JLN OBST TOWER LGT (ASR 1063172) 370308.00N0944227.00W (11.7NM WSW JLN) 1228.0FT (413.1FT AGL) U/S 2607301720-2610302359
5/12/26
1850Z
1/27/27
2200Z
!JLN 05/036 JLN TWY D HLDG PSN SIGN SOUTH SIDE LGT U/S 2605121850-2701272200
5/7/26
1715Z
1/31/27
1746Z
!JLN 05/025 JLN TWY E HLDG PSN SIGN FOR ILS LGT U/S 2605071715-2701311746
4/1/26
1309Z
1/31/27
1309Z
!JLN 04/029 JLN TWY D1 HLDG PSN SIGN FOR RWY 18/36 NOT STD 2604011309-2701311309
4/1/26
1305Z
1/31/27
1304Z
!JLN 04/026 JLN TWY E1 HLDG PSN SIGN FOR RWY 13/31 NOT STD 2604011305-2701311304
4/1/26
1303Z
1/31/27
1301Z
!JLN 04/024 JLN TWY C1 HLDG PSN SIGN FOR RWY 13/31 NOT STD 2604011303-2701311301
4/1/26
1238Z
1/31/27
1237Z
!JLN 04/017 JLN TWY F HLDG PSN SIGN FOR APCH END RWY 13 LGT U/S 2604011238-2701311237
3/31/26
1802Z
1/31/27
1801Z
!JLN 03/048 JLN TWY C HLDG PSN SIGN FOR APCH END RWY 31 LGT U/S 2603311802-2701311801
3/31/26
1800Z
1/31/27
1759Z
!JLN 03/046 JLN TWY C HLDG PSN SIGN FOR APCH END RWY 36 LGT U/S 2603311800-2701311759
3/31/26
1754Z
1/31/27
1754Z
!JLN 03/042 JLN TWY D1 HLDG PSN SIGN FOR RWY 18/36 LGT U/S 2603311754-2701311754
3/31/26
1752Z
1/31/27
1752Z
!JLN 03/040 JLN TWY D HLDG PSN SIGN NORTH SIDE FOR RWY 13/31 LGT U/S 2603311752-2701311752
Yes
0500-0000
CITY OF JOPLIN
602 S. MAIN STREET
JOPLIN, MO 64802
Phone: 417-624-0820
MS. ALLISON ZAHNER
7331 STATE HWY 43
JOPLIN, MO 64801
Phone: 417-623-0262
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
JLN
--
WHEN ATCT CLSD ACTVT MALSF RWY 13; ODALS RWY 31; PAPI RWY 18; HIRL RWY 13/31 - CTAF. MALSR RWY 18; PAPI RWY 31; HIRL RWY 18/36 - OPR DUSK-DAWN.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 13/31

6501 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

80,000lbs
105,000lbs
170,000lbs
--
  Runway 13 Runway 31
True Heading 138°318°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition FAIR FAIR
Latitude 37° 09' 28"N 37° 08' 40"N
Longitude 94° 30' 26"W 94° 29' 33"W
Elevation 947' 977'
Threshold Crossing Height -- 47 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSF ODALS
Centerline Lights
Runway End Identifier Lights

Runway 18/36

6502 ft. x 100 ft.
CONC
Excellent
GRVD
HIGH

120,000lbs
175,000lbs
268,000lbs
652,000lbs
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 37° 09' 51"N 37° 08' 46"N
Longitude 94° 29' 51"W 94° 29' 53"W
Elevation 949' 971'
Threshold Crossing Height 46 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1BIRDS ON & INVOF ARPT SPRING & FALL.
A110-2PPR 48 HRS FOR ACFT CARRYING HAZARDOUS OR EXPLOSIVE CARGO.
A110-3FOR CD WHEN ATCT CLSD CTC KANSAS CITY ARTCC AT 913-254-8508.
A26PPR 48 HRS FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 417-623-0262.
A39-13/31PCR VALUE: 630/F/D/X/T
A39-18/36PCR VALUE: 590/R/D/W/T
A57-13APCH RATIO FROM DSPLCD THR 33:1
A57-31APCH RATIO FROM DSPLCD THR 32:1
A81-APTWHEN ATCT CLSD ACTVT MALSF RWY 13; ODALS RWY 31; PAPI RWY 18; HIRL RWY 13/31 - CTAF. MALSR RWY 18; PAPI RWY 31; HIRL RWY 18/36 - OPR DUSK-DAWN.
JOPLIN RGNL (ICAO: KJLN, IATA: JLN) is a public airport located in JOPLIN, MO, US.
