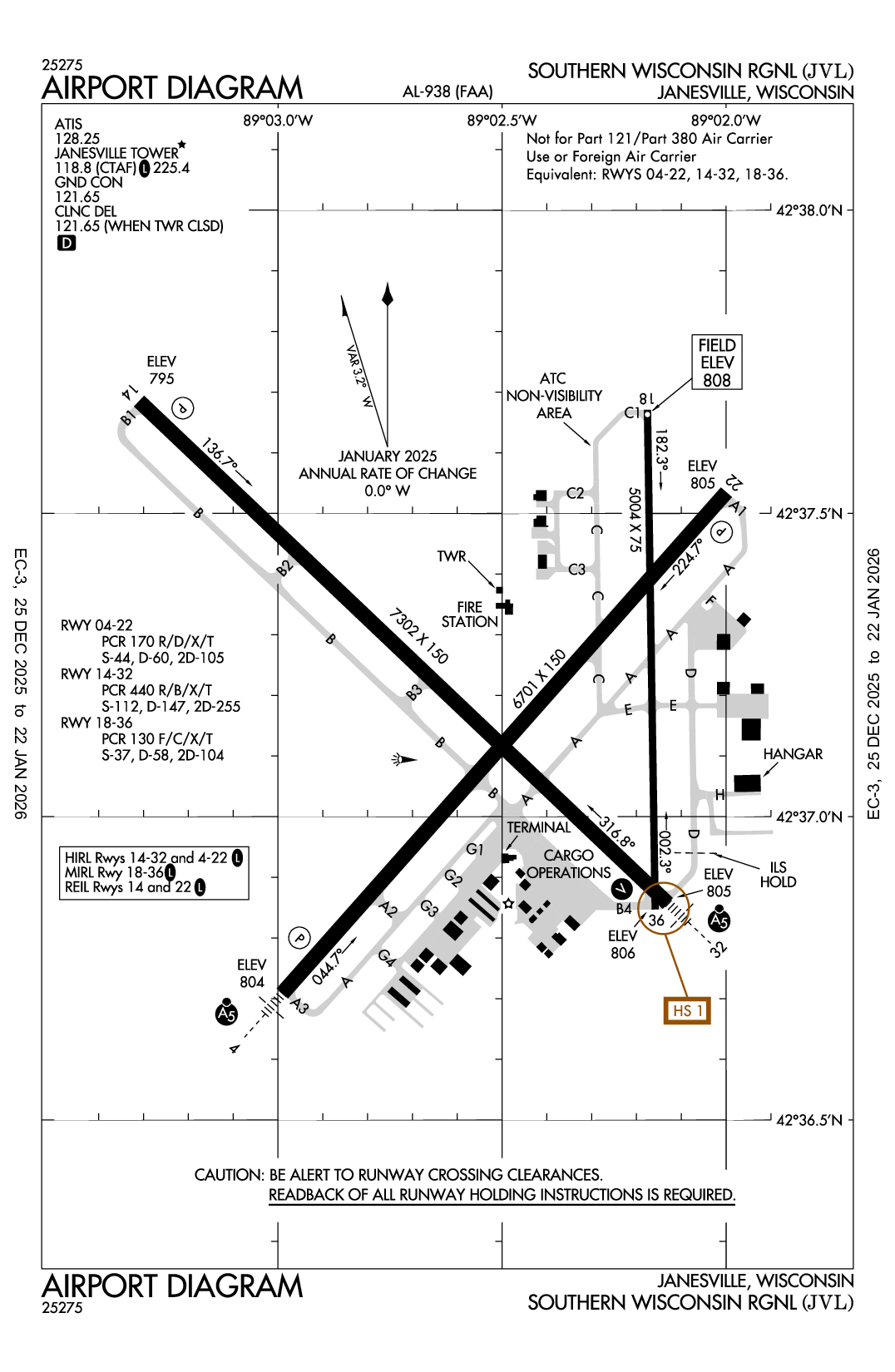

SOUTHERN WISCONSIN RGNL - Airport Diagram

KJVL

ICAO KJVLIATA JVLLocal JVL

SOUTHERN WISCONSIN RGNL

PublicPUB

3 miles SW of JANESVILLE, WI, US

View on Map

Status

Operational

Coordinates

42° 37' 13"N 89° 02' 30"W

Elevation

808' MSL

Pattern Alt

1808' MSL

Mag Variation

3°W

Declination

2°W

Fuel

JET A, 100LL

FSS

GREEN BAY (GRB)

Sectional

CHICAGO

ARTCC

CHICAGO (ZAU)

Data Effective

9/3/26-10/1/26

KJVL MVFR

12:45 PM CDT RAW

Overcast 4,200'
Broken 3,000'

Viz

10sm

Temp

81°F

Dew

70°F

Pres

29.87"Hg

Wind

260° 10kts

METAR KJVL 121745Z 26010KT 10SM BKN030 OVC042 27/21 A2987

Add Your Business

KJVL FBOs

Promote Listing

SC Aviation

UNICOM: 122.95

Phone: (608) 758-1037

0 Reviews (Read | Sign In To Write)

Avfuel

As of 9/8	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.27
Full Serve	7.32	8.30	8.46

Fuel Notes

Prices include tax

Fuel Hours

Hours of operation Monday through Sunday 08:00 until 17:00. Before or after-hours operation available upon request @ $250 per every two hours per Line Tech. Holiday Callout Fee $300 per every two hours, per Line Tech.

Your Information

Business

Weather and Advisory

ATIS	128.25
AWOS-3	(608) 758-1723

Common

CTAF	118.8
ACTVT MALSR RWY 04 & 32; REIL RWY 14 & 22; VASI RWY 32; HIRL RWY 04/22 & 14/32; MIRL RWY 18/36 - CTAF. WHEN ATCT CLSD HIRL RWY 04/22 PRESET TO LOW INTST; INCR INTST - CTAF. PAPI RWY 04, 14, & 22 OPR CONSLY.
UNICOM	122.95

Clearance

Clearance Delivery	121.65
Clearance Delivery	121.65
WHEN TWR CLSD

Ground

JANESVILLE GROUND	121.65
0600-2100

Tower

JANESVILLE TOWER	118.8
0600-2100

Approach

ROCKFORD APPROACH

121.0

Departure

ROCKFORD DEPARTURE

121.0

Emergency

121.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Hotspot

HOT SPOT

Terminal Area Forecast

KJVL

RAW

Reported

Sat, 9/12 12:52 PM CDT

Valid

Sat, 9/12 1:00 PM CDT - Sun, 9/13 1:00 PM CDT

MVFR

1:00 PM CDT - 3:00 PM CDT

Broken 3,000'

Viz

6sm

Wind

270° 10kts

MVFR

3:00 PM CDT - 4:00 PM CDT

Broken 2,700'

Viz

6sm

Wind

290° 9kts

VFR

4:00 PM CDT - 1:00 AM CDT

Scattered 2,700'

Viz

6sm

Wind

310° 8kts

VFR

1:00 AM CDT - 10:00 AM CDT

Scattered 9,000'

Viz

6sm

Wind

Calm

VFR

10:00 AM CDT - 12:00 PM CDT

Scattered 15,000'

Viz

6sm

Wind

350° 6kts

VFR

12:00 PM CDT - 1:00 PM CDT

Broken 12,000'

Viz

6sm

Wind

340° 8kts

TAF KJVL 121752Z 1218/1318 27010KT P6SM BKN030
   FM122000 29009KT P6SM BKN027
   FM122100 31008KT P6SM SCT027
   FM130600 00000KT P6SM SCT090
   FM131500 35006KT P6SM SCT150
   FM131700 34008KT P6SM BKN120

KJVL

Effective	Expires	NOTAM
Domestic
9/11/26 2050Z	9/18/26 2200Z	!JVL 09/005 JVL AD AP SELF SERVE FUEL NOT AVBL 2609112050-2609182200
8/31/26 1745Z		!JVL 08/066 JVL NAV ILS RWY 32 LOC NOT MNT 2608311745-2609182000EST
8/16/26 1656Z	12/14/26 1656Z	!JVL 08/023 JVL OBST TOWER LGT (ASR 1255196) 424142.90N0885706.40W (6.0NM NE JVL) 1129.9FT (266.1FT AGL) U/S 2608161656-2612141656
8/7/26 1714Z	9/21/26 1713Z	!JVL 08/015 JVL OBST TOWER LGT (ASR 1054657) 424154.10N0885122.80W (9.4NM ENE JVL) 1203.1FT (253.0FT AGL) U/S 2608071714-2609211713
4/1/26 2000Z		!JVL 03/055 JVL NAV ILS RWY 04 OM U/S 2604012000-2711162111EST
FDC
9/24/25 1525Z		!FDC 5/9746 JVL IAP SOUTHERN WISCONSIN RGNL, JANESVILLE, WI. ILS OR LOC RWY 4, AMDT 13... S-LOC 4 VIS CAT C 1 1/4. 2509241525-2709241525EST

ATC Tower

Yes

Attendance

0700-1530
CONDS UNMNT MON-FRI 1530-0700, WKEND & FED HOL.

Owner

ROCK COUNTY
51 SOUTH MAIN ST
JANESVILLE, WI 53545
Phone: 608-757-5768

Manager

AIMEE SCRIMA
1716 W. AIRPORT RD
JANESVILLE, WI 53546
Phone: 608-757-5768

FSS

GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF

NOTAM

JVL

Light Schedule

Lights

ACTVT MALSR RWY 04 & 32; REIL RWY 14 & 22; VASI RWY 32; HIRL RWY 04/22 & 14/32; MIRL RWY 18/36 - CTAF. WHEN ATCT CLSD HIRL RWY 04/22 PRESET TO LOW INTST; INCR INTST - CTAF. PAPI RWY 04, 14, & 22 OPR CONSLY.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

Dimensions

6701 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

44,000lbs

Double Wheel

60,000lbs

Double Tandem

105,000lbs

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	42°	222°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	42° 36' 43"N	42° 37' 32"N
Longitude	89° 02' 59"W	89° 01' 60"W
Elevation	804'	805'
Threshold Crossing Height	54 ft. AGL	45 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR
Centerline Lights	No	No
Runway End Identifier Lights	No	Yes

Runway 14/32

Dimensions

7302 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

112,000lbs

Double Wheel

147,000lbs

Double Tandem

255,000lbs

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	134°	314°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	FAIR	GOOD
Latitude	42° 37' 41"N	42° 36' 51"N
Longitude	89° 03' 19"W	89° 02' 08"W
Elevation	795'	805'
Threshold Crossing Height	55 ft. AGL	51 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	V4L
Approach Lights		MALSR
Centerline Lights	No	No
Runway End Identifier Lights	Yes	No

Runway 18/36

Dimensions

5004 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

37,000lbs

Double Wheel

58,000lbs

Double Tandem

104,000lbs

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	179°	359°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	FAIR	FAIR
Latitude	42° 37' 40"N	42° 36' 51"N
Longitude	89° 02' 10"W	89° 02' 09"W
Elevation	808'	806'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-5	LGT SPORT ACFT WITH CRUISE SPEED OF 60 MPH OR LESS ENTER TFC PAT AT 500 AGL.
A110-6	WRONG RWY DEP RISK. RWY 32 AND RWY 36. RWY THLDS IN CLOSE PROXIMITY.
A17-D1	CONDS UNMNT MON-FRI 1530-0700, WKEND & FED HOL.
A30-04/22	RWY 04/22 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. 90 DAY PPR FOR UNSKED ACR OPS GTR THAN 30 PAX SEATS - AMGR.
A30-14/32	RWY 14/32 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. 90 DAY PPR FOR UNSKED ACR OPS GTR THAN 30 PAX SEATS - AMGR.
A30-18/36	RWY 18/36 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. 90 DAY PPR FOR UNSKED ACR OPS GTR THAN 30 PAX SEATS - AMGR.
A37-04/22	APRONS & RAMPS RSTD TO 155 DTW GROSS WT.
A39-04/22	PCR VALUE: 170/R/D/X/T
A39-14/32	PCR VALUE: 440/R/B/X/T
A39-18/36	PCR VALUE: 130/F/C/X/T
A81-APT	ACTVT MALSR RWY 04 & 32; REIL RWY 14 & 22; VASI RWY 32; HIRL RWY 04/22 & 14/32; MIRL RWY 18/36 - CTAF. WHEN ATCT CLSD HIRL RWY 04/22 PRESET TO LOW INTST; INCR INTST - CTAF. PAPI RWY 04, 14, & 22 OPR CONSLY.

SOUTHERN WISCONSIN RGNL (ICAO: KJVL, IATA: JVL) is a public airport located in JANESVILLE, WI, US.
